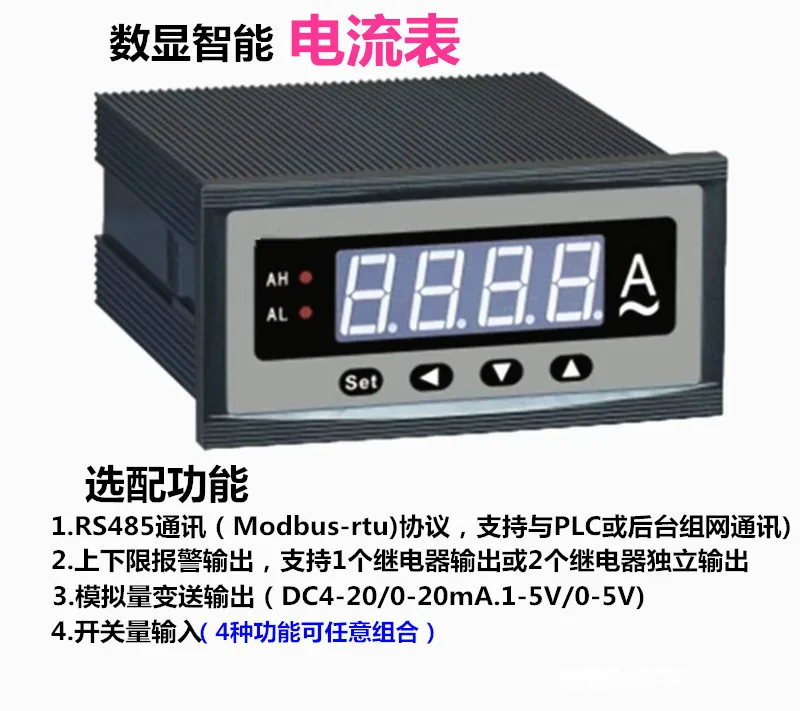

TYPE 1 with 1 analog transmission output
TYPE 2 with 1 low limit alarm
TYPE 3 with 2 independent alarm outputs
TYPE 4 with RS485 communication
TYPE 5 1 way alarm + 1 way transmission
TYPE 6 2 way alarm + 1 way transmission
TYPE 7 1 way alarm + 485 communication
TYPE 8 2-way alarm +485 communication
TYPE 9 1 way transmission + RS485 communication
TYPE 10 1 way RS485+1 road alarm +1 road transmission
TYPE 11 RS485+2 way switch input
TYPE 12 working voltage: DC24V

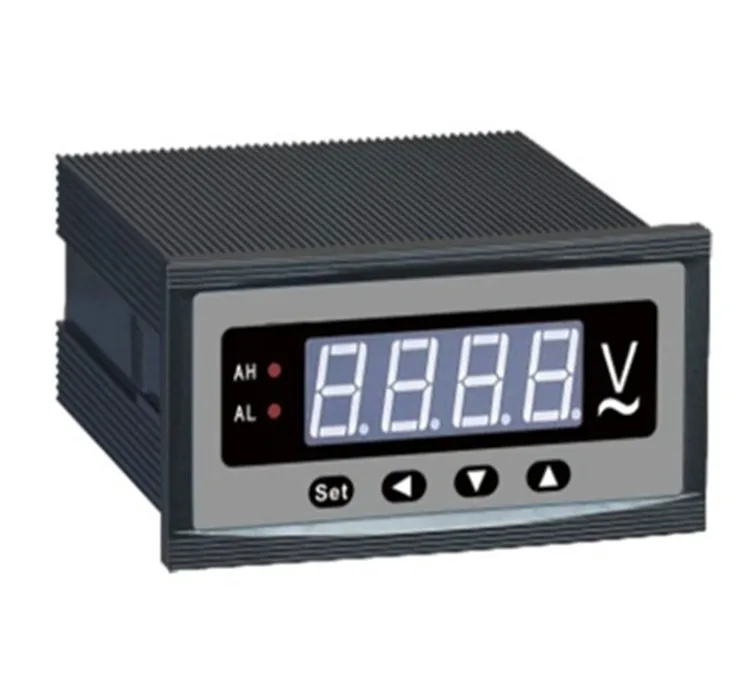

TYPE 13 voltmeter (measured only)

\
\

\
\

Operating instructions for HY19 series voltmeters and ammeters v15.1
overview
HY19 series voltmeter and ammeter are used for single voltage and current measurement and display in electrical circuits, and can be added with switch input D1.Alarm (switch output D0), analog transmission, RS485 communication and other output functions.
 Model definition

Technical parameters
3.1 measuring range (sustainable overload: 1.2 times, please specify other measuring ranges when ordering)
3.1.1 direct measurement of AC voltmeter: AC 0-100v. External transformer of AC 0-500v: AC */100V
3.1.2 direct measurement of Dc voltmeter: Dc 0~±500v
3.1.3 direct measurement of AC ammeter: AC0 ~1A, and external transformers of ac0-5a: AC */1A,AC */5AExternal shunt: DC */75mV
3.1.4 direct measurement of DC ammeter: DC 0~±5A
3.2 ac input signal frequency: 45~65H2
3.3 power consumption of input loop: < 0.5va
3.4 measurement method: true effective value
3.5 sampling rate: AC 2.5 times /s, DC 1.5 times /s
3.6 accuracy level: 0.5
3.7 switch input D1: passive contact
3.8 relay output: contact capacity 2A/250VAC, 2A/30DC, resistive load
3.9 output of analog quantity: output linearity <0.5%; Current output load resistance <300Q, voltage output load resistance 21kQ;Electrical isolation from signal input and auxiliary power supply
3.10 communication interface: RS485 serial communication, using modbus-rtu communication protocol
3.11 auxiliary power supply: AC/DC 85~264V 50/60hz power consumption <5VA (please specify other auxiliary power when ordering)
3.12 working environment: non-corrosive occasions where the temperature is -10~50℃ and the humidity is <85%RH
 Installation and wiring
4.1 appearance and installation opening size (unit: mm)

4.2 installation method
According to the appearance of the instrument, select the corresponding installation opening size in the above table, open a hole in the installation screen, insert the instrument into the installation hole, put the two clamping parts into the clamping groove of the instrument shell, and push them tightly by hand.
4.3 terminal arrangement and wiring instructions (subject to the wiring diagram on the instrument shell)

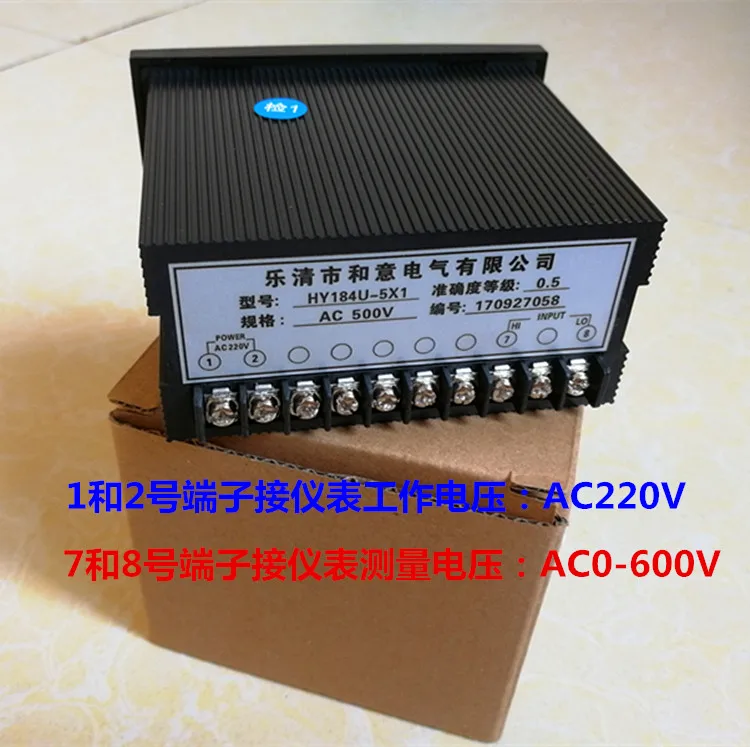

POWER: instrument auxiliary POWER INPUT port (AC/DC 85-264v, 50/60hz)
INPUT port: measurement signal INPUT port (H1 for DC INPUT +, L0 for -)
COM, DIx (x for 1-4): common end of switch INPUT, x INPUT end

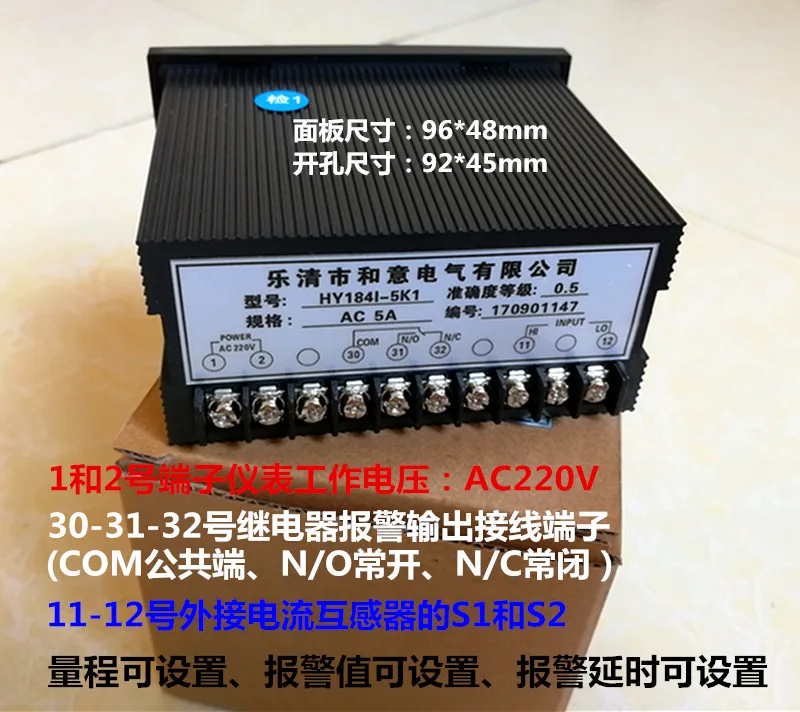

COM, N/O,N/C: common end, normal start, normally closed end of relay output
+, -: + end and one end of analog quantity transformer output

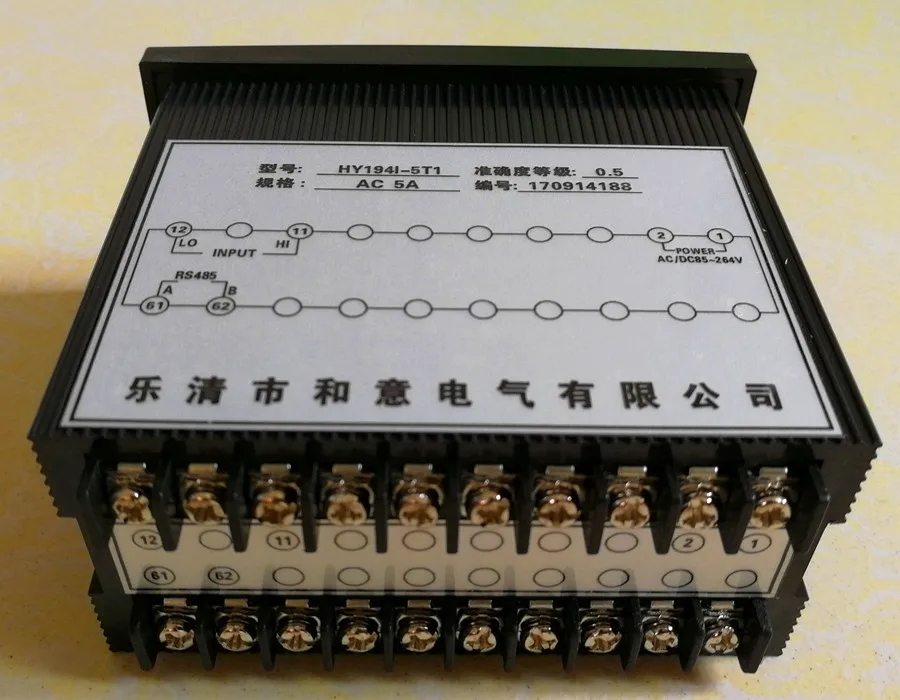

A. B: A terminal and B terminal of RS485 interface
 programming and use
5.1 key description
E setting key: in the measurement value display mode, press and hold the key 2s to enter the main menu programming mode (menu codE=0 to directly enter, otherwiseYou need to enter the programming password to enter).In programming mode, press this button to switch to the next menu, and continue to press this button 2s to exit programming mode.
G left shift key: in the measurement value display mode, continue to hold down the key 2s to enter the output menu programming mode (menu code-0 directly enters,Otherwise, you need to enter the programming password to enter).In programming mode, press this key to move the cursor one bit to the left.
Y decrease key: in measurement display mode, press and hold this key for 2s to display software version numberIn programming mode, press this key to decrement the value of menu parameters.When the 2-way relay is installed in the instrument, continue to hold down the key 2s to release the AL alarm lock.
A add key: in programming mode, press this key to increment the value of menu parameters.When the 1-way relay is installed in the meter, press and hold the button 2s continuously to release the alarm lock.When the 2-way relay is installed in the meter, press and hold the button 2s continuously to release AH alarm lock.When the alarm lock displays, continue to hold down the key 2s, the meter will reset and restart.In programming mode, no button pressing after 120s will automatically return to the measurement value display mode.
Matters needing attention
7.1 before power, please confirm again whether the auxiliary power supply, input signal and wiring of the instrument are correct.
7.2 please configure the instrument menu parameters according to the actual situation before use.
7.3 the meter shall be preheated for 15 minutes during measurement verification.
7.4 the instrument shall not be subjected to knock, collision and violent vibration, and the operating environment shall meet the technical requirements.
7.5 if you forget the programming password, you can use "5643" to enter.
Packaging and storage
The instruments and accessories should be stored in a ventilated and dry place under the packing condition, avoid being corroded by moisture and corrosive gases, the maximum storage temperature should not exceed +70℃, the minimum storage temperature should not be lower than -40℃, and the relative humidity should be less than 85%RH.

'
