1PC Hydraulic Mechanical Punch Machine CKJ-21 Cross - Arm Drilling

Tower Angle Punch Hole Machine Hydraulic Punching Tools

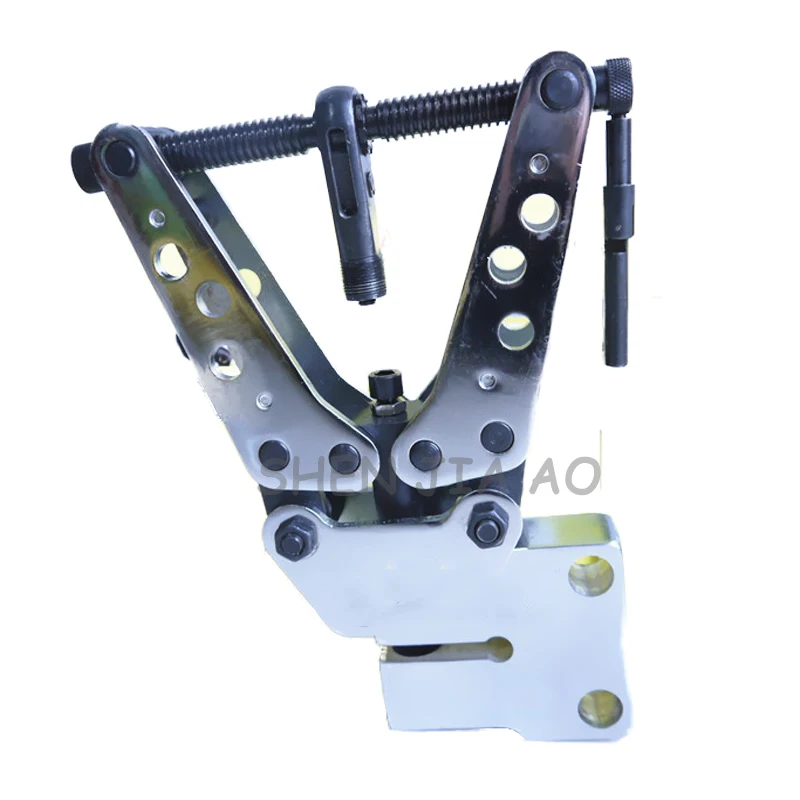

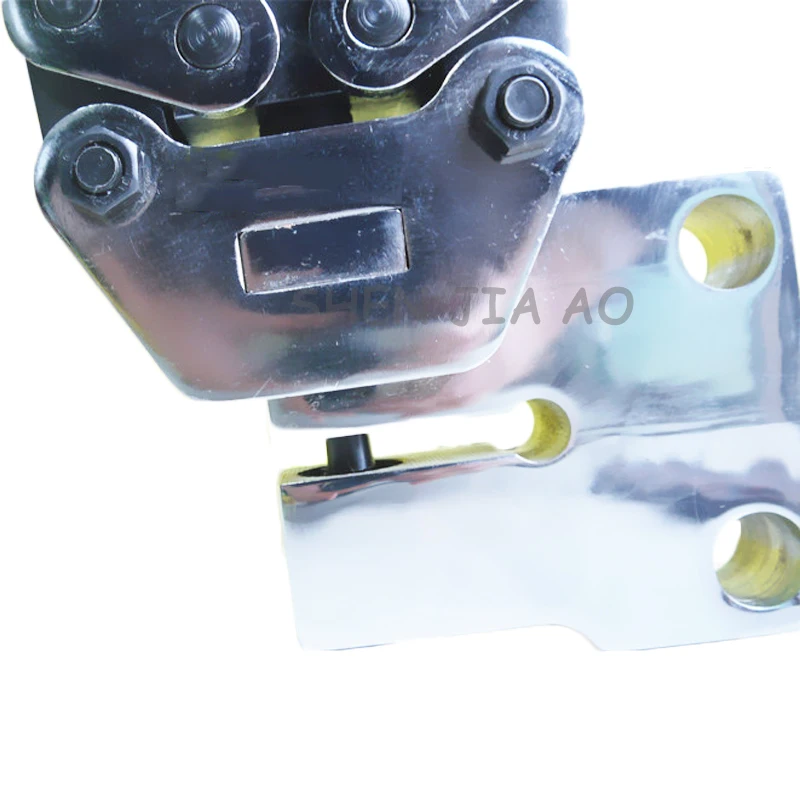

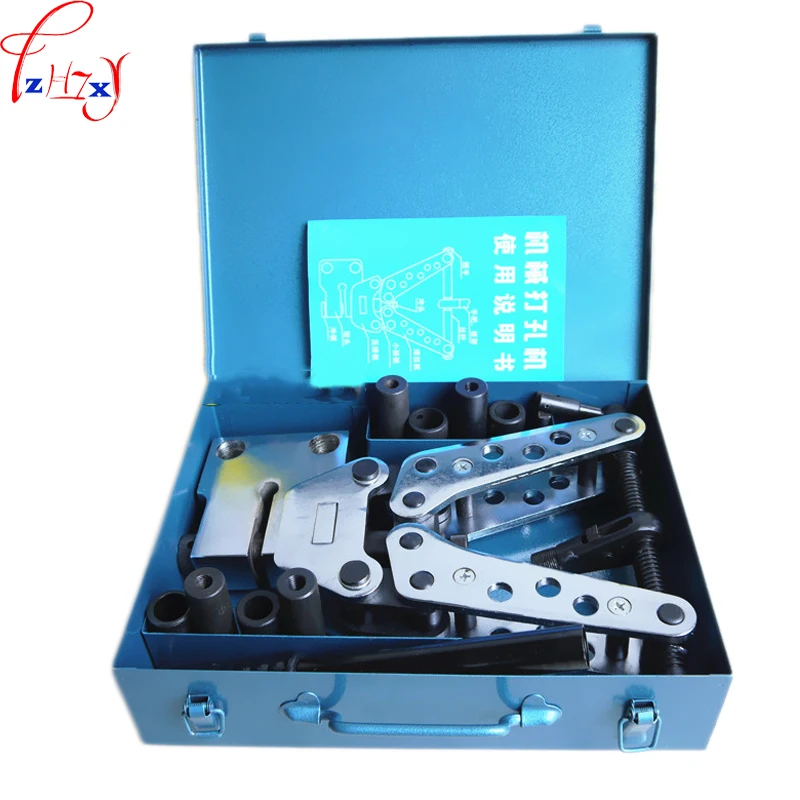

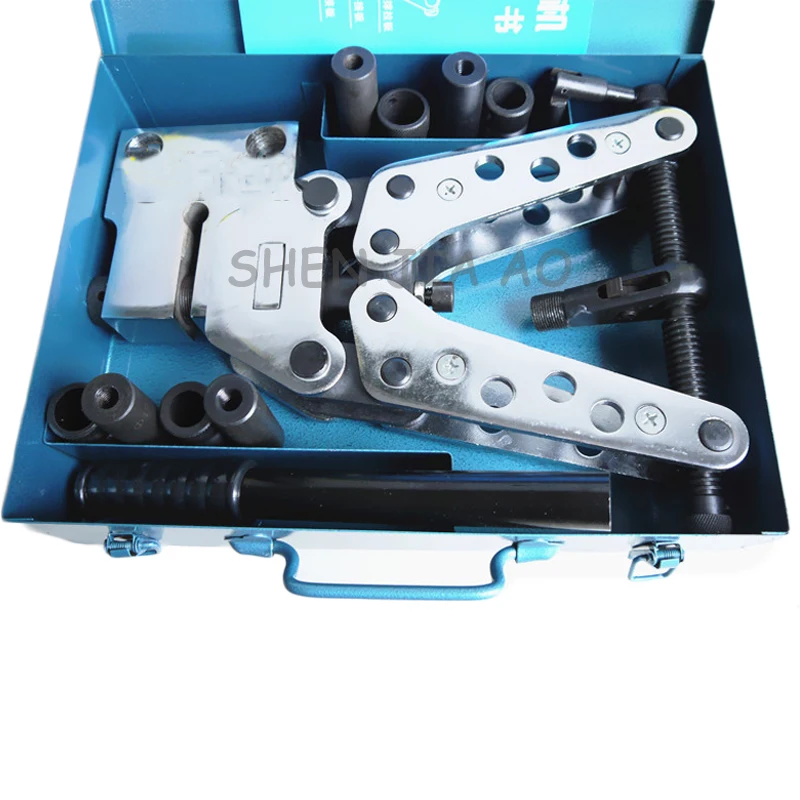

Picture showing:

Description:

Model: ADS-10G (CKJ-21)

Copper-aluminum row clamp device can be applied to: ∠ 40-∠ 63 (AF)

Allow plate thickness: copper ≤ 10mm, aluminum ≤ 16mm, ≤ 6mm steel

Die diameter: 13,15,17,19,21mm

Length x width : 360X240mm

Output : 150KN

Hand power : ∠0.2KN

Main material: steel

Features:

1. The machine uses the lever principle, screw force, easy to operate, punching efficiency,

punching a hole only 20-30 seconds.

2. The main force of the first choice of ultra-high strength alloy steel, light weight, easy to carry.

3. Design structure is simple, easy to use, no power, time-saving, labor-saving. Particularly

suitable for aerial work.

Use and scope of application:

1. Power Department 10KV distribution network cross arm, tower reaming, repair hole, hole;

power plants, substations, copper and aluminum busbars, equipment, folders, flat steel and

other openings.

2. Railway, post and telecommunications, petroleum, geology, construction industry

maintenance and reinforcement. As the aircraft does not require electricity and energy,

especially for outdoor, aerial and underwater operations.

Easy to operate:

1. Selection of the required aperture matching punching, die. Installed on the host die.

2. The workpiece into the die, the opening, aligned engraved lines, rotating die clamping work.

3. Shake the handle, punch under pressure, you can punch out the hole.

Precautions:

1. Check the punch before operation, the die is the appropriate package, otherwise it will

damage the host.

2. Before punching die must be rotary pressing work.

3. If any abnormal fault occurs during the operation, stop the punching and eliminate the fault

to avoid damaging the mechanical parts.

4 screw, nut should always be lubricated
