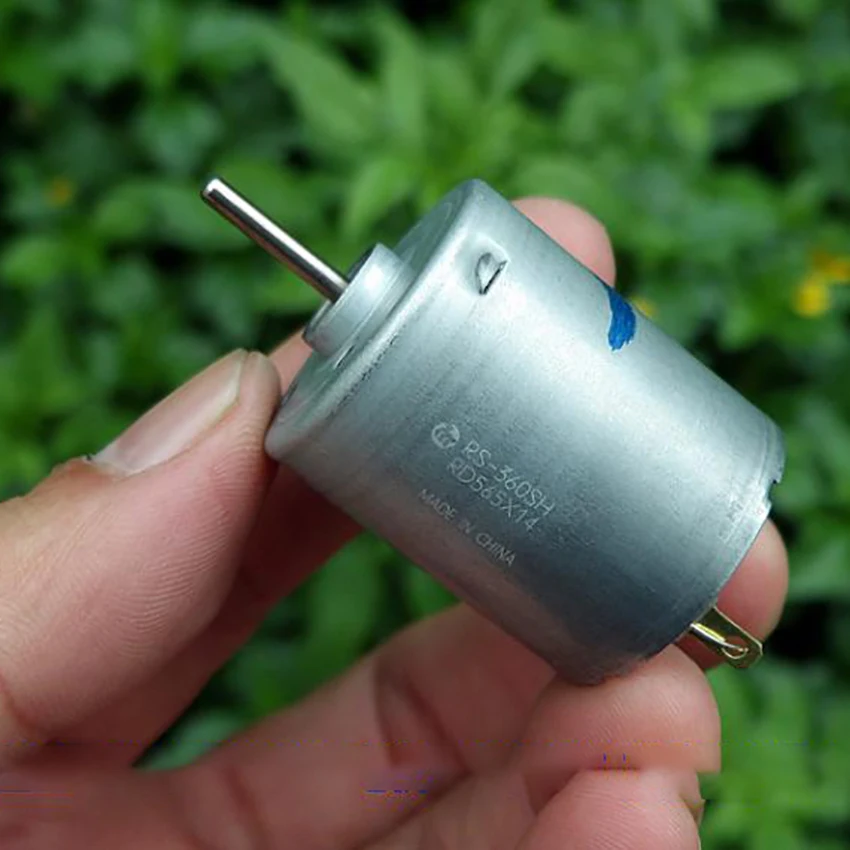

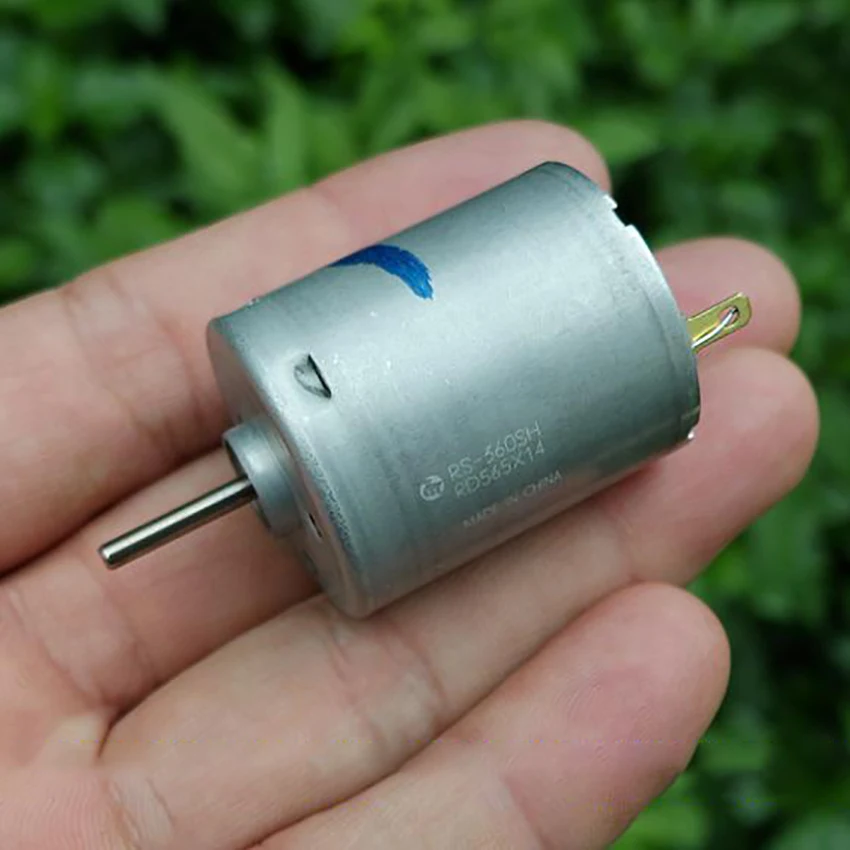

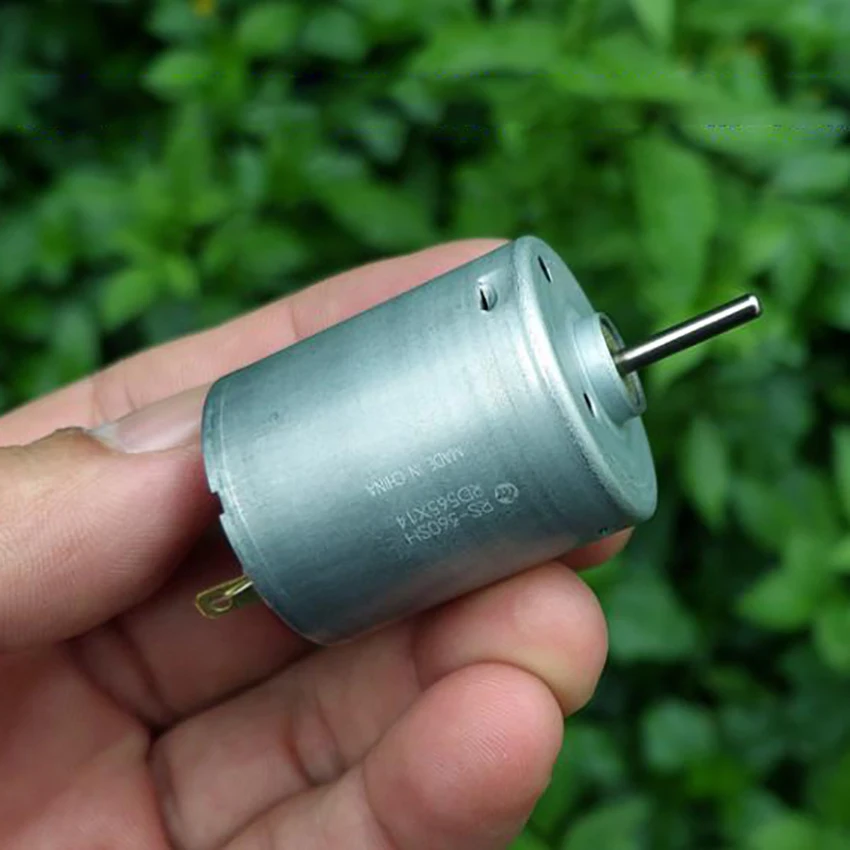

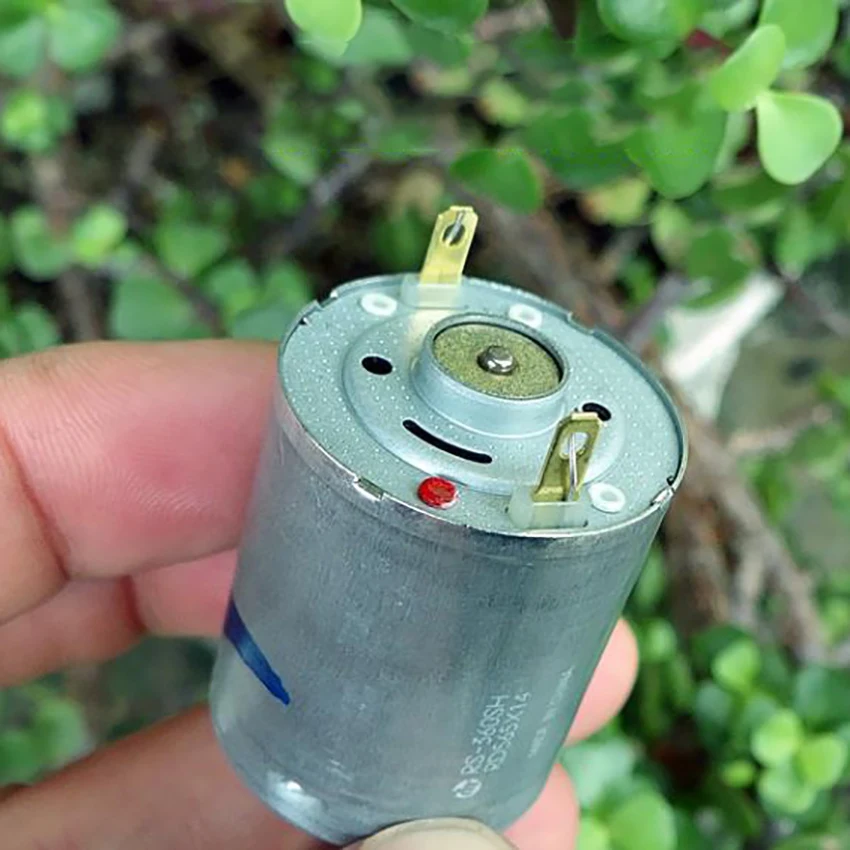

360-24125 motor, the applicable voltage is DC12V-24V, the corresponding speed is 4100 rpm-8500 rpm, it belongs to slow speed, low power consumption, like this type of motor, generally used in precision electrical equipment, instruments and other precision motors that need to be controlled.

-Motor outer diameter: 27.5 MM
-Height: 32.6 MM (excluding front and rear bearing sleeves)
-Output shaft: 2.3 MM, shaft length: 15 MM
-Screw hole: M 2.5
-Pitch: 16 MM

The following tests the no-load speed and no-load current at different voltages:
-Voltage: 12 V, Speed: 4100 rpm, current: 48 MA
-Voltage: 18 V, speed: 6350 rpm, current: 51 MA
-Voltage: 24 V, speed: 8500 rpm, current: 58 MA

NOTE:The product will be upgraded constantly, the appearance and color may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.

Package include:1pc*motor
