Infrared Heating Quartz Halogen Wall Mounted Dr Fischer Lamp

we will customize the lamps according to your exact requirement, we need to know the length ,power ,voltage and other details. please contact us before purchasing !

whatsapp : +86 138 5232 7847  / skype :ryan1990427 / website : www.quartzinfraredheater.com

Application :

Printing industry: glue and ink drying, curing;

Glass industry: glass annealing and drying;

Packaging industry: PET blowing bottles, film;

Shoe industry: glue activation dry;

Furniture industry: fast drying;

Rubber industry: plastic softening, molding and cable production;

Photovoltaic industry: sintering, substrate drying, spray preheating;

Automotive Industry: Complete Car Painting Drying and Local Paint Repair

Textile industry: fabric preheating, drying, pressing and adhesive activation;

Tungsten twin tube emitters

Tungsten single tube emitter

Power

80w / cm

20w / cm

Max heater length

3000 mm

2000 mm

Cross-Section

11x23mm / 15x33mm

10mm /12mm

Filament Temperature

1400-1800℃

800-900℃

Wavelength

>1.4um

2.4-2.7 um

Max Power density

150 kw/㎡

60 kw/㎡

Response time

1-2 seconds

1 MIn

Service life

5000 hours

5000-8000 hours

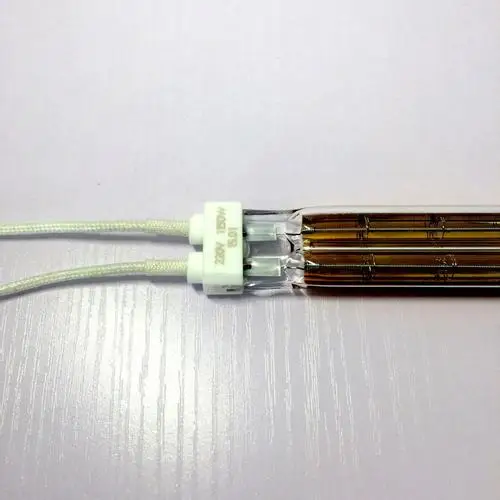

The unique double tube design has excellent mechanical stability and good radiation capacity and ,we can customize the quartz tube and filament to meet your requirements. The Max length can reach 3 meters.

Good Quality Quartz Tube

We can customize the tube according to your requirement,  Special sharp all available .The Raw materials Quartz are filtered and finely processed . Quartz glass is very pure , with excellent thermal stability and transmission.

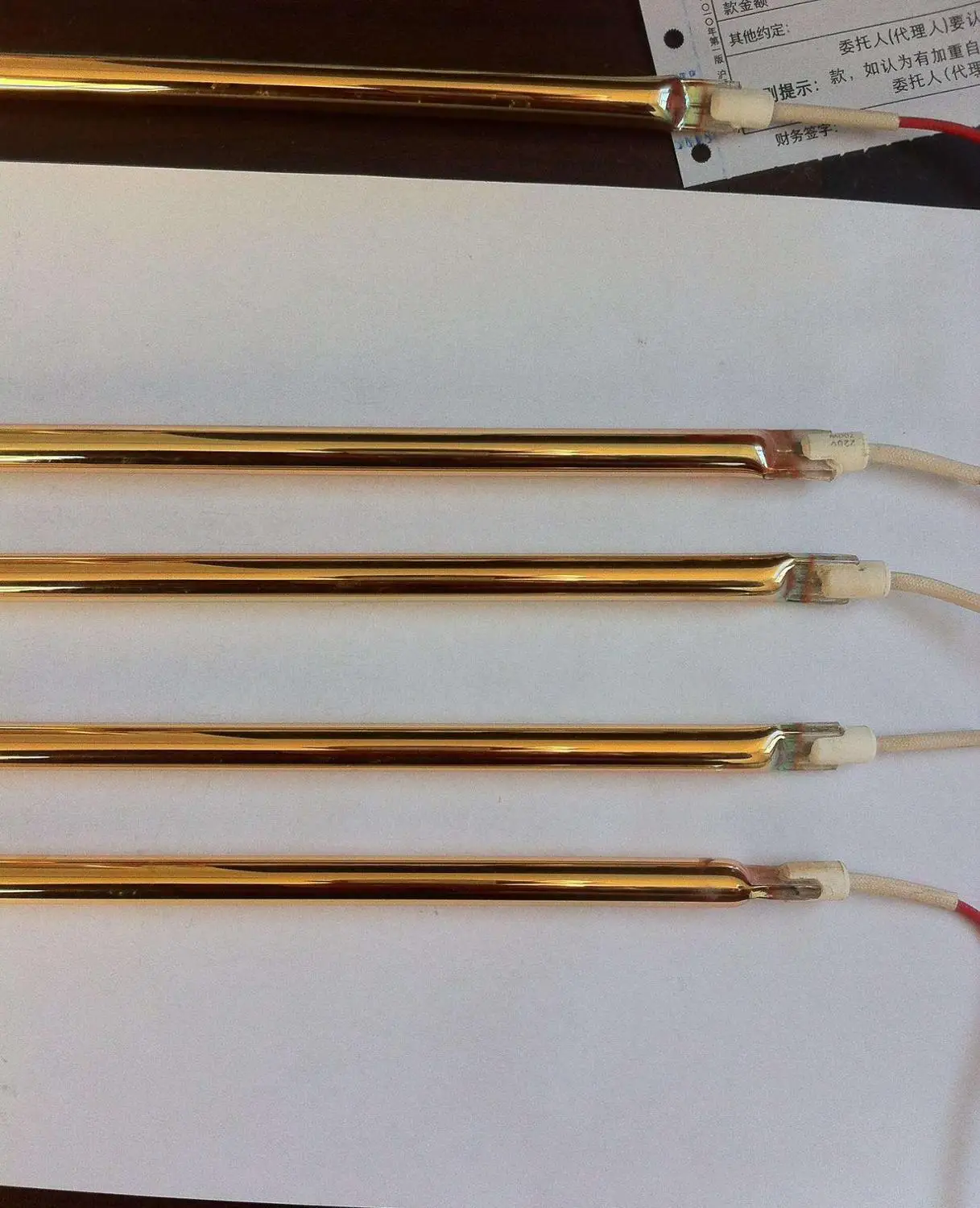

Gold reflector

Risen Gold coating IR lamps can Provide directional heating to the object. The gold reflector on the IR lamps reflects Infrared radiation. It nearly provide double the effective radiation - a good choice to improve the heating efficiency.

Energy-saving principle of short wave infrared heat lamp:

The short wave infrared lamp Produce multiple reflections when passing through the quartz tube. It has excellent far infrared radiation characteristics. If there is a gold-plated reflective layer, the effect is better, and the power saving can reach 35%.

Infrared heating lamp performance:

Infrared heating tube does not use paint outside, no filling inside, stable radiation rate, no deformation at high temperature, no harmful radiation, no environmental pollution, strong anti-corrosion ability, good chemical stability, small thermal penetration, high heat conversion rate, long-term Use, do not degenerate the true color.

Cause of the heating filament with higher temperature, the Radiant density of the short wave infrared lamp is In most instances higher than the Radiant density of the medium wave infrared lamp.

IR Lamp for paint curing and drying .
