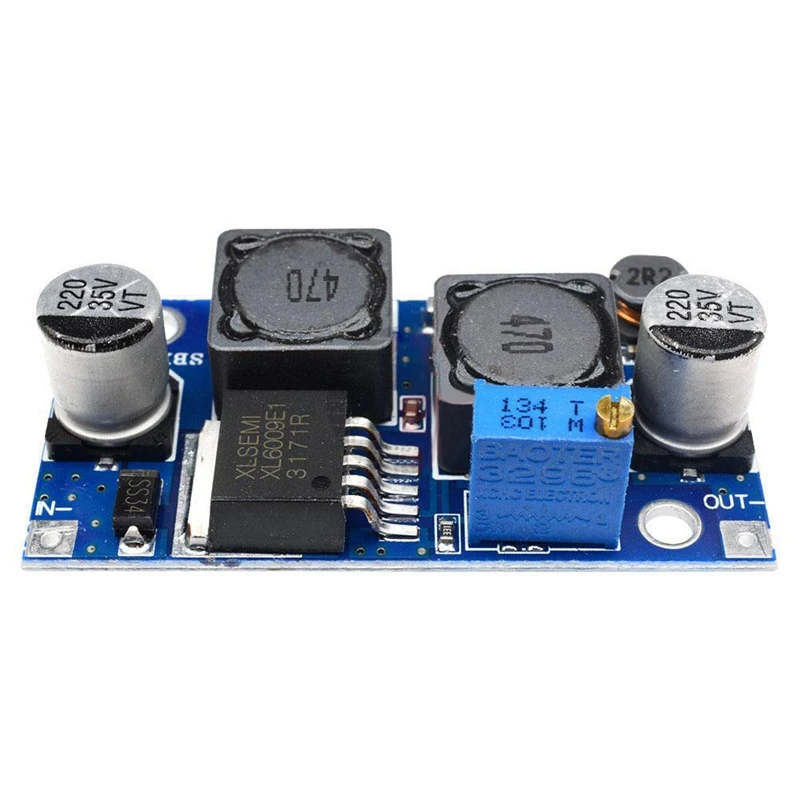

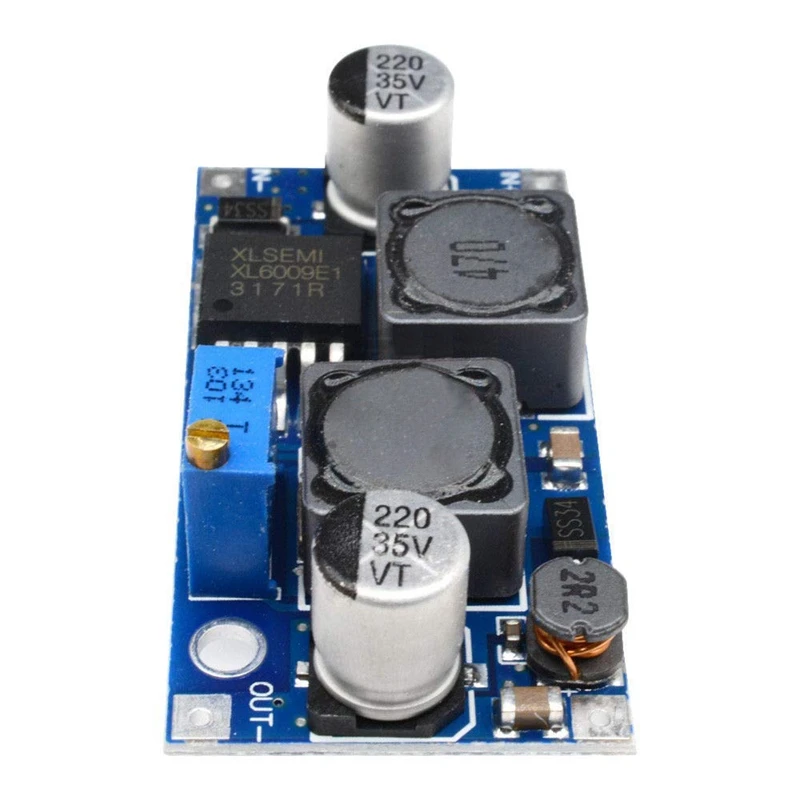

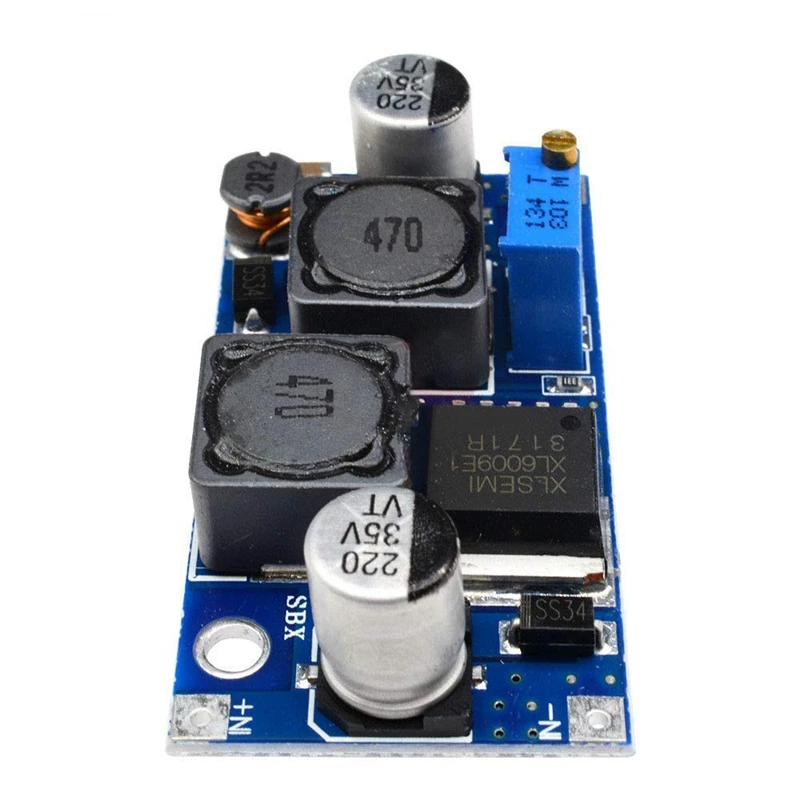

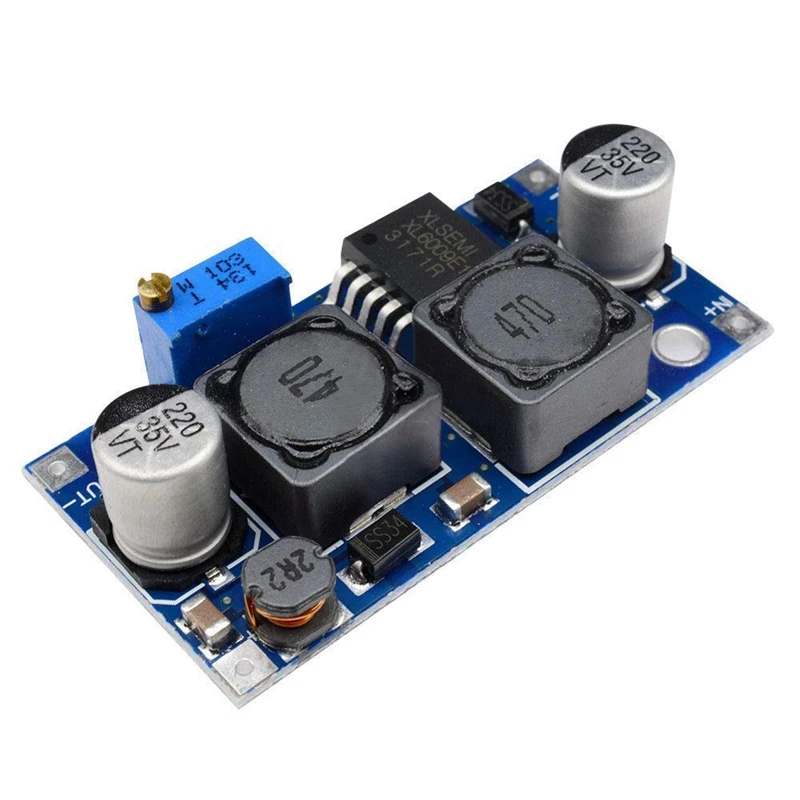

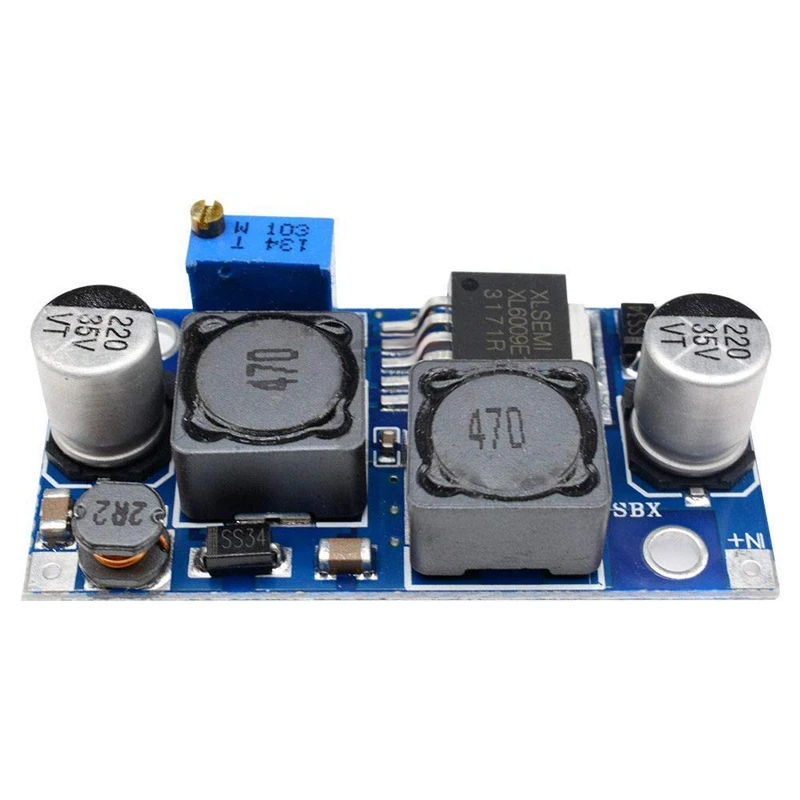

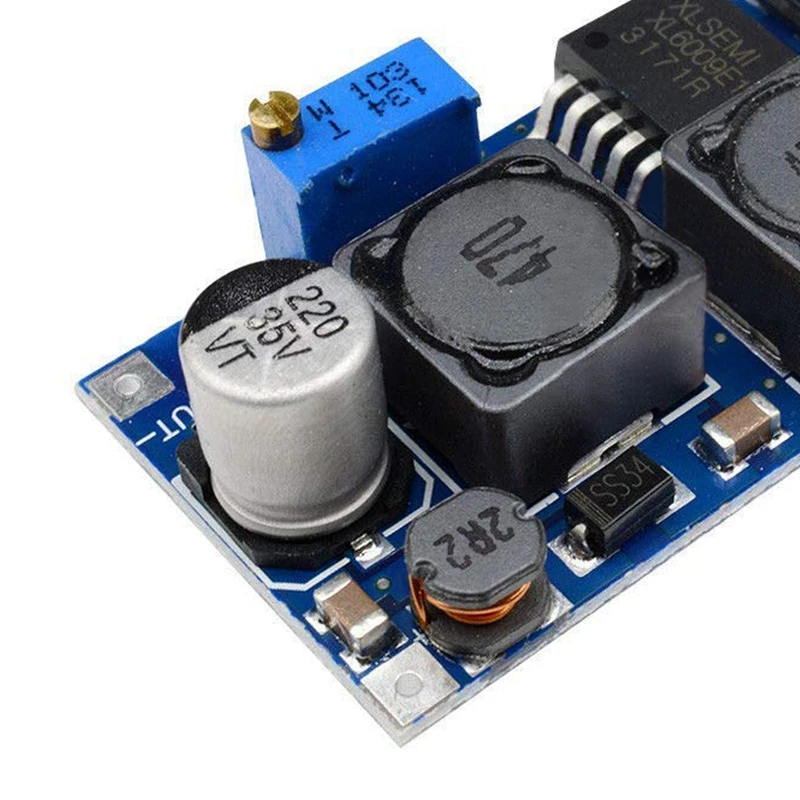

DC-DC Boost Buck Adjustable Step up Down Converter XL6009 Solar Module | Электроника

DC-DC Boost Buck Adjustable Step up Down Converter XL6009 Solar Module body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

1：Wide input voltage 3V ~ 32V
2：Wide Output Voltage 5V ~ 35V
3：Built- 4A efficient MOSFET switches enable efficiency up to 94%
4：high switching frequency of 400KHz, the ripple is smaller and smaller
5：Application:Car regulator , solar photovoltaic, wind power and other applications of voltage instability
Module Properties:Non- isolated boost (BOOST)
Rectification:Non- Synchronous Rectification
Conversion efficiency: Less than 94% ( greater the pressure , the lower the efficiency )
Switching frequency:400KHz
Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation:+/- 0.5%
Voltage Regulation:+/- 0.5%
Operating Temperature:-40 Celsius ~ +85 Celsius
Dimensions:48mm * 25mm * 14mm ( L * W * H )
Color: picture color
Material: copper foil substrate plate
Package Included:
1 x DC-DC Boost Buck adjustable step down Up Converter XL6009 Module Solar Voltage
Only the above package content, other products are not included.
