9V Hand-held Optical Fiber Tester NF-906C LCD Display English Optical

Power Meter -50~+26 DBm Fiber Optic Tester Tool

Picture showing:

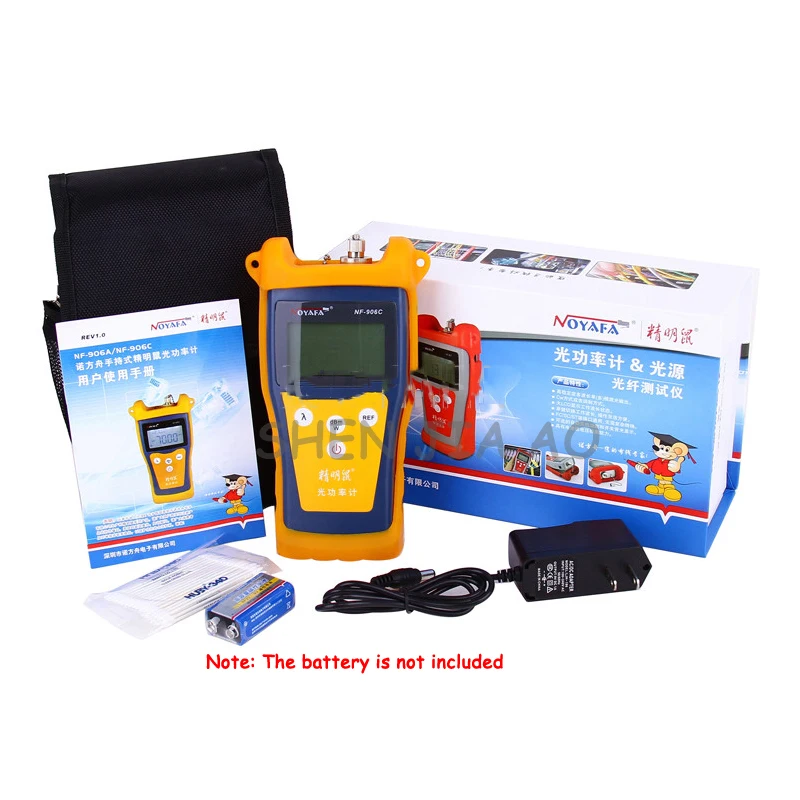

Note: The battery is not included


Description:

                 Product Type: NF-906C

Detection wavelength (nm): 800 ~ 1700

Detector: InGaAs

Photosensitive surface: ∮ 1.0mm

Test range (dBm): - 50 ~ + 26

Test accuracy: ± 5%

Standard wavelength (nm): 850,1300,1310,1490,1550,1625

Display accuracy: 0.01dBm

Operating temperature (°): - 20 ~ +70

Storage temperature (°): - 30 ~ +80

Automatic shutdown time (min): 15

Battery life (h): 200

Display size (mm): 185 × 105 × 50

Power supply: 9V battery(not included), AC adapter

Weight (g): 350

Product Features:

                  1, add a new REF definition

2, the user self-calibration function

3, F                   C / SC / ST and other interfaces common, without complex conversion

4, optional auto power off function and switch backlight display

Typical application:

1, optical transmitter power measurement (dBm and W)

2, fiber link loss test (dB)

3, optical device insertion loss test

4, optical fiber link installation and maintenance
