DDCSV3.1 3 / 4 оси G код CNC автономный Автономный контроллер для гравировального

DDCSV3.1 3 / 4 оси G код CNC автономный Автономный контроллер для гравировального

NOTE:

NO HOT-PLUG

When DDCSV3.1 is powered on, please do not hot-plug to prevent the IC chip from being damaged.

Packing List A(DDCS V3.1+MPG)

1 x DDCSV3.1 CNC Offline Controller  （3/4 Axis Optional）

1 x 4 Axis MPG handwheel

1 x 4GB USB Flash Disk

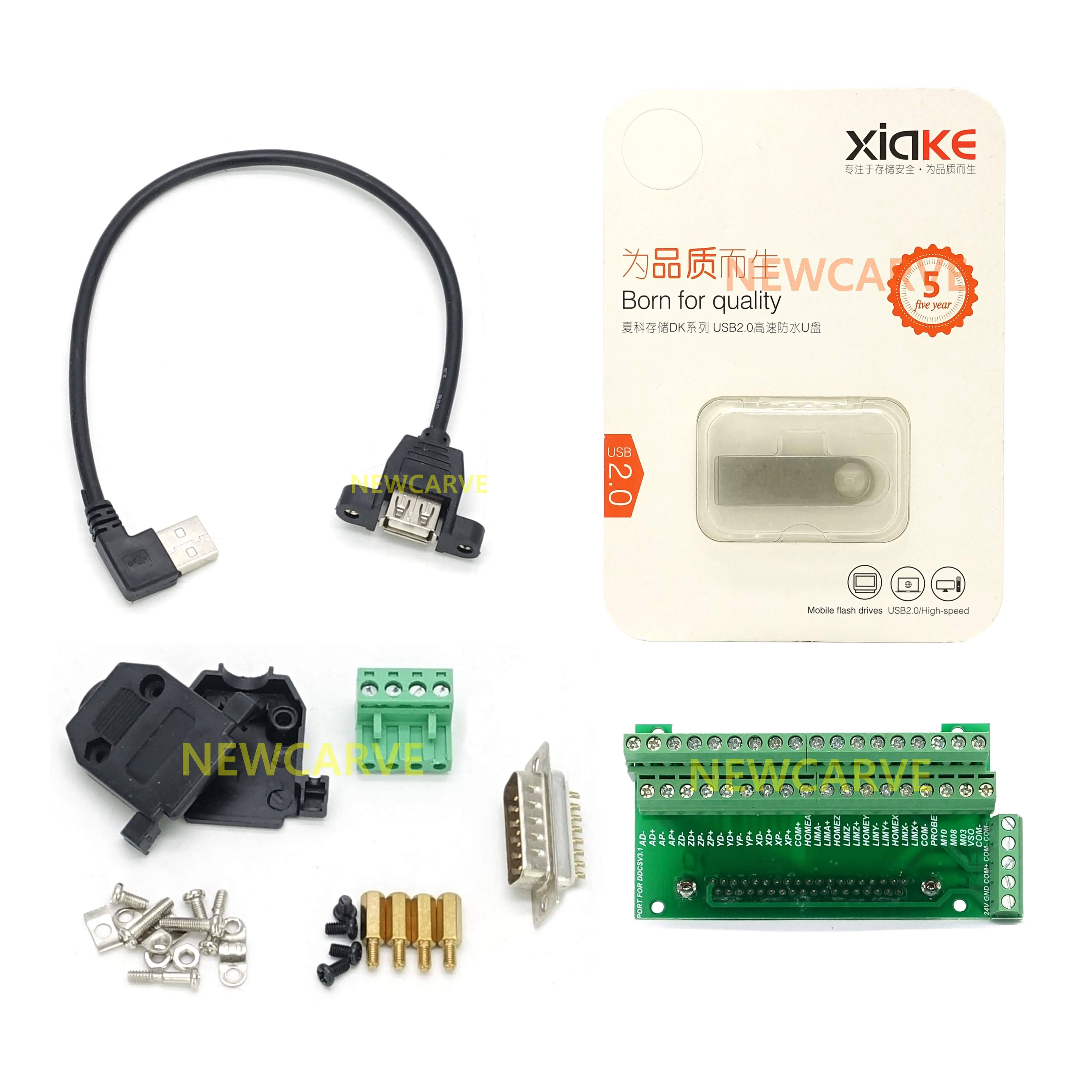

1 x USB Extension Cable + Accessories

1 x Mounting bracket

Packing List B(Only DDCSV3.1)

1 x 4GB USB Flash Disk

1 x USB Extension Cable + Accessories

1 x Mounting bracket

Specifications:

Standalone Motion Controller;

16 optoisolated digital inputs, 3 optoisolated digital outputs

Analog spindle control 0-10V spindle control (can be modified as PWM output);

3 axis motor control, max 500 kHz per axis;

ARM9 main control chip;

FPGA core algorithm chip;

4.3 inches TFT screen, resolution ratio: 480x272;

17 operation keys;

18V-32V power input, minimum 0.5A;

USB flash disk supports for G code file input;

1GB internal memory;

MPG port for our MPG with digital display. Many other MPGs also supported;

Jog function for each axis (continuous, step, defined distance;

Support the operation of quickly specifies the running position;

Support for “Power Cut” recovery. Data is automatically saved.

DDCS Wiring with standard MPG

You only need to connect these 15 cables of MPG in the red circle, and please insulate the remaining cables.

Brief Introduction:

DDCSV3.1 is a 3 or 4 axis motion controller for stepper and servo systems. We are very proud of this product; it combines great power with a tiny footprint and is easy to use. After a very short time, you will be familiar with the functions and this manual will help you. The highest output pulse per axis is 500 kHz. The pulse width is adjustable (refer to driver manual). The control period for each position is only 4 milliseconds. This provides high control precision for stepper motors and servo motors.

DDCSV3.1 numerical control system adopts the ARM+FPGA design framework.  ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal operating system is Linux based. The panel layout structure of the CR8-500 is very rational to save space. All operations are controlled by only 17 keys and a comprehensive G code set is supported.

DDCSV3.1 can be used for many styles and types of CNC machines. Lathes, Routers, Pick & Place and Mills are just a few examples. The CR8-500 operates as a Stand-Alone system without the need of a computer. This guarantees high precision, accuracy, and reliability. The interface, even very comprehensive, can be learned in a very short time.

DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in picture 1-1 and picture 1-2.
The front panel is 191mm*128mm*5mm；
The main body is 191mm*128mm*37mm；
To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm

Note:

Random handwheel delivery base on stock :

1. Already plugged in

2. Not plugged in

If you have any special requirements, please leave us a message.
