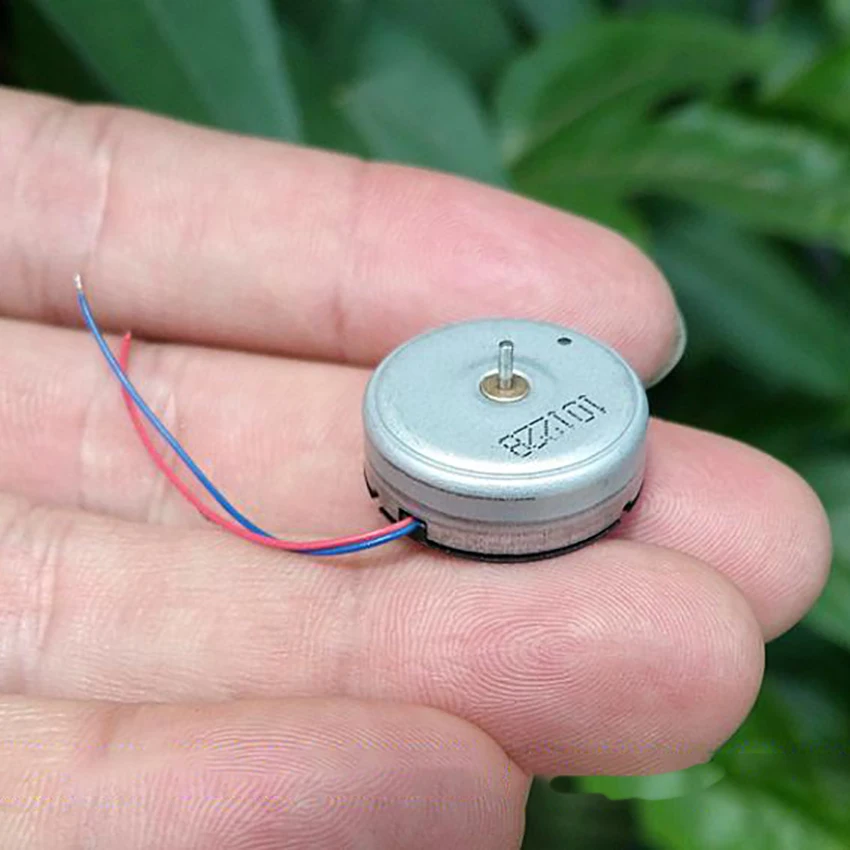

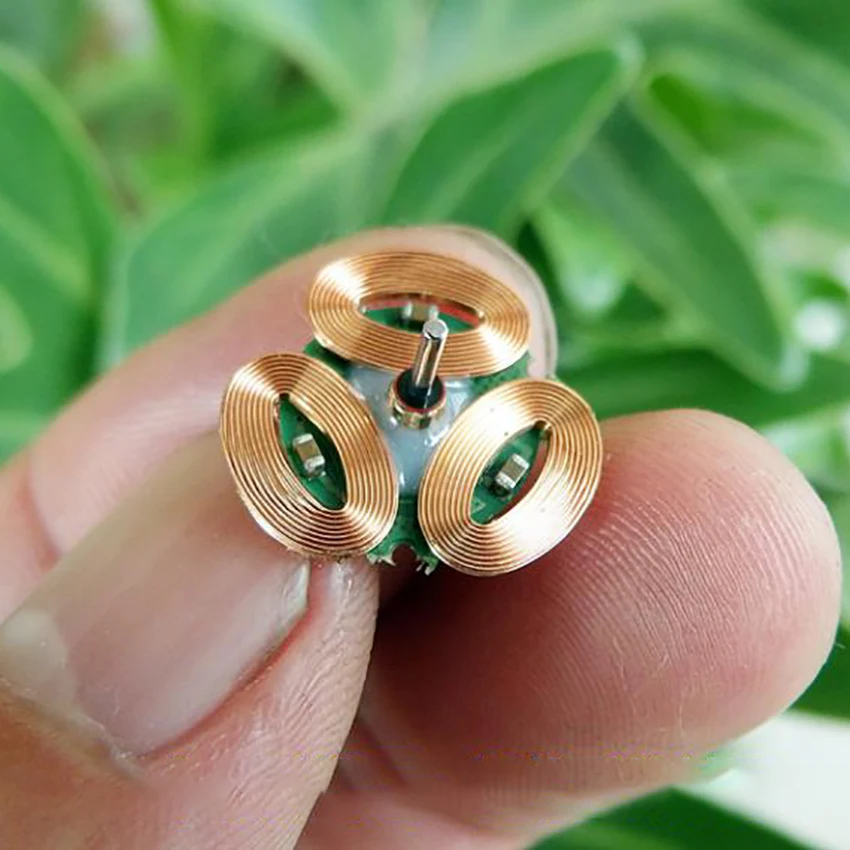

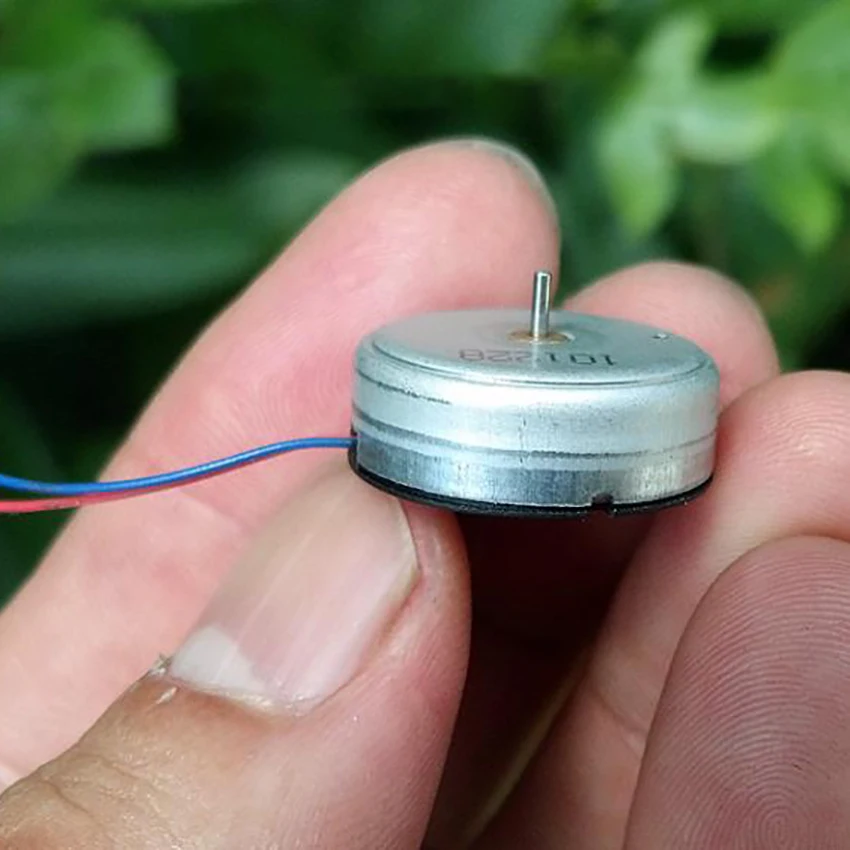

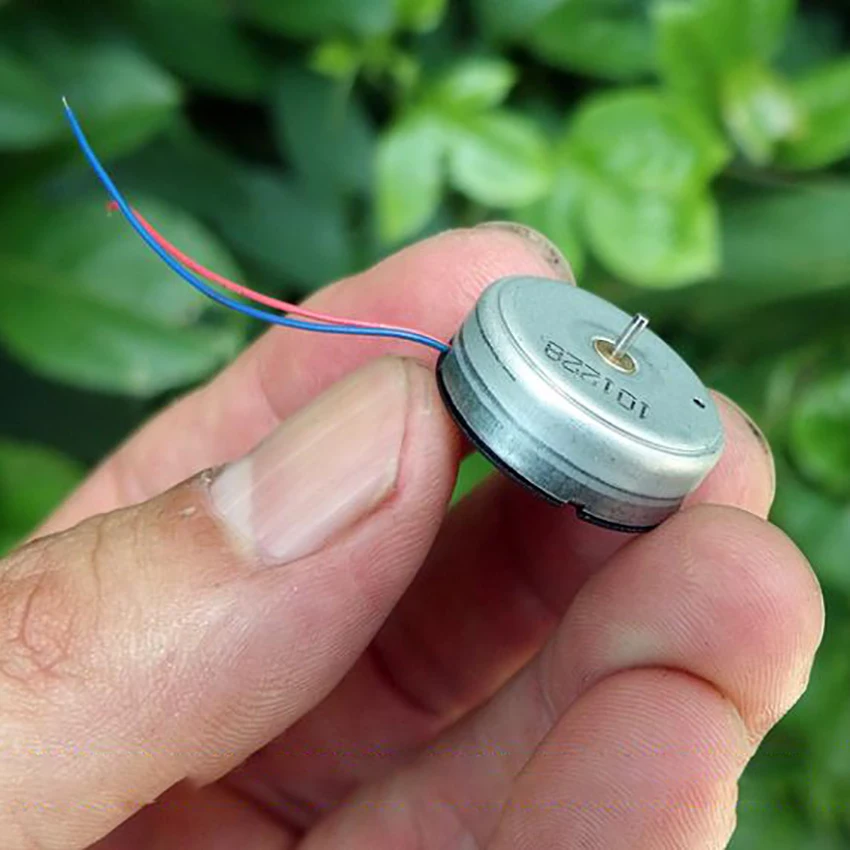

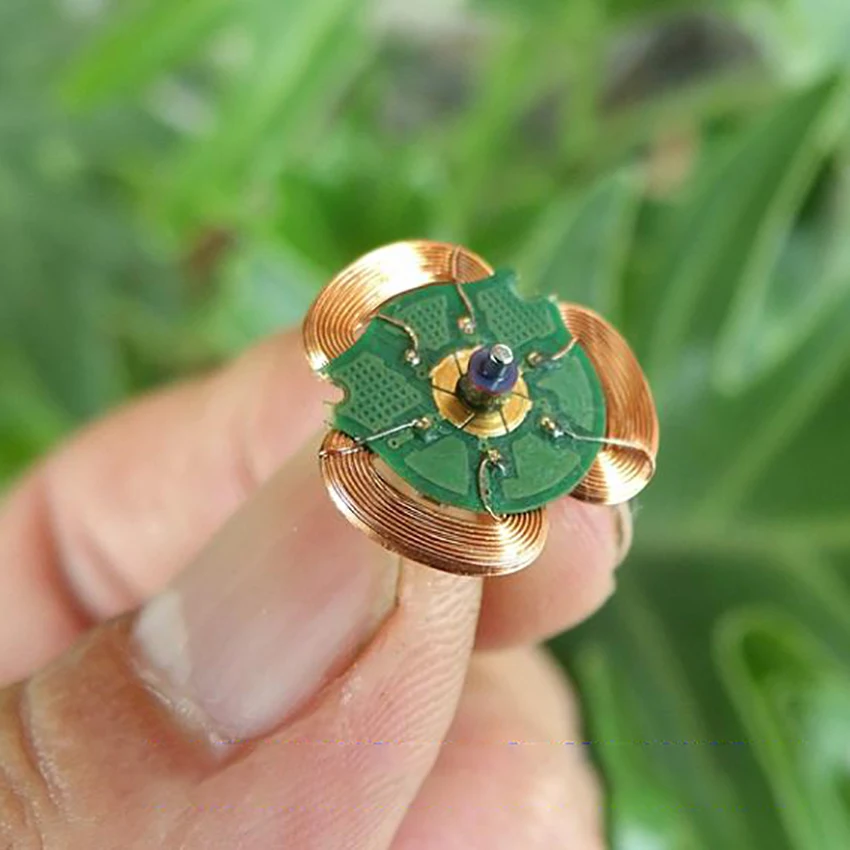

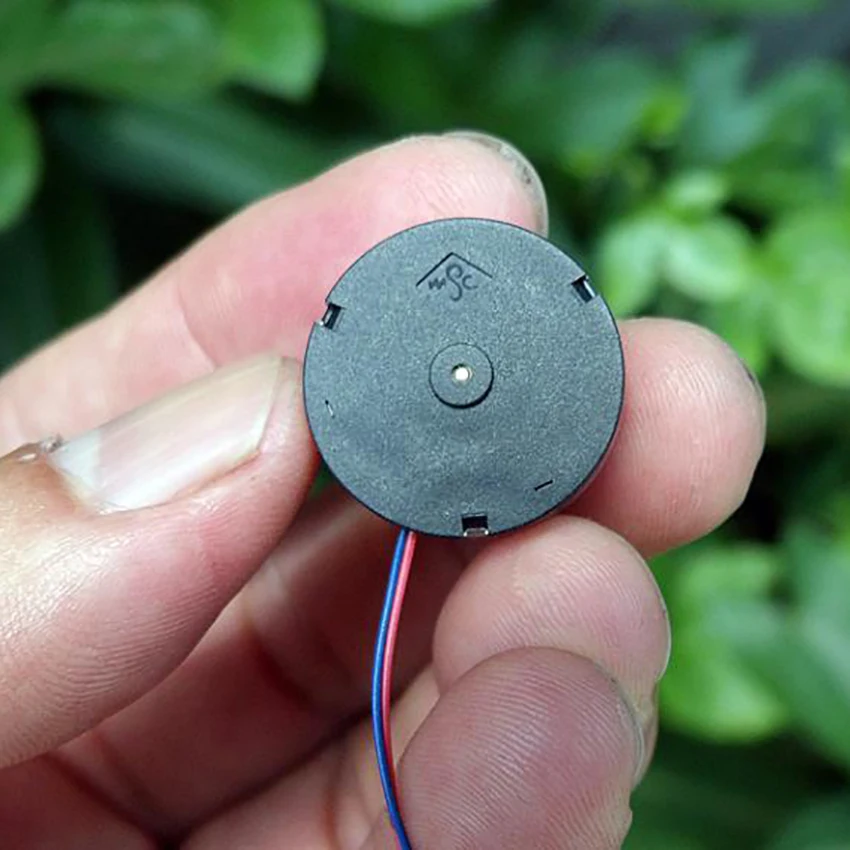

-This motor is very strange, exquisite workmanship, ultra-thin type, thickness is only 7.2MM, diameter is only 20MM, can not determine the model, it is estimated to be imported odd-shaped motor, but it is surprising that after disassembling, the structure design of the motor is really wonderful. Its rotor is ultra-thin, with only three toroidal coils. The thickness of the rotor is only 1.3mm. It uses a noble metal brush with a 90-degree angle, a six-pole commutator, and a neodymium-iron-boron high-strength magnet. This motor is small in size. But by hand, the torque is quite strong.

-Motor diameter: 19.95 MM, motor height: 7.2 MM
-Motor output shaft diameter: 1.0 MM, output shaft length: 3 MM
-Voltage : DC3V, no-load current: 70 MA (blocking current 1.35A), speed: 18000 RPM

NOTE:The product will be upgraded constantly, the appearance and color may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.

Package include:1pc*motor
