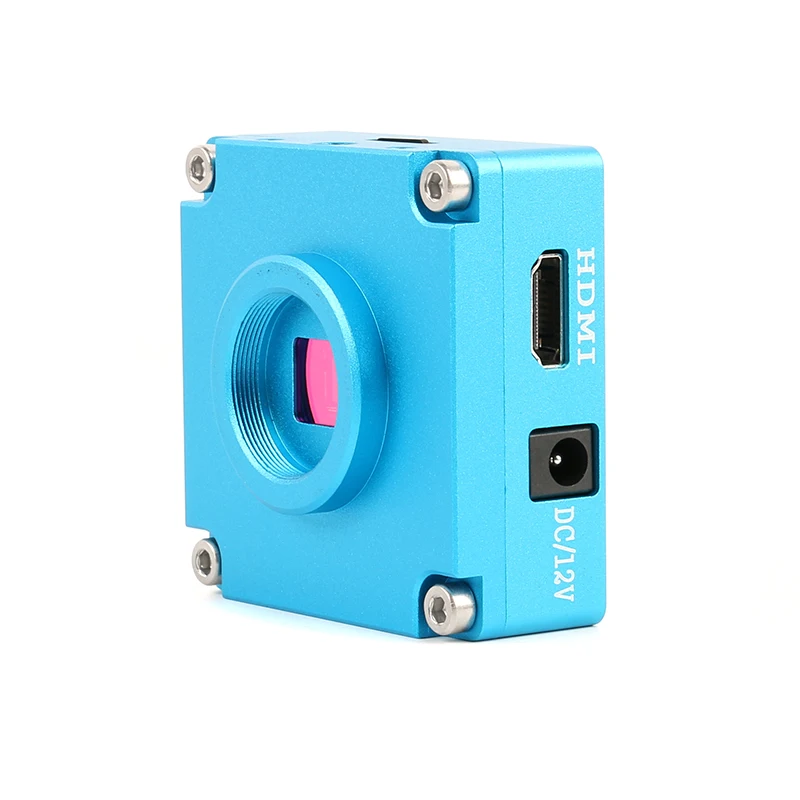

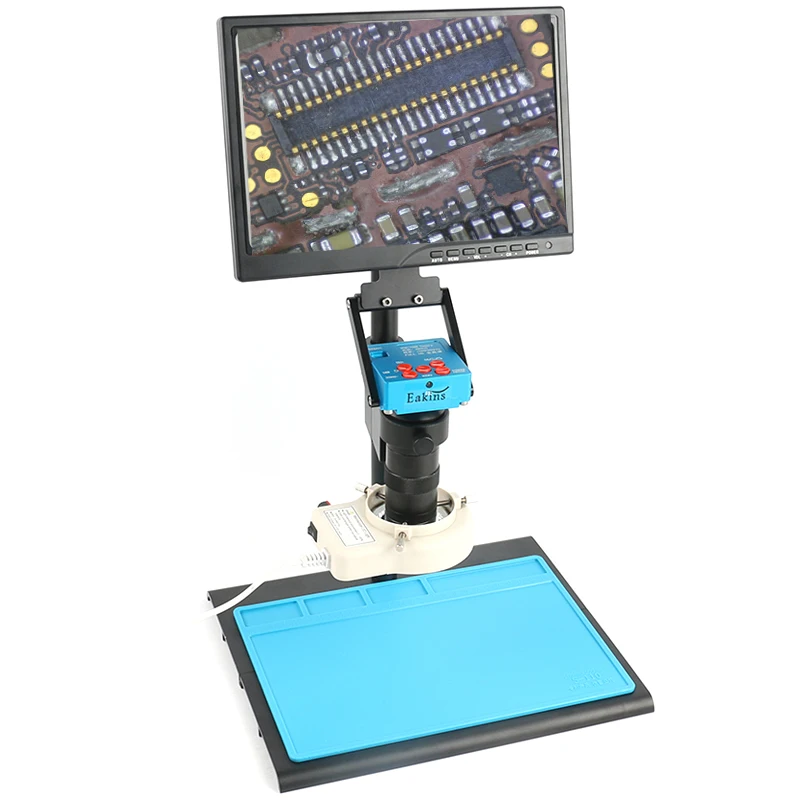

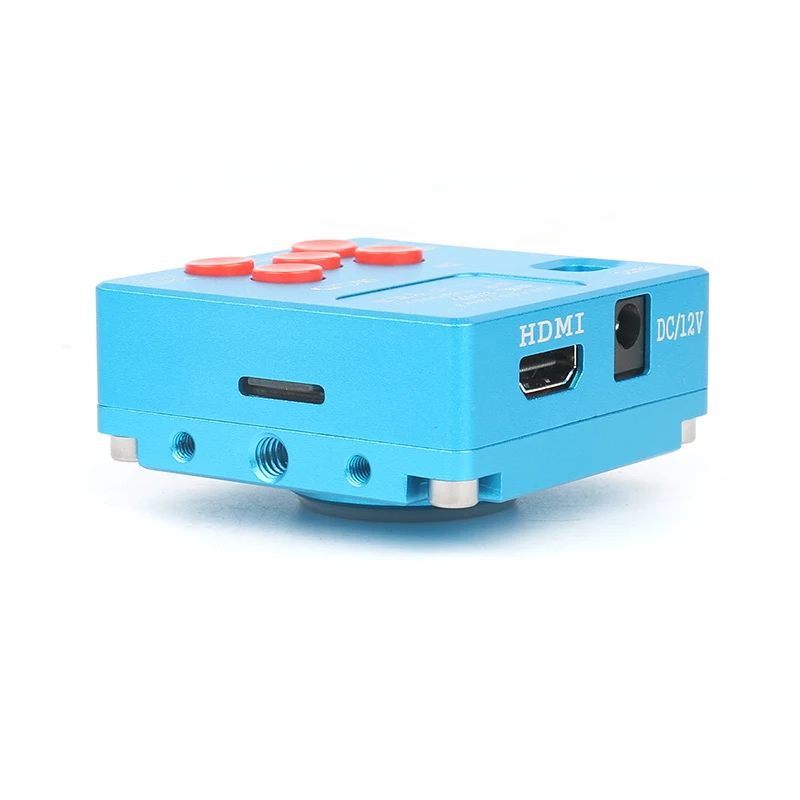

1080P 30MP HDMI Digital Industrial Video Microscope Camera + 10.1" HD IPS LCD Monitor+ 100x C Mount Lens 56 LED Ring Light |

Function： Picture Pixel:7360*4140 30MTF Card: Video RecorderGrid line:8 horizontal lines, 8 vertical linesVideo Frame Rate:60FPS@1920x1080TF card:4GB (Up to 32GB max）CMOS censer:1/2.33 inchCross line:Overlap or CancelCMOS pixel:1.33um x 1.33umLens jack:C-mountColor setting:AutoPower:12V/1AWhite balance:Auto/one button calibration/ManualSize:64x64x35mmEV:Auto/ManualWeight:165gLanguage:Chinese, EnglishCamera mode:HDMI output 1080P @60 FPSWorking temperature:0-70℃ USB/PC Interface:1.connect the camera to your computer with USB cable, then power on,if a SD card available in camera, then you will enter U disk mode and can prereview the pictures/videos from camera SD card or copy to your computer.2.If no SD card in camera, you will enter PC-CAM mode to view pictures from your computer directly, and no driver needed here. Note: DC/12V interface is for camera with 5V-12V/1A input power adapter, and unsuited adapters can’t be used, otherwise the camera will be burned broken thenHDMI Interface: connect camera to a monitor with HDMI interface,please use 16:9 wide monitor.  POWER/MODE:This camera is plug-in to power on, long press the button for 3 secondsto power off, then short press for 1 second to power on. Power onsuccess if you hear ticking with red indicator light on. After power on,short press for 1 second to change to video mode, press one moresecond to change to picture/video playback mode, one more pressback to camera mode. MENU：Short press the button for 1 second and enter menu setting page. UseUP/DOWN button to select related funtions and press OK button toenter submenu.a)Chinese/English language settings: use UP/DOWN button to select and press OK button to confirm;b)Grid line settings: press UP/DOWN to select line and press OK button to enter, press UP/DOWN to open/close 10 grid lines rulers, to open/close 8 grid lines, every line’s direction, position, color or width, then press OK to change the line’s direction, position, color or width. Press MENU button again to return to upper level menu;c)Exposure setting: press UP/DOWN to select auto/manual exposure mode, then press OK to confirm;d)EV settings: under auto exposure mode, enter to select +-0.3/0.7/1.0/1.3/1.7/2.0 exposure value as needed;e)White balance settings: can select auto, manual or one-button-calibration mode after entering, there might be color deviation if you change the light, then you can put a white paper and select one-button-calibration to calibrate the color. You can also adjust the red and green value manually for special use;f)Color setting: can select colorful or white/black mode as needed;g)Light frequency settings: can select 50Hz/60Hz as needed;h)Acutance settings: options for strength/standard/soft;i)Contrast settings: high/middle/low options as needed;j)Video size: 3 options for 2K24fps/1080P60fps/720P60fps can be used as needed;k)Mirror function: vertical/horizonal mirror functions in option;l)Format: it can be used for new card or even defected card before taking photos in memory;m)Regain default settings: regain all your settings to original default settings;n)System information: it’s original software version, repress MENU button to exit; OK/CAPTURE/RECORD:Under camera mode, short press OK button to take a photo; under videomode, short press to start or stop recording; under MENU mode, it’sconfirm button, for line’s open/close and vertical/horizonal change,position adjust, and also line color/width change.UP/+: under camera mode, short press this button to increase EV.DOWN/-: under camera mode, short press this button to decrease EV.  100X C-MOUNT LensMagnification Power by 0.12 - 2X (about 8X - 100X on the display)Work distance: 100mmVisual field :2.4mm-32mmSize: 115mm(L) * 40mm(DIA)Weight: 210g  56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm  Packing including: 1 x HDMI Video Camera1 x HDMI Cable1 x USB Cable1 x 4GB TF card1 x IR Remote control1 x Power Supply Adapter (EU/AU)1 x Table Stand
1 x 100X C-MOUNT Lens
1 x 56 LED Ring Light1 x PCB Fixture1 x 10.1" LCD Monitor1 x Monitor Fixed Clamp
