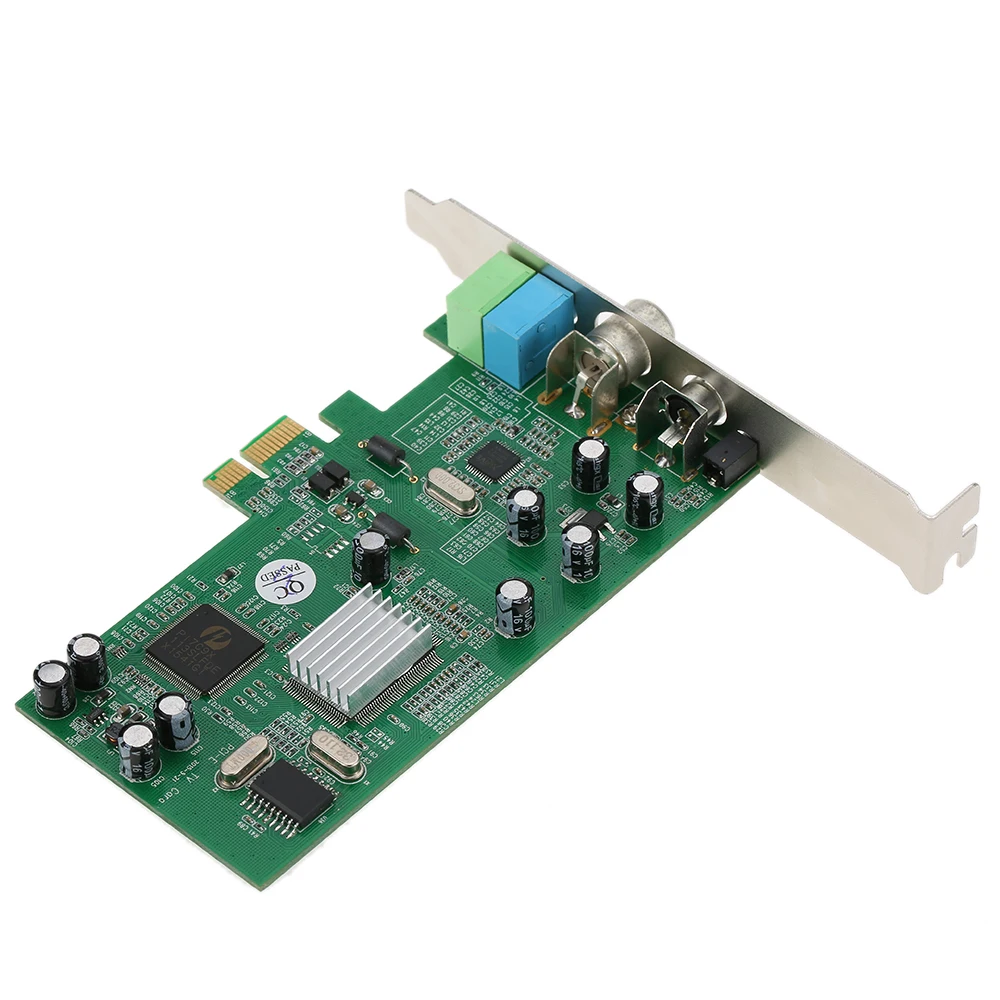

This multifunctional TV tuner card is an ideal solution to expand your desktop PCI-E with TV function and video recorder. It transforms your desktop PC into a full-featured multimedia station with video / audio / radio input for all regions and countries. It has an universal built-in TV tuner to decode either analog basic cable channels or UHF/VHF aerial/closed-circuit channels for all countries around the world, world universal. It is also a cost efficient solution for decoding RF modulated signals from set top boxes, satellite receiver, DVR into digital MPEG format for viewing or recording through desktop PC.

Features:
Full TV frequency range for CATV / VHF / UHF and support only Analog TV signal (not include digital or satellite TV)
Perfect for recording video in multiple formats, the schedule recording allows user to preset the recording schedule in weekly manner
Support analog TV standard of NTSC, PAL B/G, PAL I and SECAM TV system
Supports Time-Shifting function to pause, rewind, and fast forward live TV, replay a scene or skip the commercials
Snap shot format in BMP and JPEG. Images browse function works like photo album
Audio output to sound card or speaker. R/M port is for remote control
Video recorder, TV functions and planner YUV data format supported
Favorite channel list and channel rename supported and full-featured remote control included

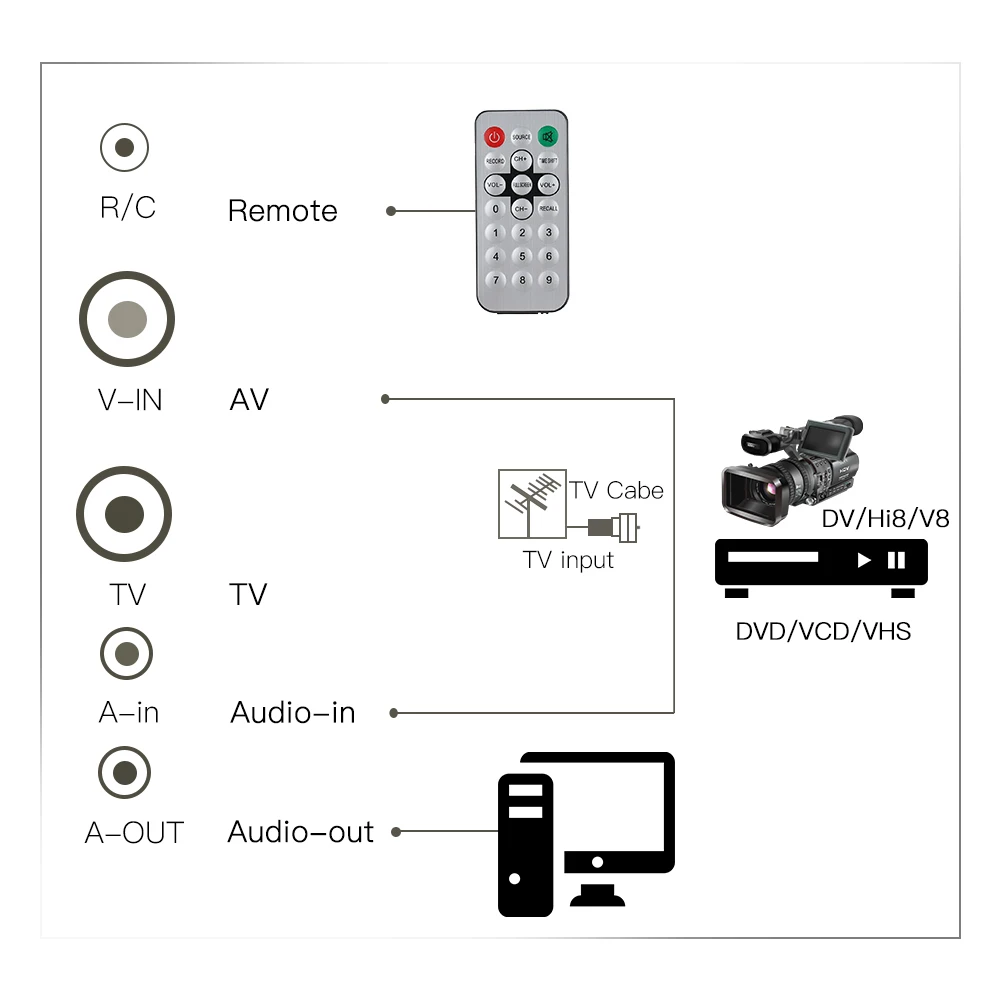

Multi-input source, include composite Video In and Audio line in/out for external device input such as VCR / VCD / DVD / Camcoder
Supports 16:9 and 4:3 ratio for the sub video window size
Wide compatibility, universal compatible for Win 7 / SE / ME / 2000 / XP / Vista / Win 98

Specification:
Material: Metal
TV tuner system Support: NTSC, PAL B/G/D/K/H/I,PAL-M, PAL-N
RF decoding range: Analog NTSC cable and broadcast UHF/VHF TV channel frequencies from 55.25 to 855.25 MHz
Video input system Support: NTSC, PAL and SECAM
Video capture resolution: 720 * 480 pixels @30fps for NTSC or 720 * 576 pixels @25fps for PAL/SECAM system
Audio/Video inputs: RF CATV coax Input via F-type connector * 1
                               Composite RCA input * 1 for video
                               3.5mm mini port * 1 for audio input from RCA video device
                               3.5mm mini port * 1  for audio output to sound card or speakers
Video recording format: MPEG1, MPEG2, VCD, SVCD, DVD
Snap shot image format: BMP, JPG
Video color element control: Adjustable video color elements for picture brightness, contrast, saturation, hue.
Operation: Full-function 29-key IR remote controller or control panel from TVR software
Item size: 13.3 * 12 * 1.9cm / 5.2 * 4.7 * 0.7in(L * W * H)
Item weight: Approx. 101g / 3.6oz
Package size: 22 * 15.2 * 6cm / 8.7 * 6 * 2.4in(L * W * H)
Package weight: 224g / 7.9oz

System Requirements:
CPU: For Intel Pentium III 900 MHz or higher and compatible computer
Operating system: for Win 7 / SE / ME / 2000 / XP / Vista / Win 98
SVGA support higher than 640 * 480 / Hi-color
Sound card support for audio mix functions
Cable / VHF / UHF antenna
A free PCI-E bus

Package list:
1 * All-in-one TV Tuner Card
1 * IR Remote Controller
1 * IR Remote Receiver Wire
1 * 3.5mm Audio Cable
1 * Driver CD with TVR Software

Note: The package list without user manual.
          This is an analog TV tuner card so it does not support antenna hookup for digital broadcast channels over the air.
