10" LED display i3-4000U CPU fanless tablet pc 4GB DDR3 4*USB 800*600 mini pc

Bullet Points:

◆ Onboard Intel Core Haswell-U Soc i3-4000U CPU;

◆ 10inch TFT LED display and 5 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and Mini SATA

◆ Support 3G/WIFI by mPCIe

◆ Reserve 2 Group Phoenix Connector for custom function

◆ DC12V5A Power Supply；Fanless Design

Specification:

PROCESSOR

CPU

Onboard Intel Core Haswell-U Soc i3-4000U

RAM

Onboard 4GB DDR3 1066/1333/1600MHz,

NETWORK

2*RTL8111E RJ45 1000M LAN

I/O INTERFACE

5*RS-232, 1*RS422/485,2*DB9 RS-232 3* 3pin RS-232

2*USB2.0,2*USB3.0，

1*14BIT GPIO Connector，

1*LINE OUT 1*MIC，

2*Wifi Antenna port

1*POWER ON/OFF switch

1*VGA Maximum resolution 2048x1536 1*HDMI Maximum 3200*2000@60HZ

EXPANSION BUS

1* full size Mini PCIE slot

WATCHDOG

0-255 second, Sample code optional

Physical characteristics

Size(mm)

290*221*53.8mm

Weight(kgs)

2.43kg

O/S SUPPORT

Operation System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

POWER SUPPLY

INPUT

Single input DC12V 5A   +/-5%

Power Consumption

35W

Battery Module

Module for management of lithium-ion batteries + battery indicator (optional)

LED DISPLAY

DISPLAY TYPE

10inch TFT LED

Maximun Resolutions

800*600

View

80 (LEFT), 80 (RIGHT), 70 (UP), 70 (DOWN)

Lumens (cd/m²)

350cd/m²

Contrast

400:1

Backlight Life

30,000 hrs (Min.)

TOUCH PANEL

TYPE

5 Wires Resistive touch panel

Light Transmittance

≥85%

Controller Interface

USB port

Durability(Touch Times)

>3500 million times

ENVIRONMENT

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

IP65

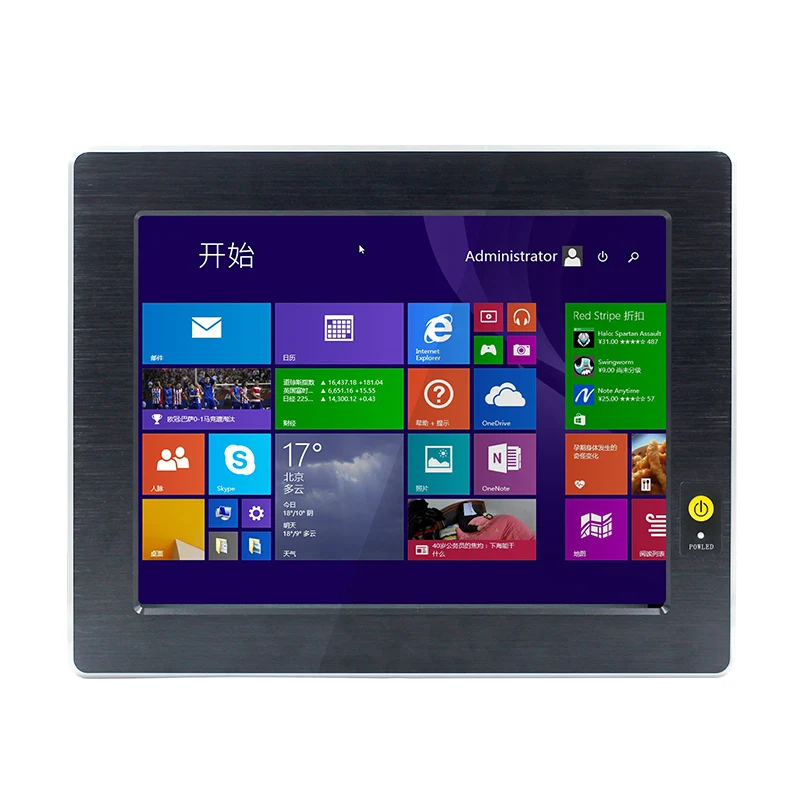

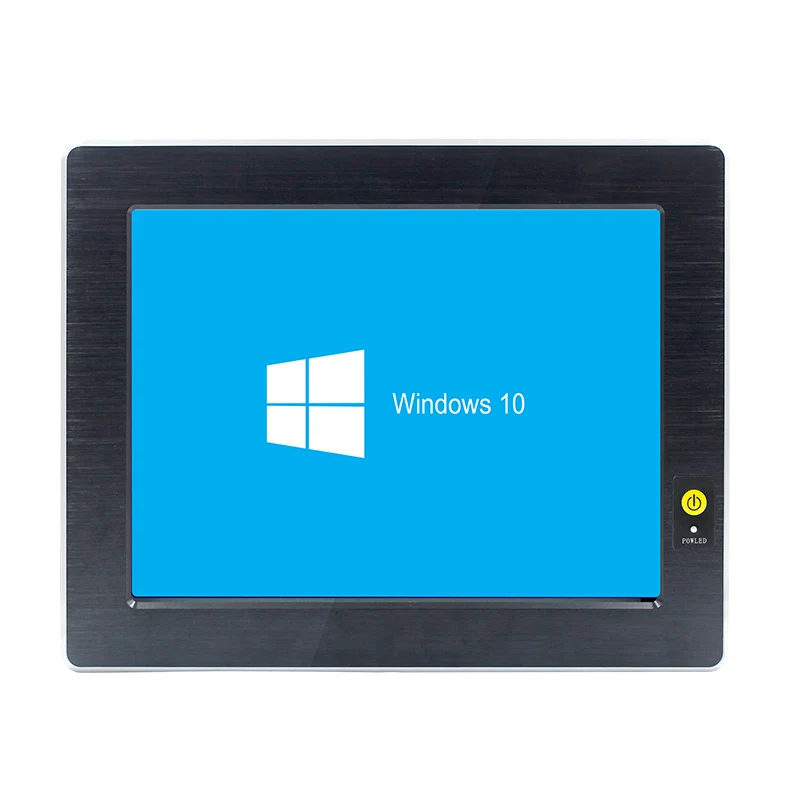

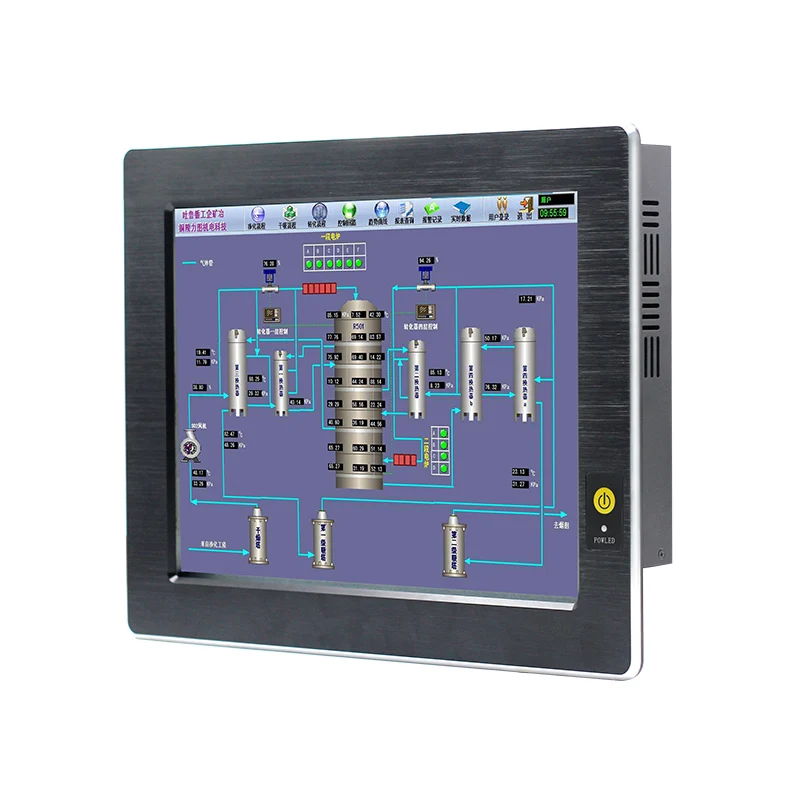

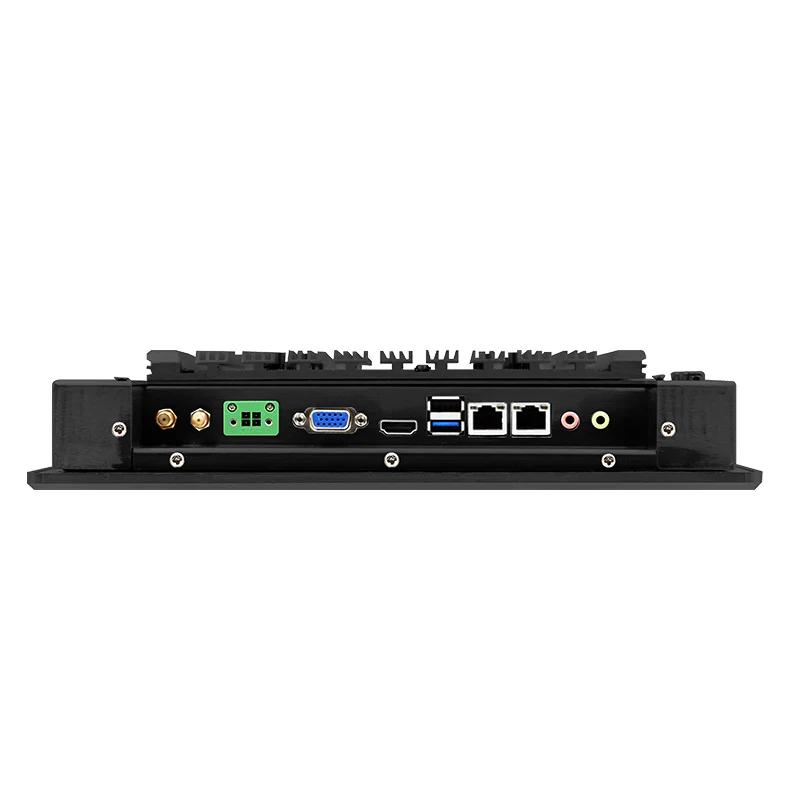

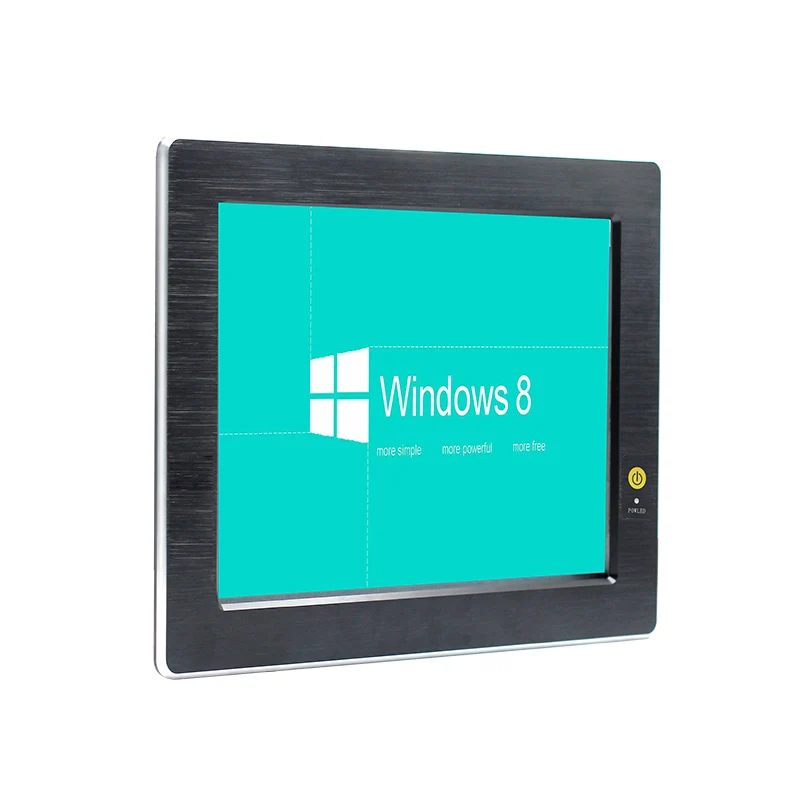

Products picture:

Company information:

FAQ:

Q1: How long is the warranty of your products?

A1: For motherboard, we provide 3 years of warranty period.

Q2: What if we have quality problems within warranty period?

A2: First, providing pictures or videos as proof to us and then we will send you a new one for free or you can return it to our factory for free maintenance.

Q3: Are you a manufacturer?

A3: Yes, we are ODM and OEM and we have our own factory with professional engineers. We welcome you extremely the presence to our factory.

Q4: What kind of terms of payment do you support?

A4: T/T, West union and Paypal are acceptable.

Q5: Can we get support if we have our own market position?

A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q6: Are there any cheap shipping channels to our country?

A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order

Q7: How many days will samples be finished? And how about the mass production?

A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.

Our services:

1.Considerate after-sales services:

Our warranty period lasts for 3 years. If you have any problems about our products, please contact us  and we will help you ASAP.

2.Customization Services:

 We could design our products according to customers’ requirements.

3.Labeling Packing:

Carton package. We accept printing customers' own logo on the carton surface.
