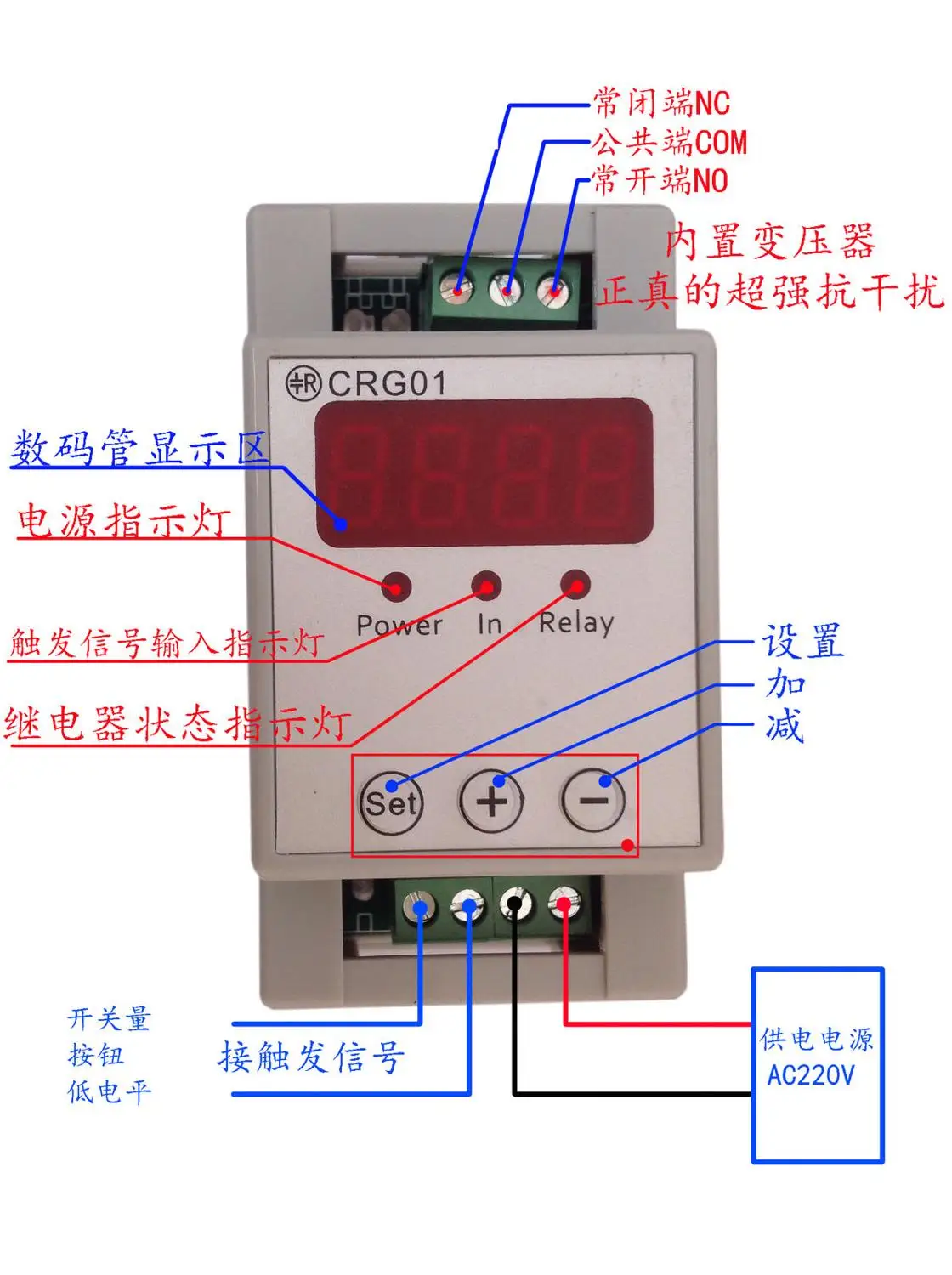

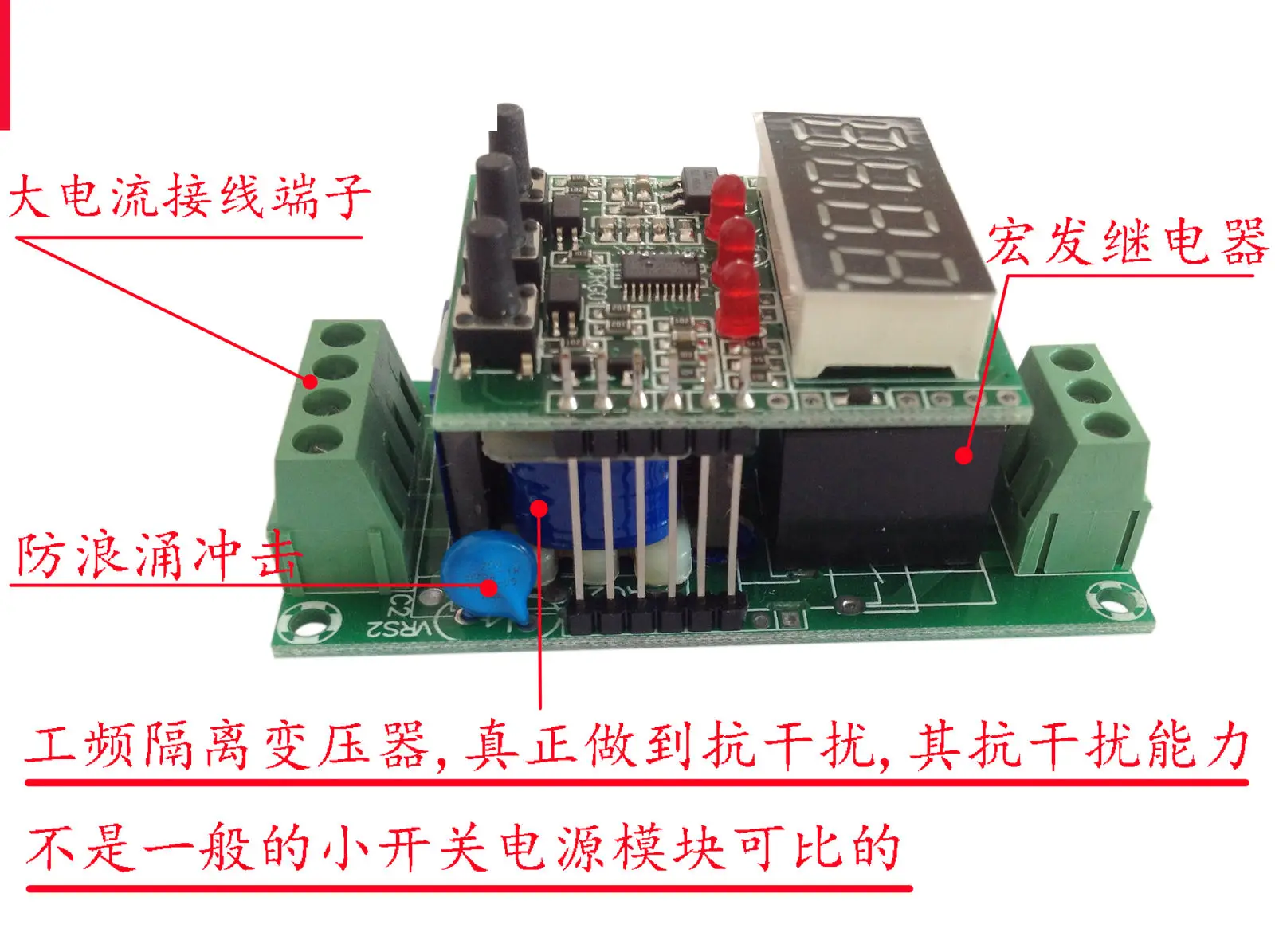

DC 12V 24V Multi-function relay controller LED Digital Display Cycle Delay Time Timer Trigger Relay Switch ON OFF AC 220V POWER |



DC 12V 24V 5v 220v Digital LED Cycle Loop Delay ON OFF Trigger Switch Timer Relay Module
    　  Description: Features:



Name: Digital time relay

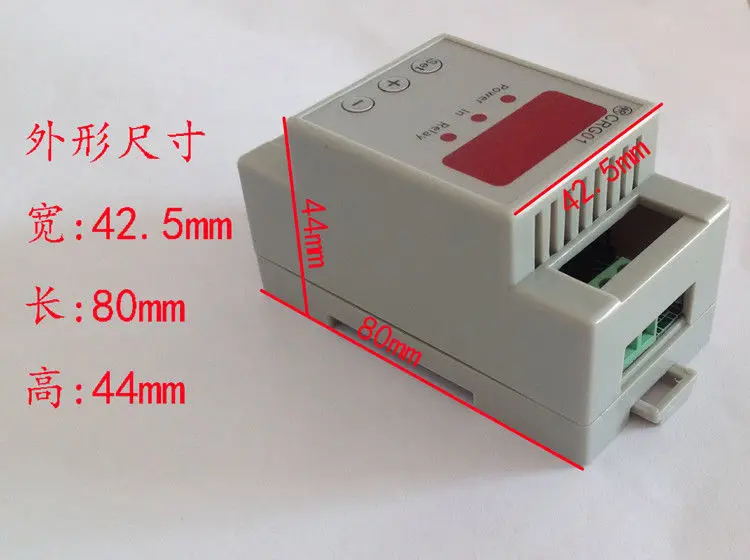

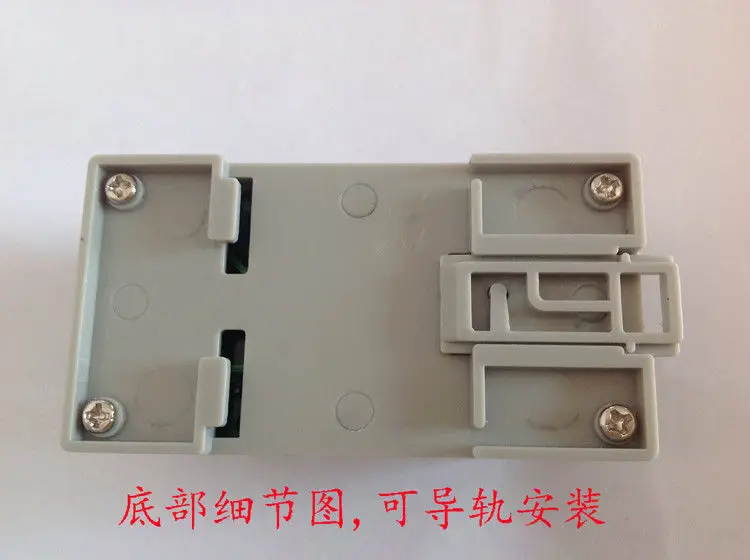

Specifications: Shell size: 80mm * 42.5 * 44 with rail mounting

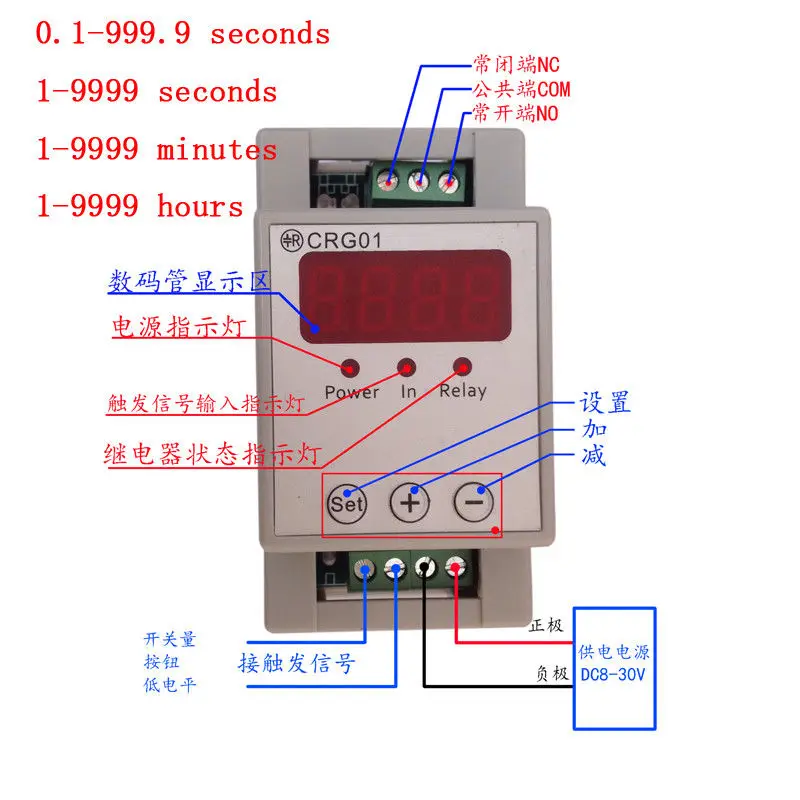

Power supply: DC 8-30V
Range: 0.1-999.9 seconds / 1-9999 seconds / 1-9999 minutes / 1-9999 hours
Function: Timing, delay, cycle, trigger, trigger timing, trigger delay, covering 18 functions
Maximum power: maximum operating current of 10A, the maximum power of 1500W

One, set

1): Power on,

2): Press the SET button to enter the function selection, display P1-P18, short press the SET button, switch between function 1 and function 8.

3): Press the + key to select the T1 time unit, display the value (T1-0 / 1/2/3), set the T1 time unit, then press the ADD key time unit to switch between 0/1/2/3.

time unit:
-0: 0.1 seconds, time range 0.1-999.9 seconds
-1: 1 second, time range 1-9999 seconds
-2: 1 minute, time range 1-9999 minutes
-3: 1 hour, time range 1-9999 hours

4): Press SET key to set T1 time, display T1, press +/- key to add and subtract time, display value (0000).

If the function 1, 2, 11, 12, press the SET button to confirm the save, set the end.

If it is function 3,4,5,6,7,8,13,14,15,16,17,18, then enter 5): Step.

5): Press the SET button to set the T2 time unit. Display "T2-0 / 1/2/3", set the T2 time unit, press the + key time unit to switch between 0/1/2/3. The

time unit:
-0: 0.1 seconds, time range 0.1-999.9 seconds
-1: 1 second, time range 1-9999 seconds
-2: 1 minute, time range 1-9999 minutes
-3: 1 hour, time range 1-9999 hours

6): Press the SET key to set the T2 time, display "T2", press the +/- key to add and subtract time, display the value (0000).

7): Press the SET key to set the number of cycles, display "C-", press the +/- key to increase or decrease the number of cycles, display the value (0000), if set to 0 is infinite loop.

8): Press the SET key to confirm the save

Two: function

Tips: function 1-8 power on their own start, function 9-18 need to trigger the trigger signal to start.

Function 1: Timing pull: After power-on, the delay T1 time relay pull, T1 in 0.01 seconds -9999 hours between the adjustable, after the trigger to repeat, repeat one time above the function;

Function 2: Timing off: the relay pull at power-up, delay T1 time relay disconnect, T1 in 0.01 seconds -9999 hours between the adjustable, after the completion of the trigger, repeat the function of one time above;

Function 3: Timing pull and then disconnect: After power-up, delay time T1, relay pull; delay time T2 arrives, the relay disconnect, the delay time T1 and T2 are adjustable between 0.01 seconds and 9999 hours, After the completion of the trigger, repeat the function of one time above;

Function 4: Timing off and then re-pull: After power-up, the relay immediately pulls, delay time T1 the relay disconnected; After the disconnection time T2 arrives, the relay pull , the delay time T1 and T2 in 0.01 seconds -9999 Hours between the adjustable, after the completion of the trigger, repeat one time above the function;

Function 5: infinite cycle timing mode 1: After power-up, the after delay time T1 arrives, the relay pull; the pull-in time T2 arrives, the relay is disconnected, and then repeats the above state, the delay time T1 and T2 are between 0.01 seconds and 9999 Hours between the adjustable, after the completion of the trigger, repeat one time above the function;

Function 6: infinite cycle timing mode 2: After power-up, the relay immediately pulls in, the delay time T1 arrives, the relay is disconnected; the disconnection time T2 arrives, the relay pulls in, and then repeats the above state, the delay time T1 and T2 In the 0.01 seconds to 9999 hours between the adjustable.

Function 7: limited cycle timing mode 1: on the basis of function 5, increase the number of cycles function, then T1 and T2 between 0.01 seconds to 9999 hours adjustable, the number of cycles NX adjustable between 1-9999 times;

Function 8: limited cycle timing mode 2: on the basis of function 6, increase the number of cycles function, then T1 and T2 between 0.1 seconds to 9999 hours adjustable, the number of cycles NX adjustable between 1-9999 times;

Function 9: Self-latching relay mode: to trigger the signal, relay pull, again to a trigger signal, the relay is disconnected.

Function 10: Trigger relay mode: to the relay trigger signal, the relay pull, high level disappears, the relay is disconnected.

Function 11: Trigger timing pull: after the relay does not action, trigger, delay T1 time relay pull, T1 in 0.01 seconds to 9999 hours between the adjustable, after the completion of repeated to the trigger signal, repeat one time above Features;

Function 12: Trigger timing off: After the relay does not action, trigger, relay pull, delay T1 time relay disconnect, T1 in 0.01 seconds to 9999 hours between the adjustable, re-trigger after completion, repeat One time above the function;

Function 13: Trigger Timing Pull-off: After power-up relay no action, trigger, delay time T1, relay pull; pull time T2 arrival, relay disconnect, delay time T1 and T2 between 0.01 seconds and 9999 hours After the completion of the re-trigger, repeat one time above the function;

Function 14: trigger time off and then pull up: After power-up relay no action, trigger, the relay immediately pull, delay time T1, the relay is off; disconnect time T2 arrival, relay pull, delay time T1 And T2 in 0.01 seconds to 9999 hours between the adjustable, after the completion of the re-trigger, repeat one time above the function;

Function 15: infinite cycle timing mode 1: After power-up relay no action, to the trigger signal, the delay time T1 arrived, the relay pull; pull time T2 arrived, the relay disconnected, and then repeat the above state, delay time T1 and T2 are adjustable between 0.01 seconds and 9999 hours, after the completion of the re-trigger, repeat one time above the function;

Function 16: infinite loop timing mode 2: After power-up relay no action, give the CH1 interface a high level pulse signal, the relay immediately pull, delay time T1 arrival, the relay is disconnected; disconnect time T2 arrival, relay suction And then repeat the above state, the delay time T1 and T2 between 0.01 seconds to 9999 hours adjustable.

Function 17: limited cycle timing mode 1: on the basis of function 15, increase the number of cycles function, then T1 and T2 between 0.01 seconds to 9999 hours adjustable, the number of cycles between 1-9999 times adjustable, after The completion of the re-trigger, repeat one time above the function;

Function 18: limited cycle timing mode 2: on the basis of function 16, increase the number of cycles function, T1 and T2 in 0.01 seconds to 9999 hours between the adjustable, the number of cycles NX adjustable between 1-9999 times, after the Completion of the re-trigger, repeat one time above the function; Package Contents
100% Brand New
1 xDC 12V 24V Digital LED Cycle Loop Delay ON OFF Trigger Switch Timer Relay Module
