BSIDE Digital Multimeter Voltmeter Ammeter Ohm Capacitance Tester Diagnostic Machine 9999 Counts Auto Manual Range Multimeters |

BSIDE Digital Multimeter Voltmeter Ammeter Ohm Capacitance Tester Diagnostic Machine 9999 Counts Auto Manual Range Multimeters |

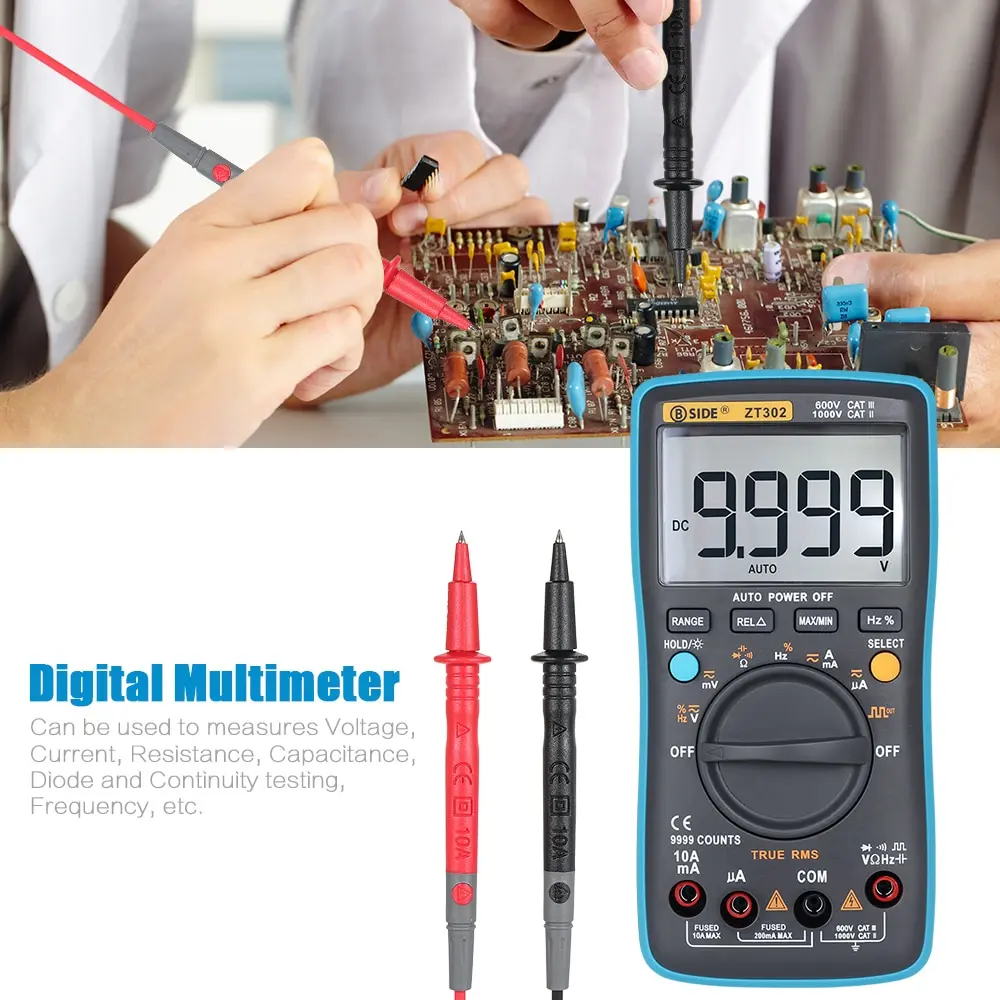

This is a multi-functional, auto ranging, true RMS digital multimeter with 9999 counts LCD display. This multimeter is a very practical tool for electricians, hobbyists, and general household use. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode and continuity with square wave output.

Features:

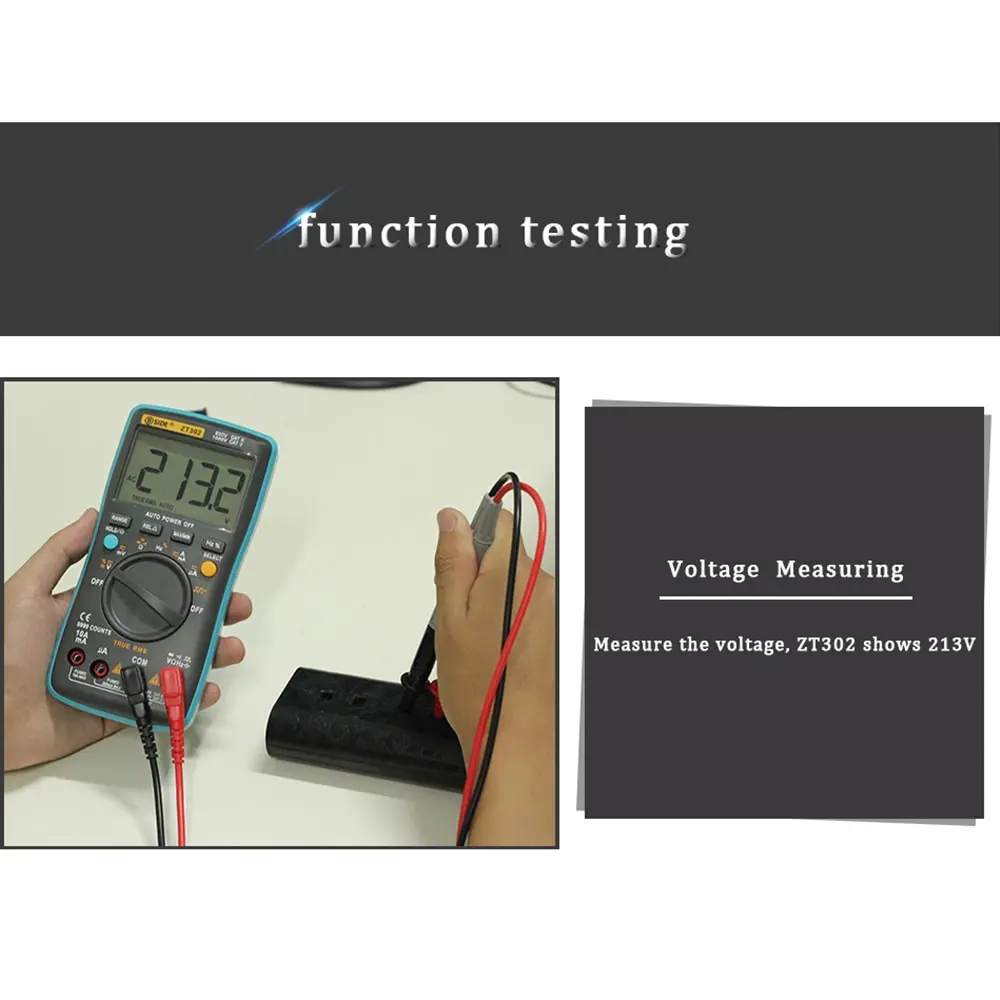

Measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode and continuity with square wave output.
Large LCD display with switchable backlight, easy to read, maximum display 9999 counts with true RMS.
Auto power off after 15 minutes without operation, energy-saving and safer.
High precision, portable handheld size, and easy to carry.
Max./Min. value test and relative measurements, with a back bracket at a 45° angle for easy readings and hands-free use.
Data hold, low battery indication and backlit LCD with large digits for visibility in dimly lit areas.
Widely used in laboratory, factory and family for circuit or instrument maintenance and repair.

Specifications:
Brand Name: BSIDE
Model: ZT-302
Color: Dark Grey + Blue
Material: ABS
Display: LCD Display with Backlight, 9999 Counts
Range Control: Auto/Manual Range
Sampling Time: 3 times/second
DC Voltage Range: 999.9mV/9.999V/99.99V/999.9V/9.999mV/99.99mV
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/0.001mV/0.01mV
AC Voltage Range: 999.9mV/9.999V/99.99V/750.0V/9.999mV/99.99mV
AC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/0.001mV/0.01mV
DC Current Range: 9.999A/999.9mA/99.99μA/999.9μA
DC Current Resolution: 0.001A/0.1mA/0.01μA/0.1μA
AC Current Range: 9.999A/999.9mA/99.99μA/999.9μA
AC Current Resolution: 0.001A/0.1mA/0.01μA/0.1μA
Resistance Range: 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ
Resistance Resolution: 0.01Ω/0.1Ω/0.001k1Ω/0.01kΩ/0.1kΩ/0.001MΩ
Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/0.001mF
Frequency Range: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz
Frequency Resolution: 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz
Duty Cycle Range: 1% ～ 99%
Duty Cycle Resolution: 0.1%

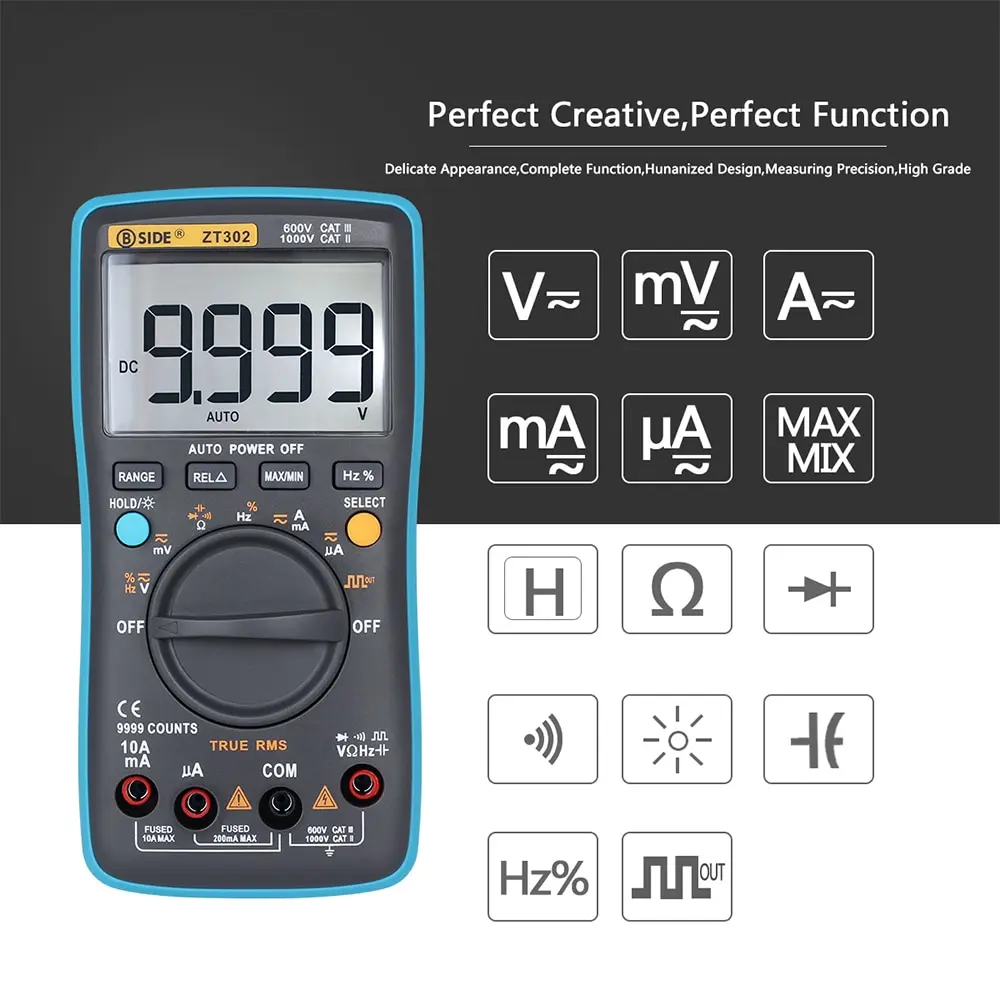

Function: AC/DC Voltage, AC/DC Current, Resistance, Data Hold, Backlight, Auto Power off, Continuity Test with Buzzer, Diode Test, Low Battery Indication, Capacitance, Frequency, Duty Cycle Test, Square Wave Output
Working Temperature/Humidity: 0～40°, <75%RH
Storage Temperature/Humidity: -20～60°, <80%RH
Power Supply: 2 * 1.5V AA Battery (Not Included)
Item Size: 160 * 80 * 40mm / 6.3 * 3.1 * 1.6in
Item Weight: 201g / 7.1oz
Package Size: 19.5 * 11.5 * 5cm / 7.7 * 4.5 * 2.0in
Package Weight: 328g / 11.6oz

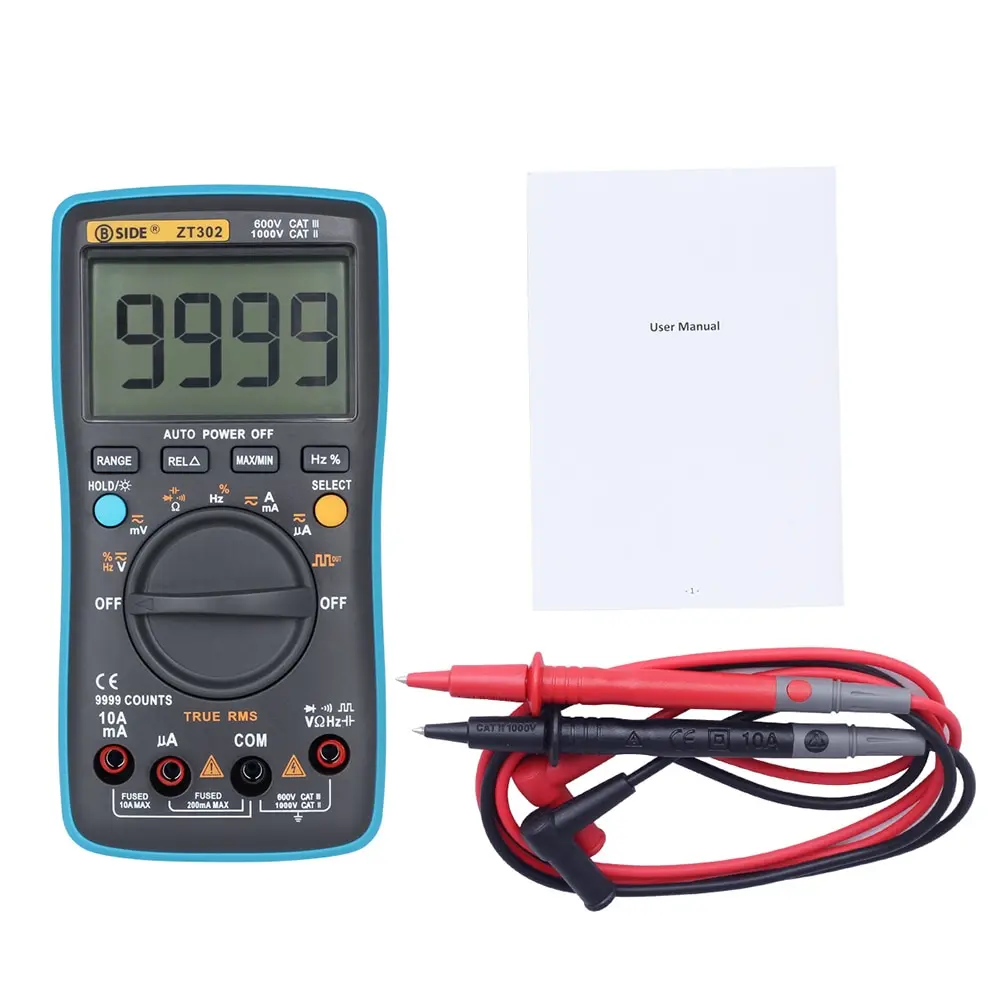

Package List:
1 * Digital Multimeter
1 * Pair of Test Probe
1 * Pouch Bag
1 * User Manual(English)
