Custom Professional 12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid & led display | Электроника

Custom Professional 12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid & led display | Электроника

(battery charger)Custom Professional 12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger & led display

Name

12V 90A Lead acid battery charger

Model

2000L

Battery type

12V Lead acid battery

AC Input

110Vac or 230Vac

Output voltage

14.7V  float charge 13.8V

Output current

90A

Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Reverse polarity Protection

Apply to

For 800AH,1000AH,1300AH 12V lead acid battery

12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger

The 12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110V OR 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage:14.7V float charge 13.8V(12V Lead acid battery)

C:Charging Mode:12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 100A lead acid battery charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 100A lead acid battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger

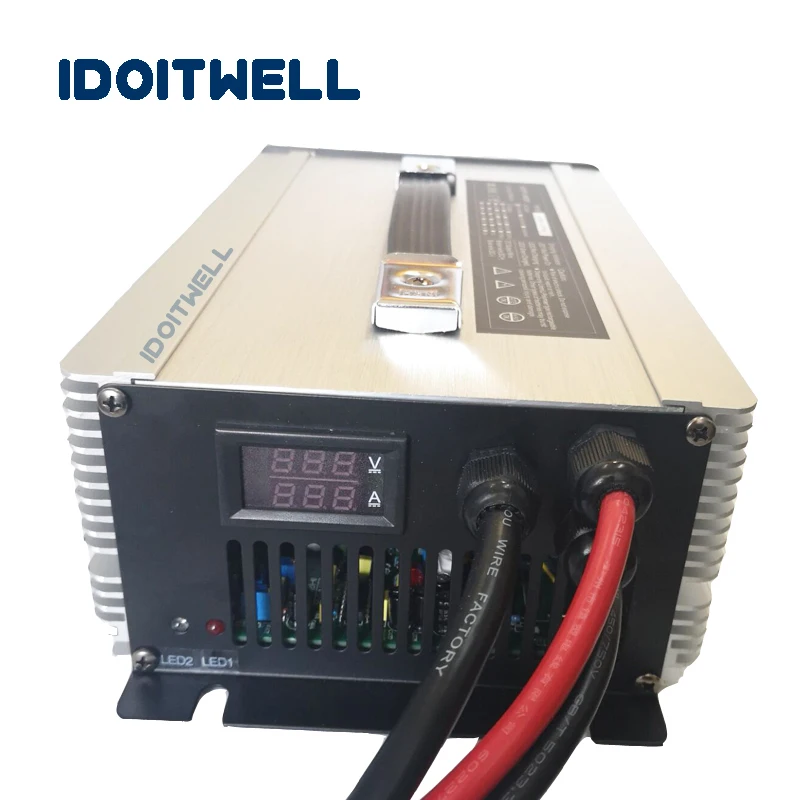

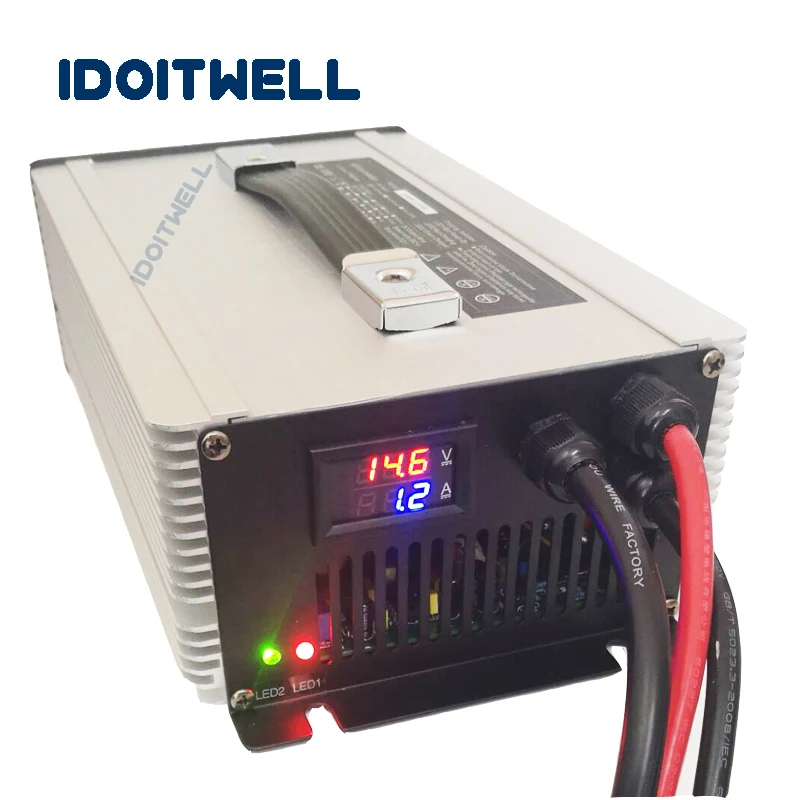

Product picture

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.

IDOITWELLSmart Automatic battery charger list

ModelIDOITWELL

Charging voltage&current for reference

N.W. (KG)

Size(mm)

IDOITWELL

12V

24V

36V

48V

60V

72V

84V

120W

7A

4A

2.5A

1.8A

1.5A

_

_

0.7

135x90x50

180W

10A

5A

3.5A

2.5A

2A

1.5A

_

0.9

155x90x50

240W

15A

7.5A

5A

3.8A

3A

2.5A

_

1

170x90x50

360W

20A

12A

8A

6A

4.5A

4A

_

1.2

170x90x63

600W

25A

19A

12A

9A

7A

6A

_

2.5

207x120x70

900W

40A

25A

18A

15A

12A

10A

_

3

220x135x70

900WB

40A

25A

18A

15A

12A

10A

8A

3.5

260x175x90

1200W

50A

30A

20A

19A

15A

12A

10A

4.5

260x175x90

1500W

60A

45A

30A

24A

19A

16A

14A

5.5

300x175x90

2000W

90A

60A

40A

30A

25A

20A

18A

6.5

330x175x115

2500W

-

75A

50A

40A

30A

25A

22A

7

380x240x150

4000W

150A

100A

80A

60A

45A

40A

35A

11

340x235x110

12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger

Alternative connections

36V 40A 48V30A 60V 25A 72V 20A 84V 18A battery charger

1 x Battery charger

1 x User Manual

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.

2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.

Shipment:12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 100A lead acid battery charger

1. We provide all kinds different shipment services for different request as follow:

First: AliExpress Standard Shipping:

It’s a shipping system made by aliexpress, absolutely faster and more secure than china post or Netherlands postal, AliExpress Standard Shipping system will choose the fastest shipping way according to your country and the product you buy, we promise all the shipping cost is real.

Delivery time (According to our experience):

To Russian : 15-25 days.

To Europe (such as Italy/United Kingdom/Spain/Netherlands/Belarus/France....): 18-28 days.

To Asia (such as India/Singapore/Israel/Turkey/Saudi Arabia...): 15-21 days.

To North America (such as Canada /United States/Mexico(Mecixo may take more 7 days )...): 14-20 days.

To Oceania (such as Australia /New Zealand...) : 15-23 days.

To South America (such as Argentina /Brazil /Chile /Peru /Colombia...) : 35-48 days.

To Africa(such as South Africa /Egypt/Cameroon /Algeria /Kenya...) : 28-35days.

But Due to the customs or other problems, such as local weather problem, it may take more 20-26 days, So it is need your enough

patience to wait the sensor night light. And when you choose this shipment way, Then we think you agree to accept this delay if happen.

if the Protection sensor night light is going end, and you have not received the goods, please contact us to extend the time.

Second: Non-free shipping-- DHL,UPS, FEDEX, TNT, It take about 3-7 work days;

If you need DHL,UPS, FEDEX, TNT, pls contact us, we will help you.

2. Please confirm the shipment way and payment, and we will deliver the products in 1-3 working days after we receive the payment. And the tracking number will be given at the first time.

3. Import duties, taxes or other customs cost.

In most cases, the buyer don’t need to pay any import taxes.But sometimes in some countries, the customs officer may be strict. we are not accountable for any customs fee. Please check out the customs policy at your own place. If you have to pay the customs fees, it is your duty to your own country, the buyer should understand this situation.

1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).

2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.

3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.

We are not recommending the return policy, because that cause high cost for both of us.

Contact Us:12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 100A lead acid battery charger

1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.

2. You can contact with us by trade manager or by email, we track the message everyday.

12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger

1. Are you battery charger Manufacturer?

Yes, we are a professional lifepo4 battery charger manufacture over 13 year's experience.

2. Are you specialized in battery charger products?

Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.

3. How do you guarantee the quality of your battery charger products?

The battery charger  workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.

4. Do you have any certification of your battery charger  products?

Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.

5. How to transport the 12V battery charger?

We have 13 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.

6. Does the 12V battery charger have the minimum order requirements?

No, we have not minimum order requirements for chargers for the normal items.

7. What is the 12V battery charger lead time?

Depend on the quantity of your order. Usually the normal 12V battery charger needs 1-3 days, and OEM order requires 8-12 days.

8. Can you arrange to ship my other supplier's product together?

Yes, we can help to collect and ship your supplier's product, and even help to source any products from China you specified in addition to the 12V battery charger products

9. Can I visit your factory?12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 100A lead acid battery charger

Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.

10. Do you offer other service?

Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.

Best seller will provide you with professional service. Leave message to get a best price of “Custom Professional 12V VRLA SLA AGM GEL battery charger 14.7V float charge 13.8V 90A lead acid battery charger & led display"
