Welcome to our shop, we are a professional CNC machine tool accessories and motion control product supplier, located in Shenzhen, China. We provide complete machine tool accessories solutions, and we have 5 professional Mechanical engineers providing  type selection, system design and technical support services. Any questions please contact us freely.

Model available

Digital Readout Displayer

1 /2 /3 /4 Axis

Linear Scale travel (L0=0~3000mm)

50/100/150/200/250/300/350/400/450/50/550/600/650/700/750/800/850/900/950/1000…….

Resolution

Standard: 5um (1um/0.001mm resolution optional)

Please select or leave a message about the model you need, for any questions, just contact us ☺

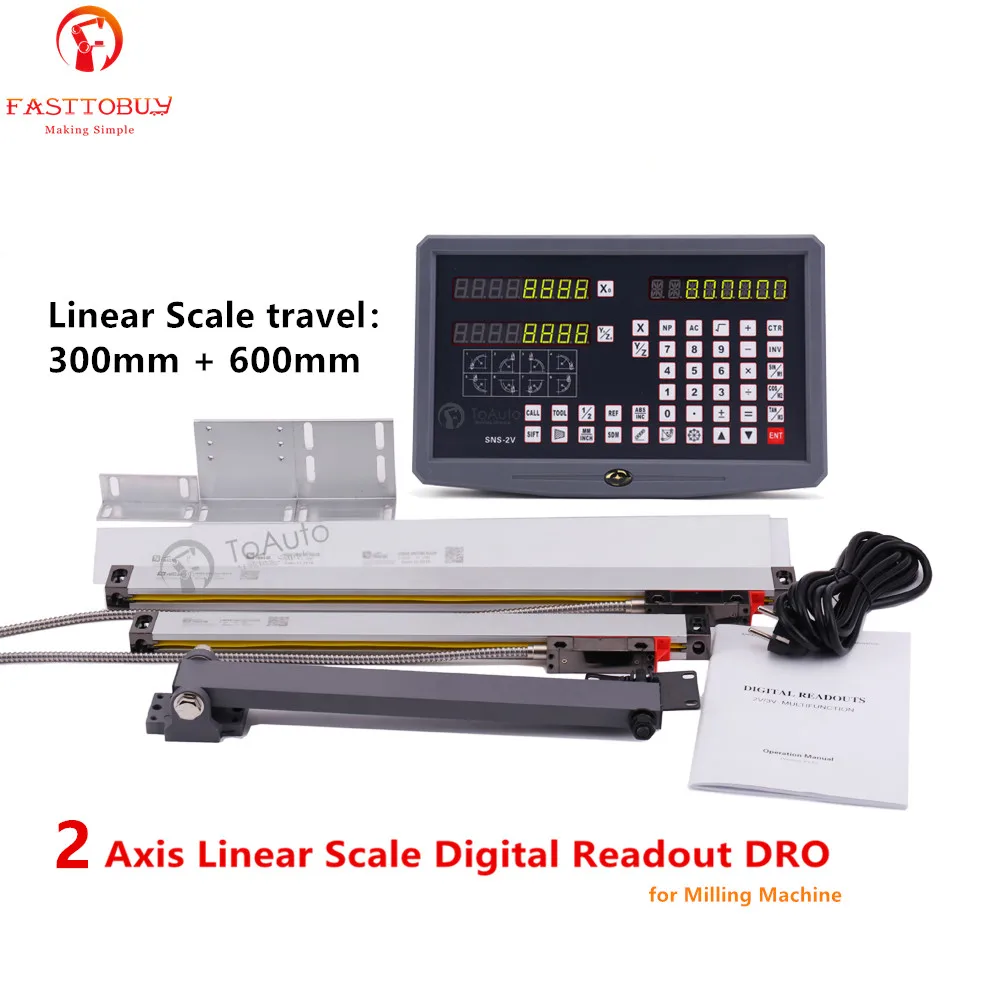

1 PC

 2 Axis digital readout display DRO

2 PCS

Linear Scale （300mm + 600mm）

1PC

Instruction Manual (English)

Accessories

scale cover,  L connecting bracket, scale cover, screw bag and so on.

Technical  parameters

 Supply Voltage range

AC 86V~240V; 50~60Hz

Power consumption

15VA

Operating temperature

0~50 degree centigrade

Storage temperature

-30~70 degree centigrade

Relative humidity

Less than 90%

Readout allowable input signal

TTL square wave

Allowable input signal frequency

Less than 5M Hz

Max resolution of digital display length

5µm

Min resolution of digital display angle

0.0001/pulse

Cable length

3-meter

Weight

1.2kg

Dimensions

299*191*56mm  (11.8"*7.5"*2.0")

Linear Scale communicate

DB9(RS232)

Display language

English

Lifetime

five million times

Functions overview

 . Parameters setting

 . zeroing

 . preset data to designated axis

 . Toggle display unit between inch and mm

 . Absolute/Incremental/200 groups SDM

 . 1/2 Function

 . Clear all SDM datum

 . Sleeping mode

 . Power interruption memory

 . Search the absolute reference point of scale

 . Non linear error compensation

 . 200 groups SDM coordinate (Zeroing at the current point, Preset datum of SDM coordinate)

. Calculator

 . Circumference holes processing

 . Linear holes processing

 . ARC Processing

 . Oblique processing

 . Slope processing

 . Chamber processing

 . The tool diameter compensation function

 . Digital filter of the grinding machine

 . Lathe function(200 sets tool libs, taper function,l R/D function, Y+Z function)

 . EDM function

(1) Digital readout kit can avoid wasting time to check machine precision

(2) Advanced functions calculator so to accomplish a perfect project

(3)   Reliable quality.  signal line using multi-layer isolation wire and metal soft shell to prevent interference;The scale body is made of aluminum alloy, which is durable after anodic treatment.The sensors use the precision measuring grating as the measuring datum, high precision.

(4) Technical support is always free. 1 year warranty.

The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.
