For iron, steel, galvanized sheet, white sheet, titanium plate and other metal plates. Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting. Advertising signs, logo making, decorative products, production of advertising and a variety of thicker metal materials.cutting metal molds made of copper, aluminum, iron and so on.for steel, copper, iron,galvanized plate, titanium plate and other metal sheet cutting. All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

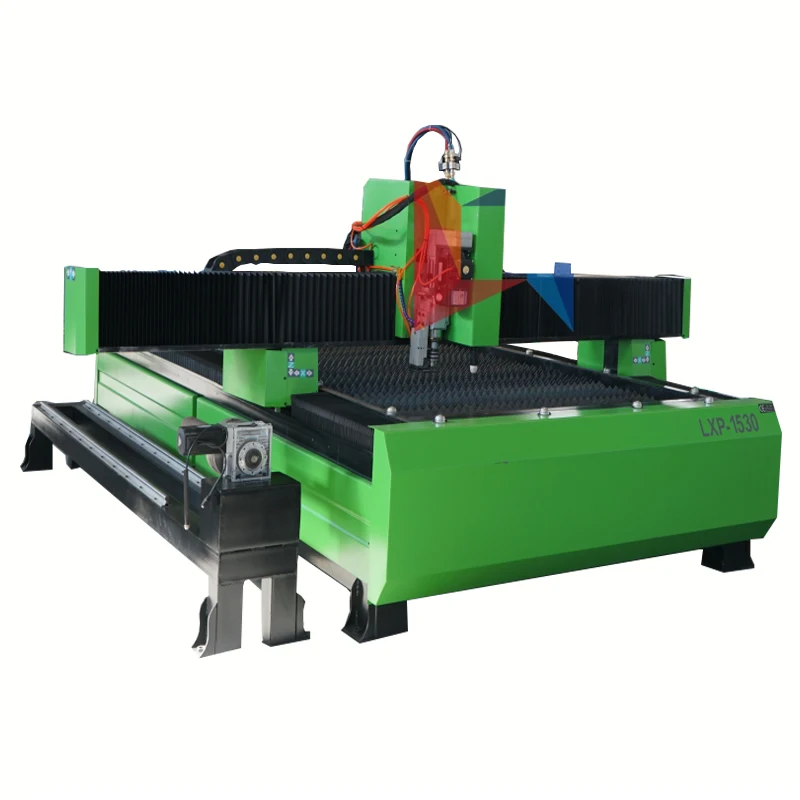

LXP-1530 before:

LXP-1530 after:

FLMC-F2300A

FLMC-F2300A control system, it can control the rotary axis directly, easy operation.

Leadshine HBS2206 Hybrid servo motor

This is optional machine parts, you can choose Yako driver and stepper motor, and you also can choose Yaskawa driver and servo motor.

Huayuan 120A power source

No carbon leakage hazard, especially suitable for carbon-sensitive materials such as stainless steel, easy to achieve mechanization, high efficiency, low noise, less dust. (Optional:63A/100A/160A/200A/300A)

Square rails

Compared to round rails, square rails ensures equal force in all directions and accuracy and strength of the machine, and we have dust covers on the X and Y axes to reduce the impact of debris on the other rails and maintain their operational accuracy.

Model

plasma cutting machine

Working size

1500x3000mm

Repeat positioning accuracy

±0.05mm

Traveling speed

0-24000rpm/min

Cutting speed

10-15m/min

Transmission model

Gear rack drive

Transmission system

X,Y Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack

Cutting system

FLMC-F2300A cutting system

Driver

Leadshine hybrid servo motor

Plasma power supply

Huayuan 120A power source

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

 <90% No concreting

About the rotary axis on the machine side, about the diameter and the length, just tell us your need, we support custom made.

JINAN UNICH MACHINERY CO., LTD is a professional CNC machinery manufacturer Rather than merely supplying stand-alone products, we offer customized solutions for businesses with small cost-efficient production in mind and those with highly automated projects that require high through puts. These solutions have a proven record of offering definite advantages to users in assisting them to produce better products in a more efficient way, with lower cost and in a shorter time. The seamless integration of our machines with industrial automation software and systems enhances our partners' competing edge by taking care of the labor cost impact, offering optimal yield and measurable savings, in the meantime dramatically reducing cycle times.

Welcome to visit our factory!

1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time. 2.All the spare parts of the machine were covered by some soft materials, mainly using pearl wool. avoiding all damages that could happen in the  delivery process. Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft  materials, also avoiding Waterproof and rust proof. 3. The out most is wooden case with fixed form work. 4.The bottom of the wooden case has firm iron jack, convenient to Handling and transport.

Portable plasma cutter machine style

Gantry plasma cutter machine style

Custom made machine style

If you have any other needs, just tell us your needs, we can confirm to our engineer, recommend the suitable machine style to you.

1. 2 years quality guaranty. The main parts (excluding the consumables) of machine shall be changed free of charge if there is any problem during the warranty period. 2. Maintenance free of charge and free training course . 3. We provide 18 hours free online technical support. Engineer can reply you within 5 minutes during work time and can help you solve problem within 5 hours in general. 4. Machine has been tested and adjusted before delivery. We will take machine photos and working video for you to test the machine. 5. We have professional engineers to offer machine installation, commissioning and maintenance. We also can provide on-site service. 6. If you have any problem during using, our engineer can help you to solve it online. We can provide Team Viewer and skype to solve all your problem.

FAQ

1.Do You Arrange Shipment For The Machines? Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents. 2.How to get the most suitable machine and best price ? Please tell us: *the material you want to work *the MAX size of these materials *the thickness you want to cut *your voltage, single phase or three phase 3.Do you have the manual of machine? Yes ,we can provide manual ,CD software and installing video to help you operate the machine expertly. 4.How about the documents after shipment? After machine shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
