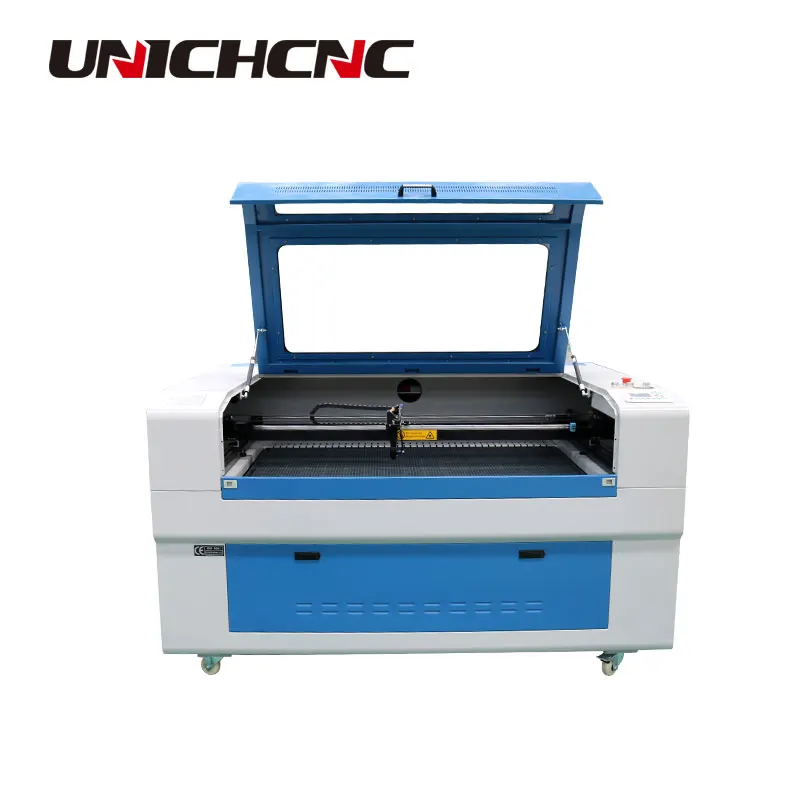

laser engraving machine for wood ingraving machines | Инструменты

laser engraving machine for wood ingraving machines | Инструменты

Configuration:

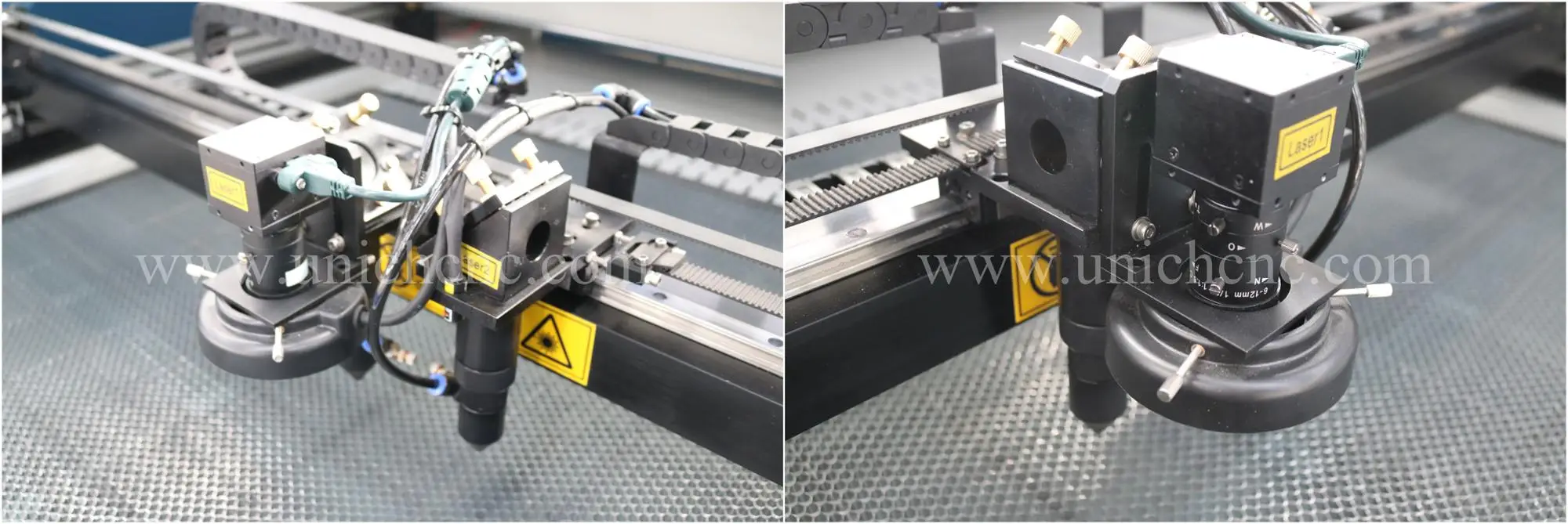

1. 3 million pixels high resolution CCD camera, which can accurately identify the edge

2. DSP control system, stable performance

3. 128 m large capacity memory faster
4. Leadshine stepper motor
5. Taiwan imported linear guide
6. Usb data transmission interface

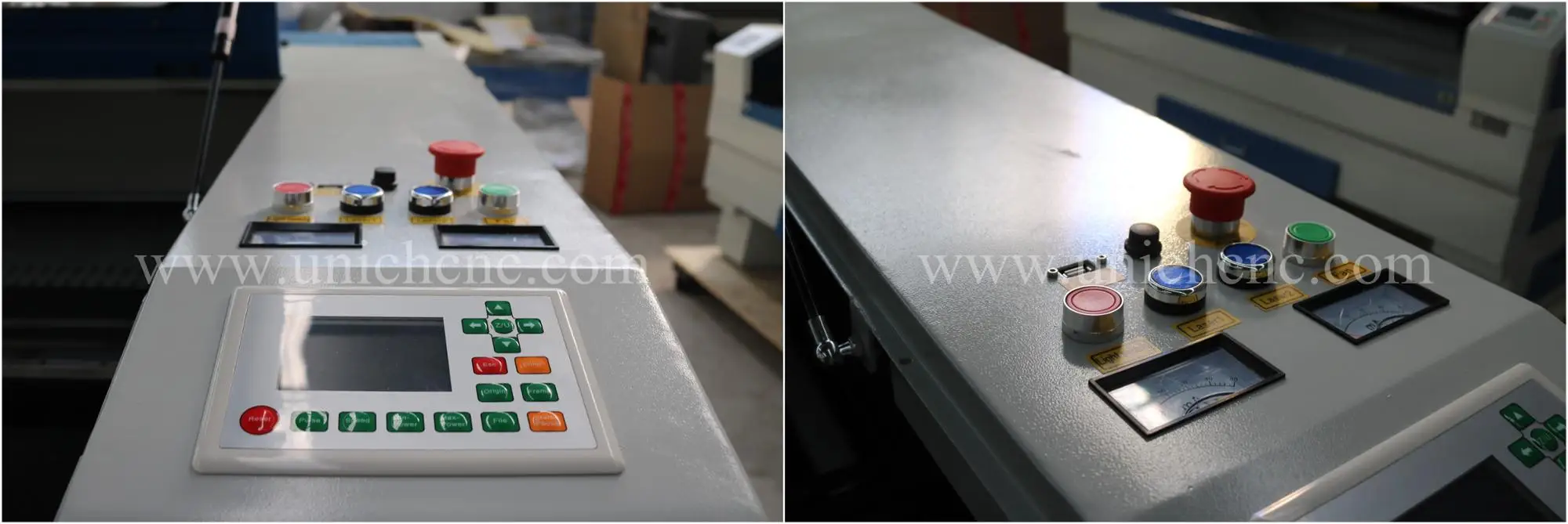

7. Chinese LCD display, the humanized control panel

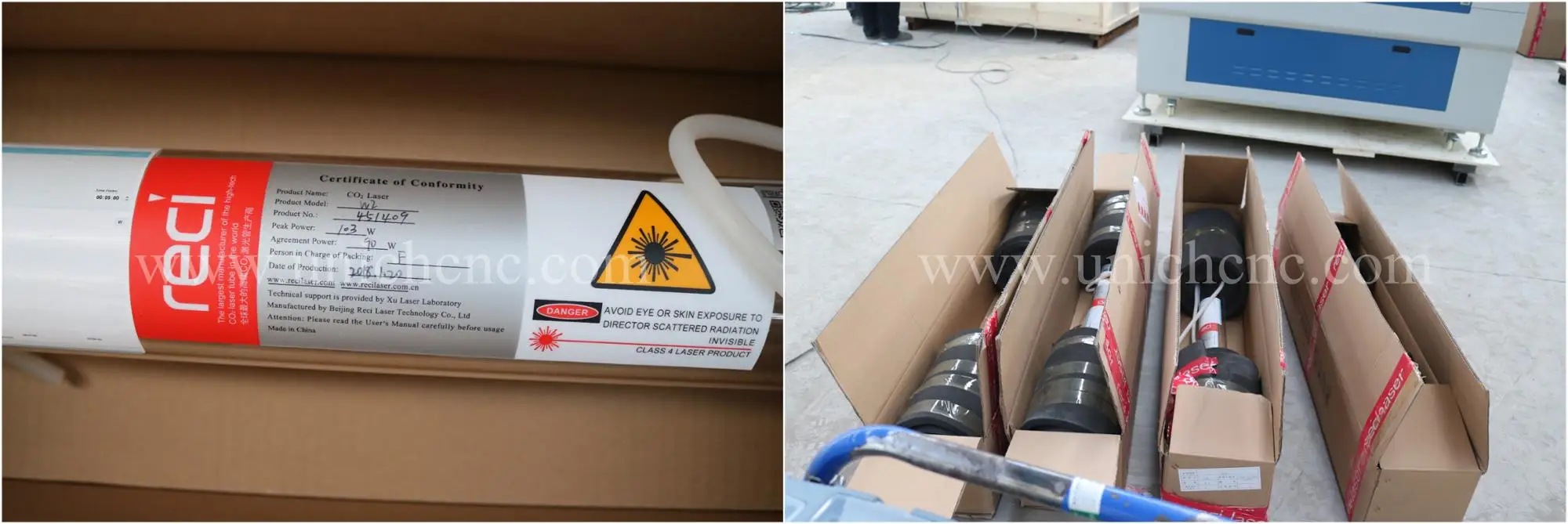

8. Beijing Reci brand Laser tube: 60w, 80w, 100w and 150w.

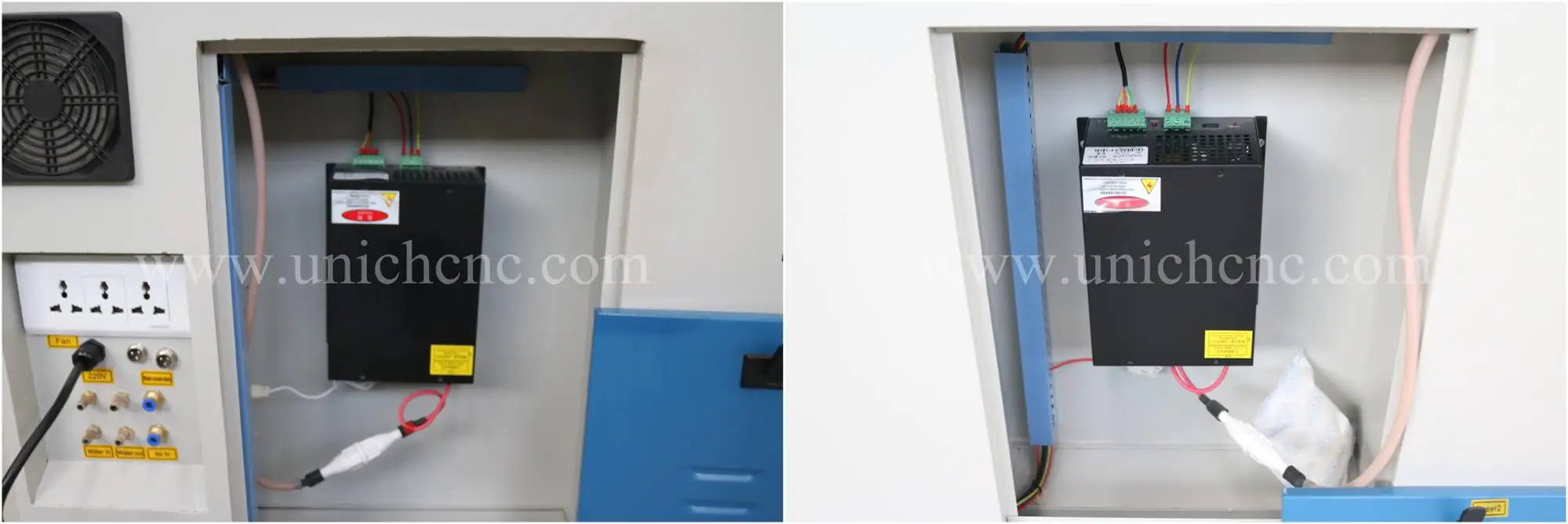

    Laser supply

9. Software: lasercut, support output from Corel Draw, AutoCAD directly.

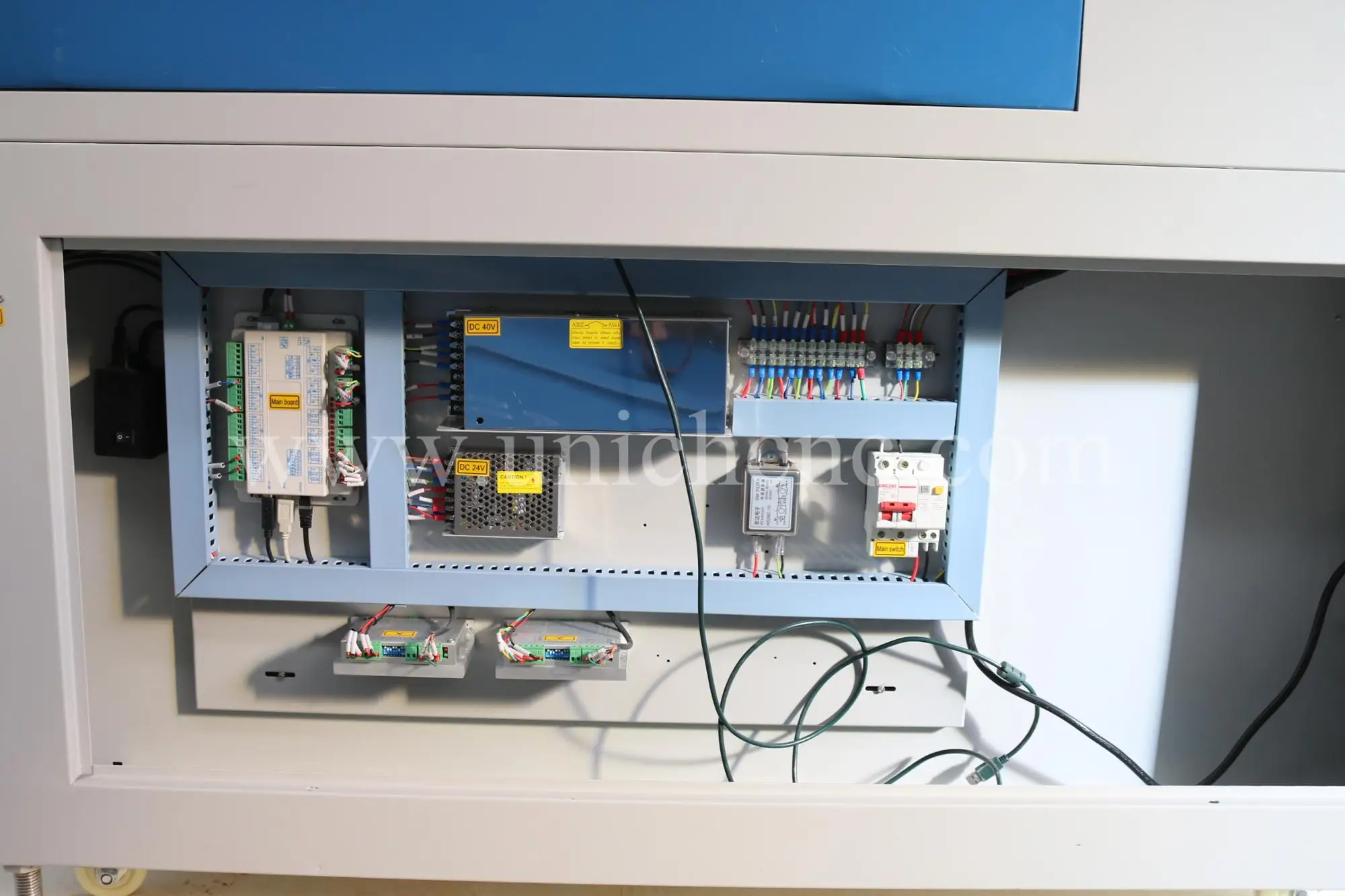

10. Control box

11. Honeycomb table for fabric, leather, engraving, cutting
12. All stainless iron honeycomb floor high strength work platform

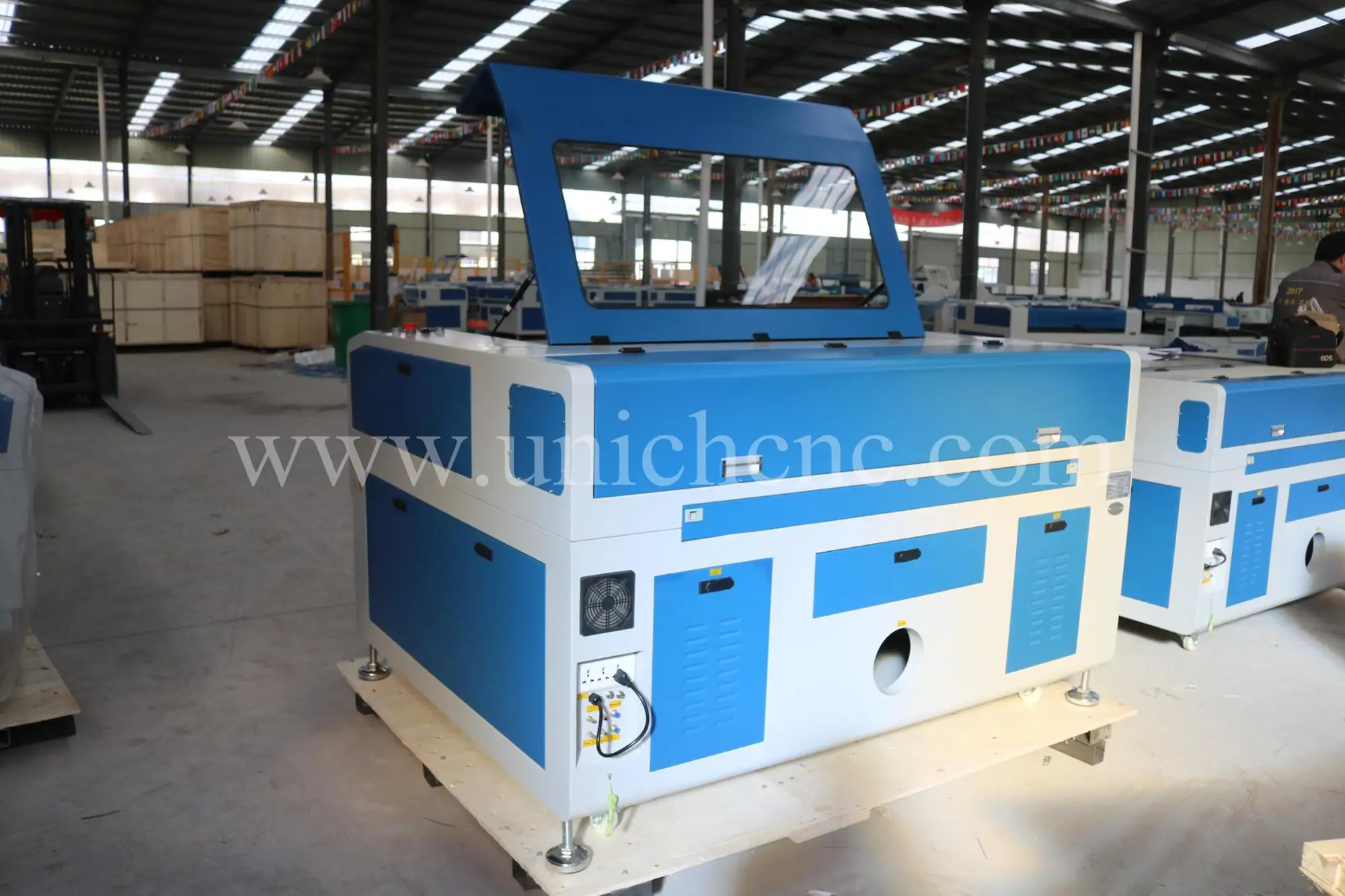

13. The machine others parts:

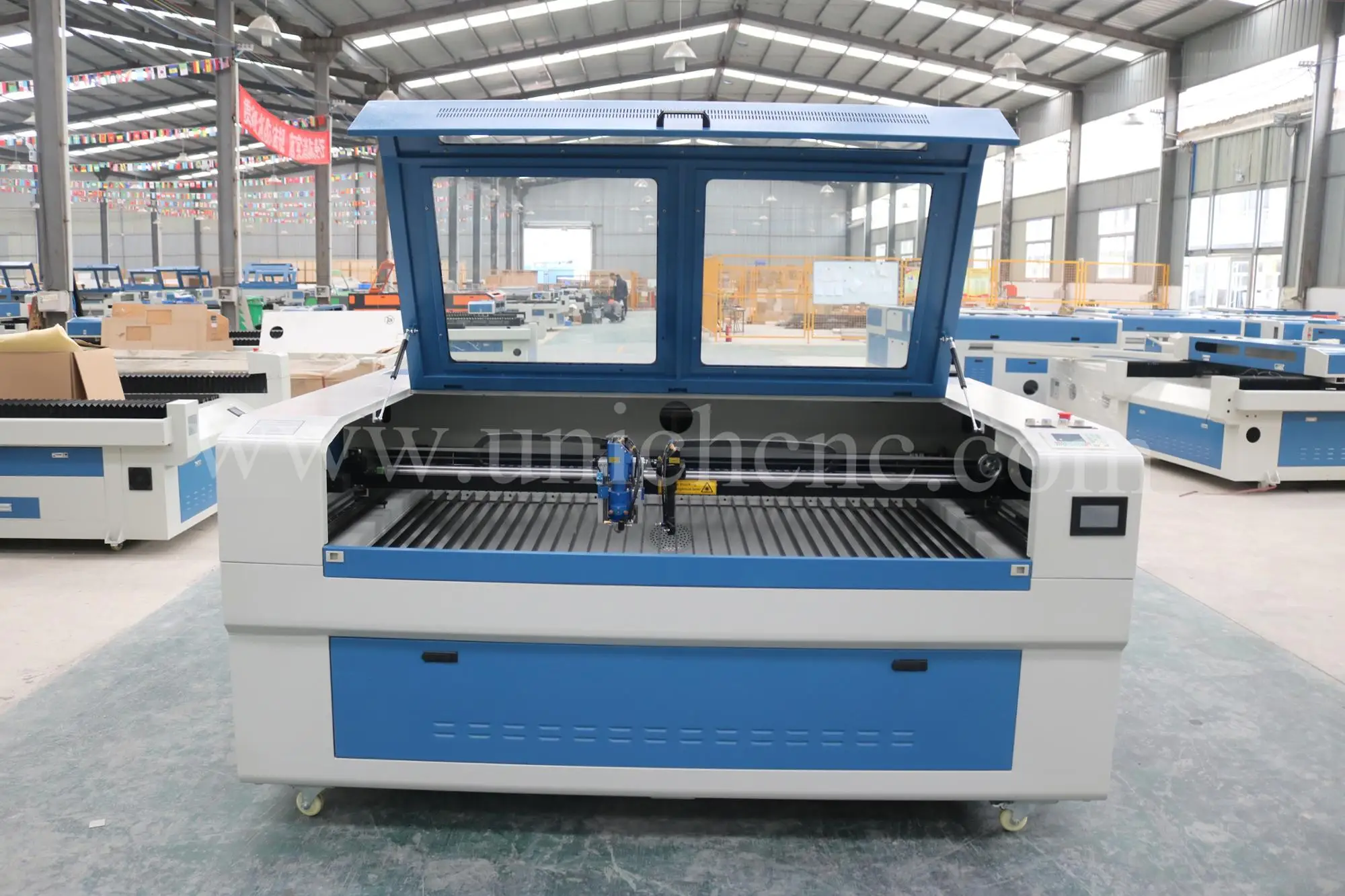

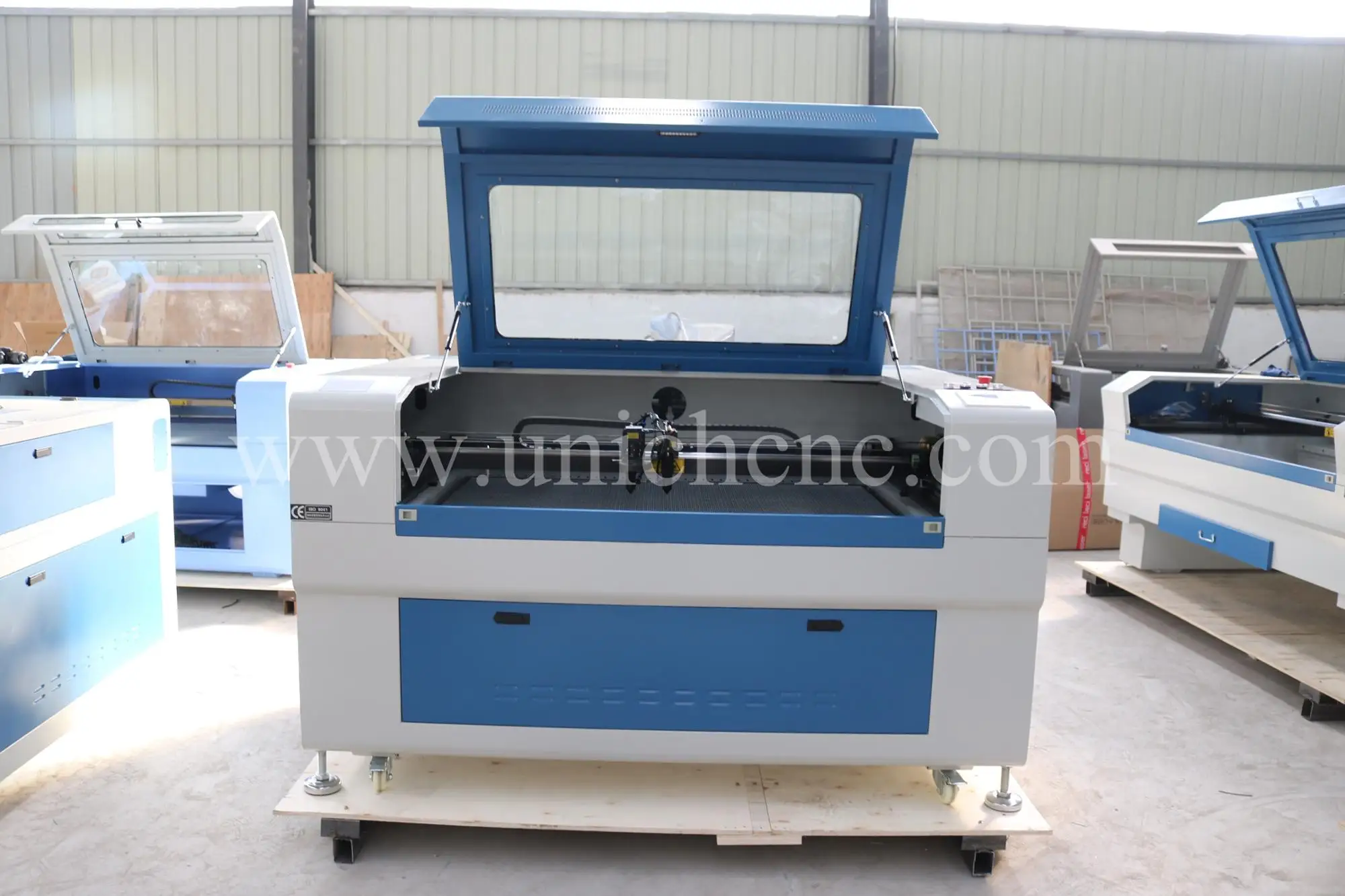

The CCD automatic positioning laser machine features:

1. System is light, save a space, easy to operate.High-performance laser, perfect optical system, laser power stability, long service life.A red indicator, easy to locate and cutting the preview.
2. High precision stepper motor drive, precision of synchronous belt and belt wheel transmission, ensure high speed and precision.
3. With waste boxes, clean up the cutting waste more convenient.
4. The use of advanced DSP control technology, which can realize fast continuous curve cutting
5. Automatic camera positioning cutter by computer vision system to design intake at work, after processing, can automatically search the workpiece and accurate positioning of cutting, avoid the user for positioning are not allowed to be struggling to keep up.

6. The realization of continuous fast curvilinear cutting function, is due to the powerful data processing ability to high-end DSP technology, computer software targeted design and meticulous precision machinery system, in the case of high speed, cutting straight without deformation, cutting curve no distortion.

Specifications:

Main Features

1. The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.
2. Have professional visual light source. During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and position accurately to cut.
3. Two working models “identify firstly then cut” and “identify and cut together”, with the design of “shortest cutting path software” can save 20% time averagely

Working Area

900*600mm

1200*900mm

1300*900mm

1600*1000mm

Laser Power

60w/80w/100w/130w/150w

Laser Type

CO2 Sealed Laser Tube,10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-40000mm/min

Laser Output Control

0-100% Set by Software

Min. Engraving Size

Chinese:2.0mm*2.0mm,English letter:1.0mm*1.0mm

Highest Scanning Precision

4000DPI

Locating Accuracy

≤+0.02mm

Controlling Software

DSP Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS, etc

Compatible Software

CORELDRAW, PHOTOSHOP,AUTOCAD, TAJIMA, etc.

Color Separation

Yes

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipment

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V+10%,50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity5-95%(No Condensate Water)

Packing Size

According to the Model

Net Weight

According to the Model

Option

Up& Down table, Honeycomb Worktable, Rotary Device, Red Dot Position System, Auto-focus Device

Machine Application:

Advertising industry: Double-colored board engraving,Organic glass engraving and cutting,Label engraving,Crystal cup engraving,Warranty signed engraving

Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble
Packing and printing industry:Rubbery board,Plastic board,Double-layered board, Model cutting board
Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm,Synthetic leather, Man-made leather,Cloth

Architectural model industry: ABS board cutting,Model cutting
Production totem industry: Appliance signs,Anti-fake commodities making.

If you want cutting the metal and non-metal, please Click this machine pictures:

FAQ:

Q: If some problems happened  during warranty period ?

A:We will supply free parts for this machine during the warranty period if machine have any problems

without man-made reasons, We also supply free afterservice forever.

Q: How long is the delivery time?

A: For standard machines, it would be 7-10 days; For non-standard machines, customized machine according to client s specific requirements, it would be 15 to 30 days.

Q: The payment terms?

A: T/T,  L/C,  West Union, Paypal etc.

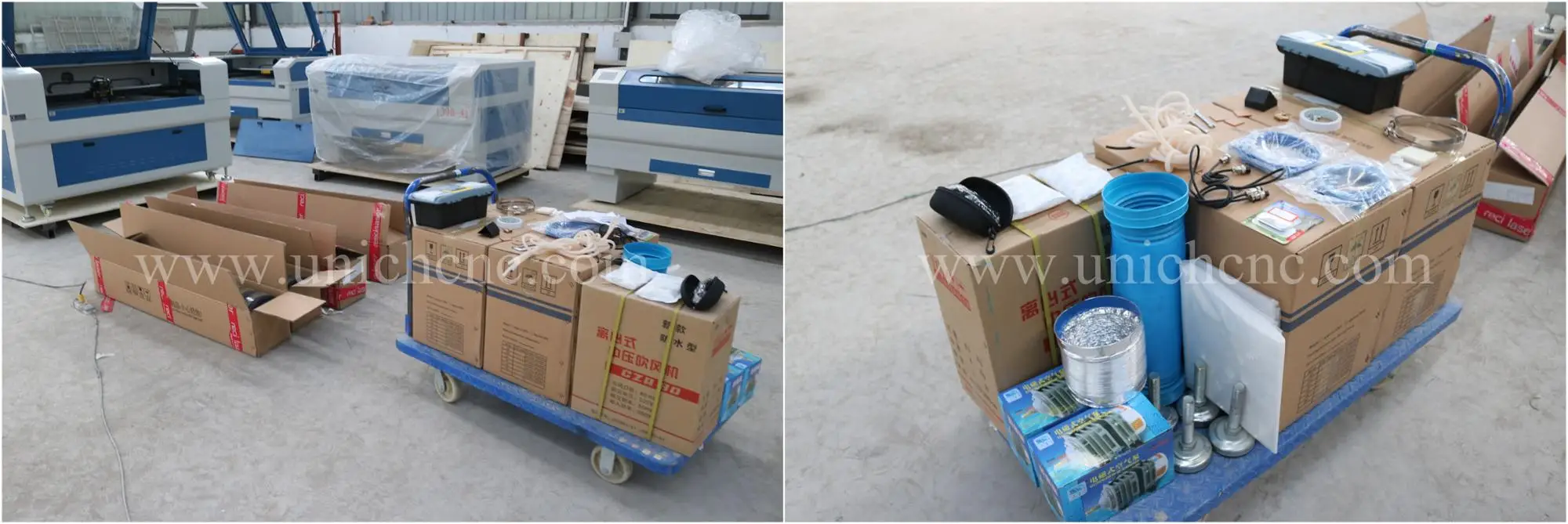

Q: How about the packaging ?

A: All of our machine packed with water proof thin plastic inside and plywood box, free from fumigation,outside the machine, and wrapped with stainless steel belt on the packages.
