Custom 10~1000MHz RF Voltage Controlled Oscillator VCO Swept Signal Source Signal-Generator | Обустройство дома

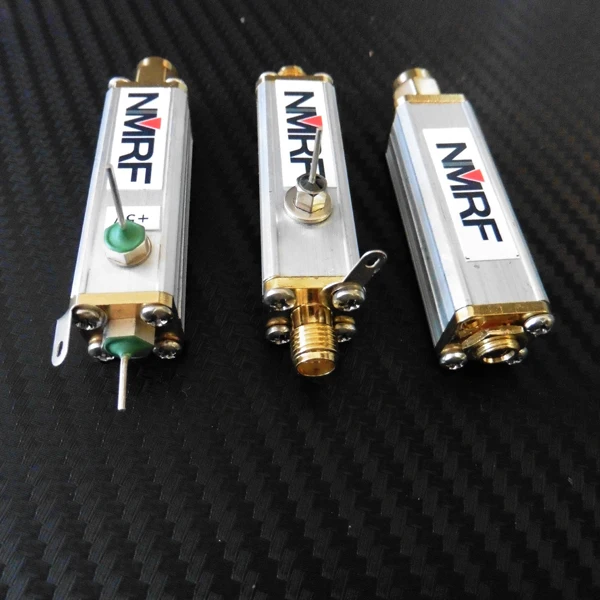

This series of custom voltage controlled oscillators is fabricated on an integrated chip. Low power consumption, low phase noise, stable output, frequency response and tuning linearity are far superior to those of discrete components. This product has a sturdy aluminum alloy shielded housing that can be used as a local oscillator or DIY sweep source for RF receivers. The signal output is SMA female socket, the power interface is side-mounted through-core capacitor lead (DC +5V), and the tuning voltage input is SMA female socket. Customized feedthrough capacitor leads (1mm diameter) can also be used as the control voltage interface for the tail end.   Model: VCO-xxx.xxxx   Output impedance: 50 Ohms   Output signal frequency: 10 ~ 1000MHz (custom)   Output signal power: -4 to -5dBm   Tuning voltage range: 0 ~ 20V   Power supply voltage: +5V.DC   Working current: 18 ~ 20mA   Signal output interface: SMA-F   Output phase noise (given by the chip manufacturer): -90dBc/Hz @25kHz

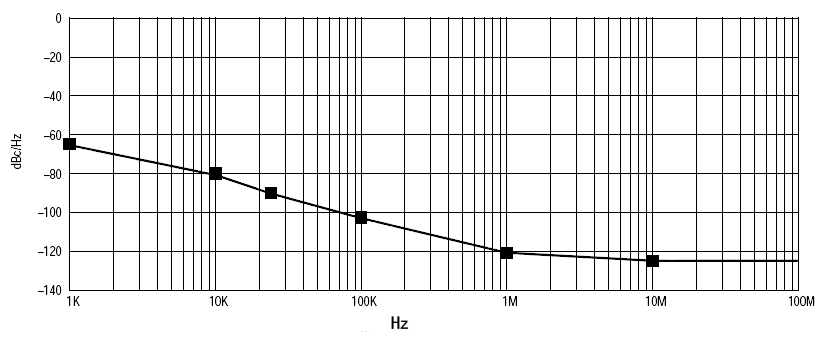

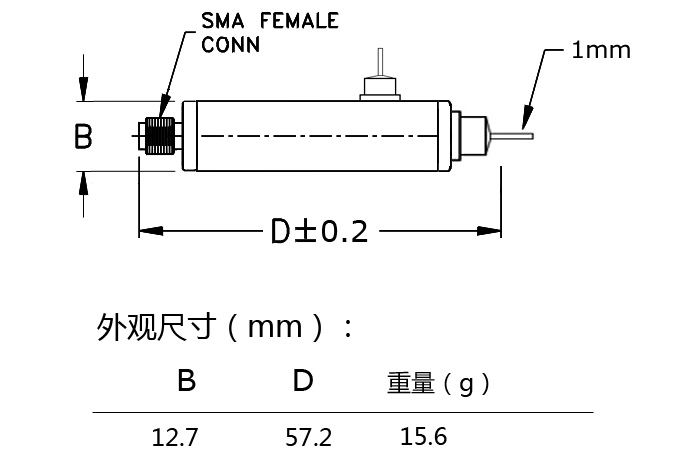

外型尺寸（控制端口为 SMA 母座）：

（或 1mm穿心电容引线）：

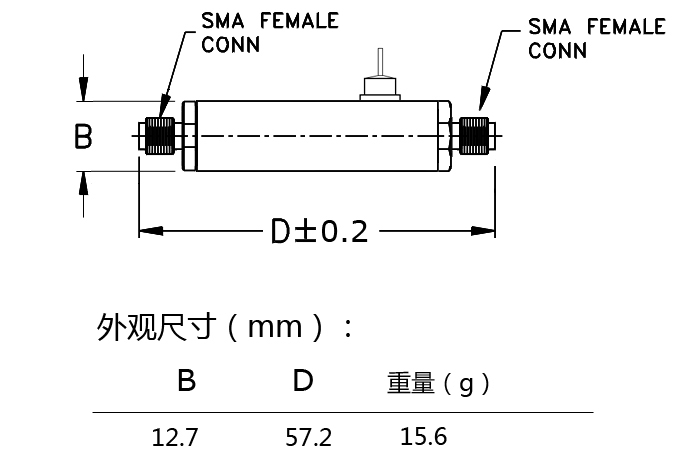

外型尺寸（控制端口为 SMA 母座）：

（或 1mm穿心电容引线）：
