Some products need to be ordered, urgently needed customers, please ask customer service if there is any stock before ordering.

Application Range of Single Phase Thyristor Voltage Module：

heating：Various Heating Furnaces、Injection molding equipment、Thermoplastic molding、Textile equipment、Infrared heating、Power Supply Distribution System、Drying system, etc.
Electric machinery：Fan motor、Pump motor、Mixer motor, etc.
lighting：Public lighting、Industrial lighting、Stage lighting, etc.
Other：Transformer、Inductance coil、Electric welding machine、Electroplating, etc.

Product performance parameters：

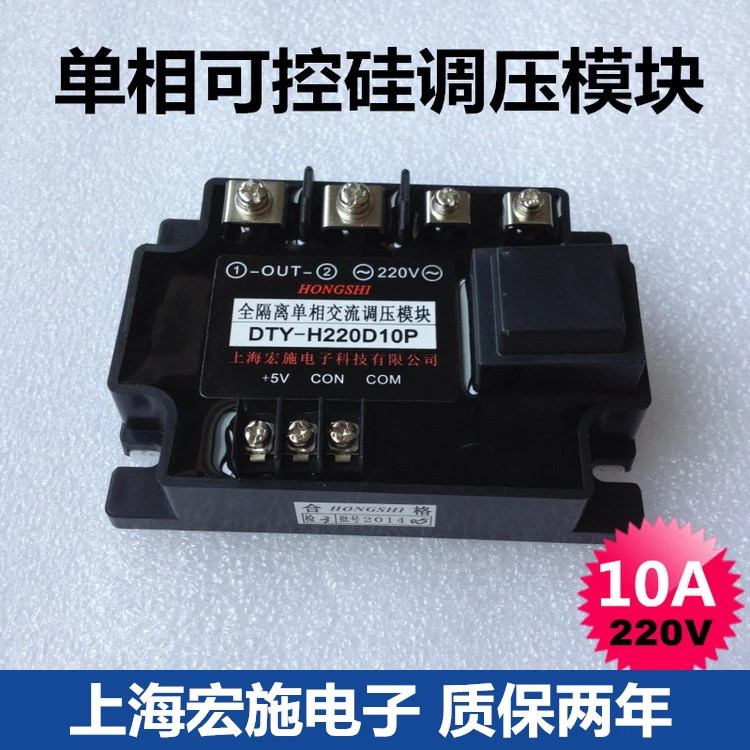

Product name：Fully Isolated Single Phase AC Voltage Regulating Module(Ordinary type)
Specification type：DTY-H220D10P

control signal：0-5V

Load voltage：220V


List of Product Types：

Product Selection Guidance：

Detailed introduction：

1.Product overview：Fully Isolated Single Phase AC Voltage Regulating Module（hereinafter referred to asDTY）It is a set synchronous transformer.、Phase Detection Circuit、Phase-shifting trigger circuit and output thyristor in one，When the control voltage is changed，The trigger phase angle of output thyristor can be changed.，That is to realize voltage regulation of single-phase alternating current。Common type according to different output thyristor devices，Enhanced type and half-wave type of one-way thyristor。Rating Voltage Points for Single Phase AC Load220Vand380VTwo category，This module is0-5V、0-10V、4-20mAMultiple Control Signals。

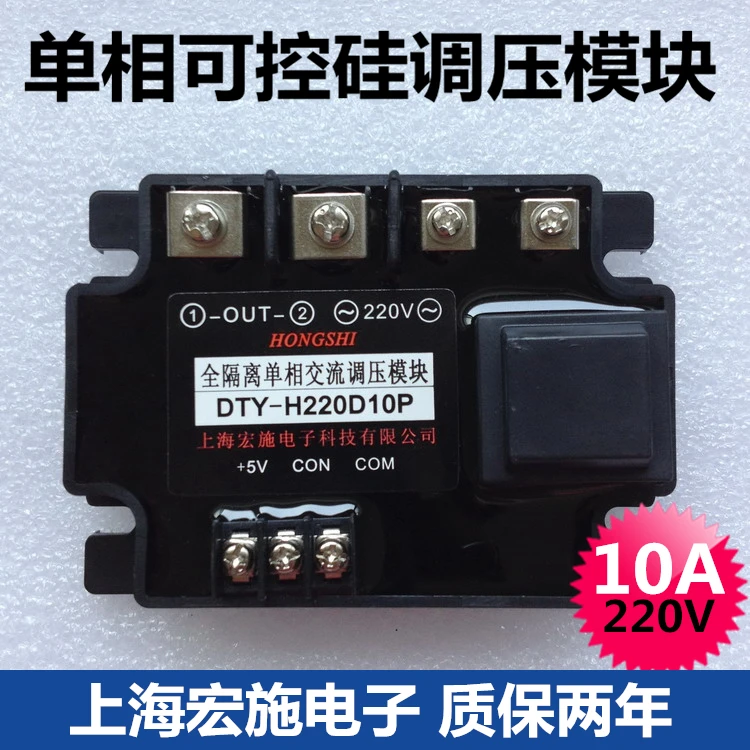

Pin description：
①②Output terminal，That is, the two poles of thyristor inside the module，Enhanced and ordinary①②Terminal nonpolarity，
③④For module internal synchronous transformer primary，branch220Vacand380VacTwo specifications：220VacSpecification mold
Block allowed to use brackets160-240VacScope on the grid，380VacSpecification modules are allowed to be used in280-
420VacOn the grid，③④Non polarity。
⑤End-to-end generation+10VVoltage，Only supply potentiometer for manual control。
⑥⑦The ends are respectively0-5V、0-10VControl Voltage Input。
⑧The terminal is the control current.4-20mAInput terminal。
⑨For the internal end。

Matters needing attention（with0-5Vtake as an example Other control signals and so on）
(1)、adopt①②Voltage phase sum applied to load③④The voltage phase at the end must be consistent，otherwise
Be out of control。The frequency of the power grid should be as follows50HZ。
(2)、Control pairCOMMust be positive.，If the polarity is opposite, the output is out of control.（Fully open or fully closed）。
When the control side follows0-5vChange time，Voltage on AC load from10Volt adjustable from left to right to maximum（Resistive negativity
For example）。The control end is in the0-0 .8V，Fully closed area at left and right，Reliable shutdown module output；
Control ends0，8V-4.6VLeft and right adjustable regions，That is, with the increase of control voltage，Conduction angleafrom175°
reach0°Linear decrease，Voltage on AC load from10Around the volt increases to the maximum；CONstay4.6V-5VLeft
Right time is full open area，Maximum Voltage on AC Load。
(3)、DTYModule can not be used for motor speed regulation，Only fans、Single-phase motor in pump class is not required
Single-phase voltage regulating module can be used in high situation。
(4)、Three single-phase voltage regulator modules can not be used to regulate three-phase load at three-phase voltage。
(5)、Weak current part、Strong current part、The insulation voltage between the module boards is greater than that between them.2000VAC。
(6)、The calorific value of the whole module is multiplied by the actual current ampere of the load.1.5Watt Ampere Calculation。Optional radiatorD-105/C-105/B-120/A-150/A-200Other series。

'
