SWT-NS600E hand extrusion welding equipment EXTRUDE EQUIPMENT WELDER hdpe extruder for PP rods | Plastic Welders

Brand Namemingmai technologyModel NumberSWT-NS600EOriginMainland ChinaPower3400WWeight7kgUsagewelding PE, PP, PVC, PVDF, HDPE and so on.Frequency50/60HzDimensions25*38*54Welding Area4.0-5.0mmMeasurement unitset/setsSold insell_by_pieceEach pack1Package weight13.000Package size - length (cm)25Package size - width (cm)38Package size - height (cm)54Voltage220VExtruding Power800WDrive Motor800WHot air drive power3400WWind Temperature20-600Heating temperature while plastic extrud200-300Welding speed2kg/hDiameter of Welding Rod4.0mm-5.0mmPAYMENTwestern union,PayPal, T/TDELIVERYDHL,TNT,FEDEXORIGINALChina

Unavailable in

Description Hand Held Plastic Extrusion Welder,hand extruder, EXTRUDE EQUIPMENT WELDER ,Hand held Plastic Extrusion Welding Machine,Hot Air Plastic Welder Gun extruder,Plastic Extrusion welding gun,Extrusion Welder,Hand Held Extrusion Welder,hand extrusion welding equipment,hand extruder for plastic, manual extruder,Extrusion welding gun,plastic extrusion welder,hdpe hand extruder for PP rods,hand extrusion welder gun for welding HDPE/PP/PVDF sheet/pipes and fittings,Plastic hand extrusion welder for HDPE membrane PP pipe,Geomembrane extrusion welding machine for tank or pipe,Plastic Granules Extrusion Welder,Thermoplastic Welding using Hand Held Extruder,

plastic welding Metabo welding machine, plastic pipe soldering iron, plastic extruder,plastic welding machine,flex seaming welding machines,welding machine pvc,ppr pipe heating welding machine,PPR welding of vessels or tanks，

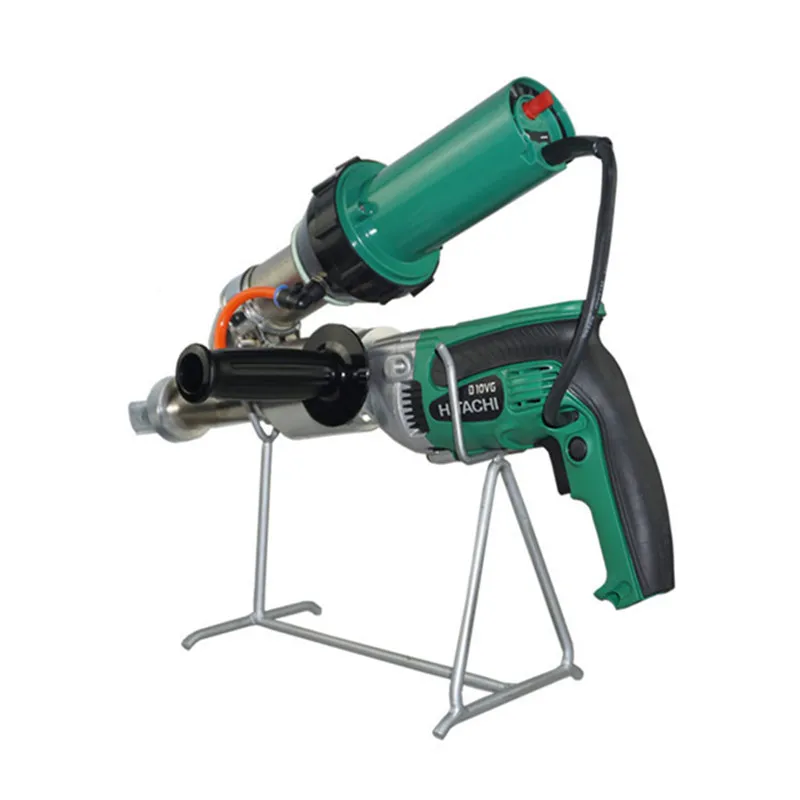

  Product Overview SWT-NS Model extrusion welder is a new type of hot air welder which imported foreign advanced technology, well-developed. It has reached or exceeded the same type products of oversea, filling the domestic blank. The major components (hot air gun and drive motor) are made of imported brand-name accessories, stable performance, long service life; They are two independent systems,one is for preheating raw material,another is for welding rod extrusion. Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the weld strength is greatly improved,It is the ideal product for a variety of thermoplastic welding processing.   This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent    thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure. Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on. Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .Do not apply in a conductive plastic (PE-EL),  or cause the machine to produce a conductive short-circuit.       Product Detailed This series of welding machine is powerful with high welding speed and good welding quality. It is available for welding PE, PVDF, PVC, PP and other hot melt materials.  It is the first one to have a digital display control, 360 degree rotating welding head,  the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.    International warranty 24months. Any parts broken or does not work under normal operating,we are free to provide.   Images of Hot Air Plastic Welder Gun extruder:                Technical Parameters For Plastic Hand Held Extrusion Welder:   Voltage: 220V Frequency: 50/60Hz Extruding Power:Drive Motor 800W Hot air drive power:3400W                                                        Wind Temperature: 20-600°C Heating temperature while plastic extruding:200-300°C Welding speed: 2kg/h-2.5kg/h Diameter of Welding Rod:  ф3.0mm-4.0mm Weight:5.5kg      Below is detailed description of Plastic Extrusion welding gun:      Packaging of Extrusion Welder:   Application of Hand Held Extrusion Welder :   Hand Held Plastic Extrusion Welder is used for welding PE, PP, PVC, PVDF, HDPE and so on. Hand held Plastic Extrusion Welding Machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover. Welding machines for polypropylene and polyethylene pipes. Hand held Plastic Extrusion Welding Machines are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.

---
