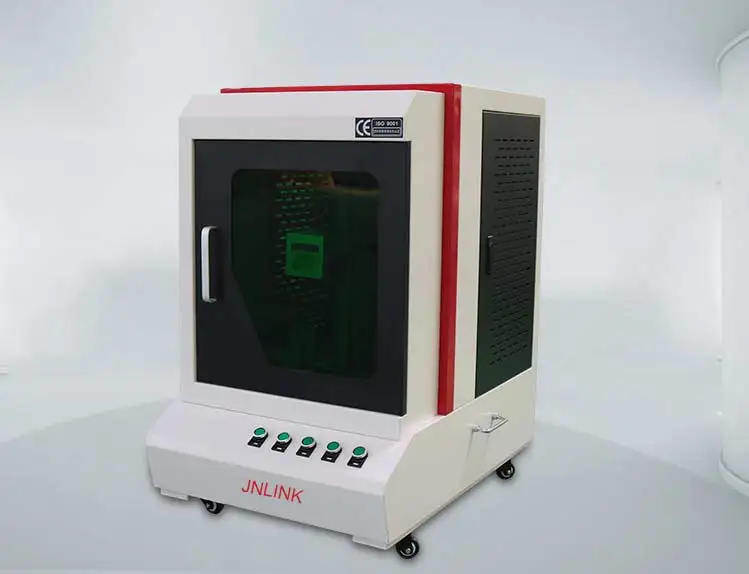

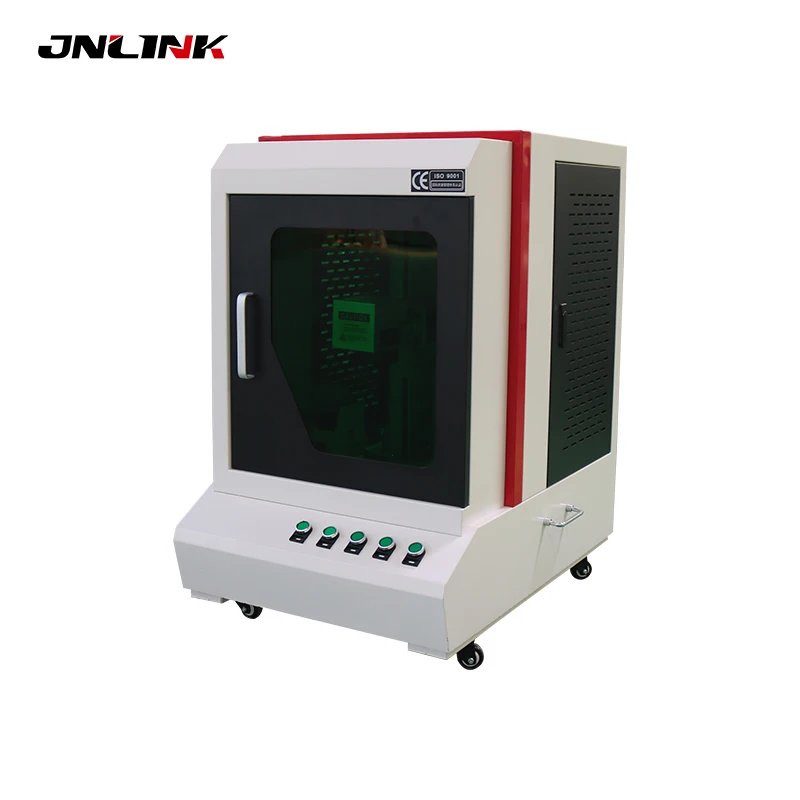

Cheap price cover fiber laser marking machine factory with 20w raycus fiber source

The biggest advantages of machine help you choose most suitable one:

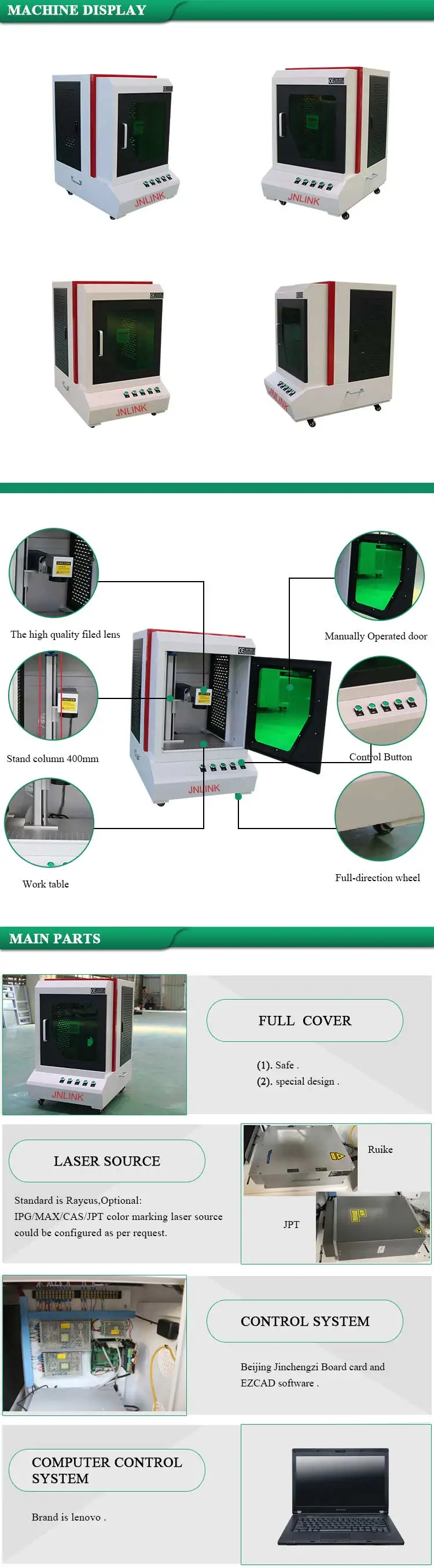

Full cover with Full Protection,Popular in European and American market

1)Manually Operated door

2)electric lifting

3)Laptop computer,easy moved

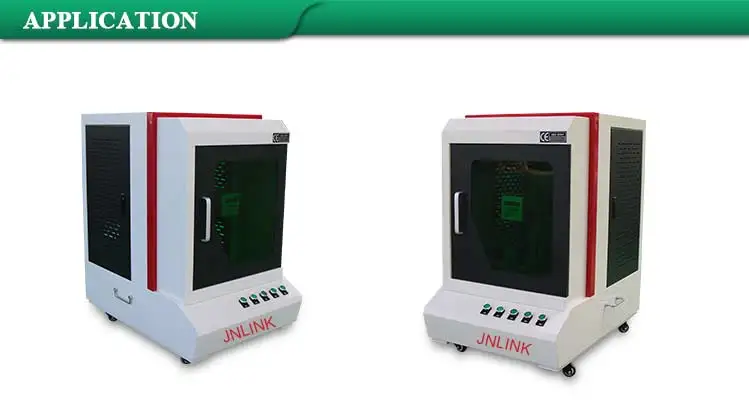

Application Materials

laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.

Fiber laser marking machine technical parameters

 Laser Type

Fiber laser

 Laser Power

20W 30W 50W 70W 100W

Model

LXF-20W LXF-30W LXF-50W LXF-70W LXF-100W

 Laser Wavelength

1064nm

 Marking Area

75*75mm 110*110mm 150mm*150mm

175mm*175mm 200*200mm 300*300mm

 Marking Depth

≤1.2mm

 Marking Speed

10000mm/s

 Minimum Line Width

0.012mm

 Minimum Character

0.15mm

 Repeated Precision

±0.003mm

 Life-span of Fiber Laser Module

100 000hours

 Beam Quality

M2 <1.5

 Focus Spot Diameter

<0.01mm

 Output Power of Laser

10%~100% continuously to be adjusted

 System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

 Cooling Mode

Air cooling--Built-in

 Temperature of Operation Environment

15℃~35℃

 Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

 Power Requirement

<400W

 Communication Interface

USB

 Machine Dimension/after package

920*830*1160mm

 Net Weight/gross weight

120/170kg

 Optional

Rotary Device, Moving Table, other customized Automation

JNLINKis established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,

more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of

1. CNC knife cutting machine

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine .

3. Fiber cutting machine and so on.

4. Cnc router

5. Plasma cutting machine

6. CO2 laser machine

We can also customized non-standard assist equipment as your detailed work requirements.

Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
