Support for this suiteBLDC，PMSM，Inner rotor，Various Brushless DC Motor with Outer Rotor

Power parameters of driving motor:

Rated input voltage：DC 24V；

Rated power：1000 W；

Maximum input voltage：DC 45V；

Maximum operating current：10A，Instantaneous Over-Pulse Current Capability：33A。（Depending on the choiceMOStube）

Driver selection：IR2101S+IRF540N

Current input voltage supports DC 15V-400V，please contact us if you need.

Driver board function:

Support Hall sensor input，SupportABencoder input，Supporting senseless startup（Acquisition of Zero Crossing Point of Reverse EMF）

Supporting over-voltage protection，Undervoltage protection，Over current protection，Over temperature protection

SupportFOCalgorithm，Three Resistance Sampling，Single Resistance Sampling

Exclusive Bus Voltage Detection，Bus Current Detection，Bus Overcurrent Detection（break） In line with industrial applications。

Design of Sampling High Current for Driver Board，Design of Soldering Tin Layer in Power Part

Motor Development Board SupportPIDOnline adjustment，Convenient motor drive development

Providing motion controlTrapezoidAcceleration and deceleration algorithm，Sports are smoother and impact-free

Provide serial port protocol to send position instructions to control the position of motor in place，You can also view the current location.

statement：This set of data and procedures belong to the joint control intelligence.，No one or any unit may sell without authorization.，Once found, they will be punished by law.，Termination of technical services。

Many customers bought boards.，But a lot of people ask me these questions.，Let me summarize.，Provide convenience for the development of brushless motor drive

1. Where are the engineering documents?

2. How to Open Engineering Documents

3. The motor wasn't bought by me.，How to Turn Your Motors

4. How to Download Programs，To your board

5. How to make the motor run more smoothly

6. How to adjust speed ring and moment ringPID

7. What I started with was how the Hall motor rotated the encoder motor or the induction-less motor.

8. How to adjust start-up parameters，Rotating sensorless brushless motor(Recently, many customers have asked this question.，Special summary）

9. Get a new motor and don't know how to quickly determine the parameters of the motor.，Share under（Very practical）

Summarize some questions，Answers one by one，In the document，Follow-up questions will be summarized.，Engineers keen on brushless motor development

Faster mastery of this technology，Develop your own brushless motor drive。

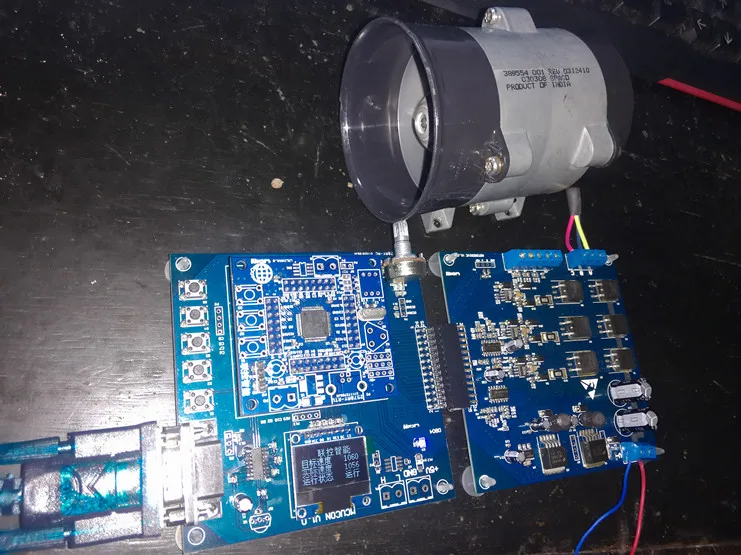

Driven by this suiteHigh Speed Turbine Fan：（Actual project）Inductionless vector sine wave drive

http://v.youku.com/v_show/id_XMTczMDcwMzU2OA==.html

In order to enable customers to invest more quickly in development，Combining customer questions and problems encountered in development，Annotate the program，Clear understanding of process flow。

Sinusoidal vector algorithmNo senseDemonstration:

FOC2.0(Large torque，Start smoothly，No impact,Suitable for various project applications，Fan，Compressor Pump Balancing Vehicle, etc.）

http://v.youku.com/v_show/id_XMTY5MjA3Nzg3Ng==.html?beta&

Demonstration of Brushless Motor Start-up Operation without Induction（FOC4.2)Sine vector：

http://v.youku.com/v_show/id_XMTY2NDUxNTY2NA==.html

Sinusoidal vector algorithma comment on sthDemonstration:

FOC4.2Demonstration

http://v.youku.com/v_show/id_XMTUzMDEzOTE5Ng==.html?from=y1.7-1.2

FOC2.0Demonstration（Supporting keystroke speed regulation，Poleless Speed Regulation of Potentiometer，Analog Electric Vehicle，OLEDMenu display）

http://v.youku.com/v_show/id_XMTU1NTMyNzg1Mg==.html?from=y1.7-1.2

Demonstration of Square Wave Driving:

Poleless Speed Regulation of Potentiometer：

http://v.youku.com/v_show/id_XMTU1NTY2Mzk2MA==.html

Keyboard acceleration and deceleration：

http://v.youku.com/v_show/id_XMTU1NTY2MDU0NA==.html

Trapezoidal Acceleration and Deceleration Algorithms:

http://v.youku.com/v_show/id_XMTYwMzQ0NDkwOA==.html?from=y1.7-1.2

Location loop algorithm：

http://v.youku.com/v_show/id_XMTYwNDAwNjgwOA==.html

Picture display：

Drive Board Voltage Protection：Overvoltage Burns out Devices

Demonstration of Driving Plate Overflow，Using nanosecond level，Over current protection，Faster protection driveMOSBurn out，This is an important point for people who are doing driver development.。

Actual Test of Speed Acceleration and Deceleration Acceleration Position Ring：

Shipping list：

1.Motor drive board A block

2.Control panel A block

3.USBSerial port line One root

4.Plate support Eight

5.Schematic diagram of driving board One copy

6.STM32 FOC4.2 Holzer procedure A set

7.STM32 FOC4.2 Sensorless program A set

8.STM32 FOC2.0Holzer procedure A set（Support keys and potentiometers）

9.STM32 FOC2.0Sensorless program A set（Support keys and potentiometers）

10.STM32 Square-wave keyboard speed regulation A set

11.STM32 Potentiometer Speed Regulation A set

12.Trapezoidal Acceleration and Deceleration Algorithms A set

13.Location loop algorithm （+50element，Send-in code for reviewers） A set

14.Instructions One copy

15.F0C4.2Library usage instructions One copy

16.Summary of Customer Problems in Brushless Drive Development One copy

17.0.96 inchOLEDscreen One

18.Development Board Course of Intelligent Brushless Motor with Joint Control One copy

This package does not include motors.：Need motor point //item.taobao.com/item.htm?id=529667892852

This package does not include location loop algorithm：Need+50element，Commentators send this code

Packaging does not cross Hong Kong, Macao and Taiwan，Tibet，Xinjiang，Inner Mongolia，Heilongjiang region，Default Sending of Zhongtong Express，If you need Shunfeng, please contact me.。
