MH100 Digital Portable Leeb Hardness Tester Pen-type Hardness Tester 100 Groups (Impact Times 32 ~ 1) Hardness Measurements

Product Overview

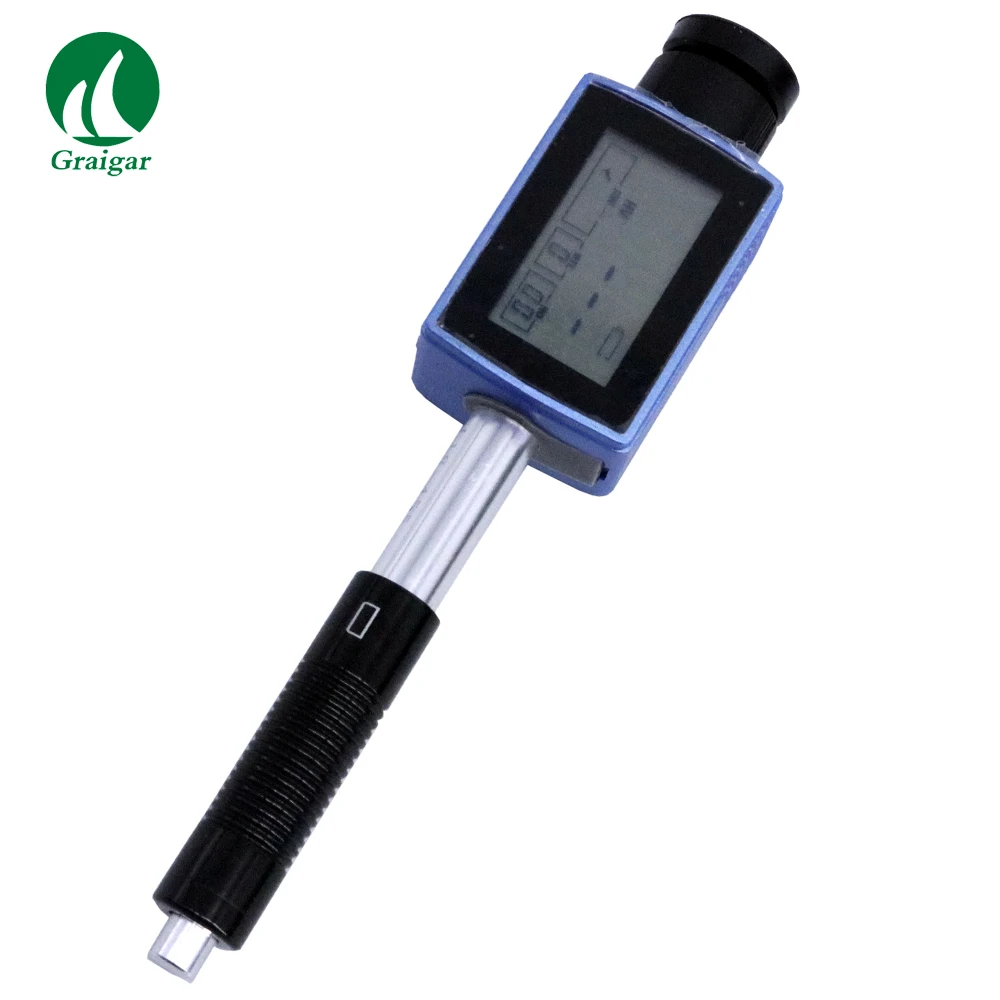

MH100 series pocket hardness meters, also known as pen-type hardness tester, based on Leeb hardness measuring principle, quick and easy on-site test the hardness of series metal materials, support free conversion between Richter, Brinell, Rockwell hardness scale and others,integrated compact design, small size, portable, highly integrated, stable and reliable performance, supporting data transfer and print the stored function. Widely used in failure analysis of metal processing and manufacturing, special equipment, permanent assembly, inspection and other fields. Particularly suitable for large parts and non-removable part of the site hardness testing. It is professional precision instrument to improve the pass rate of production and cost savings .

Function & application

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space

Requirements of formal original record for test results

Material identification in the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece

Specification
Measuring range

（170～960）HLD

Impact direction

vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify

Error

Impact device D：±6HLD

Repeatability

Impact device D：±6HLD

Material

Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alum

Hardness Scale

HL、HB、HRB、HRC、HRA、HV、HS

Min depth for harden layer

D≥0.8mm；C≥0.2mm

Display

High-contrast Segment LCD

Storage

up to 100 groups（Relative to average times 32～1）

Calibration

SIngle point calibration

Data printing

Connect PC to print

Working voltage

3.7V（Built-in lithium polymer battery）

Power supply

5V/500mA；recharge for 2.5～3.5 h

Standby period

About 200h（without backlight）

Communication interface

USB1.1

Working language

Chinese

Shell meterial

ABS engineering plastic

Dimensions

148mm×33mm×28 mm

Total weight

4.0KG

PC software

Yes
