             We are one of the biggest manufacturer in China ,We have been working on linear scales ,digital readout ,magnetic scales ,other precision products over 19 years . We provide customize service, Only us can provide professional products with best price ,If you have anything in need ,Please contact to us and let us know ,Thanks .

Our service :

            When you want to purchase our products ,You need to let us know the travel length of linear scales ,Resolution/accuracy of linear scales ,used for which kind of machine .

Linear scale travel length normally is 50-3000 mm ,resolution : 0.5u ,5u ,1u . Output signal is TTL signal , Voltage normally is 5V(We have 5V,12V,24V).

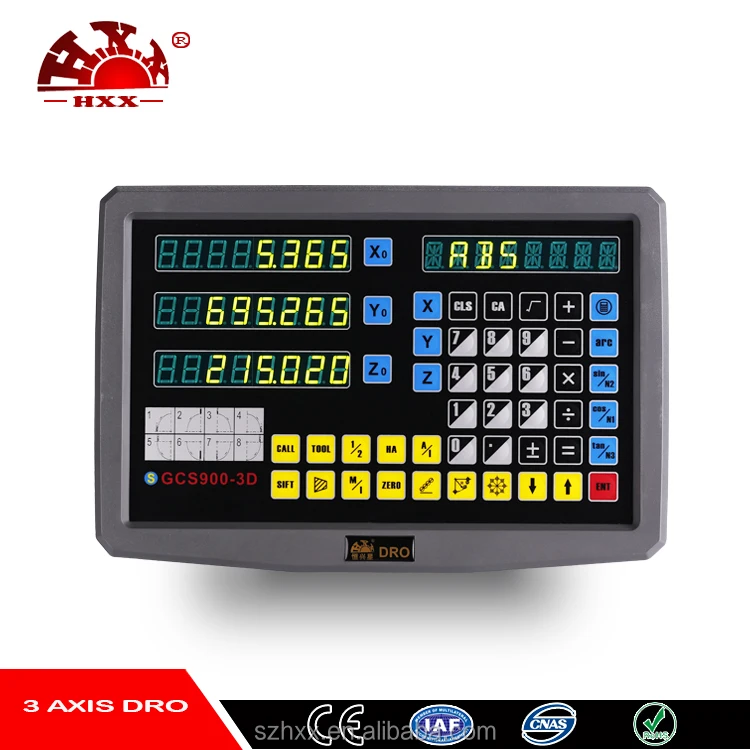

Most popular models : 2 axis digital readout GCS900-2D one whole set ,3 axis digital readout GCS900-3D one whole set . It is hot selling at present . If you are interested in it , Please contact to us and let us know .

Product Description

Dear Buyer, please note

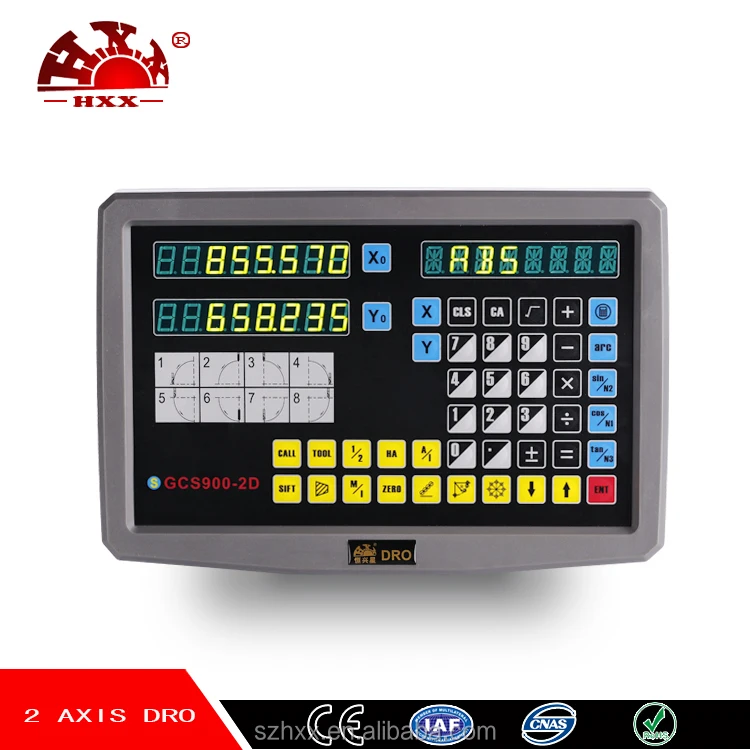

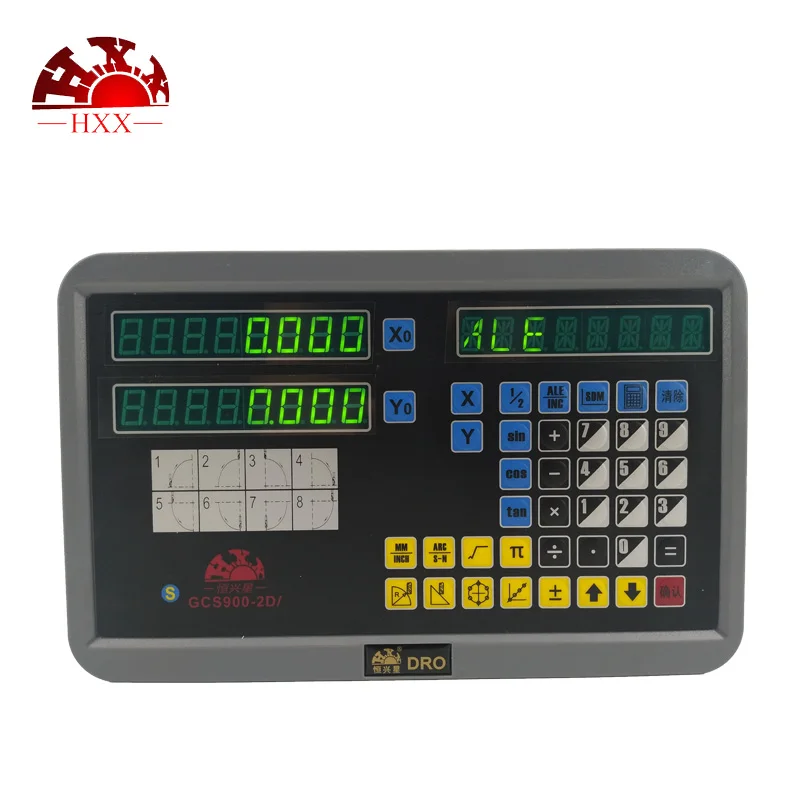

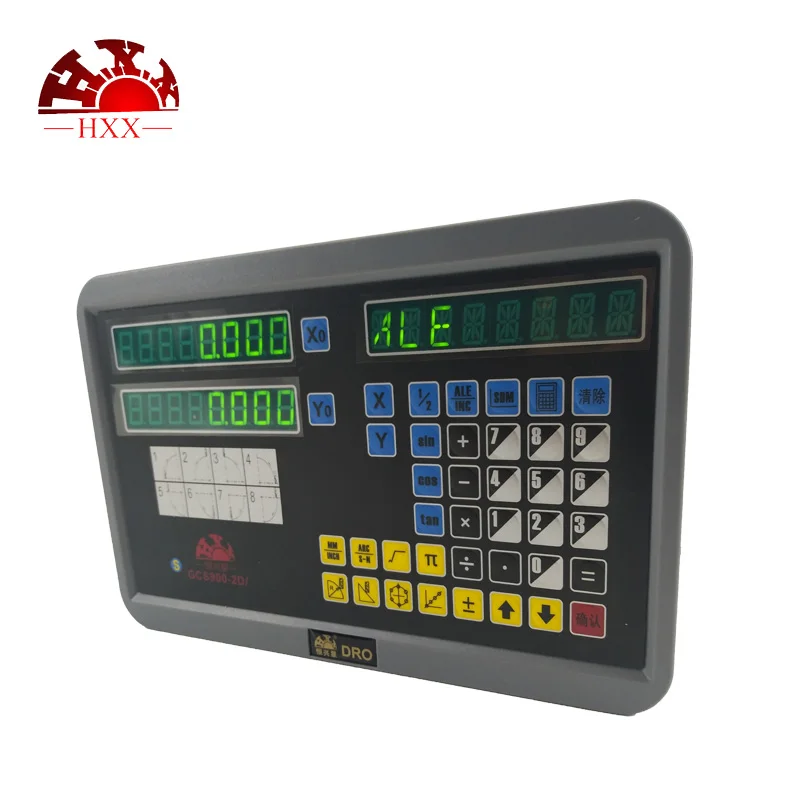

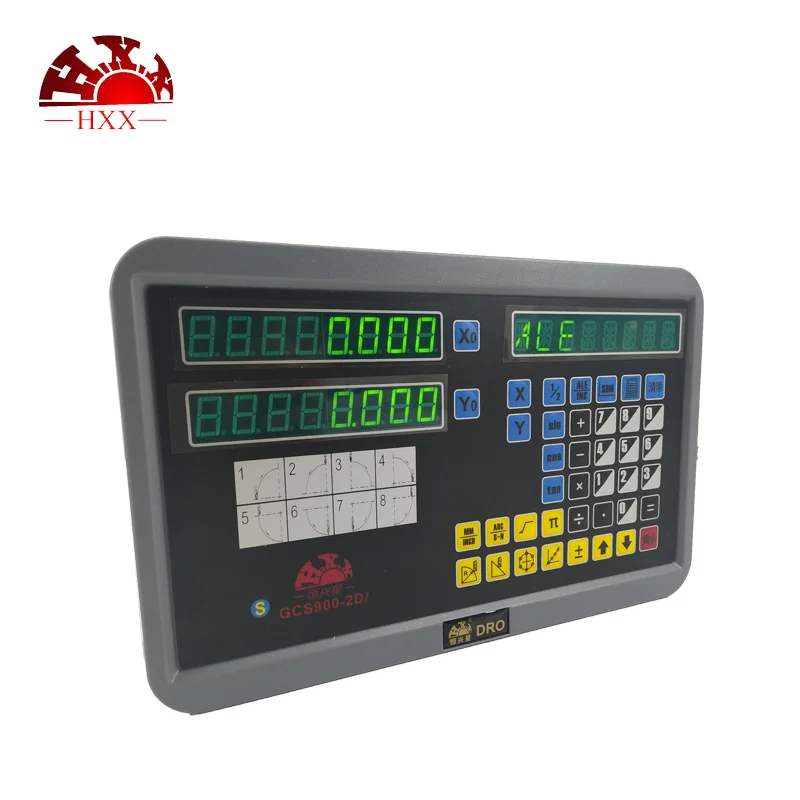

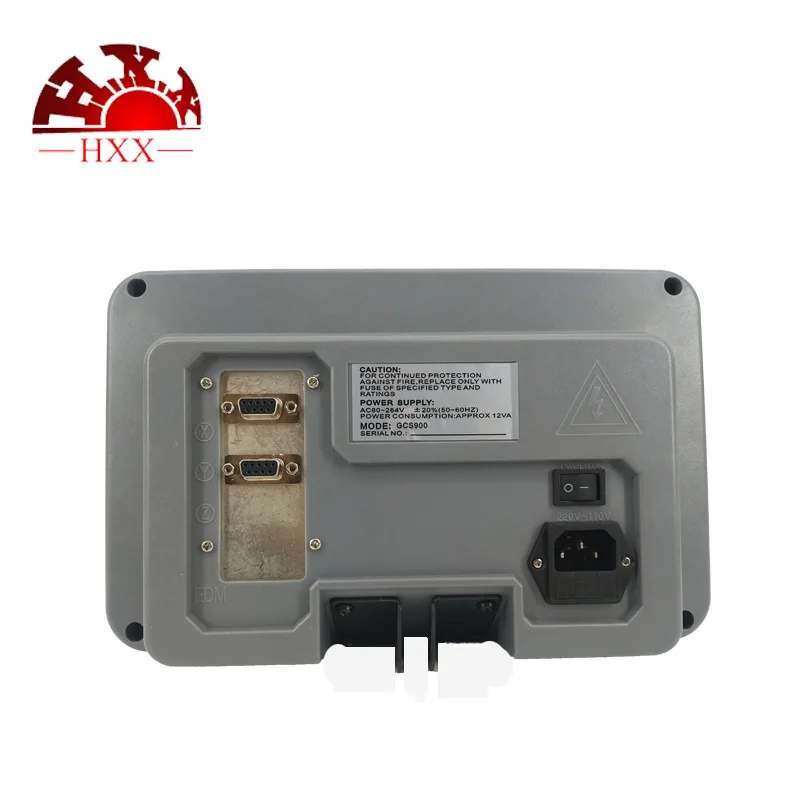

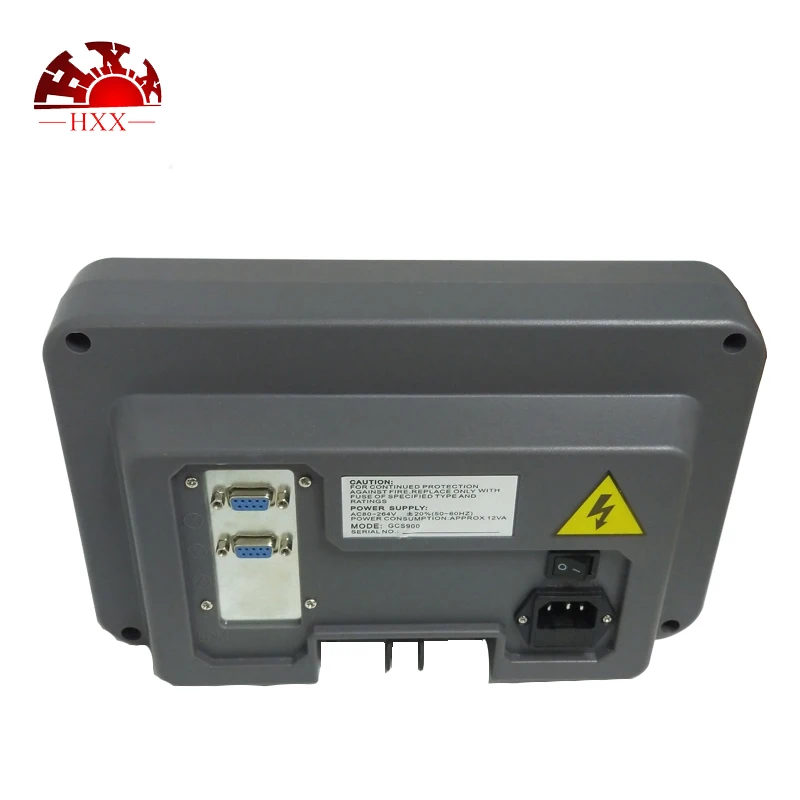

1. The order includes one piece 2axis DRO:GCS900-2D/ with 2pcs linear scales,accuracy is 5um,travel lenght between 50-1000mm

2. If you need other styles and dro, just contact with the seller, we can offer you all kinds of goods.

Basic function of brand new lathe  digital readout:

1:Zero clearing

2:reset

3:mm/inch mode

4:ABS/INC coordinate conversion

5: 200sets sub datum

6:power off memory

7:center of1/2

8:liner error compensation

9:sleepping mode

10:Clear 200 sets Sdm datum;

11:ABS/INC mode

12:calculator

13:drilling of circumference

14:drilling of oblique line

15:machining of inclined plane

16:machining of circular arc

17:lathe function(match)

18:Rectangular lumen gradual

processing

19:digital filtering

20:vibration filtering and R fucntion

Application of  brand new lathe digital readout:

1. Coordinate measuring machine

2. Profile projector

3. Microscope

4. Video measuring machine

5. Movement control

6. Position monitoring

7. Coordinate measurement

8. X-Y working table monitor

9. Mechanical control

10.Other area of linear scale and rotary encoder

advantage of brand new lathe digital readout:

1,the high precision digital readout is specialization design,elegant appearance ,high speed of numeation,multy function

2,Aluminum ally ,spray plastic appearance ,dustproof and wear-resisiting,good shield.
3,independent power,widely used,high stabilization,capacity of resisting disturbance well
4, the power source and the signal have a good capacity of resisting disturbance,durable keyboard,easy to change
5,the catalogue is multi-role .
6,automatic tool compensation for both X and Y

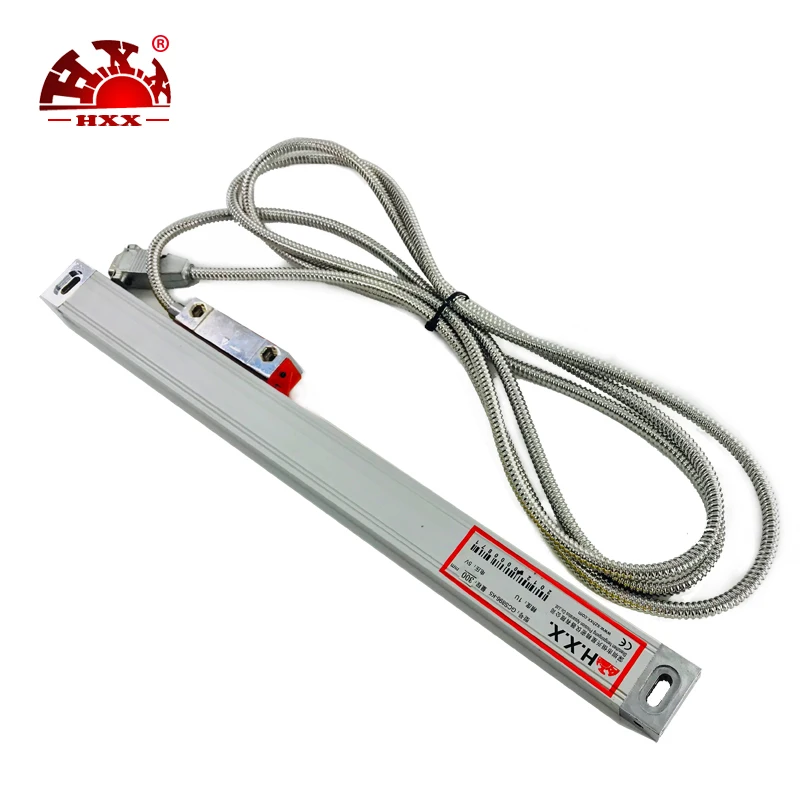

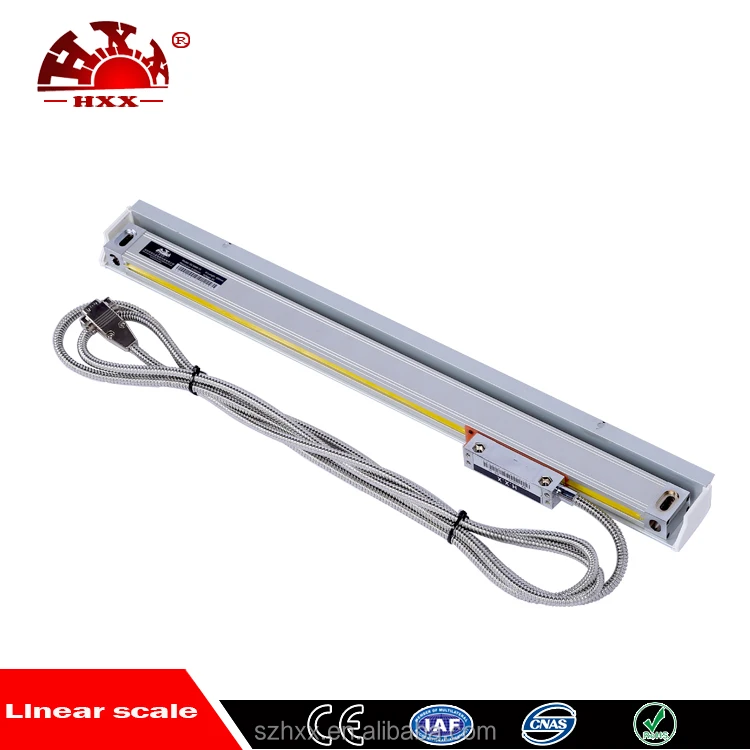

Linear scale /Linear encoder

Mechanical

Specification

Supply Voltage

+5V DC (+/- 5%)  24V(PLC)

Current Consumption

150mA (typical)

Output Signal

TTL/RS422

IP Protection Class

IP54

Operating Temperature

0-50 degree

Performance

Specification

Resolution

0.1μm/0.5μm/1μm/2μm/5μm

Accuracy

+/-5μm(5 μ ),+/-10μm(10 μ ) /1000mm

Repeat Accuracy

1 Resolution Count

Reference Mark

Periodic (25mm Spacing)

Measuring Rang

50mm~3000mm

Reaction Speed

60m/min(0.005mm) 25m/min(0.001mm)

Reading Head Sliding System

Vertical Five Bearing

Signal Convey Cycle

20μm

Cable

3M(standard) Other(options)

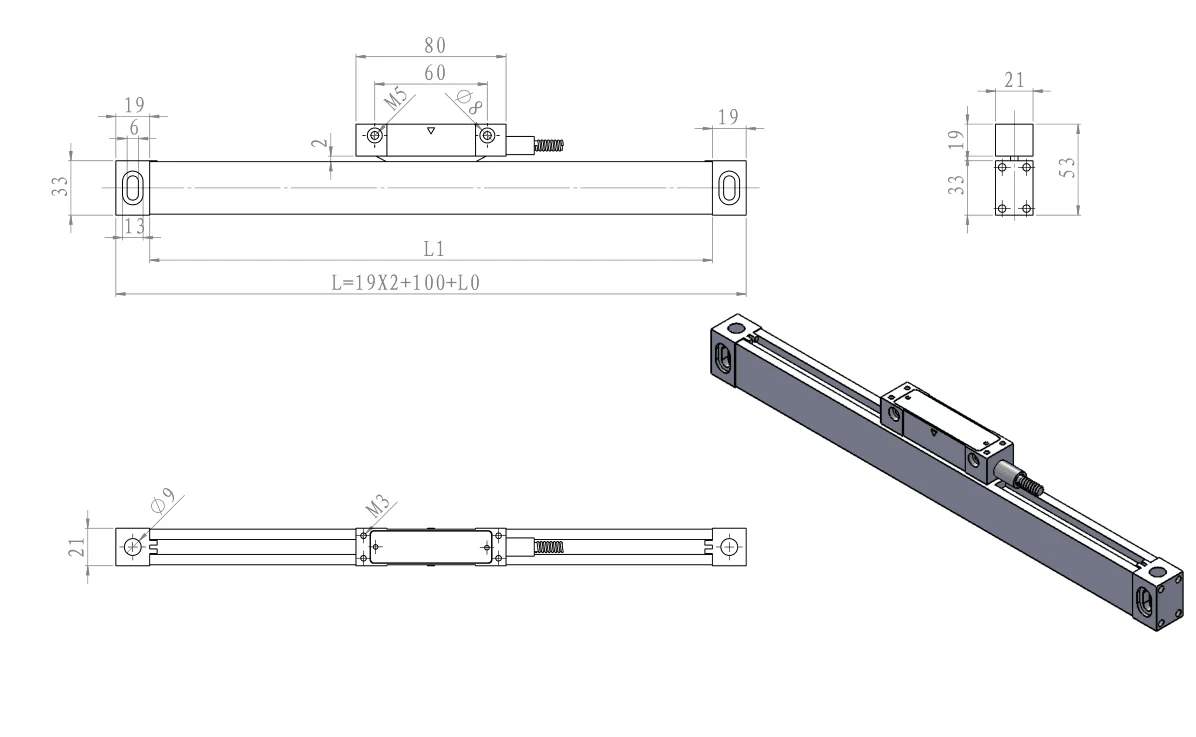

L=Lo+100mm+19*2mm

L:Overall Length     Lo=Travel length/Stroke

Normal Size : 21*33m   Slim Size: 20*29mm  Large Size: 27*43mm (width*height)

Large Size :Lo >1000mm   Normal Size:300mm≤ Lo<1000mm Slim Size: Lo<300mm

Designed and manufactured in compliance with industry defined standards, these are extensively used in metal working industry,special in Universal Functions Milling, Lathe,EDM and Surface Grinding,Profile Projector,PLC and so on.

Specifications:

.Universal Functions Milling, Lathe,

 EDM and Surface Grinding, PLC/Projector

.output signal TTL/RS-232

.Voltage 5V/12V/24V

.Resolution 0.5u,1u,5u

.Signal line length 3M/options

.Small medium large three types

.Available from 50mm-3000mm

.High sensitivity long service life

.waterproof,oil rust protection

.Non-linear error compensation function

Shipping details

1. Delivery by DHL, Fedex ,TNT or UPS international express.

2. If remote area, we will contact you pay extra cost according to the rule of express company.

3. All the tax cost of local clearance custom, need customer to pay.

Company goal

Our goal is to supply the good quality products and offer a better price for you , to make business easier.Saving your time and money.

Intuitiveness or "Easy of  Use"

If the digital readout is poorly designed,too complicateed,if the display isn't bright enough, or in other words is 'user unfriendly',you'll regret your purchase decision . It simply won't matter what you paid, it's not worth it !

Support.

Perhaps most overlooked factor when buying a digital readout.Hundreds of videos are the best in the industry,and are available free fro you our customers.Our tech help is the best in the business. Any question , we would like to settle them together.

Parts.

Breaking a scale, you don't get to replace the entire digital readout kits.we can provide the key parts of  products .

warranty.

All of our products take one full year warranty.Normally, the service time is 3-4 years in experience.

Customer Service.

We pledge to never 'over sell' you on a products that won't work well for you.Our philosophy is to try and save you money and get the best value kit tailored to the machinery you have.

Shipping.

We get strong logistic agents no matter where is the destination around the world. Every time our duty is to get the economical freight for you.

Price.

Probably the price is very important factor when buying a digital readout .We are sure you get the best price from us because we are the factory in this line more than 8 years. we believe you get what you pay for.

A: We are hxx factory.

A: 7-8 working days will be ok.

Q.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price.

.
