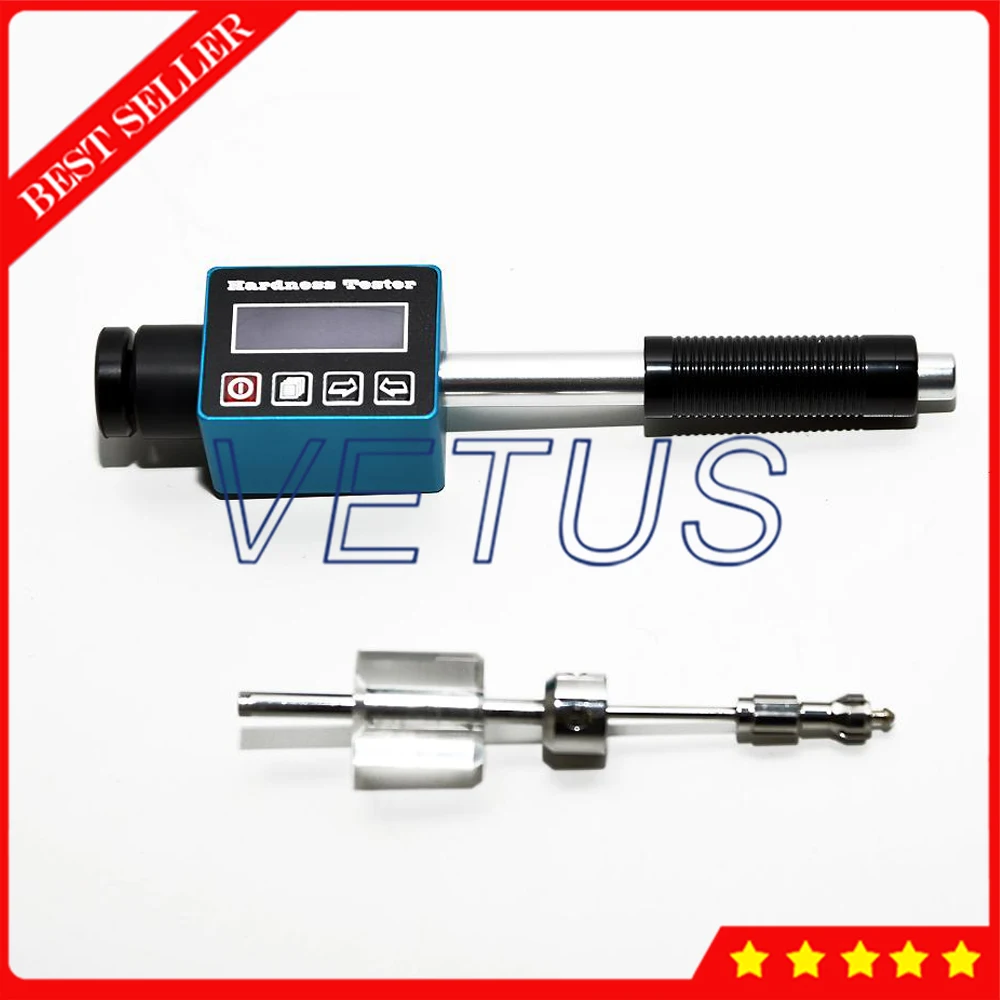

Digital Pen Type steel Leeb Hardness Tester YH100D For metallic materials metal hardness Measuring Instrument

Introdution:

Model YH100D portable hardness tester can directly measure different types of hardness value including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with international standards it's also can meet the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards which are issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.

With low-power design and high-performance Li batteries which can achieve ultra-long standby time work it has more compact and flexible design increases user flexibility.

Features:

  All English menu display is easy to manipulate. OLED display for better use in any environments.

  With Micro USB communication port.

  Large capacity memory can store 48~350 groups (impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and      hardness scale etc.

  Conversion to tensile strength (U.T.S).

  For all metallic materials.

  Provide software calibration function.

  High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.

  PC Software can be equipped to meet the higher demands in quality assurance, activities and management.

Technical Specification:

  Measuring range: 170~960 HLD

  Measuring direction: 360°

  Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS

  Display: dot matrix LCD 128×32 dots

  Data storage: 350 groups maxim, relative to impact times 32~1

  Charging power supply: 5VDC，220VAC

  Charging time: 1.5~2h

  Battery: 3.7V，Li（200mAh）

  Using temperature: 0 ~ 40℃

  Storage temperature: -25 ~ 70℃

  Continuous working period: 40h

  Communication port: Micro USB

  Outline dimensions: 145.5 × 32 × 26mm

  Wight: about 160g

Material

Hardness test method

Impact device type

D

Steel and cast steel

Rockwell

HRC

17.9～68.5

HRB

59.6～99.6

HRA

59.1～85.8

Brinell

HB

127～651

Vickers

HV

83～976

Shore

HS

32.2～99.5

Hammered steel

Brinell

HB

143～650

Cold work tool steel

Rockwell

HRC

20.4～67.1

Vickers

HV

80～898

Stainless steel

Rockwell

HRB

46.5～101.7

Brinell

HB

85～655

Vickers

HV

85～802

Gray cast iron

Rockwell

HRC

Brinell

HB

93～334

Vickers

HV

Nodular cast iron

Rockwell

HRC

Brinell

HB

131～387

Vickers

HV

Cast aluminum alloys

Brinell

HB

19～164

Rockwell

HRB

23.8～84.6

Brass(copper-zinc alloys)

Brinell

HB

40～173

Rockwell

HRB

13.5～95.3

Bronze (copper-aluminum/copper-tin alloys)

Brinell

HB

60～290

Wrought copper

alloys

Brinell

HB

45～315

Configuration

NO.

Item

Quantity

Standard Configuration

1

Main uni.

1

2

Small support ring

1

3

Cleaning brush (I)

1

4

High value test block

1

5

Charger

1

6

Communication cable

1

7

Software

1

Optional

Configuration

8

Other type of support rings

9

High, medium, and low HLD value test block
