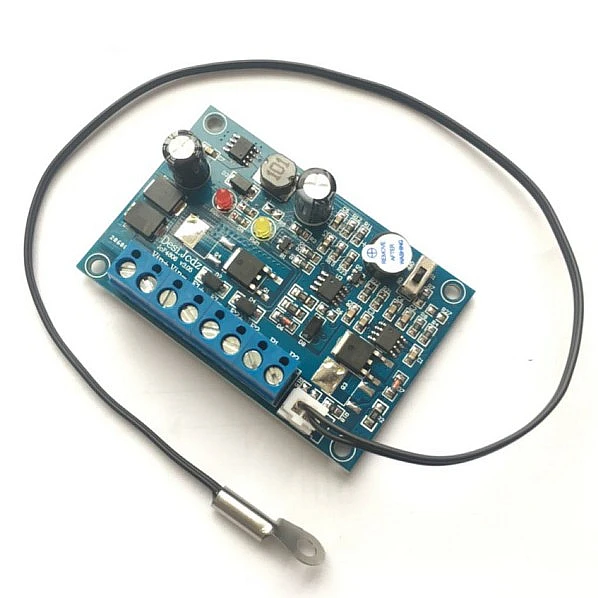

48V Fan Temperature Control Governor Box Module DC PWM | Обустройство дома

VER3.05 Update Notes 1. Fully compatible with all the functions of the previous version, old customers can be assured to buy 2. The new version 12v, 24v, 48V is universal, while the previous version only supports 48V. 3. Add alarm function for overtemperature. When the temperature exceeds the threshold, buzzer will alarm. !!! Why do you need a governor? In the conventional fan heat dissipation system, the common practice is to directly supply power to the fan, regardless of the system temperature, as long as the fan is electrified, it will directly run at full speed. In fact, this is not appropriate: 1. Fan is actually a kind of mechanical running device. It runs at the highest speed at any time. It will accelerate wear and tear and shorten the life of the fan. 2. In most practical applications, it is not necessary to let the fan run at low temperature, which wastes energy and increases unnecessary wind noise. !!! If the temperature control governor is added to the heat dissipation system, the above problems can be well solved. When the temperature is low, the governor automatically slows down or closes the fan. When the temperature rises, the speed control will automatically increase the fan's speed. Such cyclic regulation, first of all, ensures the heat dissipation capacity of the whole heat dissipation system, also saves electricity and reduces fan noise!!! 1. Introduction to the function of this governor This JCF 4806 temperature control governor adopts PWM modulation technology to realize fan temperature control speed regulation. The governor controls fan speed according to temperature. The higher the temperature, the faster the speed. When the ambient temperature is below 30 degrees (this temperature value can be customized), the governor controls the fan to stop running. When the fan is above 30 degrees, the fan starts at low speed. If the temperature continues to rise, the fan speed will increase slowly. When the temperature rises to 50 degrees, the fan turns into full-speed operation. When the temperature starts to drop below 50 degrees, the speed of the fan slowly decreases, and when it drops to 30 degrees, the fan closes, so as to work in a cycle. Industrial grade scheme, simple to use, stable and reliable, especially suitable for outdoor unmanned cabinet use!! Simply put, when the temperature is below 30 degrees, the fan does not turn, and the temperature is between 30 and 50, the speed of the fan is controlled by the temperature. When the temperature is above 50 degrees, the full speed of the fan is controlled. If the temperature continues to rise, when the temperature exceeds 55 degrees, the buzzer on board starts to alarm, indicating that the temperature is too high (this function is optional). 2. Main functional characteristics: 1. Supporting all kinds of 12v/24v/48v 2,3,4-line DC fan access. 2. Power supply anti-backconnection protection, positive and negative pole connection anti-burning board. 3. Two-way fan interface can be connected in parallel with multiple fans, and single-way interface can support the maximum fan access with 3A current. 4. Using industrial-grade temperature-controlled speed-regulating chip and frequency conversion technology, it has stable performance, precise control, eliminating the large radiator of ordinary linear speed regulator, lower power consumption, higher efficiency and more saving installation space. 5. Dynamic LED indicator, intuitive and real understanding of the working state of the governor. 6. Most of the devices are packaged by patch, which has stable performance, small size and space saving. 7. Temperature probe is sealed with epoxy resin, waterproof and moisture-proof. The probe has installation holes at the top, which is convenient for installation. 8. The maximum operating temperature of the temperature probe is 110 degrees. The probe will be damaged if it exceeds this temperature. 9. Functional customization, including size, temperature parameters, realization of special functions, etc. 10. With high temperature alarm function, when the temperature exceeds 55 degrees, the buzzer on board starts to alarm, indicating that the temperature is too high. * The temperature alarm function has a switch, which can be turned on or off freely. The overtemperature threshold can be customized. The factory defaults to 55 degrees.
