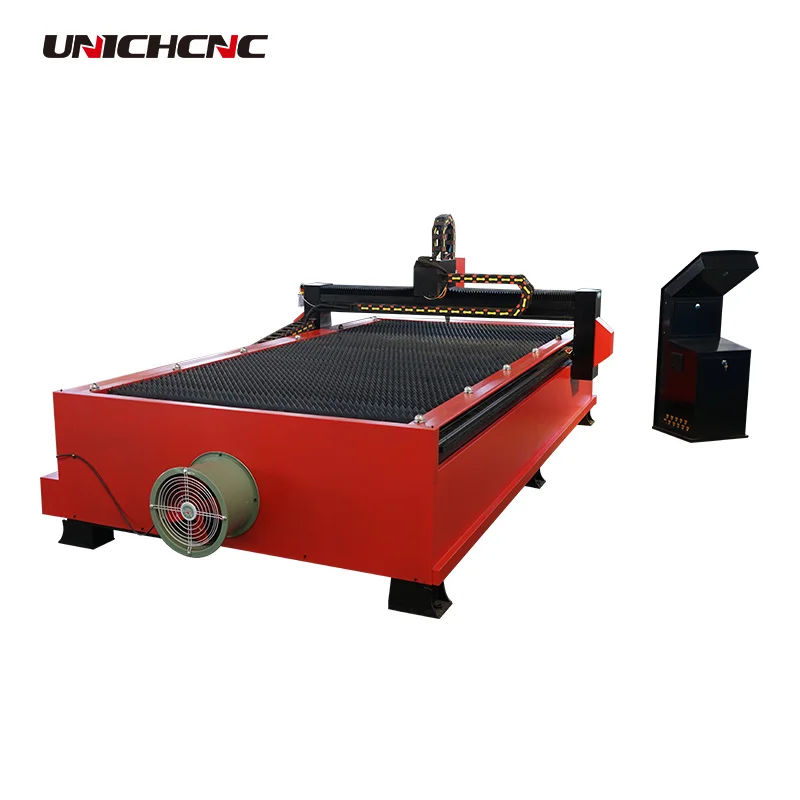

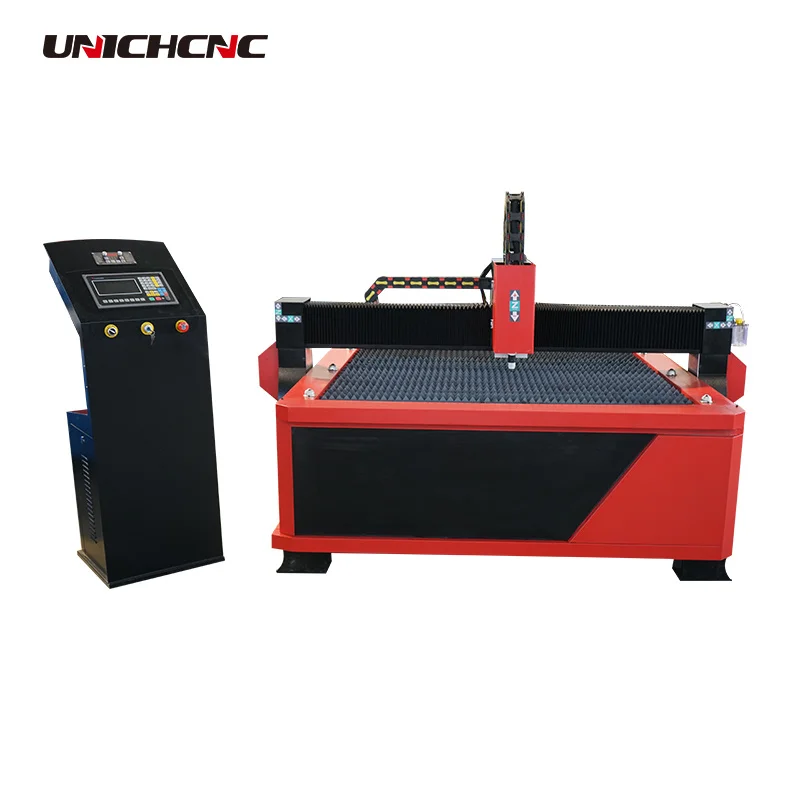

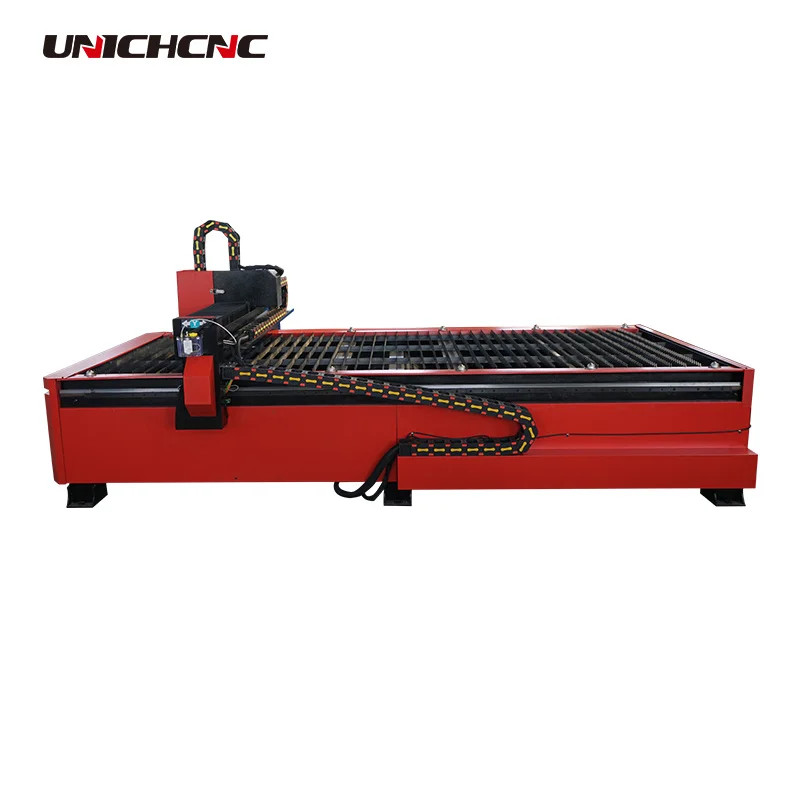

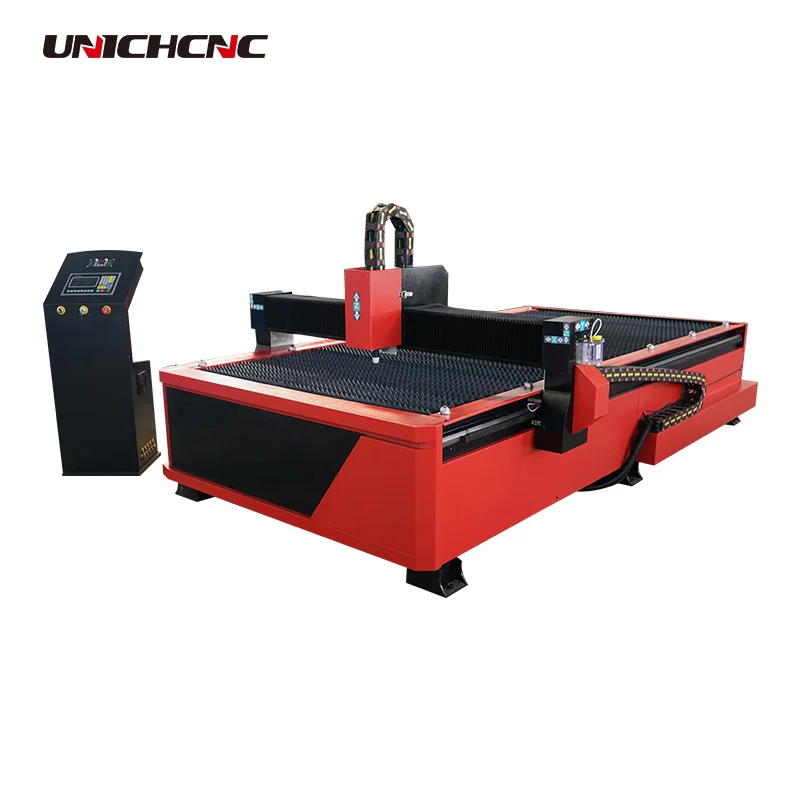

1325 1530 2030  China metal cnc plasma cutting machine/cnc plasma cutters for sale

Features:

1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make

the machine driving smoothly with high-precision.

3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach

good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the

advertising word processing pipeline.

Completely solve the traditional manual processing methods. Improve the efficiency of several times.

4). Cutting mouth is small, tidy,and avoid a second dressing processing.

5). It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

6). High cutting speed, high precision, and low cost.

7). The numerical control system disposes high, the automatic striking arc, the performance is stable.

8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.

Parameter:

No.

Description

LXP1530

(Optional:LXP1325/LXP2030/LXP2040/LXP1550/LXP1560/LXP2050/LXP2060)

1

Working Size

1500*3000mm

(Optional:1300*2500/2000*3000/2000*4000/1500*5000/

1500*6000/2000*5000/2000*6000mm)

2

Z Axis Clearance

150mm

(200 And Higher Is Optional)

3

Table Type

Teeth And Water Tray

4

Transmission System

Rack Pinion And Hiwin Linear Rails For X/Y

5

Driving System

Stepper Motor And Drivers(servo motor and driver is optional)

6

Max. Cutting Speed

12000mm/Min

7

Max. Travelling Speed

20000mm/Min

8

Working Voltage

380V/3ph

9

Plasma Generator

Chinese huayuan supplier Or America Hypertherm power

10

Arc Mode

Non-Contact Arc, Arc   Pressure Adjuster

11

Output Current

63/100/120A/160A/200A

12

Max. Cutting  Thickness

8/15/18/20/30mm

13

Operating System

Starfire Controller/Start Controller/Jiaoda fangling controller

14

Working Material

All metal :Steel, Aluminum, Galvanized Sheet,Titanium Plate,Platinum Plate

Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and a

variety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,

gold, silver, Titanium and other metal plate and tube.

1).2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

2).Lifetime maintenance free of charge.

3).Free training course at our plant.

4).18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.

5).Machine has been tested and adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6).Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7).if you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.
