Feature:
Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.
When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor
(i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm)
and the outside edges to form a shear force in the opposite direction,
i.e., in the middle of strain beam bending necessary changes can occur under stress,
strain beam side by another force can not have a barrier.

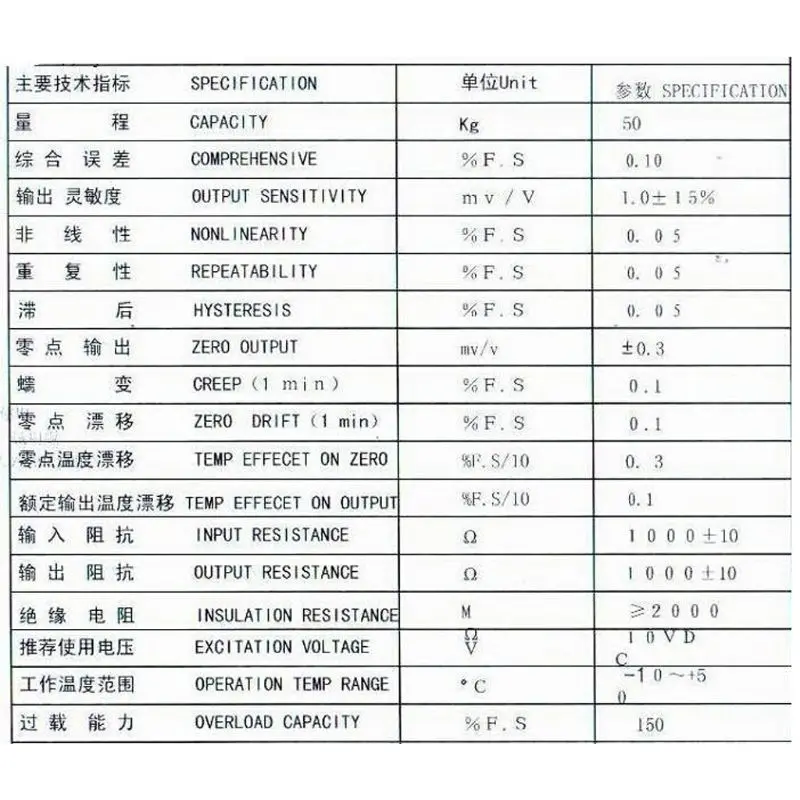

Specification:
Item Type: Weighing Sensor
Weight: 0.65oz
Dimension:3.4× 3.4cm/ 1.33× 1.33inches
Capacity:50kg/110lb(each)

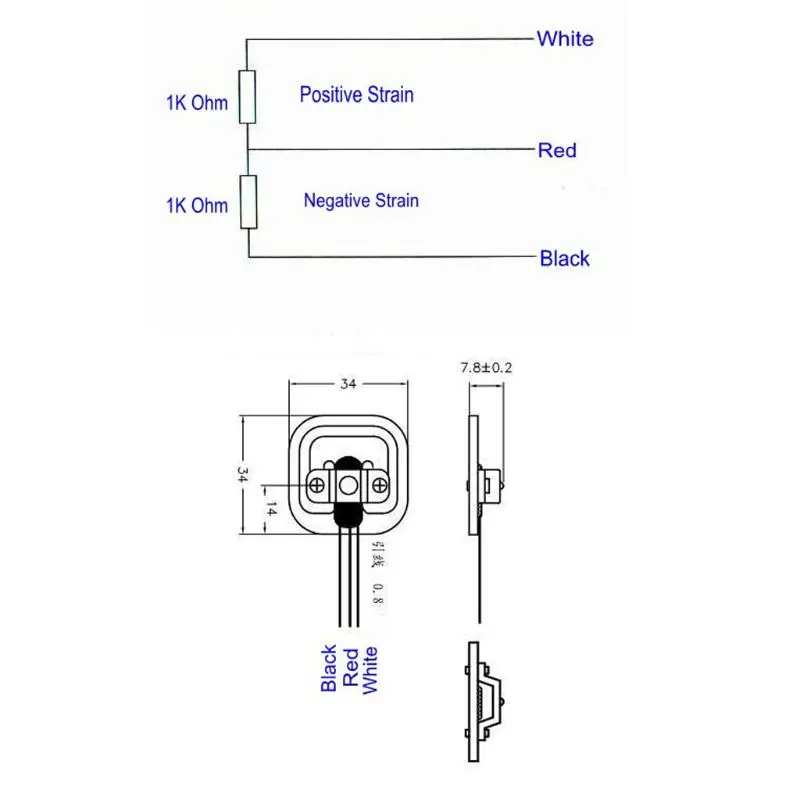

Structure:Half-bridge
Output Sensitivity:1.0±15%mv/V
Nonlinearity:0.05 % F.S
Input Impedance: 1000±10ohm
Output Impedance:1000±10ohm
Insulation Resistance:≧2000 M ohm

The sensor use the following three methods:
1, using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
2, the use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
3, the use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg

Package Includes:
1 ×Half-bridge Weight Sensor.
