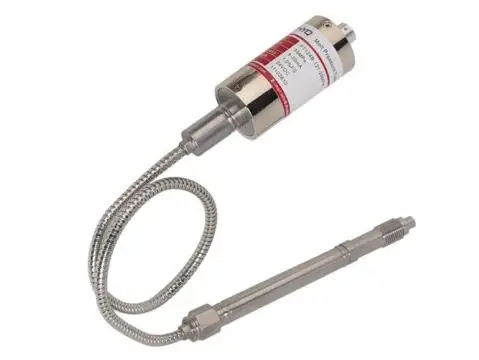

Standard hose type high temperature melt pressure sensor

Pt124B-123  series standard hose-type high-temperature melt pressure sensor, which is applied to pressure measurement in the plastics extrusion industry, can measure and control pressure and temperature by matching with our N series intelligent digital pressure instrument.The zero full degree can be adjusted and amplified signal can be directly input into PLC, and the internal 80% verification.The standard hose-type high temperature melt pressure sensor series products have been widely used in China, its advantages are accurate and reliable pressure measurement, cost-effective.With our intelligent digital display instrument (N series -- display alarm, PD9001-- control), the system pressure display alarm or control can be realized.

Features:

Stainless steel package

Easy installation

80% internal calibration

Good stability and repeatability

Technical specifications: standard

Number of values

For note

Pressure range

0-3.5 MPa.0-150 mpa

0-500 psi.0-20000 psi

Pressure overload

1.5 x FS

Comprehensive precision

FS 1.0%, FS 1.5%

Includes linearity, repeatability and hysteresis

The output

3.33 mV/V, 2 mV/V

The input voltage

10 VDC (6 ~ 12 v)

repetitive

Plus or minus 0.2% FS

Response speed

5 ms or less

Output impedance

350 Ohms plus or minus 10%

Internal self-calibration

80% FS + / - 1%

Insulation impedance

200 m Ω @ 100 Vdc

Maximum diaphragm temperature

400 ℃

Diaphragm material

15-5PH stainless steel with coating

Electrical connections

Five-core aviation plug-ins, six-core aviation plug-ins

Process connection

1/2 "- 20 unf, M14 x 1.5, M18 x 1.5, M22 x 1.5 G3/4 (can be made according to customer's requirement)

Standard hose type high temperature melt pressure sensor product dimensions

Standard hose-type high temperature melt pressure sensor mounting hole size diagram

Instructions for ordering of green melt pressure transmitter in Shanghai

1. Please specify the type, name, measuring range, size of joint thread and precision grade when ordering.

2. If you have special requirements, please specify them when ordering.

3. Orders to send to Shanghai in the form of a written in fai pressure instrument co., LTD (relative to meet sales staff, and fax or email), we accept verbal orders, our company will be a written confirmation of our sales confirmation sent to you and need you, in case of need to sign the contract, special orders and our sales staff directly to talk things over solve.

4. We will issue a confirmation letter within three working days after receiving your order and enclose our standard product sales terms.

Mode of transportation:

Mode of transportation may be selected by the user or agreed by both parties.If the mode of transportation is optional, the user shall provide the name, telephone number, fax number and other information required by the transportation company.

Related products of Shanghai chaohui environmental protection melt pressure transmitter are as follows:

Pt124b-11x rigid bar series high temperature melt pressure sensor/transmitter series

Pt124b-12x flexible pipe series high temperature melt pressure sensor/transmitter series

Pt124b-112 rigid bar replaces imported high temperature melt pressure sensor/transmitter series

Pt124b-123 flexible pipe replaces imported high temperature melt pressure sensor/transmitter series

Pt124b-21x industrial ambient temperature series pressure sensor/transmitter series

Pt124b-22x liquid level transmitter series

Pt124b-28x industrial explosion-proof pressure transmitter series

Pt124y-61x high-temperature melt diaphragm pressure gauge series

Pt124y-62x sanitary diaphragm pressure gauge series

Pt124b-25x engineering equipment (shield machine) special pressure transmitter series

Pt124b-23x air conditioner, refrigerator/compressor special pressure transmitter series

Pt124b-24x auto pressure transmitter series

WR-20X industrial temperature sensor series

BP10X bursting valve series
