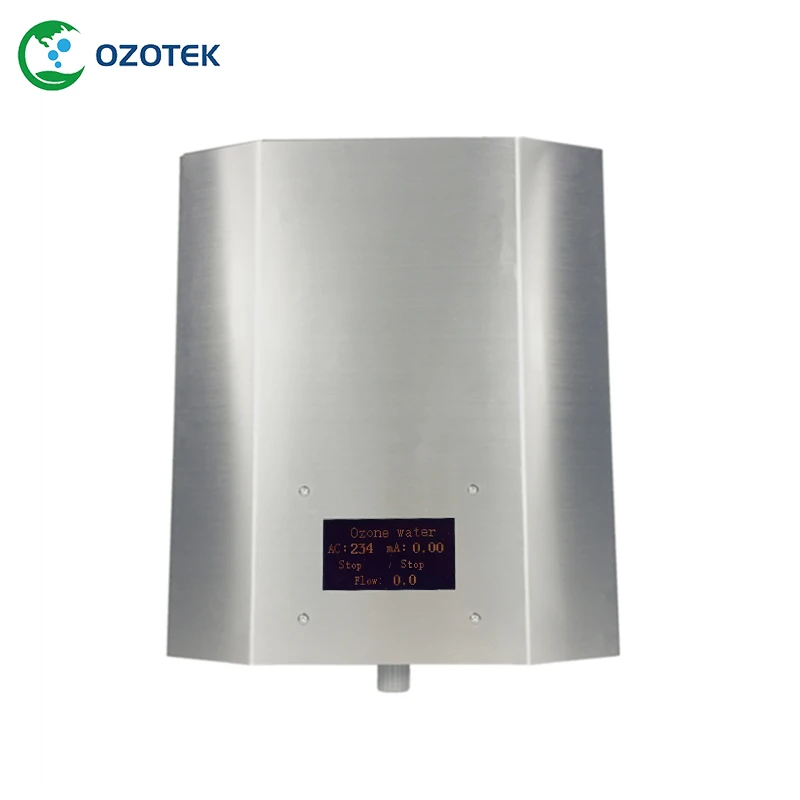

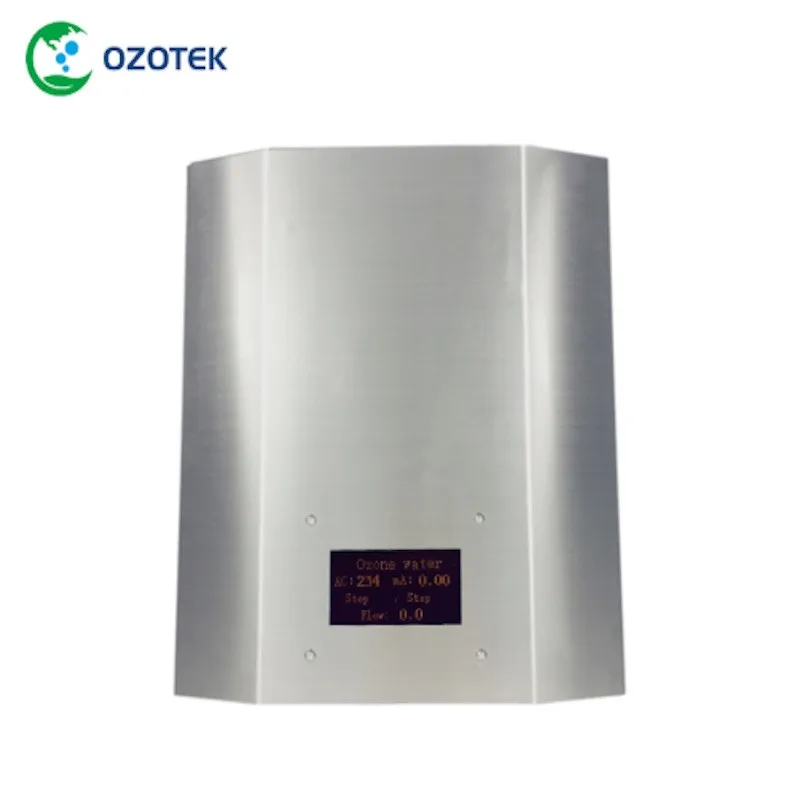

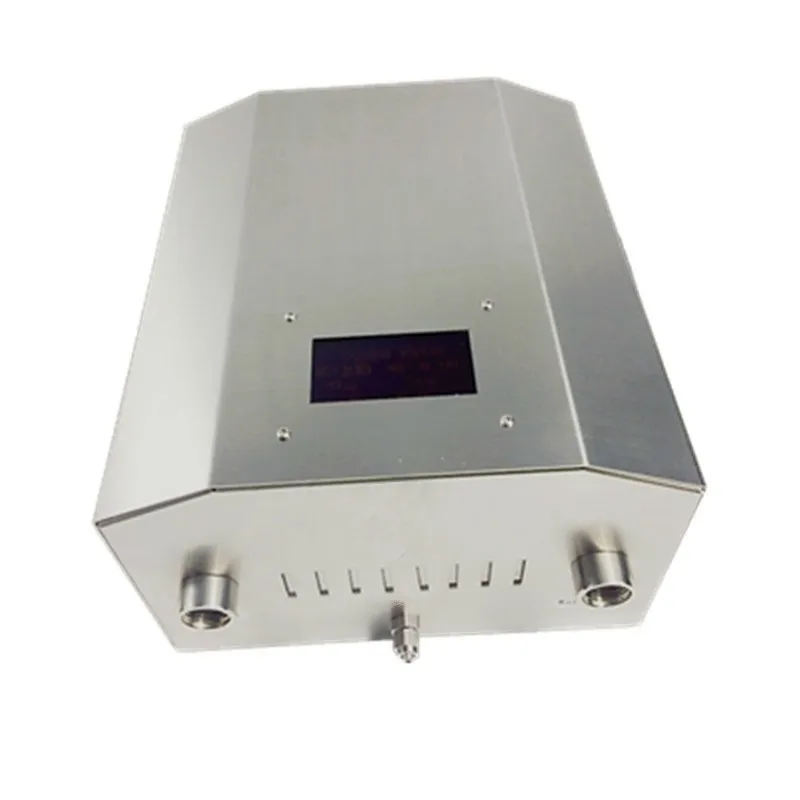

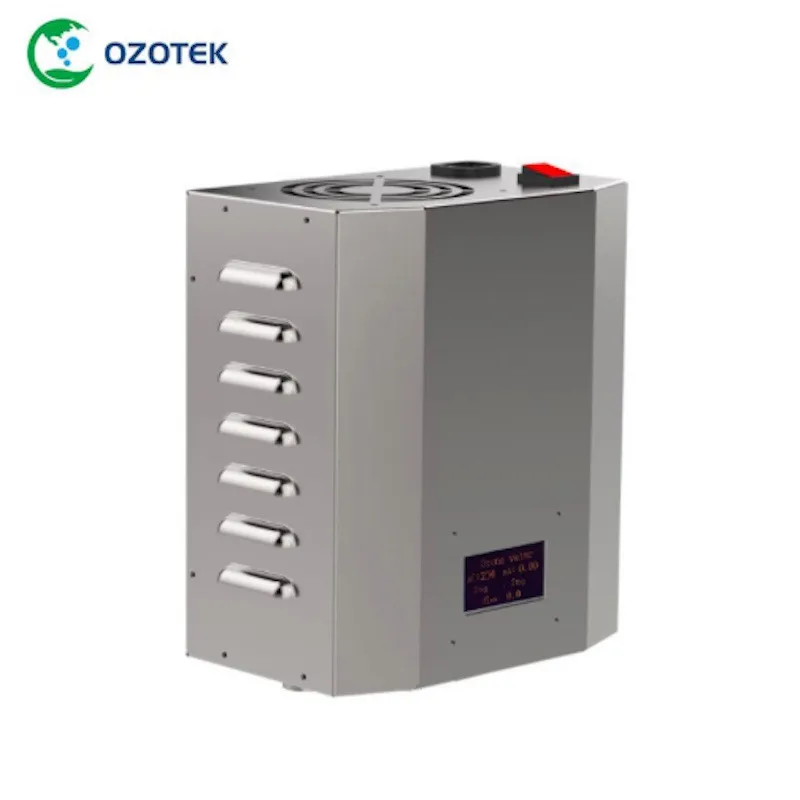

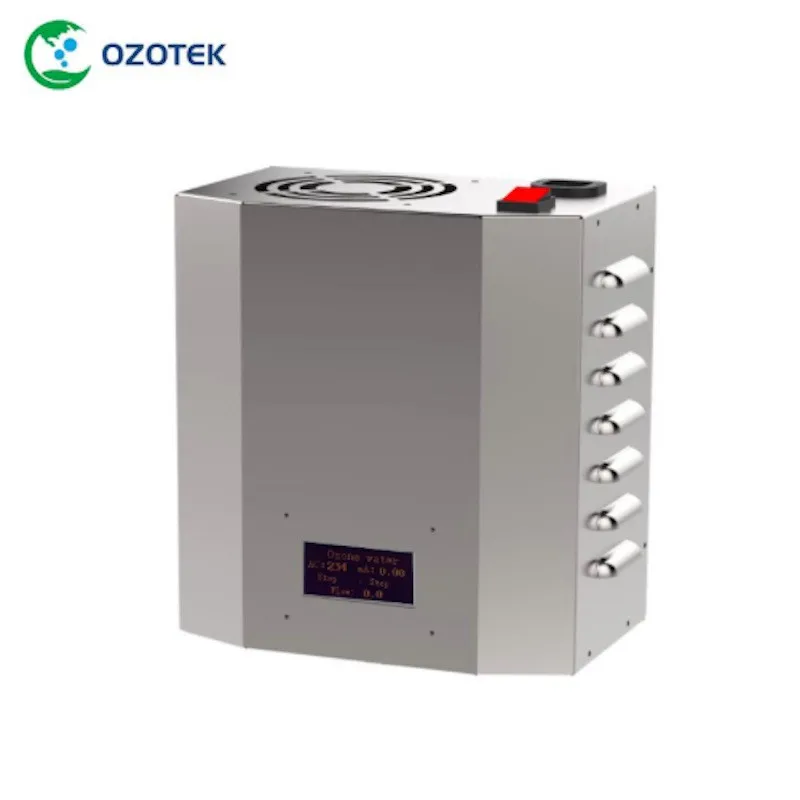

OZOTEK ozone water generator TWO004 inbuilt venturi 5000MG/H 1.0-3.0 PPM for water dringking water purification

PRODUCT PARAMETER

Product name: Intelligent Ozone Water Machine

Model: TWO004

Ozone output: 5000mg/H

Type: Tap water

Water pressure: >3.0 Bar

Temperature: 5-30 degree

Ozonated water flow: 200 L-1200 L/Hour

Ozonated water concentration: 1.0-3.0 PPM(Inlet water temperature: 15℃; Ambient temperature: 20 ℃; Inlet water quality:< 500µs/cm)

Rated power: 100W;

Voltage: 110/220V (optional); 50/60Hz

Unit size: L245 x W 160 x H310MM

Net weight: 3.5 KGS

Gross weight: 5.0KGS

Cabinet: 304 S. Steel

PACKING INCLUDED

Ozone generator model: TWO004

Power cable: 1 PCS

Ozone silicon hose 2 meter

Operation manual

PRODUCT FEATURE:

304 S. Steel cabinet

High concentration ozonated water 1.0-3.0 PPM

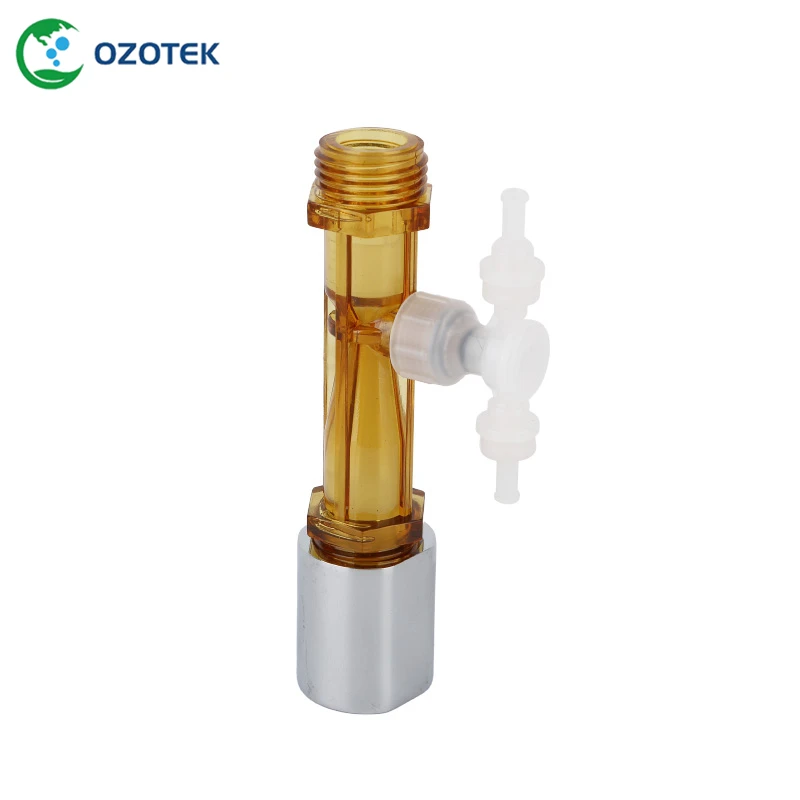

In-built venturi

Water flow sensor in-built

LED display

Pipe-Connected type

Non-contact auto stand-by and sleep system

CE (LVD & EMS) approval;

ROHS Compliant

INSTALLATION & OPERATION

1.       Check all the accessories whether included in the packing;

2.       Plug in with machine(on the top of machine);

3.       Connect and fasten the pipe with machine completely.

4.       Press on/off button (on the top of machine);

5.       Turn on the tap water, the machine will start working.

6.       If the machine is not used for a long time, please turn off the switch and take off the adaptor.
