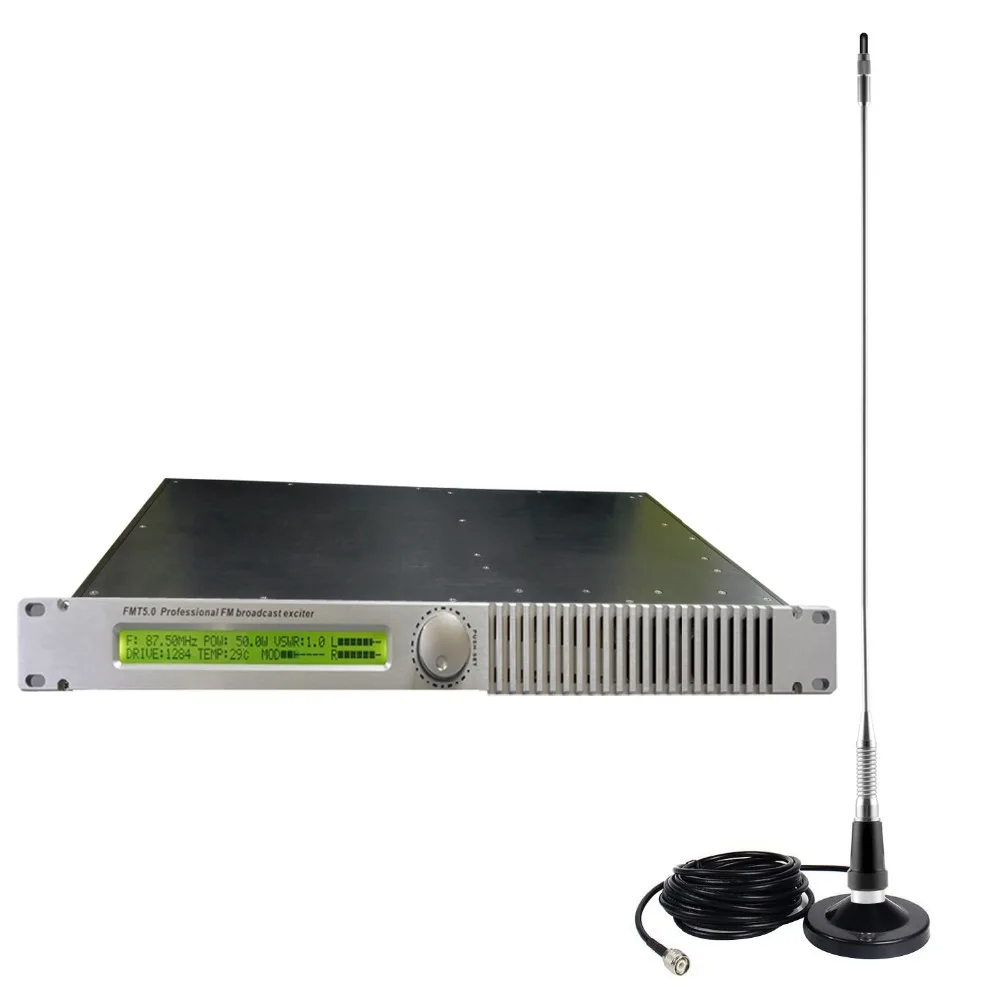

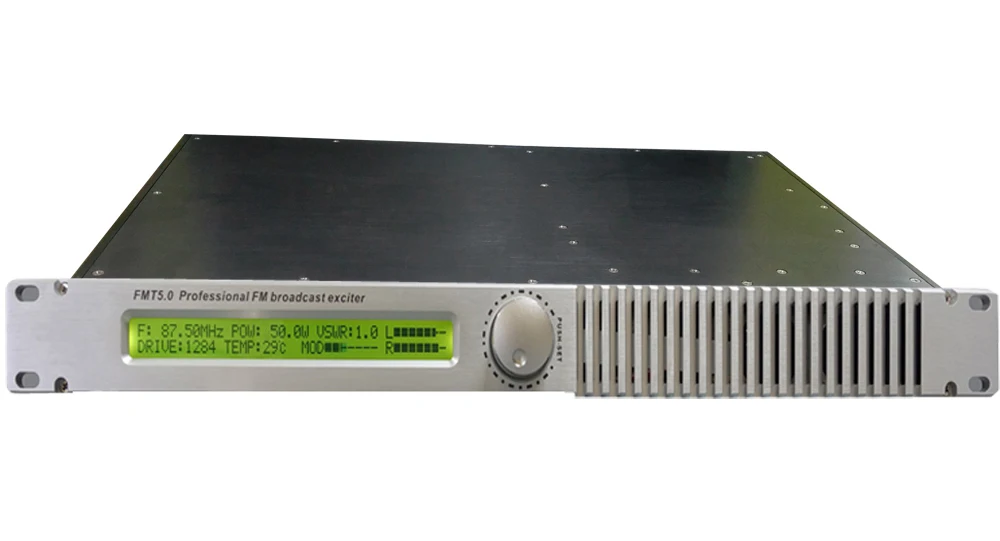

FMT - 50 is a profesional FM stereo/Mono broadcasting transmitter.

The advanced digital technologies,Digital Signal Processor(DSP), are used in the transmitters to get little size , high performance and high reliability.

They are widely used for professional radio stations to transmit high quality FM radio programs.

FEATURES:

●This is the FMT series 5 generation product,All-digital technologies DSP+PLL, better sound quality.
●Upgrade frequency step to 50Khz.

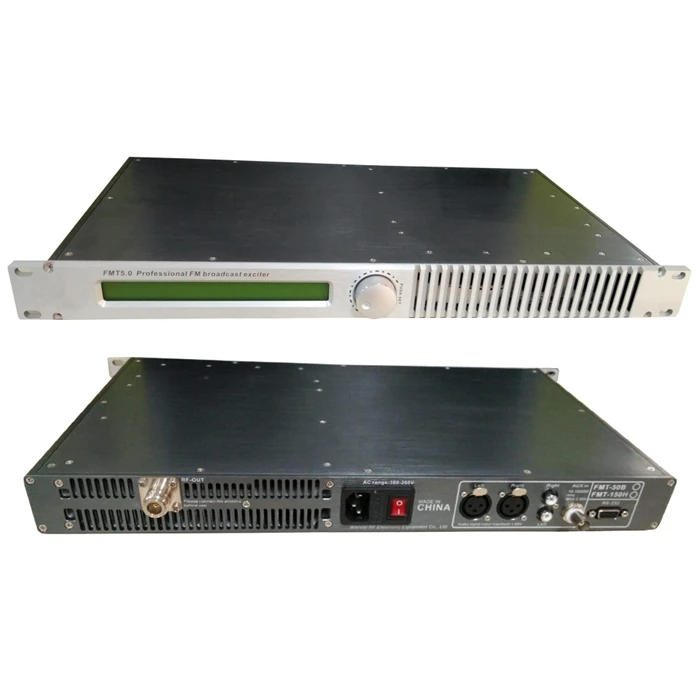

●Exquisite craftsmanship，Standard 19 inches,1U whole aluminium alloy cabinet. Wiredrawing and oxidation makes surface bright, clean and elegant.
●Big LCD display all the parameters in real time. displays working frequency, volume, FETMOS temperature, forward power and SWR.
●Provided with the series of protection function, own active protection and raise alarm prompts once meet any trouble while working.
●Accurate operating index and perfect protection measures make you are more aware of the operating status of your machine.
●Easily installation and simply operations.
●High quality and excellent technical performances. AGC circuit to keep the Output Power stability.
●Each machine has been examined strictly by a series of quality inspection and function test to guarantee best operating function.

Technical Specifications:

- Power voltage: 90VAC~AC260V, 50Hz~60Hz
- Power efficeiency：≥60%
- Heat elimination mode：wind
- RF frequency range： 87.00MHz～108MHz,step 50KHz
- RF Output power：0~ 50W adjustable
- RF Output impedance：50Ω
- RF Output connector：N(female)
- Carrier frequency precision：±200Hz
- Harmonic suppression：＞65dB
- Parasitic amplitude modulation：＜-50dB
- Modulation frequency deviation：±75kHz（100% modulation）
- Audio input connector: RCA(unbalanced), XLR (balanced)
- Audio pre-emphasis：0μs、50μs、70μs
- Level difference of right and left ：＜0.01 dB（100% modulation）
- Signal-to-Noise：75dB、1kHz（100% modulation）
- Audio response: ±0.1dB，10Hz~15000MHz
- Distortion: ＜0.1%，10 Hz ~15000 MHz
- Stereo Separation: 55dB，10Hz~15000Hz
- Pilot frequency：19kHz±1Hz
- Pilot frequency modulation：8%~10%
- Analog audio input impedance：600Ω,balance
- Analog audio input gain：-15dBm～+15dBm,step0.01 dBm

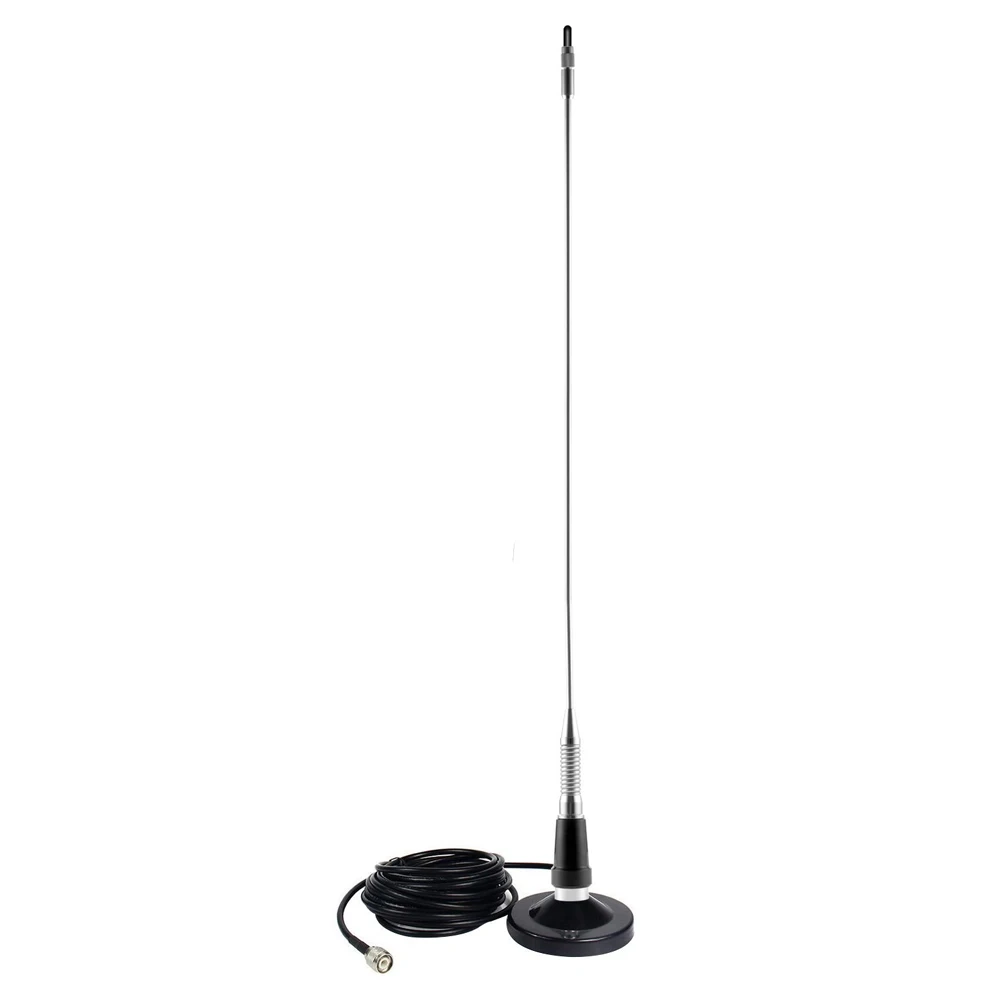

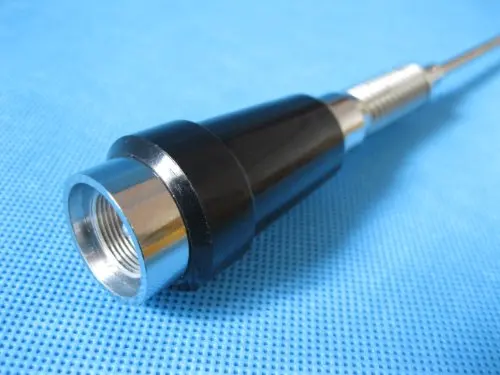

>This is a new developed Car FM antenna specially designed for FM transmitters from 0~100watt.

>It has high gain and excellent performance. Frequency is adjustable from 88~108mhz.

Technical Specification:

Frequency Range: 88~108 MHz

Band Width: 6 MHz

VSWR:<1.5

Impedance:50Ω

Gain: 2.15 dBi

Polarization: Vertical

Radiation :Full directioin Omni

Lighting Protection: Direct Ground

Maximum Power Input-watts:100 W

Mechanical Specification:

Height; 630~815 mm(adjustable by frequency)

Antenna Connector: BNC

Diameter of Chassis: 19.8±0.2 mm

Radiating Element Material: Aluminum Alloy

Weight: 400g

Package Include:

1x 50watts fm transmitter

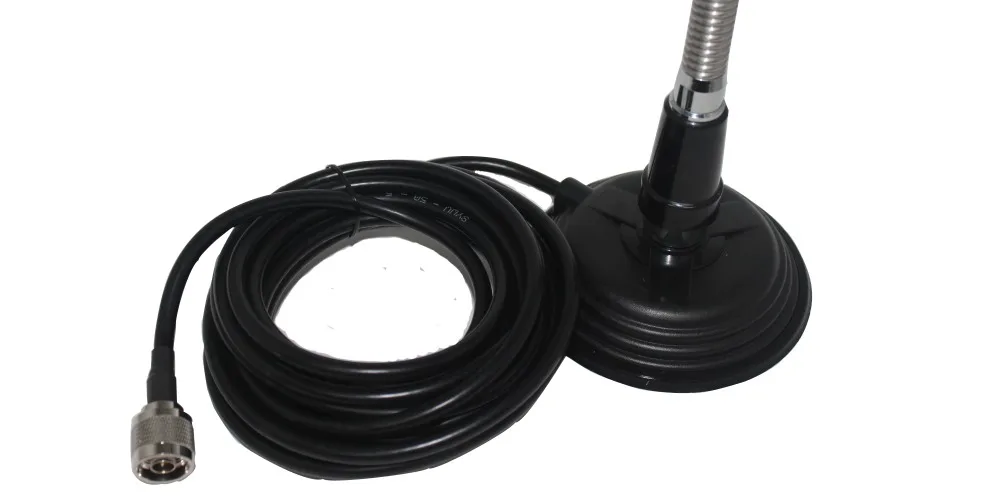

1x Antenna( come with  Sucker 10 meter Cable)
1x Audio Cable


Attention:
Please note that the frequency of antenna and transmitter should match each other, so the transmitter can work well. See below the frequency adjusting.

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain,  using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~15KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter :  30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
