1080P CMOS OV2710 30/60/120fps Wide Angle 180degree Night Vision IR CUT Infrared USB Webcam Camera for Android Linux Windows |

1080P CMOS OV2710 30/60/120fps Wide Angle 180degree Night Vision IR CUT Infrared USB Webcam Camera for Android Linux Windows |

*High Speed 1080P HD USB Camera

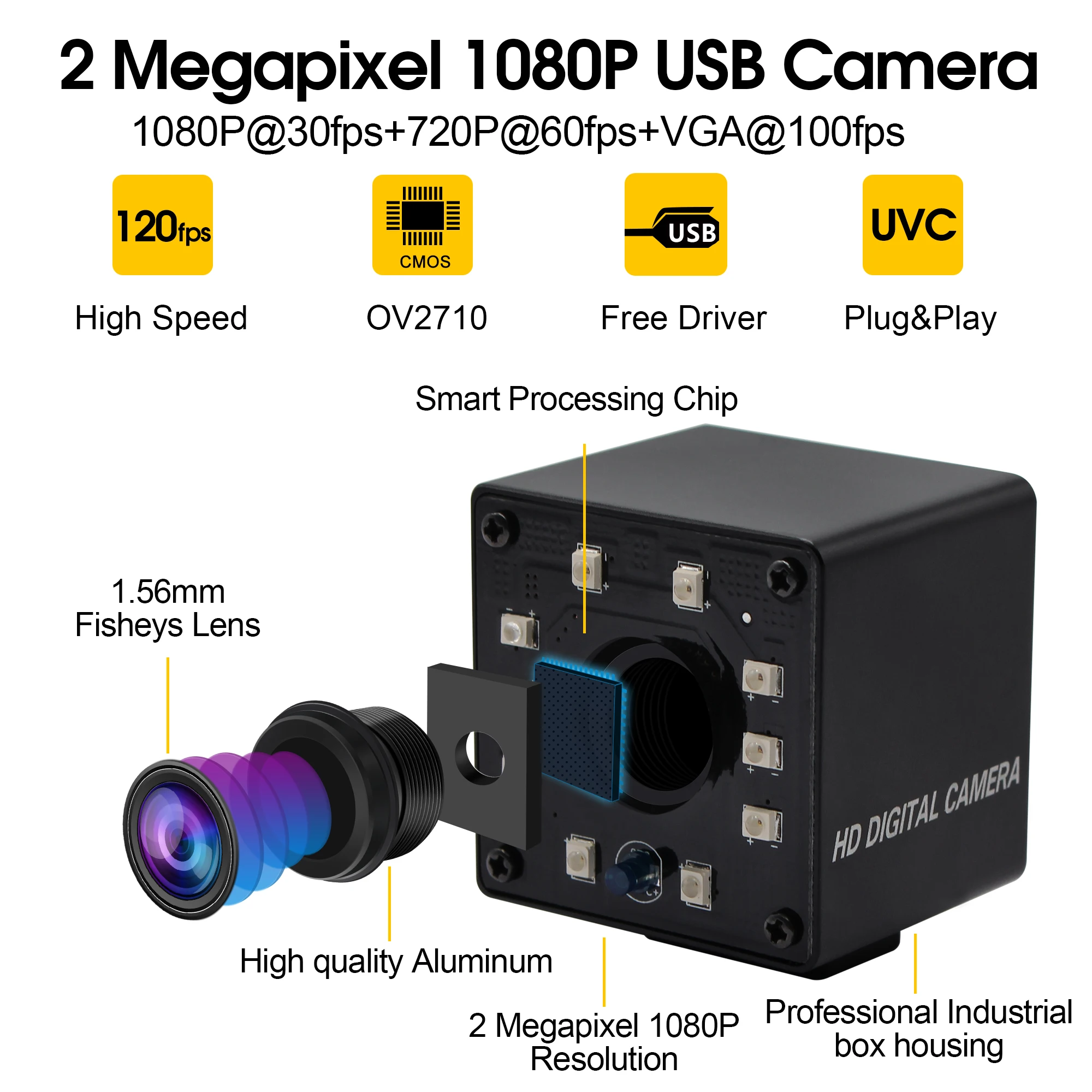

*Equiped with Wide Angle 1.56mm  fisheye  lens

*Can drive 30fps@1080P and 60fps@720p,120fps@480P

*CMOS OV2710 1080P sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

*Camera with UVC.

With ir leds for night vision

Optional models

ELP-USBFHD05MT-KL156IR

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG/YUY2

USB Protocal

USB2.0 HS/F S, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

 1.56mm wide angle  fisheye lens

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

Packing :

【Other questions about usb cameras】

1.How to choose lens ？

Answer：Please confirm the capture range, this means what size of the object you want to capture and in which distance. Then calculate the view angle you need, if you can not confirm the view angle, please provide us your object's size and distance from object to camera lens, we will help you calculate view angle and recommend you most suitable lens.

2.May I change lens？

Answer：Yes,  camera is equiped with Standard M12 lens, you can also choose following lens (need remove ir filter):

https:/store/product/Megpixel-M12-3-6mm-6mm-8mm-12mm-optional-HD-CCTV-Camera-Lens-HD-Security-Camera-Lens/913995_32612944942.html?spm=2114.12010612.0.0.42d1285cOlMYGB

3 .Can I buy this ir camera module with case ？

 Answer ：Yes,please check following link:

1) https:/store/product/2-megapixel-aluminum-case-1080P-full-hd-high-speed-usb-2-0-port-UVC-ir-infrared/913995_32456036711.html?spm=2114.12010612.0.0.5a9df36aP3amTW

2)https:/store/product/2-Megapixel-Outdoor-Waterproof-IR-Night-Vision-Security-Surveillance-CCTV-Video-Cam-otg-support-Bullet-USB/913995_32768226020.html?spm=2114.12010612.0.0.5a9df36aF7P6zS

3)https:/store/product/1080p-full-hd-free-driver-cctv-ir-infrared-dome-usb-camera-with-3-6mm-lens/913995_32477979629.html?spm=2114.12010612.0.0.5a9df36abfWexf

4. Does this camera need Driver？

 Answer：Free driver, plug and play, standard UVC free driver protocal, can use on winXP WIN7 WIN8 Linux Android MacOS OS ,For Linux and Android, if your system has UVC driver,then can use generic (Based on standard V4L2 interface development) software to operate.

5. Can you provide SDK?

Answer：Yes, we can provide  SDK for Windows and Linux.

6. Do you have software? Can record video ?

 Answer：We can equipe with AMcap image preview software, with this software ,you can chnage resolution, photo and record, can also adjust parameters ( Brightness/Contract/Color saturation/Definitation/Gamma/WB )

7. How long cable is this camera equiped with？

Answer：Standard 1m usb cable,  we also have 3m/2m/5m cable for your option, please contact store server if you have special requirments.

8. Can you customize ？

Yes，we are manufactuer, can customize cameras according to your requirements.
