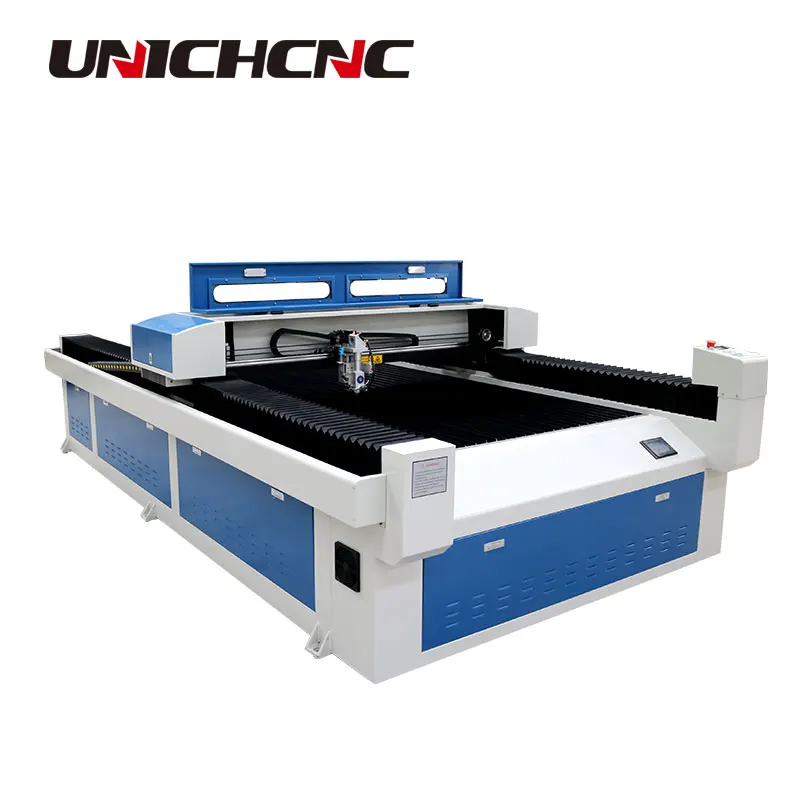

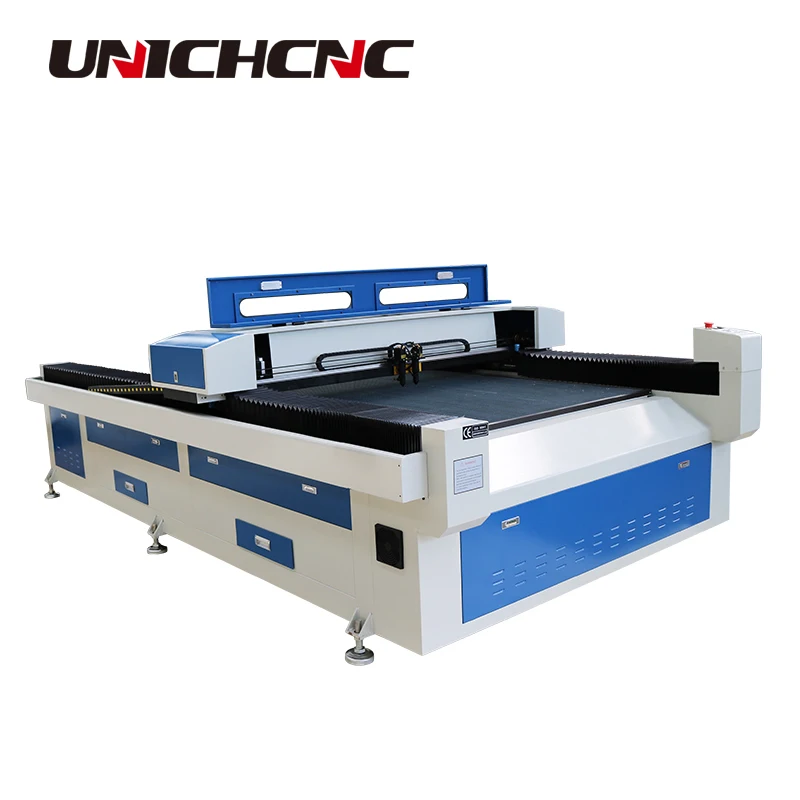

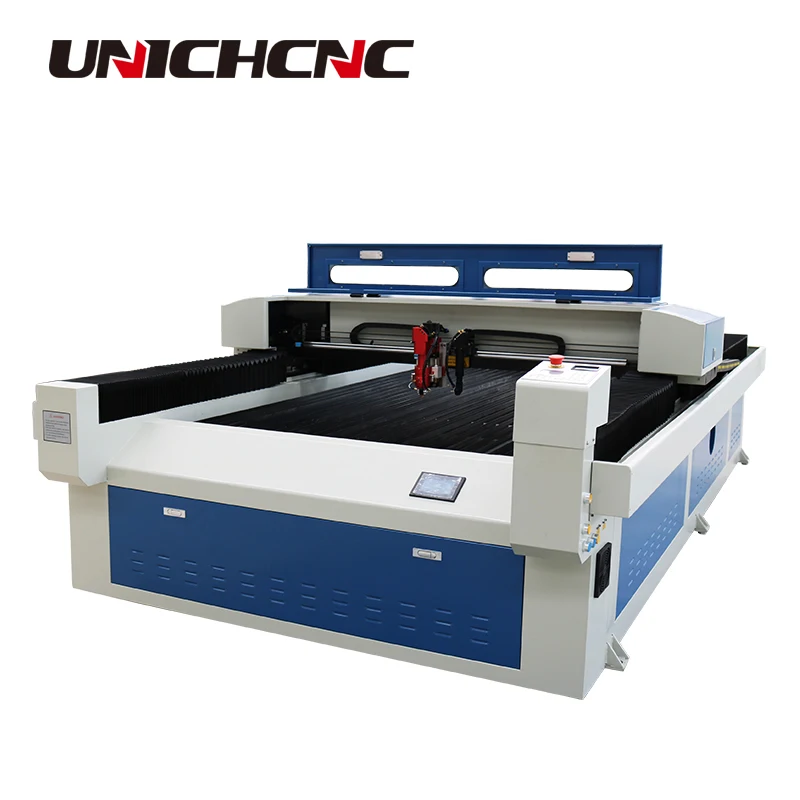

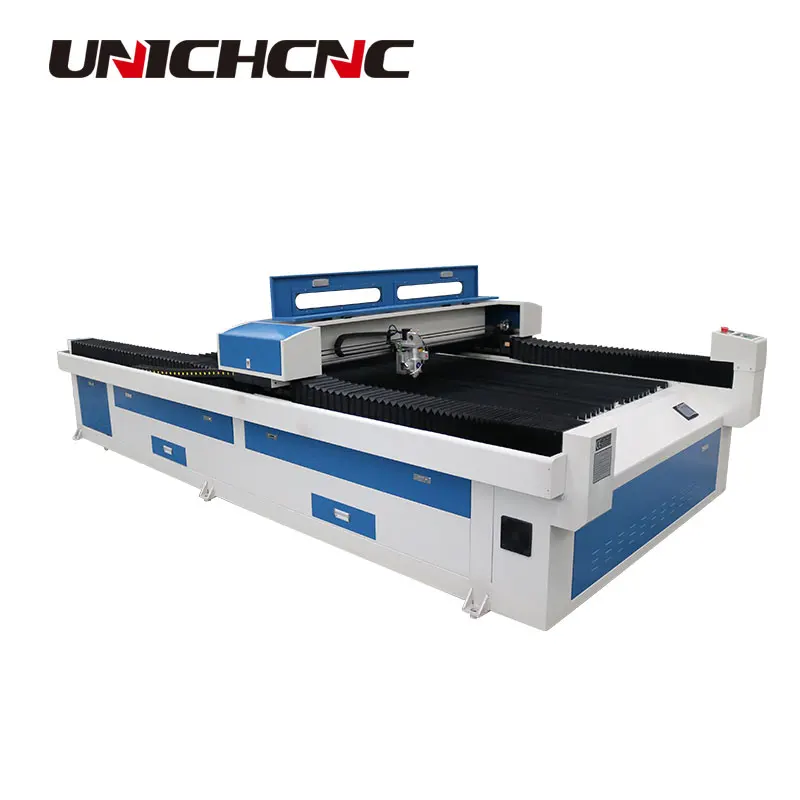

Stainless steel carbon steel iron metal cnc laser cutting machine 1300*2500mm

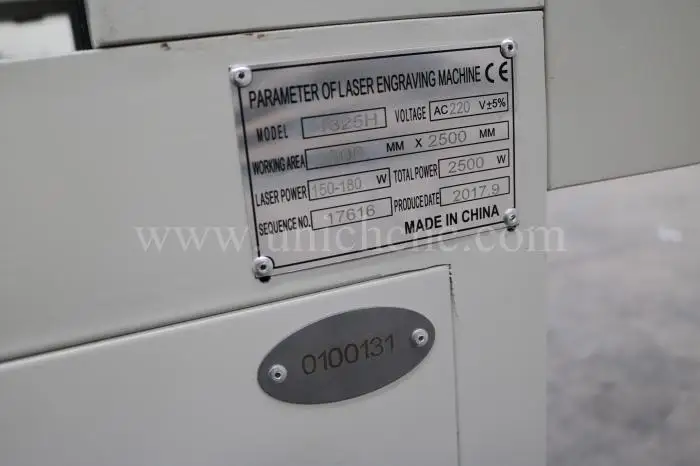

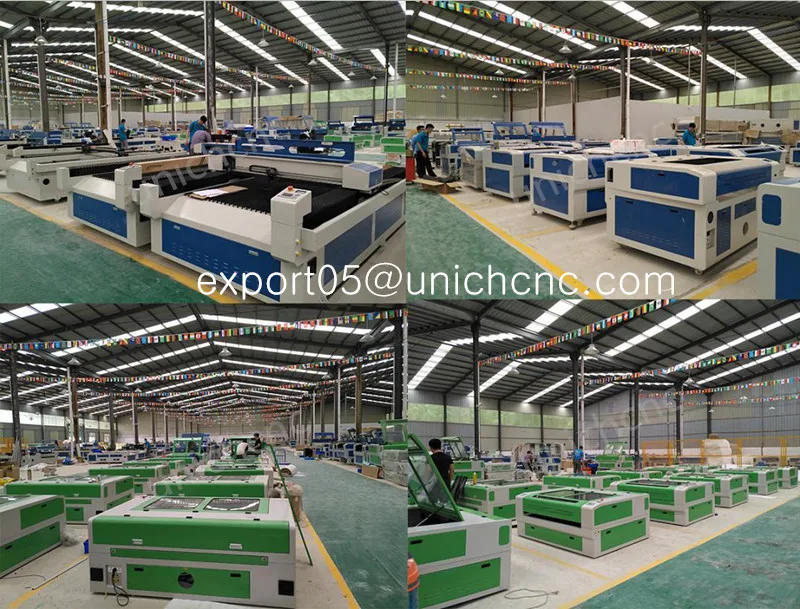

Machine in the factory

Machine Feature

Machine parameters

Items

Parameter

Model

LXJ1325-H laser metal cutting machine

Working area

1300 * 2500mm

Whole machine size

3400 * 1830 * 1100mm

Laser-type

Sealed CO2 laser tube

Laser power

Beijing Reci W6 laser tube (130-150W)

Cooling mode

Water-cooling and protection system

Cutting Speed

60,000mm/min

Resetting position accuracy

±0.05mm

Exhausting method

Exhausted by funnel

Graphic format supported

AI BMP DST DWG DXF DXP LAS PLT

Controlling software

Ruida laser controller with colored screen

Compatible software

CorelDraw,AutoCAD,Photoship

Draving system

Stepper

Working voltage

AC220V 1ph 50Hz

Operating temperature

0-45℃

Operating humidity

5-95%

Machine parts LXJ1325-H

Ruida 6332M controller, when the machine working, you can see youe working design on your control screen.

Adopt the new design laser heads, used for metal cutting, non-metal engraving/cutting, the laser head with the auto focus, easy operation.

 Cooper gear, Our factory adopt the cooper gear, but many factories will adopt the aluminum gear, advantages: (1)Long time (2)high accuracy (3)corrosion resisting(4)stand wear and tear.

Beijing Reci laser tube power, the machine lifetime can be over 10000 hour. just tell us yu rmaterial and the thickness that you want to cut, we will recommend the suitable machine  power for you arrording your requirements.

Multiple swith design, include rotary axis, exhaust fan, light swith, easily transfer each other, operation is very convenient. USB and PC port.

Install the laser power supplier Independent, compared with the general kind install with electrical Equipment,  it can reduce interference of other Electrical Equipment this can ensure the better performation of the laser power.

We have our own gantry type milling machine, better control machine frame and higher precision.
Our gantry type milling machine video link://youtu.be/1lMRbtou0RA

Machine optional parts

Up/down table

Rotary axis

multi heads

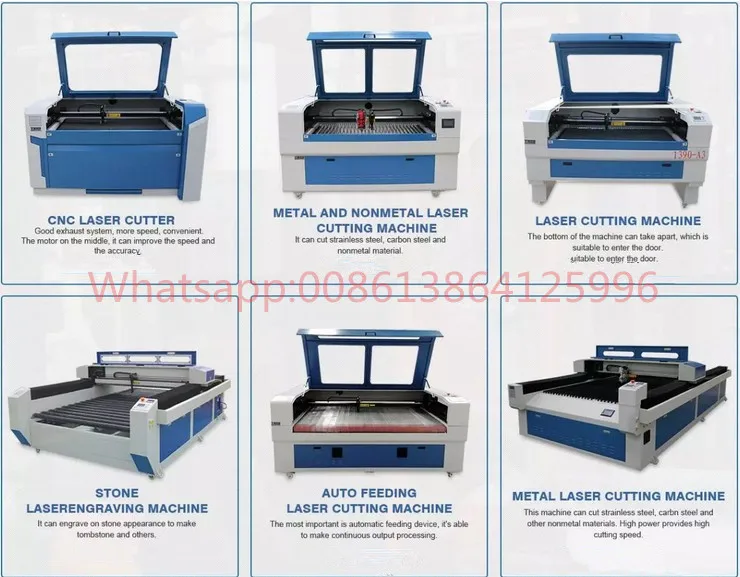

Machine application

Machine package information

Packages:
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the

whole machine and spare parts for sweet protection, at last we will make export standard strong plywood

case package according to your needs.

Transport:
We will provide various ways of transportation.
1 By sea
2 By air
3 By train
4 By car

About us

Machine after sale

1).2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed
free of charge(some parts will be maintained) when if any problem during the warranty period.
2).Lifetime maintenance free of charge.
3).Free training course at our plant.
4).18 hours on line service and email each day, free technical support.We will reply you in 24 hours
after receive your problem of the machine.
5).Machine has been tested and adjusted before delivery.We will take machine photos and make
machine working image for you ,after getting your agreement ,then we will book a ship.
6).Provide technical services to the door(We have professional engineers to offer machine installation
commissioning and maintenance) if customers pay the charges of ticket.
7).if you have any problem during your use.you need our technician to judge
where the problem is and help you to solve it. We can provide team viewer and skype with cam till
all of your problems solved.

> From our customers feedback

FAQ

Q.1 What is the payment terms?

The payment terms we accepted :Western Union,Cash,Alibaba trade assurance,T/T(30% payment in

advance as deposit,70% balance payment should be paid before shipment.)

Q.2 How about the shipping ways?

Sea freight usually ,if possible ,land transportation ,spare parts can be by air or Express
Q.3 What is the guarantee policy?Quality guarantee time?
The guarantee period of quality shall be 24 months counting from the date on which the commodity

arrives at the port of destination.Except the damage is artificial ,we are responsible for offering the

fittings free of charge during the guarantee period, but you must send the damaged fittings to us by

courier with your charge before we send back the alternative fittings to you(unless some problem

parts need no return).Out of the guaranteed  period, should the parts required to be repaired or replaced,

if any, service and parts will be charged.
