NOTE: This price doesn't include the Bluetooth Phone Mould And Controller（As shown below) If you need it, just buy through this link:

https:/store/product/KUNFINE-Bluetooth-Adapter-Hands-Free-Call-Kit-Special-For-M06-Digital-Music-CD-Changer-And-Remote/4530028_32979271077.html?spm=2114.12010615.8148356.1.2d6995945CirBC

Bluetooth Phone Mould And Controller:

Introduction:

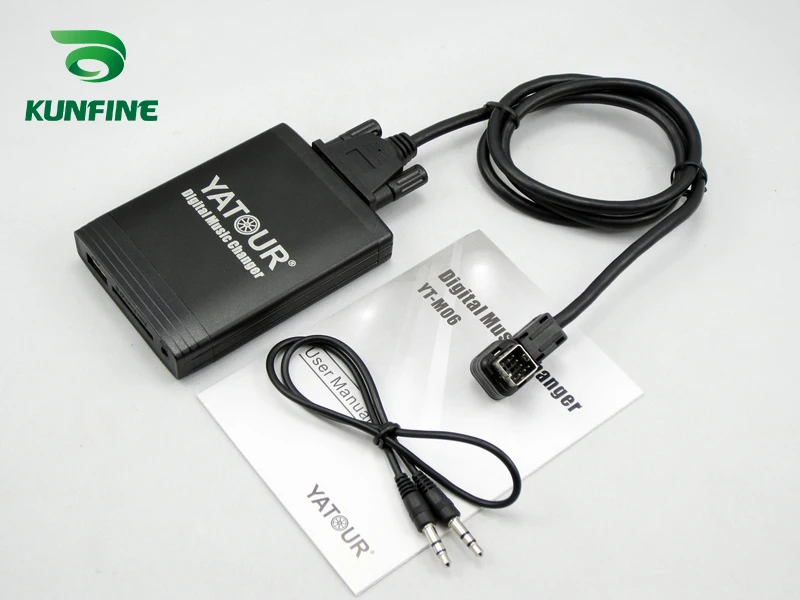

This is a audio car kit, It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer’s installation and usage, Simply plug in USB disc/ SD card, You can play audio through you car audio system and enjoy music in you car.

specification:

● Voltage input:12v DC

● Signal-to-noise:95DB

● Max.Current:600MA

● Max. voltage output:12v

● D/A  Device :24BIT 192KHZ

● Total Harmonic Distortion:0.01%

● Frequency Response:20HZ-20KHZ

● Working Temperature:-10C-80C

● Module case in made of aluminium alloy

● CDC plug cable: 95cm; AUX cable:50cm

Feature:

● Play&plug, modular design, CDC alternative

● Connected with wire harness, not FM signal controlled, Hi-Fi guanranteed

● Controlled by vehicle Head Unit , support steering wheel operation .

● With Hi-Fi Decoding Chip, perfectly support MP3 and WMA stacks

● Supports SD/SDHC/MMC card/U disk /Card reader/ Hard Disk

● Supports external audio source(MP4,PSP, Mobile phone)via AUX in port

● Playlist function same as multi CDs

● Supports Last Position Memory(LPM)

● Vibration and interface proof

● Easy to installing ,no damage to original car decoration

● Different module firmware version for different types of protocol of car stereos

Supported memory card and USB sticks:

1. Max 32GB(4-8GB is most recommended), SD card is more recommended than USB sticks.

2. Please format SD card or USB sticks with FAT16/ FAT32 before you save files or folder in USB/SD card.

3. Impose folder naming system :CD01,CD02,CD03……

Doesn’t read sub-folder and gets confused with other name in root of the drive

4. Supports up 99 folders (depending on the radio type) on you USB/SD

5. Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 tracks titles;

Saving too big file (over 50M)in any folder may also cause intermittent performance.

6. Using music file formats other than WMA or MP3 may also cause intermittent performance

7. The playback order of songs is in line with other created date.

8. Sometimes, to remove defect on software of car audio system ,you may need to disconnect the battery or remove the fuse to reset the car audio system.

9. To use the AUX-In port, it’s necessary to remove the USB or SD card.

10. YT-M06 may does not work with some of new Kingston brand USB stick.

Compatible Models:

Item No.

KF-M06-Clarion

Includes:

l Module unit for Clarion

l Clarion plug

l AUX cable

Compatible Head Unit

Clarion(CE-NEY)

VXZ-768R etc.

Suzuki

Compatible with Suzuki Radio by Clarion :2005-2010 Swift VI,1998-2010Jimny,2006-2010 Grand Vitara (ESCUDO\Sidekick),2006-2010 SX4

Other models

Buick Excelle(6 discs),Chevrolet EPICA(6 discs),Mazda 323(6 discs changer)

nCompatibility Notice

1.Require disconnecting car stereo from car before installing digital music changer

2.Not compatible with VRX series(VRX743R,VRX633R,etc)

3.Test with :Clarion VXZ2768R,Suzuki Jimny2010(Clarion PS-2681H)
