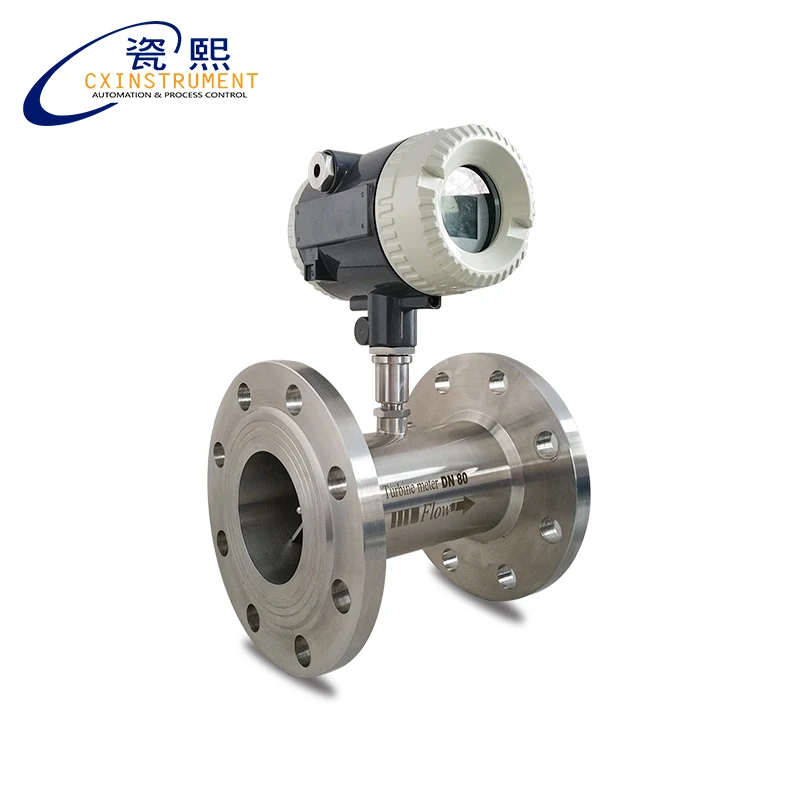

Model:CX-LTFM Liquid Turbine

1.It can measure the liquid rate and total flow rate of low viscosity

2.Transmitting distance from sensor to display instrument up to 1000m.

3. is widely used in pharmaceutical, food, beverage and other industries, as measured ingredients, control, finished filling and other uses of flow measurement instruments.

Main Parameters

DN

4~200mm

Flow rate

0.04 ~800m3 / h

Medium temp.

-20 ~ +120 °C

Ambient temp.

-20 ~ +55 °C

Power supply

Voltage: +5-24 VDC, Current: ≤ 10mA

Output

4 ~ 20mA,pulse two-wire

Display

Local LCD indicator

Explosion

No or yes (optional)

Accuracy

1%,0.5%

Model:CX-GTFM Gas Turbine

Our gas turbine flowmeter is learned the flow meter at home and abroad advanced technology optimized design, the comprehensive gas mechanics, fluid mechanics, electromagnetism theory by itself to set temperature, pressure, flow sensor is developed and in the integration of intelligent flow totalizer.especially for a new generation of high precision, high reliability gas precision measuring instrument, has a good performance of low pressure and high pressure measurement, multiple way signal output and low sensitivity to the fluid disturbances.it’s widely used in natural gas, coal gas, liquefied gas and light hydrocarbon gas and gas metering

Main parameters

Standard

 GB/T8940-2003

Connection size(mm)

 20,25,32,40,50,65,80,100,125,150,200,250,300(flange connection)

 25,40,50(can be made with thread connection)

Accuracy

 ±1.5%(±1% customized)

Range ratio

 1:10 ;1:20 ;1:30

Material

 Body:SS304 or cast aluminium

 impeller:anticorrosive ABS or quality aluminium alloy

Convertor : cast aluminium

Working condition

 Medium temperature:-20C~+80C

 Ambient temperature:-30C~+60C

 Relative humidity:5%~90%

Working pressure:86Kpa~106Kpa

 Supply

 A.external power:+24VDC±15%,ripple wave≤±5%,suitable for 4-20mA,Pulse,RS485

 B.internal power:1 group 3.0V10AHlithium battery,battery power can do formal work in 2.0V~3.0V,if power less than 2.0V,it will have low voltage indication.

Consumption

external power:< 1W Internal power supply :average power≤ 1W,continue to be used more than 3 years

Output

 Pulse,4-20mA,control signal

Communication

 RS485

Recording in real time

Start and stop recording, day recording,Timing interval recording

Explosion proof

 ExdIIBT6 or ExiaIICT4

Protect

 IP65

Model:CXKF510 Plastic Turbine

series is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow. XKF510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.

Technical parameters

PVDF Impeller

Size:G3/8”, G1/2”,G3/4”,G1”,G1 1/2”,G2”

Accuracy:+/-1%

O-ring material: EPDM

Output: pulse output,4-20mA output, local total&rate flow display.

Power supply:24VDC or 220VAC,battery supply.

Working temp:<=80C

Model:CX-WLTFM  Aluminium turbine

1.High accuracy, Everlasting, Small volume turbine flowmeter

2.Lithim battery, can supply 9000 hours power

3.Module desi output module, sensor and long-distance transfers

4.It can be used with IS

5.Easy to change the spare parts inside, and easy to assembling and maintain

Main parameters

Connecting Style

NPT(female thread) ANSI(flange)

Material

Aluminum 316 stainless steel

Flow range

1/2” :1-10GPM (3.8-37.9LPM)

3/4” : 2-20GPM (7.6-75.7LPM)

1”  :5-50 GPM (18.9-190LPM)

1-1/ 2” : 10-100GPM (38.0-380LPM)

2” : 20-200GPM (76-760LPM)

Accuracy

0.5%~1.5%

Repetition

±0.1%

Workshop

Installation

Working line

Certificate:ISO,CE,SGS

Pls check below parameters to raise formal quotation for you.thanks.

1) Where do you use it for ?

2) What’s the medium ?

3) What’s the flow range ?

4) What’s the connection size ?

5)  What’s the working temperature ?

Payment Terms

1.Loading Port: Shanghai China

2. Samples Leading Time: 3-7 working days

3. Delivery Time: Within 7-15 days after payment

4.Payment: T/T, Western Union, Paypal

After-sales service

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
