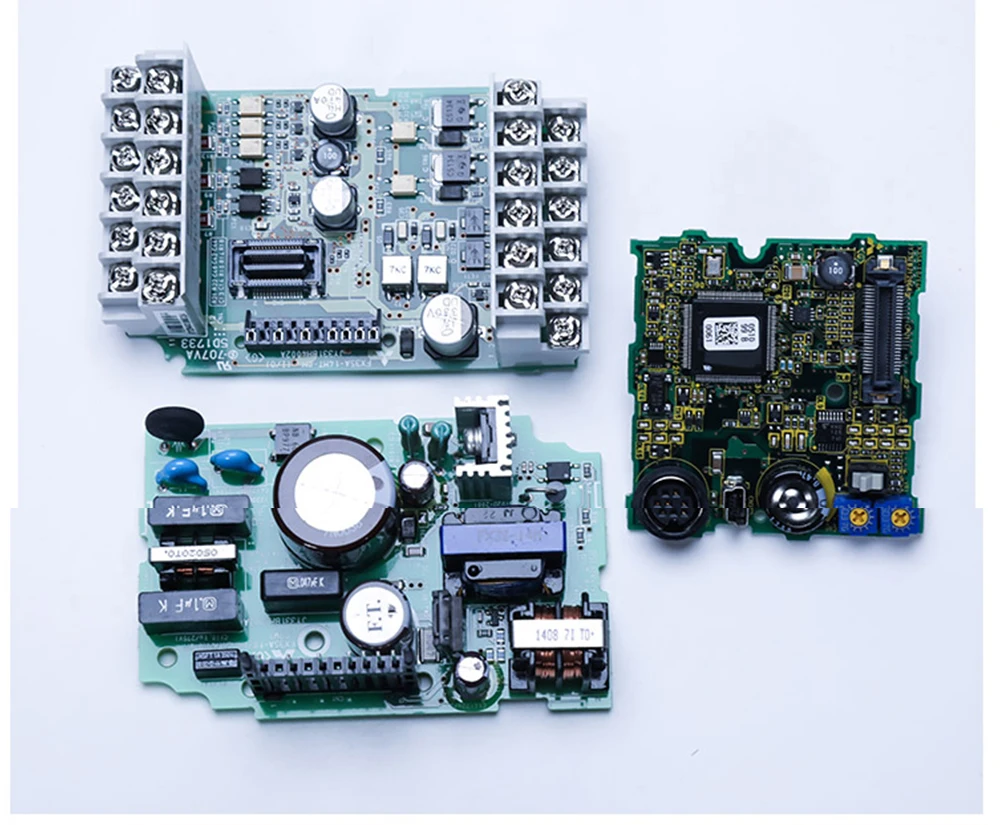

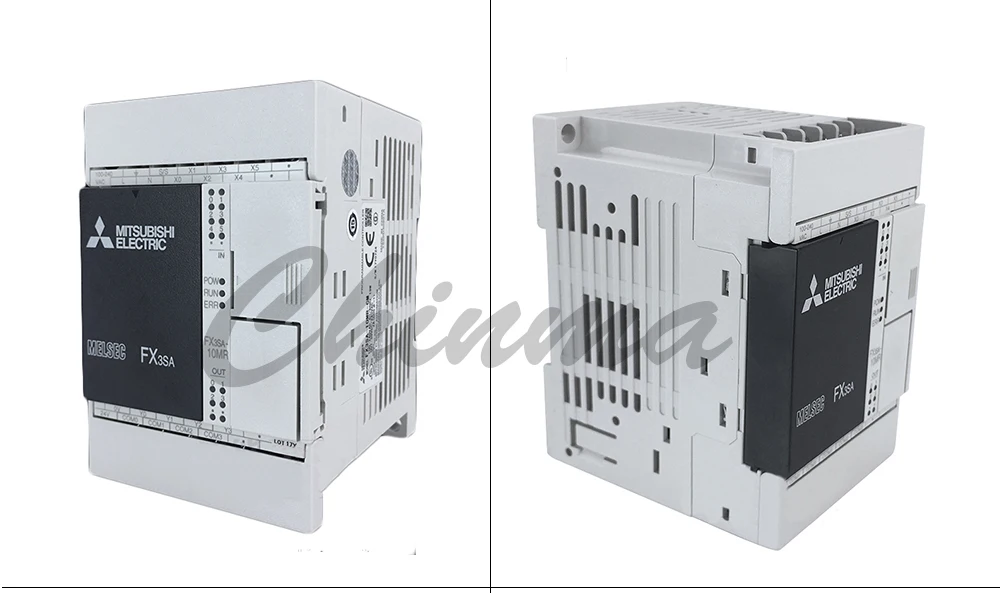

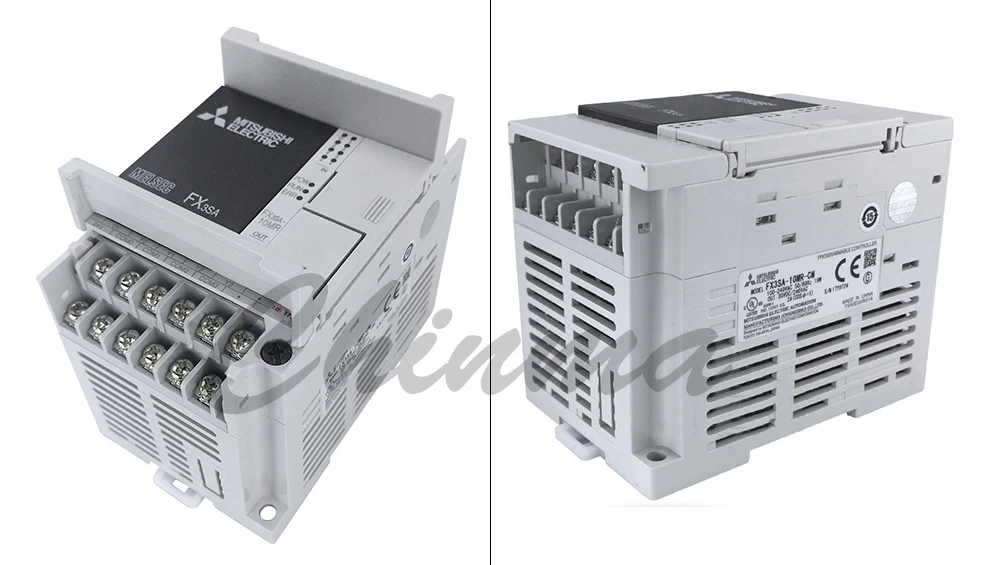

For CNC equipment  Industrial Control  Machining Center Mitsubishi PLC FX3SA-10MR-CM

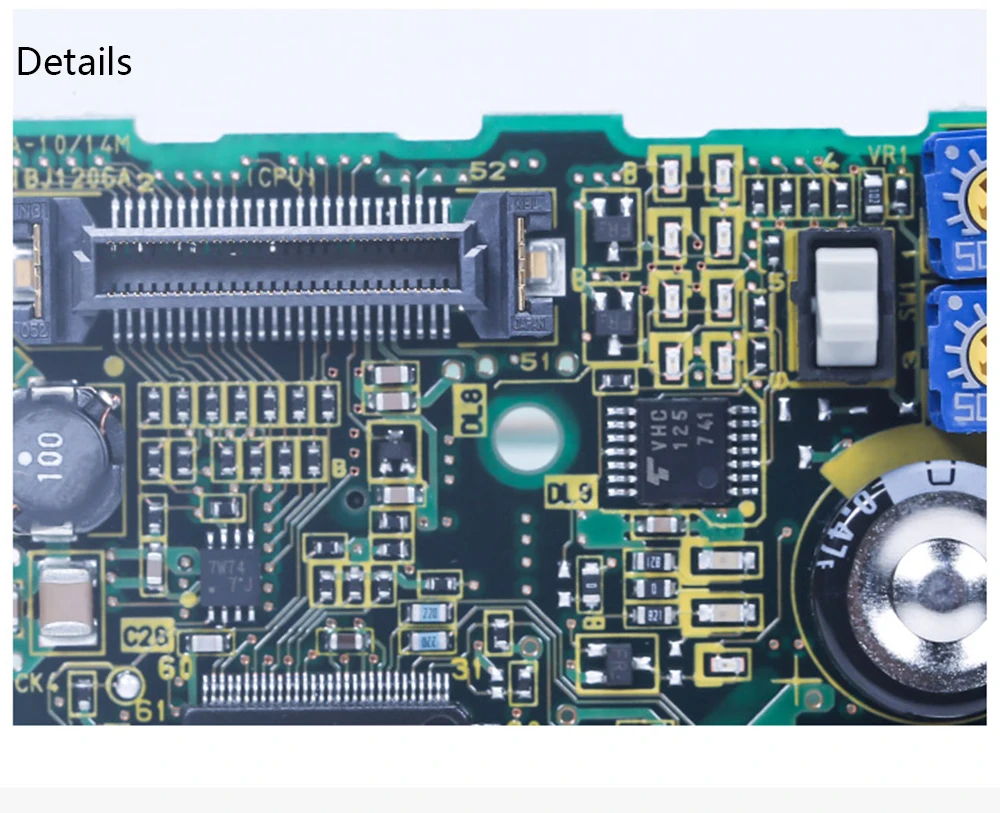

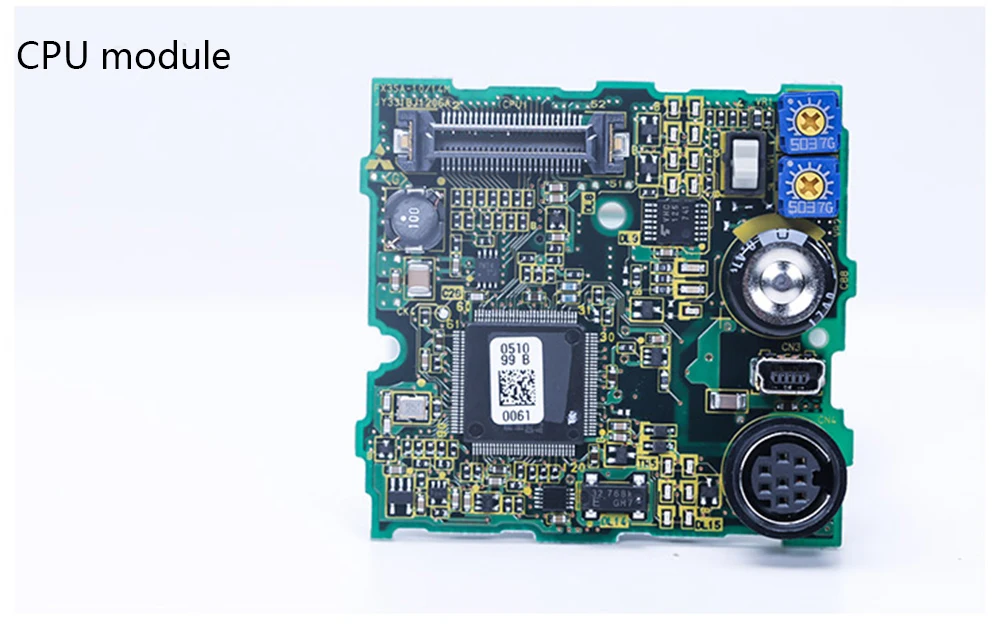

Feature:

Model

Power supply

Input mode

Output mode

Points

Input form

Points

Output form

FX3SA-10MR-CM

AC100-240V

6

DC24V(Leakage type/Source type)

4

Relay

FX3SA-10MT-CM

6

4

Transistor

FX3SA-14MR-CM

8

6

Relay

FX3SA-14MT-CM

8

6

Transistor

FX3SA-20MR-CM

12

8

Relay

FX3SA-20MT-CM

12

8

Transistor

FX3SA-30MR-CM

16

14

Relay

FX3SA-30MT-CM

16

14

Transistor

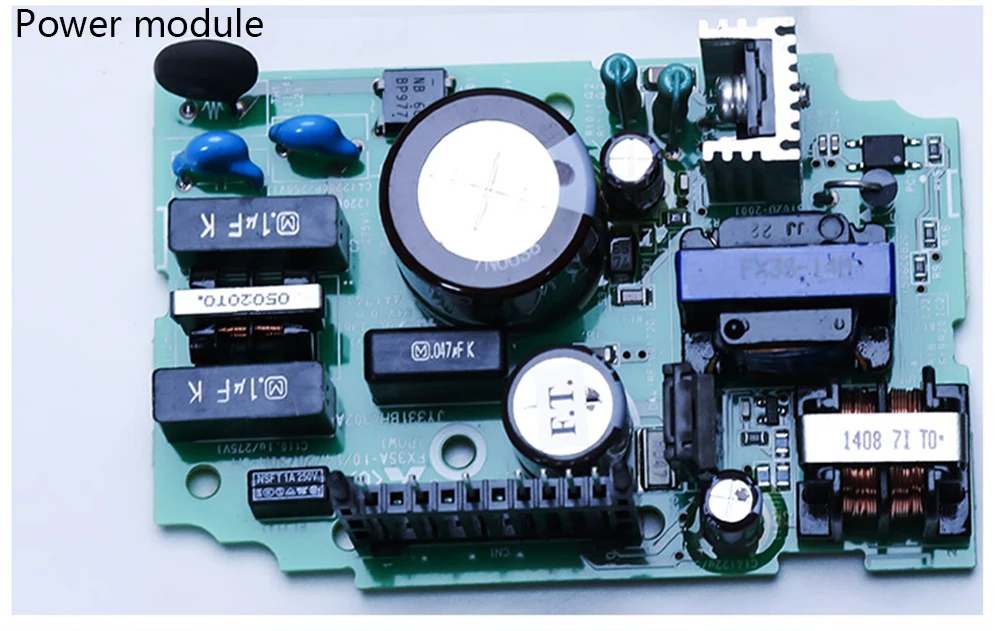

Model

FX3SA-10MT/MR-CM

FX3SA-14MT/MR-CM

FX3SA-20MT/MR-CM

FX3SA-30MT/MR-CM

voltage

AC100-240V

Range of supply voltage

AC85-264V

Rated frequency

50/60Hz

Allow instantaneous power outage time

For momentary power outages below 10ms, it will continue to run.

Power fuse

250V 1A

electric shock

At AC100V, the maximum is less than 15A and 5ms.

At AC200V, the maximum is less than 28A and 5ms.

power

19W

19W

20W

21W

DC24V power supply

400mA

Model

FX3SA-10MT/MR-CM

FX3SA-14MT/MR-CM

FX3SA-20MT/MR-CM

FX3SA-30MT/MR-CM

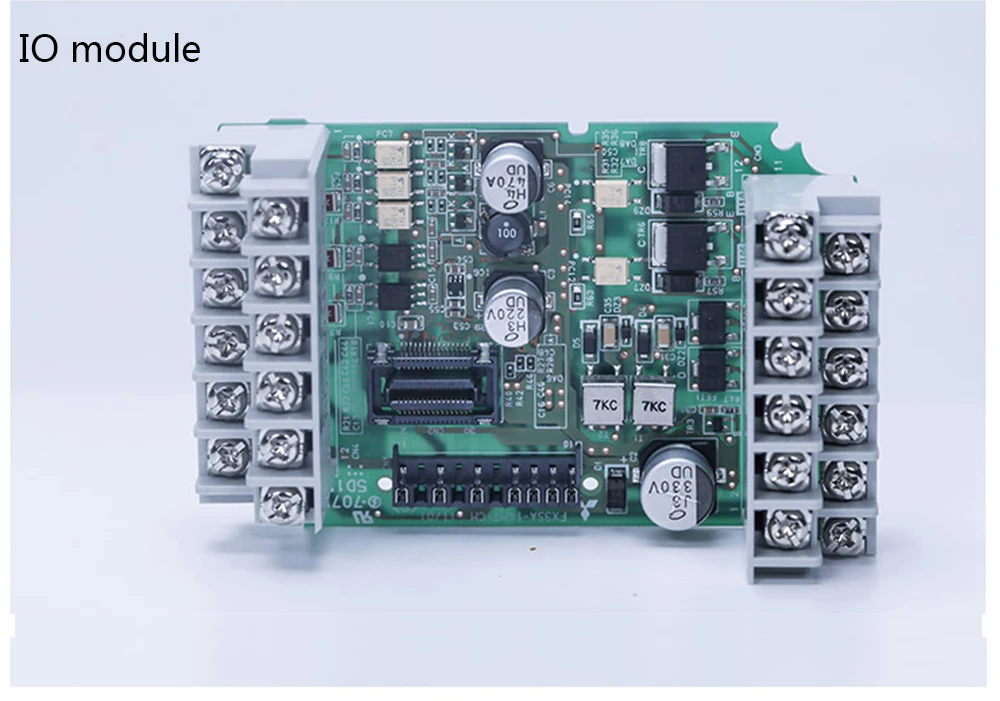

Input points

6 points

8 points

12 points

16 points

Input connection method

Fixed terminal block (M3 screw)

Input form

Sink/source

Input signal voltage

DC24V±10%

input resistance

X000-X017

3.3KΩ

X010-X017

—

4.3kΩ

Input signal current

X000-X007

7mA/DC 24V

X010-X017

                        _

5mA/DC24V

Input ON sensitivity current

X000-X007

4.5mA or more

X010-X017

                         _

3.5mA or more

Input OFF sensitivity current

1.5mA or less

Input response time

About 10ms

Input signal form

Sink input

No voltage contact input

Source input

NPN open collector type transistor

Input loop isolation

Optocoupler isolation

Display when inputting action

When the optocoupler is driven, the LED on the panel lights up.

Relay output specification:

Model

FX3SA-10MR-CM

FX3SA-14MR-CM

FX3SA-20MR-CM

FX3SA-30MR-CM

Output points

4 points

6 points

8 points

14 points

Output connection method

Fixed terminal block (M3 screw)

Output form

Relay

External power supply

Below DC30V AC240V

Maximum load

Resistive load

2A/1 point:

1. When the output is 1 point, the common current is lower than 2A.

2. When the output of 4 points, the common current is lower than 8A.

Inductive load

80VA

Minimum load

DC5V 2mA

Response time

OFF-ON

10ms

ON-OFF

Output loop isolation

Mechanical isolation

Display when outputting action

When the relay coil is energized, the LED on the panel will light up.

Transistor output specification:

Model

FX3SA-10MT-CM

FX3SA-14MT-CM

FX3SA-20MT-CM

FX3SA-30MT-CM

Output points

4 points

6 points

8 points

14 points

Output connection method

Fixed terminal block (M3 screw)

Output form

Transistor (sink type)

External power supply

DC5-30V

Maximum load

Resistive load

0.5A/1 point

1. When the output is 1 point, the current is lower than 0.5A at the common end.

2. When the output is 4 point, the current is lower than 0.8A at the common end.

Inductive load

12W/DC24V

1. The output terminal is at 1 point, the set voltage is DC24V, and the common terminal is 12W or less.

2. The output is at 4 point, the set voltage is DC24V, and the common end is 19.2W or less.

Open circuit leakage current

0.1mA or less / DC30V

ON voltage

Below 1.5V

Response time

OFF-ON

ON-OFF

Y000, Y001: 5μs or less / 10mA or more (DC5-24V)

After Y002: 0.2ms or less / 200mA or more (DC24V)

Output loop isolation

Optocoupler isolation

Display when outputting action

When the optocoupler is driven, the LED on the panel lights up
