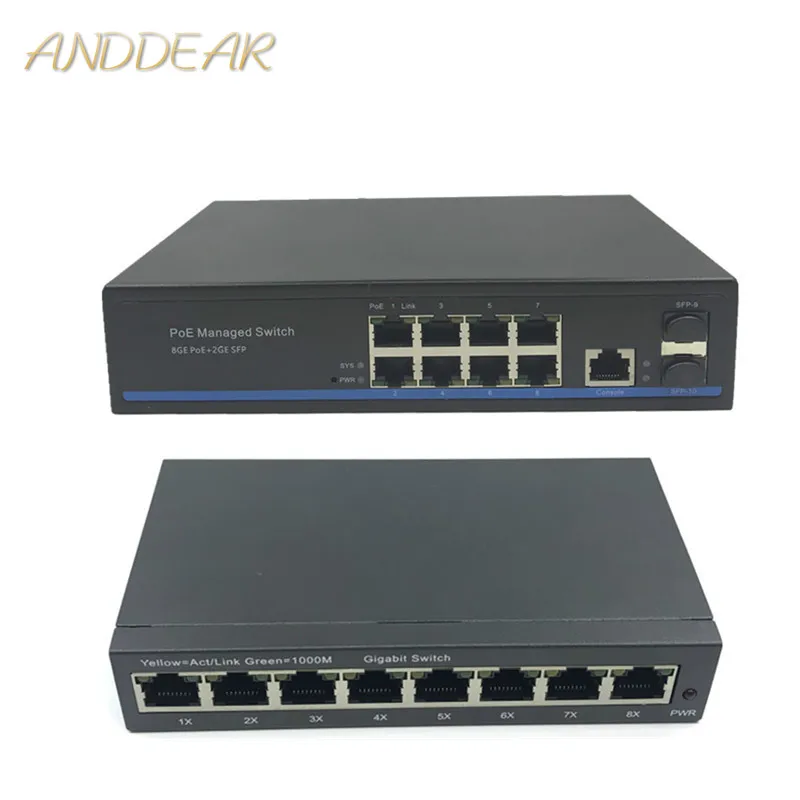

Management 8 Port 10/100/1000Mbps PoE Ethernet Switch Managed With 2 Gigabit SFP Slots IGMP VLAN | Компьютеры и офис

Management 8 Port 10/100/1000Mbps PoE Ethernet Switch Managed With 2 Gigabit SFP Slots IGMP VLAN | Компьютеры и офис

Specifications

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-TX Fast Ethernet

IEEE 802.3x flow control

IEEE 802.3af

protocol

CSMA/CD

Transmission Rate

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(≤100m)

100Base-TX:Cat 5 UTP(≤100m)

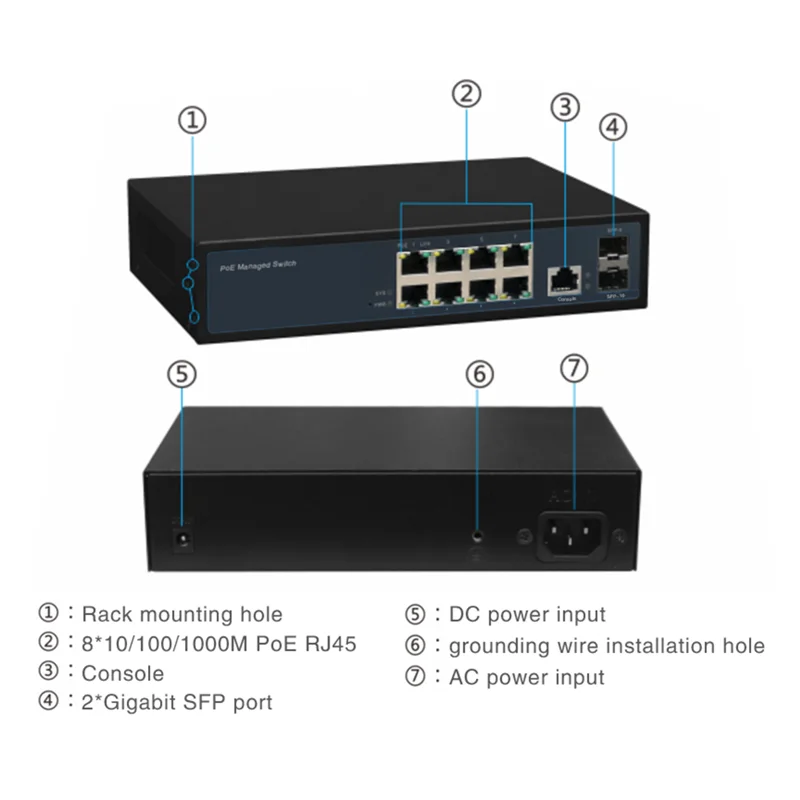

Number of Ports

  8  10/100/1000Mbps +2  10/100/1000Mbps  RJ45+1Console

POE Ports

 8 POE Port

UPLINK

 2 10/100/1000mbps RJ45

Transmits Method

Store-and-Forward

Over Voltage/Current/Short  Protection

The output can be shorted permanently without damage

Temperature

Operating Temperature -15 ~60  (5F~140F)

Storage Temperature -40 ~70  (-40F~158F)

Humidity

Operating Humidity 10%~90% non-condensing

Storage humidity 5%~95% non-condensing

Switch capacity

20G

LED Indications

1*Power LED(Power: Red)  20*Data LEDs(Link/Act: Green)

8*POE LEDs(POE:Yellow)

POE Supply Power

250W

Switch Weight

1.4KG

Dimension(W x H x D)

280x 180x 44mm

Case Material

Steel case

Introduction

TS8200-8P-2FM is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. 8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) ，Provide a comprehensive security protection system、Perfect QoS strategy and rich VLAN function，Management and maintenance are simple and can be applied to small and medium enterprises、Core layer of community and school.

Full Gigabit access

The management address is: 192.168.0.1,Provides 8 10/100/1000M adaptive RJ45 port, all the ports have the line speed forwarding capacity; provide 2 independent Gigabit SFP (Mini GBIC) expansion slot optical fiber module, fully protect user investment, convenient and flexible.

Comprehensive safety protection system

Simple operation, simplifying the management of network; combination of ARP attack protection function, completely solve the network ARP spoofing attacks; support port security, can limit the number of port MAC address, MAC address effective defense attack; support DoS attack protection, effectively guarantee the network security。

Powerful VLAN capabilities

IEEE, 802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe。

Rich QoS strategy

3 priority modes based on port, IEEE802.1p and DSCP to guarantee the priority processing of key business data; support traffic control function, and can reasonably allocate bandwidth。

Multilevel access control policy

Powerful hardware ACL capacity, support L2~L4 data stream classification; easy network monitoring, traffic regulation, priority weight markers and data forwarding control; support time based ACL control, easy to realize the time accurate access control needs; support port and MAC 802.1x based authentication based on user access, easy setup.

reliability design

STP/RSTP/MSTP two layer link protection technology, greatly improve the ability of fault tolerance, redundancy link, to ensure stable operation of the network; provide static convergence and dynamic aggregation of two kinds of convergence pattern, effectively increase the link bandwidth, improve link reliability, while achieving load balancing, link backup; support multicast management, through the IGMP Snooping technology, effective inhibition of multicast overload caused by network congestion.

Secure network management and maintenance

CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2) and other management methods, to achieve fast and convenient network management; support user identity classification, filtering and other functions, enhanced security configuration; support port data monitoring, real-time monitoring of network status, to easily achieve the global unified management of the network, convenient flexible.

Advanced watchdog Technology

System integration against false halt system, when the system resources exhausted or the system suspended tasks and other unexpected circumstances, the system will automatically restart, to ensure reliable operation of the network.

Excellent PoE power supply performance

PoE features comply with IEEE, 802.3af and IEEE 802.3at standards, automatically detect and identify equipment in accordance with IEEE, 802.3af and IEEE 802.3at standards, and supply power to them;

Intelligent power supply management, flexible power supply scheduling, conditions restart, conditional shutdown, adapt to complex office environment applications;

POE police function, real-time automatic device on-line detection function, when the lower equipment crashes, automatically restart the port power supply, to ensure rapid restoration of the network, without manual operation.
