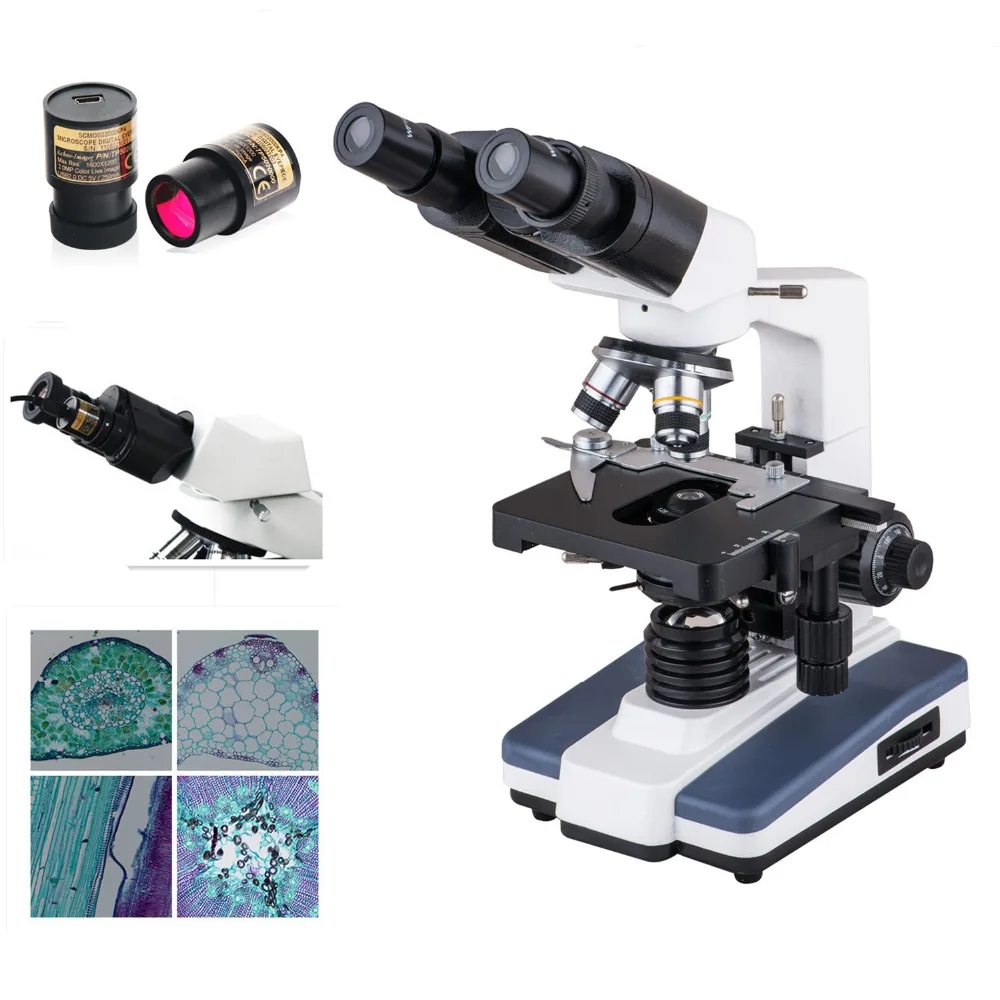

XP602 Binocular Biological Microscope 40x- 600X LED Light with 5mp Eyepiece Camera

XP602

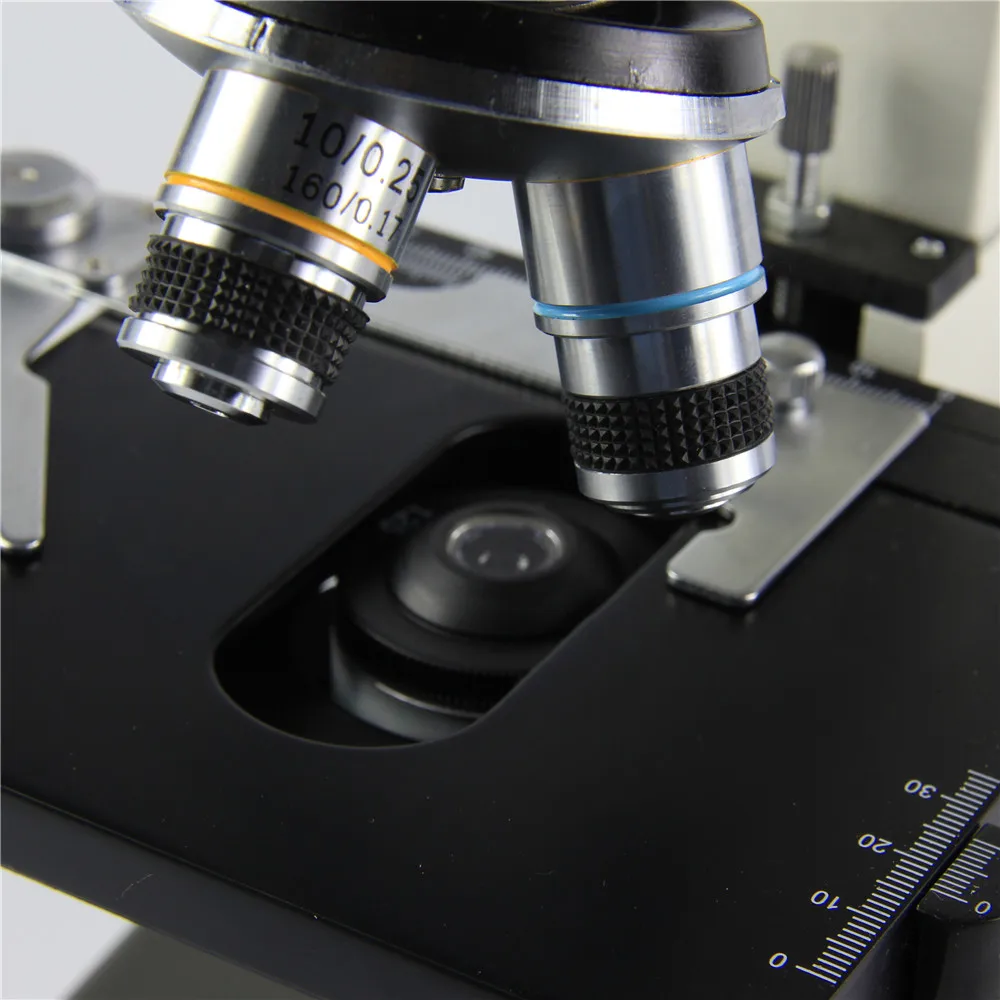

Achromatic Objectives

4X,10X,40X(S),100X(S,Oil)

Eyepiece

Wide Field Eyepiece: WF10X (WF16X Optional)

Viewing head

Compensation Free Binocular Head Inclined at 30°

Stage

Double Layer Mechanical Stage Size 125X115mm

Focusing

Coaxial Coarse and Fine Adjustment,Focusing Range 30mm,Focusing Interval 0.002mm

Condenser

Abbe NA=1.25 with lris Diaphragm&Filter

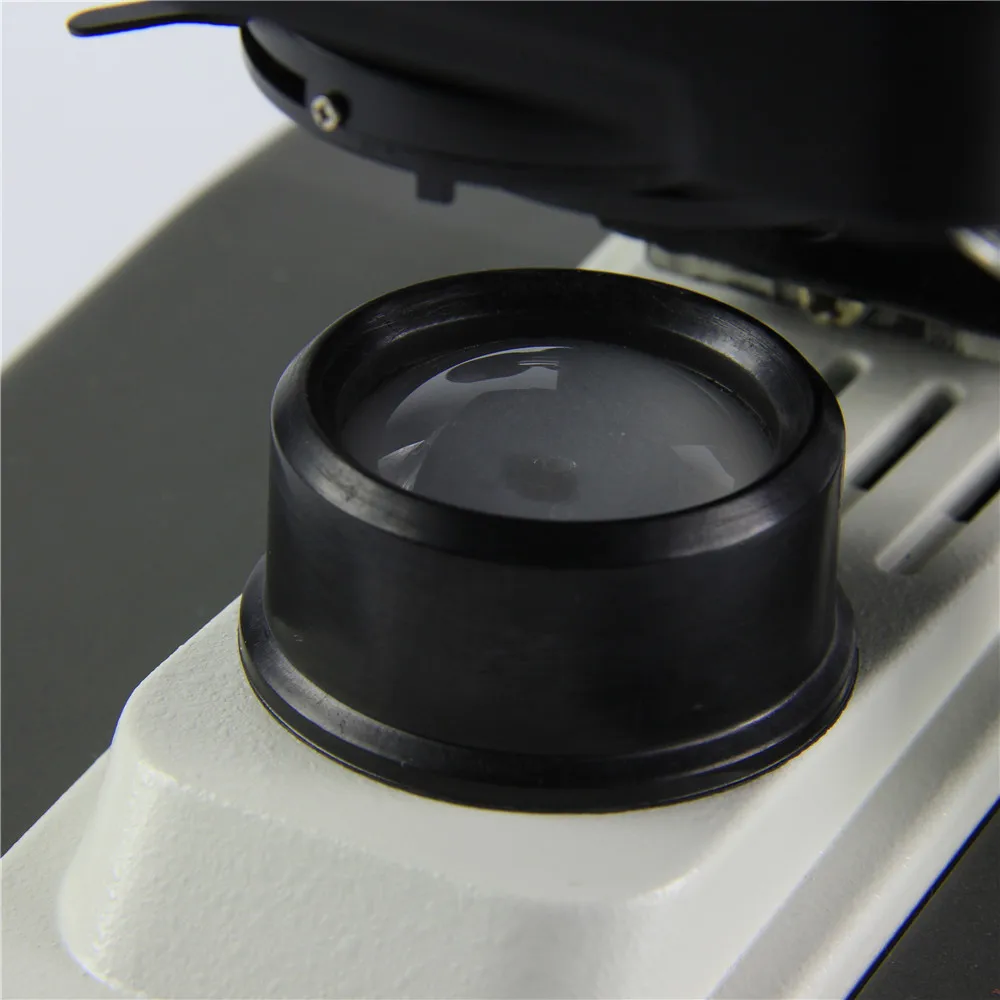

IIIumination

LED Lamp

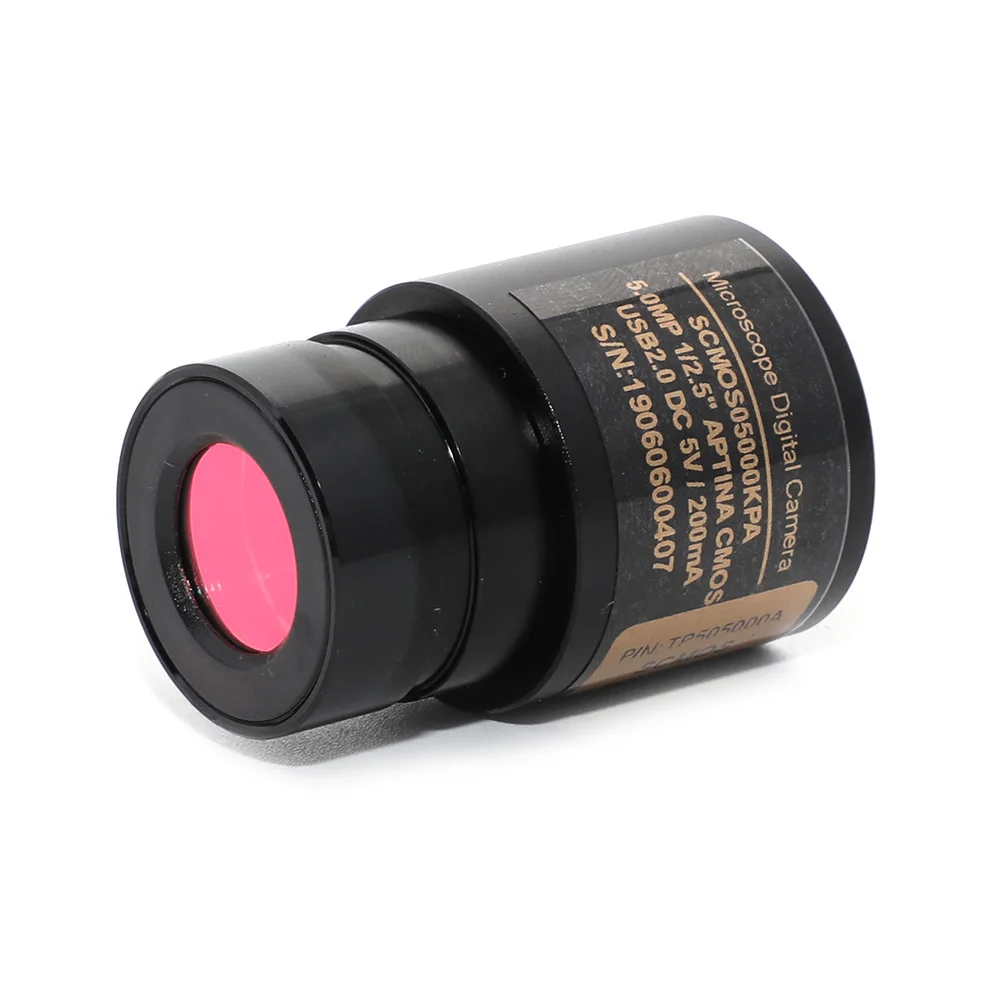

 SCMOS is an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.

The SCMOS comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

Also the SCMOS comes with advanced video & image processing application ToupView;

The SCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also change the stereo microscope to digital stereo microscope.

Microscope eyepiece camera with 23.2 diameter and compact size;

Easy to extend to C or CS- Mount camera with high quality lens(optional);

High-quality camera with Aptina CMOS sensor;

Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;

High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

With advanced video & image processing application ToupView;

Providing Windows/Linux/Mac OS multiple platforms SDK;

Order Code

Sensor & Size(mm)

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

SCMOS05000KPA
TP505000A

5.0M/Aptina(C)
1/2.5“ (5.70x4.28)

2.2x2.2

NA

2@2592x1944
3@2048x1536
5@1600x1200
7.5@1280x1024

N/A

Auto

Other Specification for SCMOS Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto White Balance

Color Technique

N/A

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM
