Светодиодный индикатор скорости мотоцикла 1-6 уровней разъем ECU для Suzuki Intruder 800

Светодиодный индикатор скорости мотоцикла 1-6 уровней разъем ECU для Suzuki Intruder 800

Motorcycle N-6 Speed Gear Display Indicator ECU Plug for Suzuki Intruder 800 V-Strom GSXR 600

Features:

Specifications:

Material: Plastic
Color: Black
Voltage: 12V
Size: 3 * 2 * 1.5cm/1.2 * 0.8 * 0.6in
Cable Length: 159cm/62.6in
Package Weight: approx.62g

Fitment:

for Suzuki Boulevard C50 2005-2008
for Suzuki Boulevard M50 2005-2018
for Suzuki Boulevard C90 2005-2012
for Suzuki Boulevard C109R/T 2008-2015
for Suzuki Boulevard M109R/R2 2006-2010
for Suzuki DL650 V-Strom 2004-2011
for Suzuki DL1000 V-Strom 2004-2013
for Suzuki GSF650 Bandit 2007-2008
for Suzuki GSF1250 N/NA Bandit 2007-2009
for Suzuki GSF1250 S/SA Bandit 2007-2016
for Suzuki GSX1400 2004-2009
for Suzuki GSX-R600 2004-2005
for Suzuki GSX-R750 2004-2005
for Suzuki GSX-R1000 2003-2004
for Suzuki Intruder C800 2005-2008
for Suzuki Intruder M800 2005-2015
for Suzuki Intruder C1500 2005-2012
for Suzuki Intruder M1500 2009-2015
for Suzuki Intruder C1800R 2008-2015
for Suzuki Intruder M1800R 2006-2010
for Suzuki RMX-450Z All Years
for Suzuki RM-Z250 (Fi model) All Years
for Suzuki RM-Z450 (Fi model) All Years
for Suzuki SV650 2003-2014
for Suzuki SV1000 2003-2009
for Suzuki VL800 Intruder Volusia 2005-2008
for Suzuki VL1500 Intruder 2005-2012
for Suzuki VLR1800 2008-2015
for Suzuki VZ800 Marauder 2005-2015
for Suzuki VZ1500 2009-2015
for Suzuki VZR1800 2006-2010
Note: Suitable for electronic injection vehicle can be connected directly to plug and socket, for vehicle with ABS can be  connected with 4 cables, not suitable for carburetor vehicle.

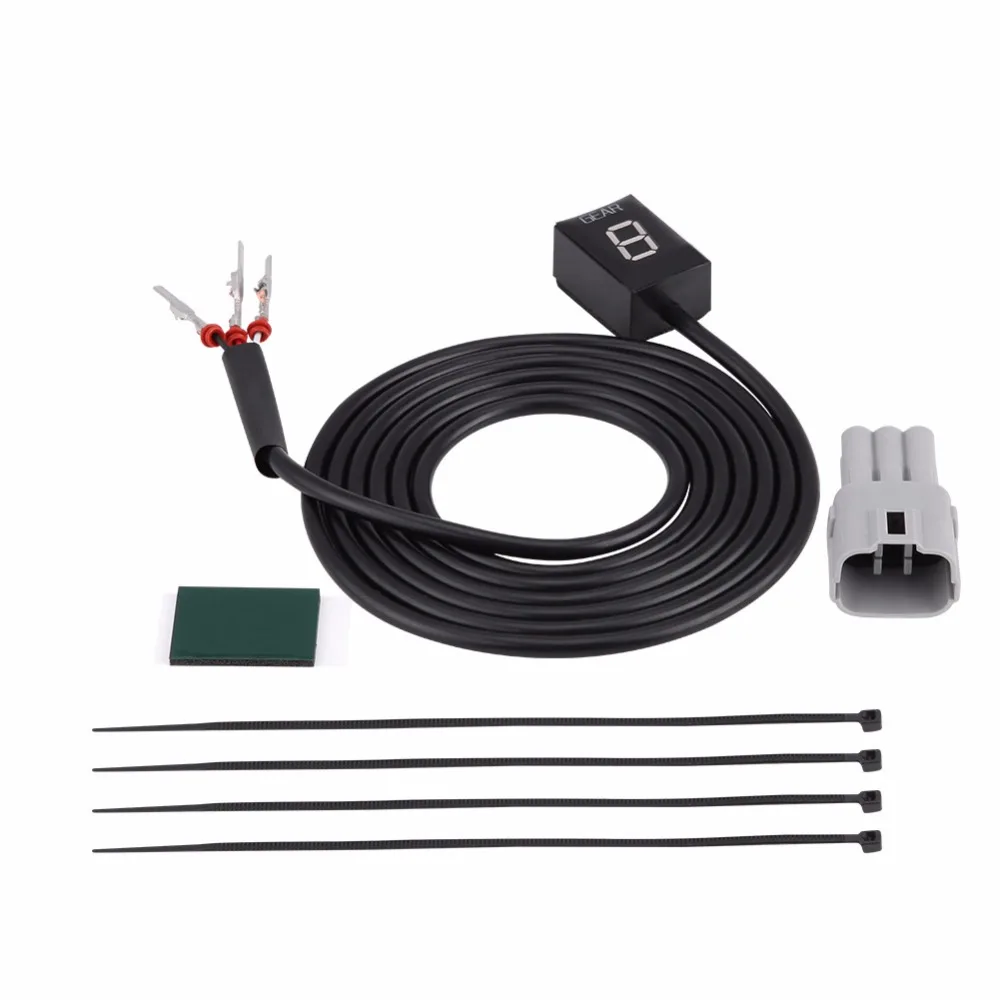

Package List:

1 * Speed Gear Display Indicator
1 * ECU Plug
1 * Adhesive Pad
4 * Cable Tie
1 * User Manual

Installation:

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Steps:

You need to setup this module after installation.Perform the setup only when the engine is WARM so the idle speed is normal,Find a long,straight  road with light traffic.The unit does not learn the same gear twice,this makes it easy to set up on the road. You can even shift down and stop during the setup if needed.Do not stare at the display,watch the road and ride with extreme care as always! Turn the ignition On.The display counts backwards(6 to 1)indicating that the memory is clear. When "L" is flashing,stare the engine in Neutral and let the engine idle.When the display is flashing "1",select second gear. Release the clutch and stare riding normally.The display is blinking faster while the unit is learning the gear. When the display show "n"(next),select second gear.Repeat this process until all gears are thought.In top gear,wait until "o"(over) is indicated and the display stops blinking. The unit is now programmed and should indicate all gears correctly.When ignition is turned on,the display counts forward(1 to 6) indicating that it is programmed and fully functional.

Rest:

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.
