modname=ckeditor AS803 Digital photography Mini spectrometer actinometer Luminance meter Measurement display with range 1~100.000lux


 1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
 2. The product does not contain the battery because of the limitation of the airline company.
 3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.





SMART SENSOR Lux meter is widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.


Features:

Mini lux meter with stable, safe and reliable measurement.

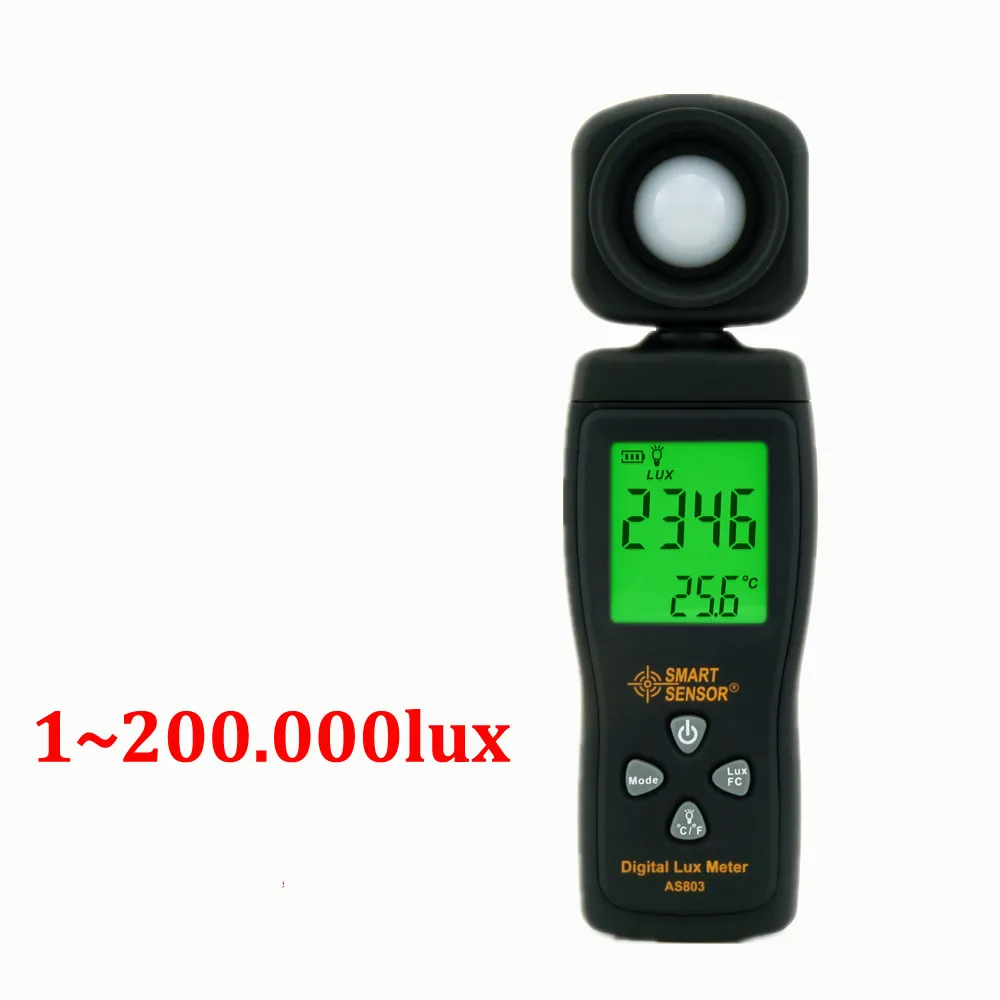

Wide measurement range 0-200,000 lux and automatic/manual range shift.
Measuring unit is switchable: Lux or FC.
MAX / MIN / Data Hold functions, high accuracy.
LCD display with backlight for easy operation in darkness.
Low battery indication & Auto power off, energy saving.

Specification

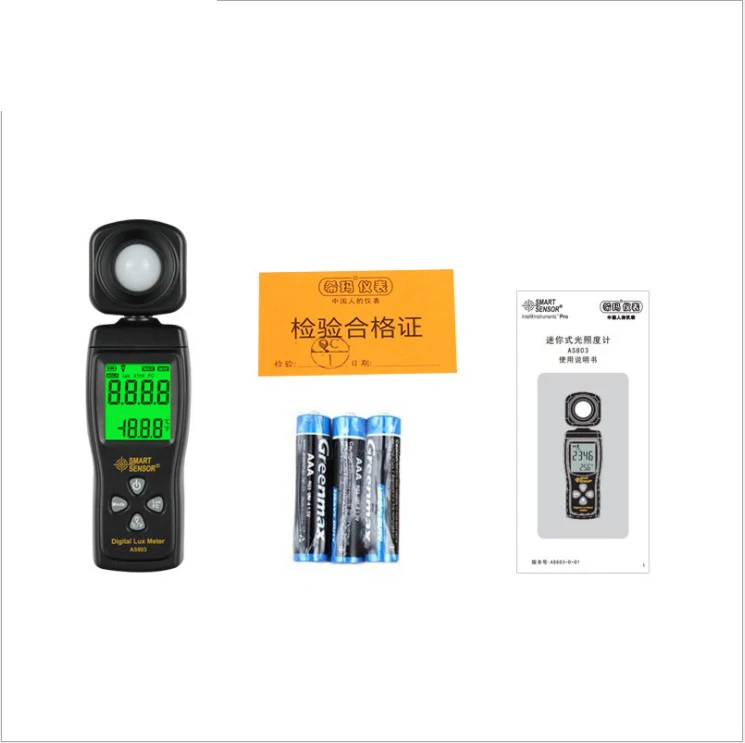

 Brand Name:  SMART SENSOR   Model:  AS803  Color:  Black  Material:  ABS Plastic  Measuring Range:  0-200,000 Lux  Resolution:  1 Lux   Accuracy:  ±5%rdg±10dgts    Temperature Range:  -10~50℃ / 14~122℉  Sampling Rate:  1.5 times/sec  Measurement Repeatability:  ±2%  Operating Temperature:  0-50℃ (≤80%RH non-condensing)  Storage Temperature:  -10-50℃ (≤70%RH non-condensing)  Power Supply:  3 * 1.5V AAA Batteries (Not Included)  Item Size:  16.5 * 5 * 2.7cm / 6.50 * 1.97 * 1.06in  Item Weight:  86g / 3.03oz  Package Size:  22 * 14.5 * 3.2cm / 8.66 * 5.71 * 1.26in  Package Weight:  122g / 4.30oz  Packing Contents                                                          1*Digital Lux Meter   1*String   1*user Manual

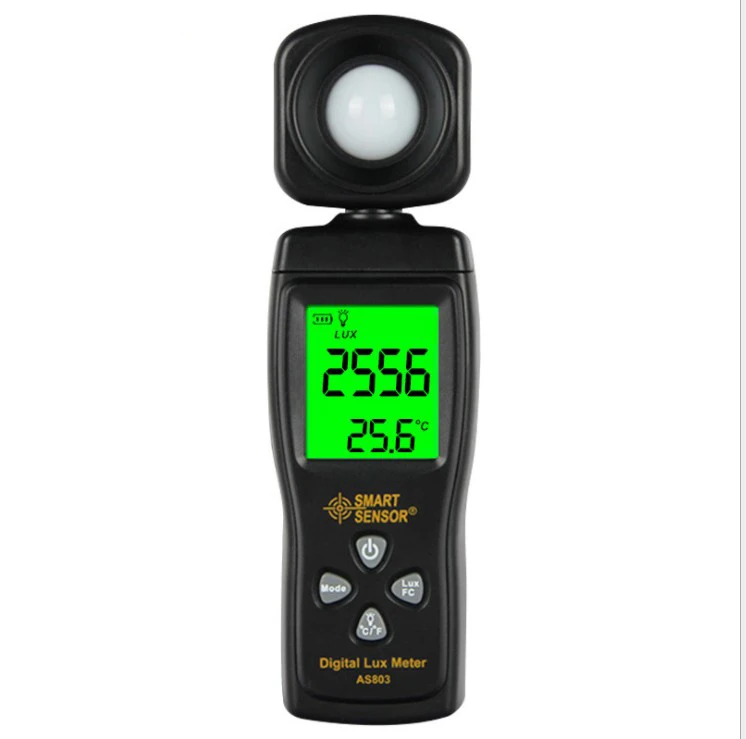

Diagram Description:


 ① LCD Display
 ② ON/ OFF button
 ③ Relative function button
 ④ Mode button
 ⑤ LUX/FU switch button
 ⑥ Sensor

Operation:


 ①Open the battery door. Install 3*AAA Batteries.  ②Take off the sensor cover. Depress the power button to start the light sensing measurement.  ③To press "mode" button, to select Max/Min/Hold Function.  ④The backlight will be turn on/off by depress the "" button.  ⑤The unit could be turn off by depress "" power button for 5 second, or the unit will be auto shut off in 5 minutes after use.  ⑥When the battery symbol "" is low. Please replace the batteries before further use.
