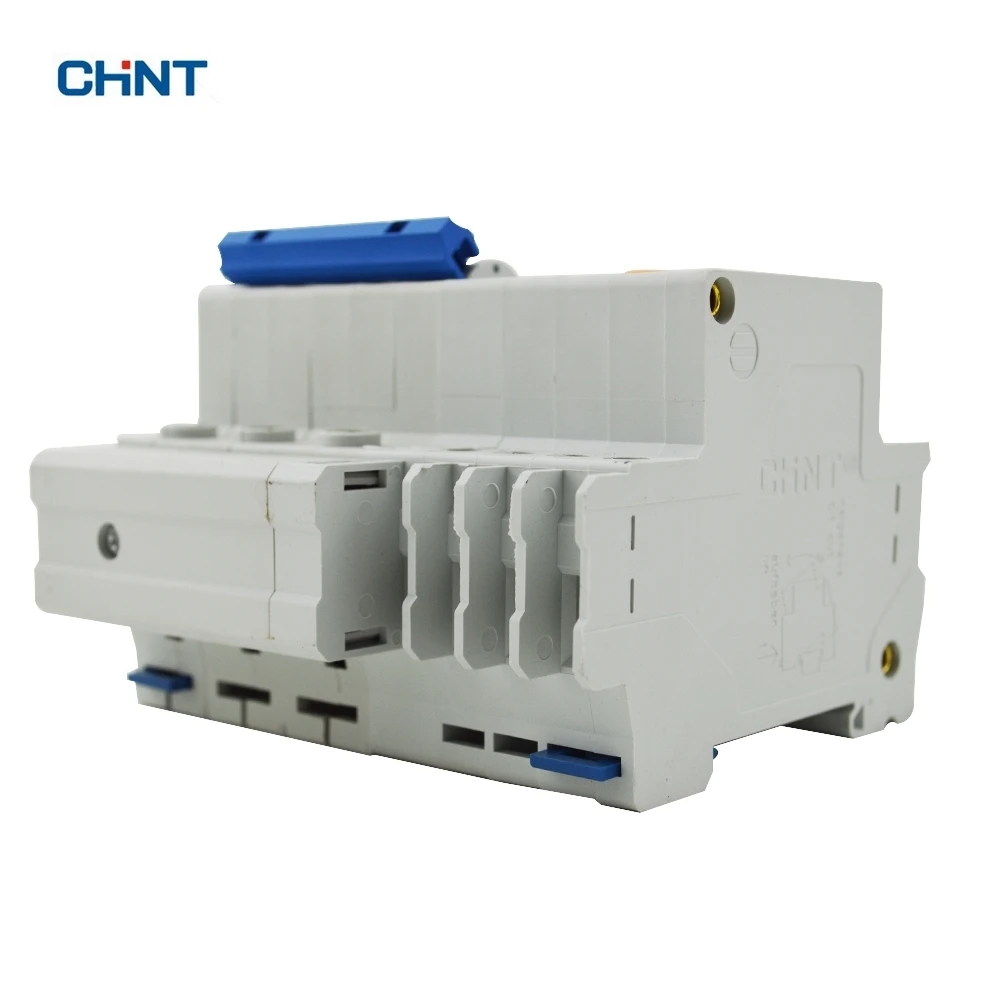

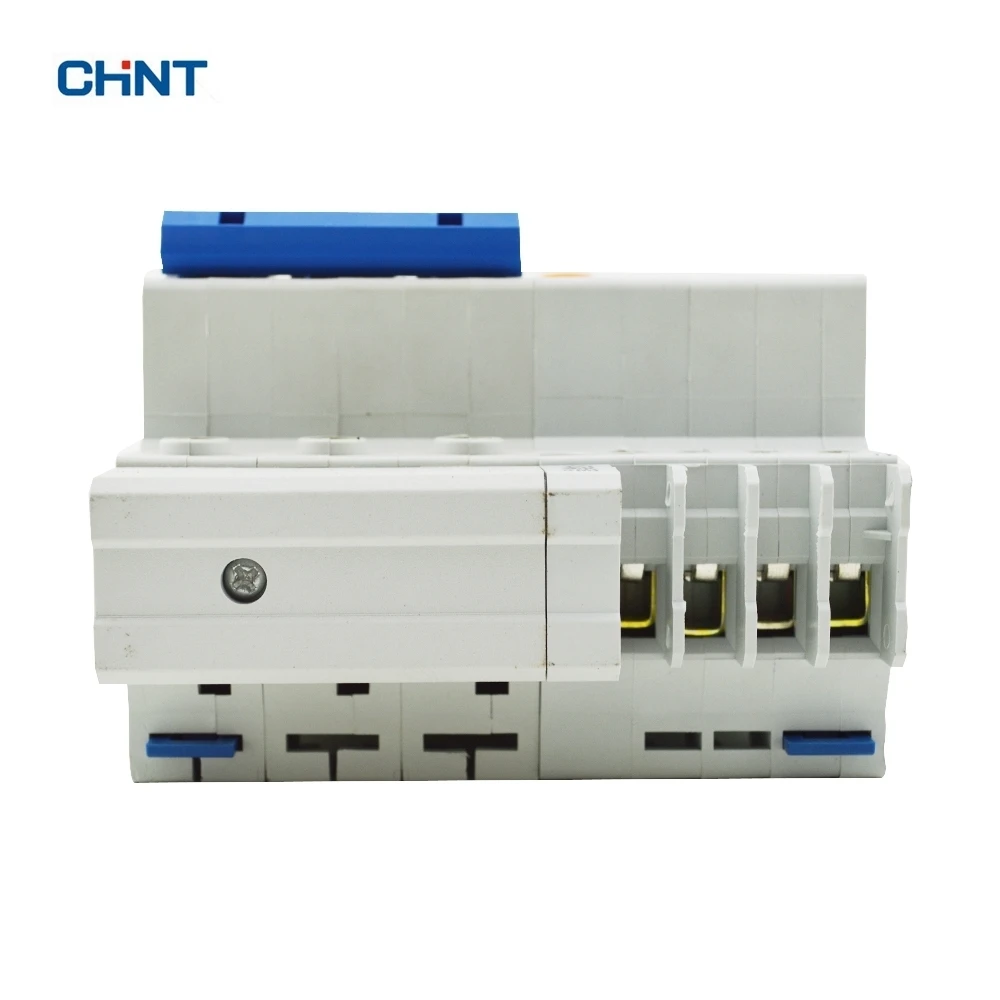

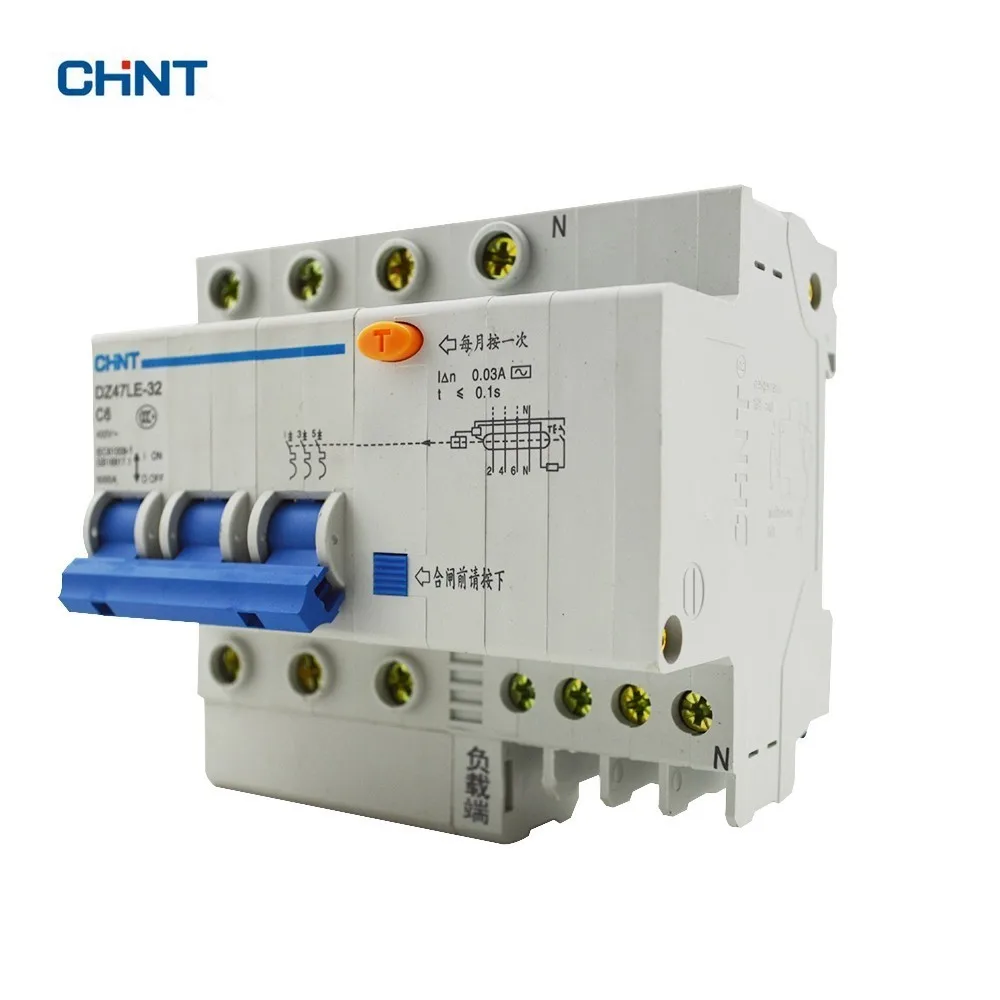

mini circuit breaker DZ47LE-32 3P+N C6
DZ47LE Residual Current Operated Circuit Breaker over-current protection

mini circuit breaker Operated Circuit Breaker with over-current protection (Electronic)

General rules for choosing RCBO:

Rated residual operating current In ≤ 30 mA: additional protection in the case of direct

contact In ≤300 mA: preventative fire protection in the case

of ground fault currents

b.Tripping class AC class - Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.

c.Tripping curve

C curve (5-10 In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.

D curve (10-14 In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps).

mini circuit breaker SPEC:

Standard

IEC/EN 60898-1

Electrical features

Type (wave form of the earth leakage sensed)

AC

Thermo-magnetic release characteristic

C, D

Rated current In

A

6, 10, 16, 20, 25, 32, 40, 50, 60

Rated voltage Ue

V

230/400

Rated sensitivity In

A

0.03, 0.1, 0.3

Rated residual making and breaking capacity Im

A

500

Rated short-circuit capacity lcn

A

4,500/6,000

Break time under In

s

≤0.1

Rated frequency

Hz

50/60

Rated impulse withstand voltage (1.2/50)Uimp

V

4,000

Dielectric TEST voltage at ind. Freq. for 1min

kV

2

Insulation voltage Ui

500

Pollution degree

2

Mechanical features

Electrical life

2,000

Mechanical life

2,000

Contact position indicator

Yes

Protection degree

IP20

Ambient temperature

(with daily average≤35°C)

°C

-5...+40 (Special application please refer to P72 for temperature compensation correction)

Storage temperature

°C

-25...+70

Installation

Terminal connection type

Cable/U-type busbar/Pin-type busbar

Terminal size top/bottom for cable

mm2

25

AWG

18-3

Terminal size top/bottom for busbar

mm2

25

AWG

18-3

Tightening torque

N*m

2

In-Ibs.

18

Mounting

On DIN rail EN 60715 (35mm) by means of fast clip device

Connection

From top

mini circuit breaker Temperature derating

Temperature

-15°C

-5°C

0°C

10°C

20°C

30°C

1.00

40°C

55°C

Temperature compensation coefficient

1.19

1.15

1.13

1.06

1.05

0.96

0.89

mini circuit breaker Overall and Mounting Dimensions

mini circuit breaker Series product collection:

mini circuit breaker packaging:

mini circuit breaker shipping:

what's the payment term?

We accept T/T, L/C, D/P, WEST UNION, , CASH

What kind of product quality ?

Best quality In China, Chint Brand.

what kind of material of circuit breaker?

Two types, one copper coil with silver point and the other is brass coil with copper point from china market. Copper and silver is better Chint Electric only produce Copper and silver.
