Brief introduction:

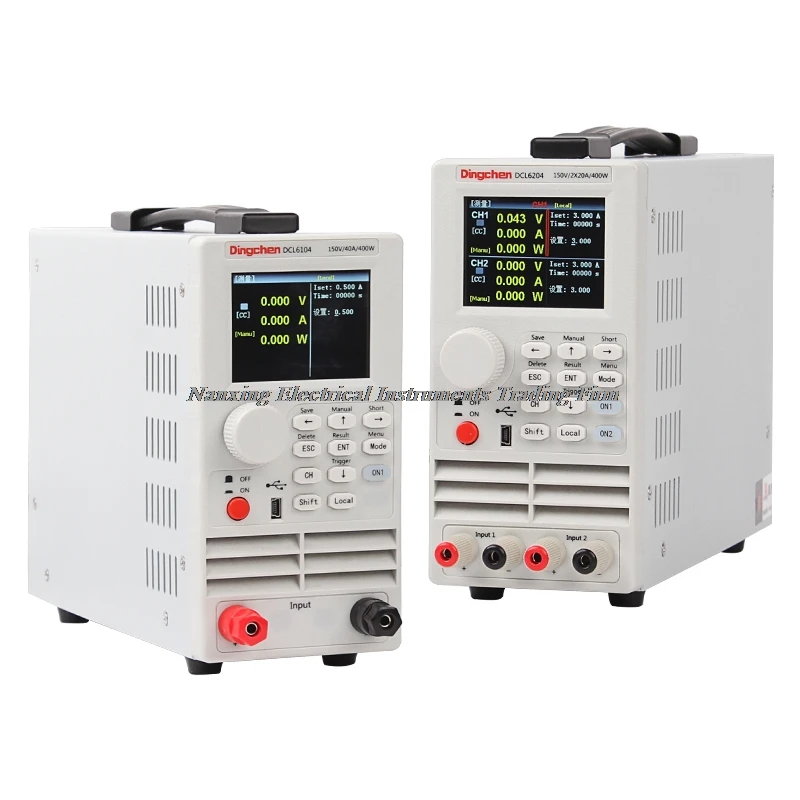

DCL6000 series electronic load is equipped with a 2.8-inch LCD display screen, which has fashionable appearance and is easy to operate. With a wide range of power test, the electronic load has a voltage/current measuring speed of up to 40KHz, and the test resolution can reach 0.1mV/0.1mA. A variety of test functions and modes are available for choice. The load is equipped with RS232 communication module and control interface module, and is able to flexibly meet various field test conditions and facilitate seamless connection with automatic production line and automatic test system (ATS). The electronic load is stable and widely used to meet various test requirements.

  Product features:

Measurement range: 200~400W,0~500V,0~40A

Four basic working modes: CC/CV/CR/CW

0.1 mV / 0.1 mA high resolution

Up to 5K dynamic current test

Voltage/current measuring speed can be up to 40KHz

CR-LED test

Multimode battery test

List mode which supports automatic test

Independent short circuit test function

A variety of protection of over-voltage, low-voltage, over-current, over-power, over-heat, anti-wiring error, power on, etc.

Support RS232 communication interface

Support external triggering input

Support PASS/FAIL result output

Support external pedal switch input

Equipped with upper computer software to realize remote operation and monitoring

Power failure memory function

Intelligent fans cooling

Support Chinese/English interface display

Specification List:

Mode

Power

Voltage

Current

Channel number

Display

panel

Basic

protection

RS232 communication

Control module

DCL6104

400W

150V

40A

single channel

2.8 inch TFT

hardware support

standard configuration

optional configuration

DCL6104A

400W

500V

15A

single channel

2.8 inch TFT

hardware support

standard configuration

optional configuration

DCL6204

400W

150V

2×20A

Binary

channel

2.8 inch TFT

software support

standard configuration

optional configuration

 Product outstanding advantages

1. The built-in automatic control circuit which can control the pendulum rate of the voltage and current signal operates stable with outstanding anti-self-excited ability.

2. Equipped with perfect hardware-protecting function to ensure the fully protection of the instrument itself and the measured objects.

3. With 40K synchronous A/D sampling and in-built IIR digital filter, high measurement accuracy and strong anti-interference ability can be reached at the same time.

4. Provide battery test, LED test, list test, dynamic test and other extended test functions.

5. Fully supports external triggering, operation result output, external pedal switch input and other control functions.

6. Equipped with 2.8 inch color TFT display screen which is easy to use with abundant display content.

 List Test
