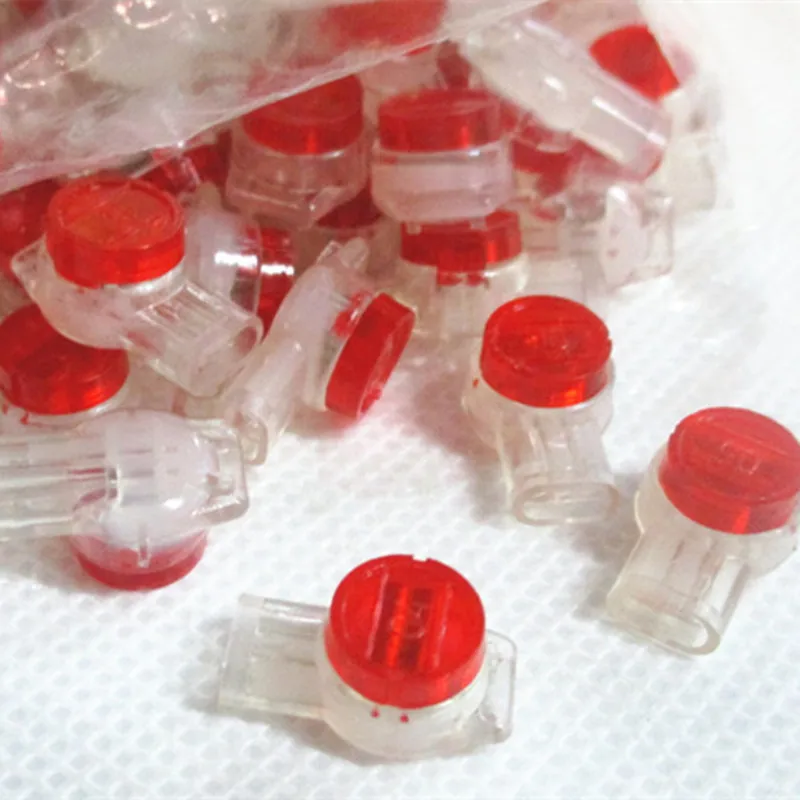

100/200pcs Practical K1 K2 K3 Connector Crimp Connection Terminals Electrical Cable Splice Wire Connectors | Обустройство дома

100/200pcs Practical K1 K2 K3 Connector Crimp Connection Terminals Electrical Cable Splice Wire Connectors | Обустройство дома

100% new and high quality

Brief introduction: The wiring is suitable for the wire connection of medium and small power lines. It solves the problem of tedious screw terminal operation. Wiring, the wire without removing the insulation layer, the wire directly into the wiring terminal hole, by pressing or spinning a one-time simple action to complete the connection. Therefore, easy to operate, fast, but also live operation. Its size is smaller than a small finger, can be widely used in various mechanical and electrical equipment, household appliances, distribution lines and lighting lines.

Features: Insulation, safety, easy to use, simply press the vise can be used to complete the continuation

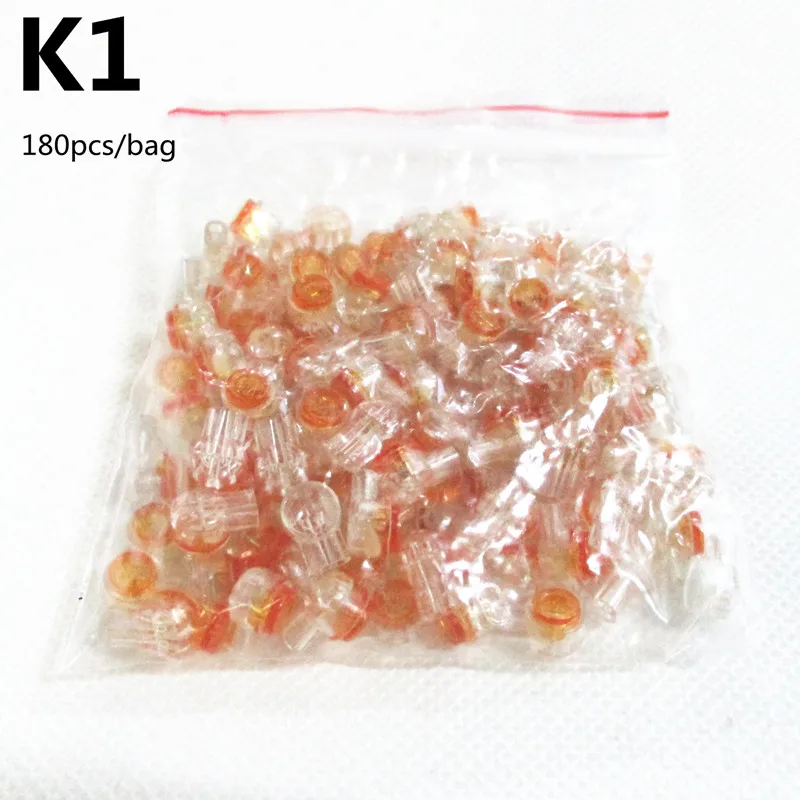

K1: for first-line connection, for wire diameter (excluding insulation) 0.65 - 0.40mm, with the largest insulating wire diameter 1.52mm

K2: For two-wire connection, the applicable diameter (excluding insulation) 0.4-0.9mm

K3: for three-wire connection, for core diameter: 0.4-0.9 mm diameter core

As shown in the description

1 x Packaging

K1 = 200 pcs / bag, K2 = 100 pcs / bag, K3 = 100 pcs / bag
