    Plug&Play, No need soldering.

    This kit is for lcd B154PW02 V.2 V2 only, please make sure that your lcd model number is the same before placing the order. If your lcd is the different one, please remember to contact us  with lcd model number for suggestion.

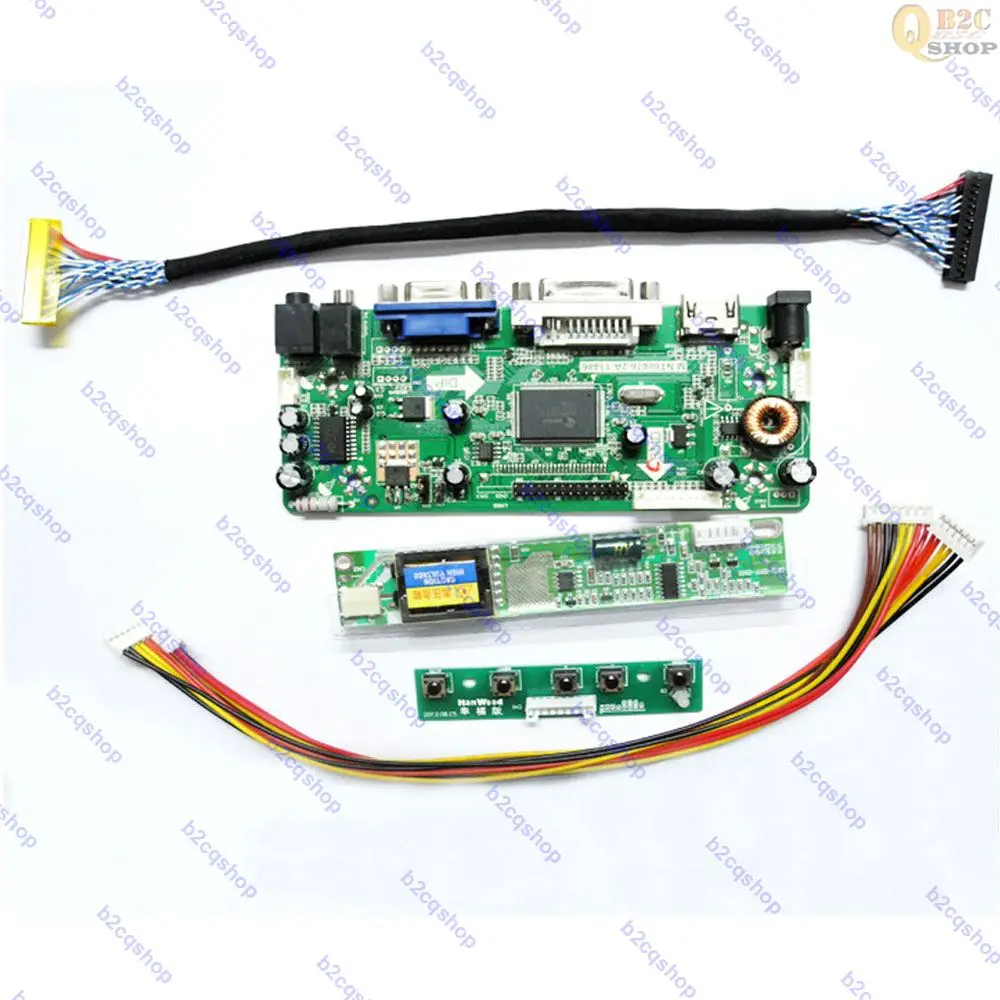

     Necessary Accessories for turning this bare LCD to desktop monitor:

   1. LCD Controller board

   2. Inverter

   3. LVDS cable

   4. Keypad

   5. VGA cable/DVI Cable/HDMI cable (not included)

   6. Power Adapter(not included)

   If you have already had a VGA cable/DVI cable/HDMI cable and a power adapter (Ouput 12V/4A -- it is for small size lcd from 10.1inch to 22inch), this kit is a great choice for you, if you want to buy VGA cable/DVI cable/HDMI cable/power adapter, please feel free to let us know, or you can find the power adapter directly from our store.

 LCD Controller Board  M.NT68676.2A:

M.NT68676.2A is a monitor control board, which can support LED/LCD panels. It can support resolution up to 2048X1152.

M.NT68676.2A can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.

M.NT68676.2A can support dynamic contrast control, headphone input and digital volume control simultaneously.

Size of controller board: 139mmX58mmX17mm



   1. Please make sure that your LCD is in good condition before bidding this item, else you will be responsible for the incompatibility.

   2. If you concern much about resolution setting, please reconsider before bidding!

   3. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

Instruction to connect the controller board to the LCD:

  No metal contact is allowed.

1. Take away the old inverter and old LVDS cable from the LCD panel.

2. Connect the new inverter and new LVDS cable to your LCD panel.

3. Connect controller board kit to the PC with VGA cable/DVI cable/HDMI cable.

4. Input power of 12V/4A. ( Please don't revise the voltage jumper setting on the lcd controller board before confirmation from us, because wrong revising of this voltage will get your lcd burnt. By the way, please don't connect the lvds cable wrongly, some wrong connection can get your lcd burnt too, if you are not sure, please feel free to contact us.)



Package Include:

      This kit is for lcd B154PW02 V.2 V2, If your lcd is not with the same lcd model number,you may contact with us

    Welcome to customize your own kit!
