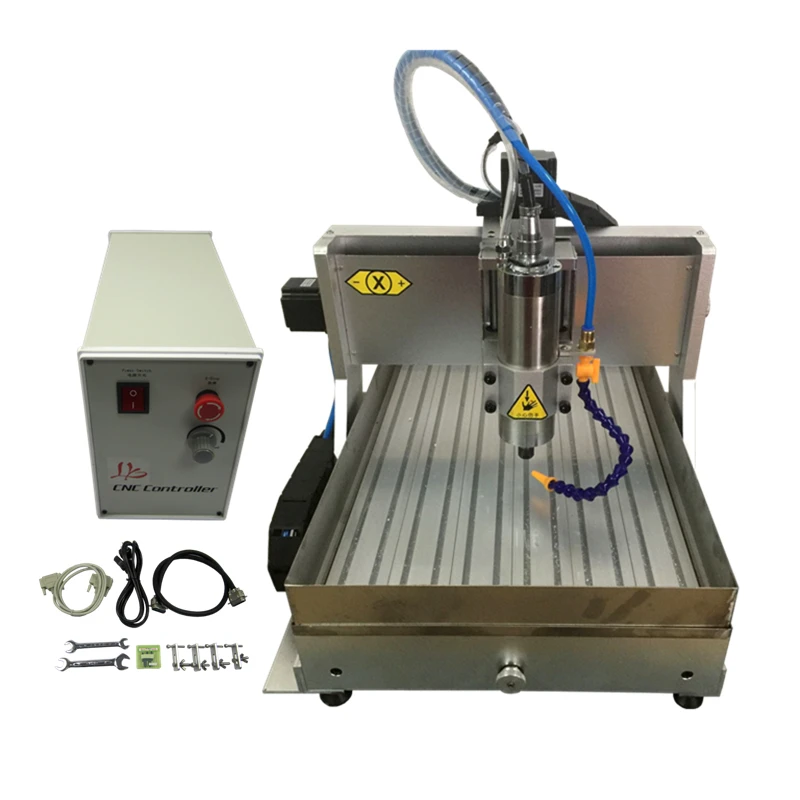

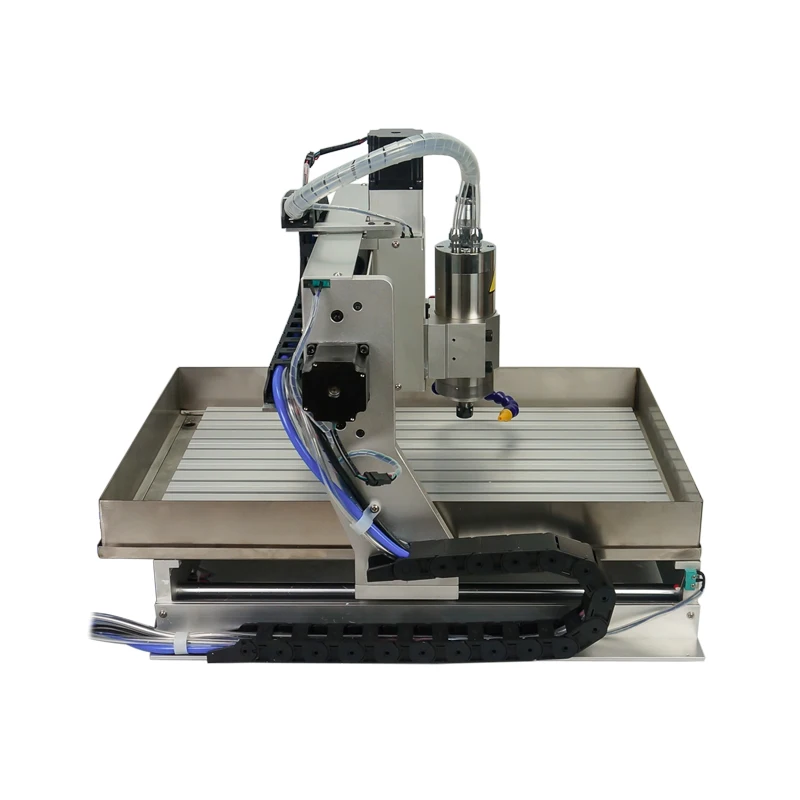

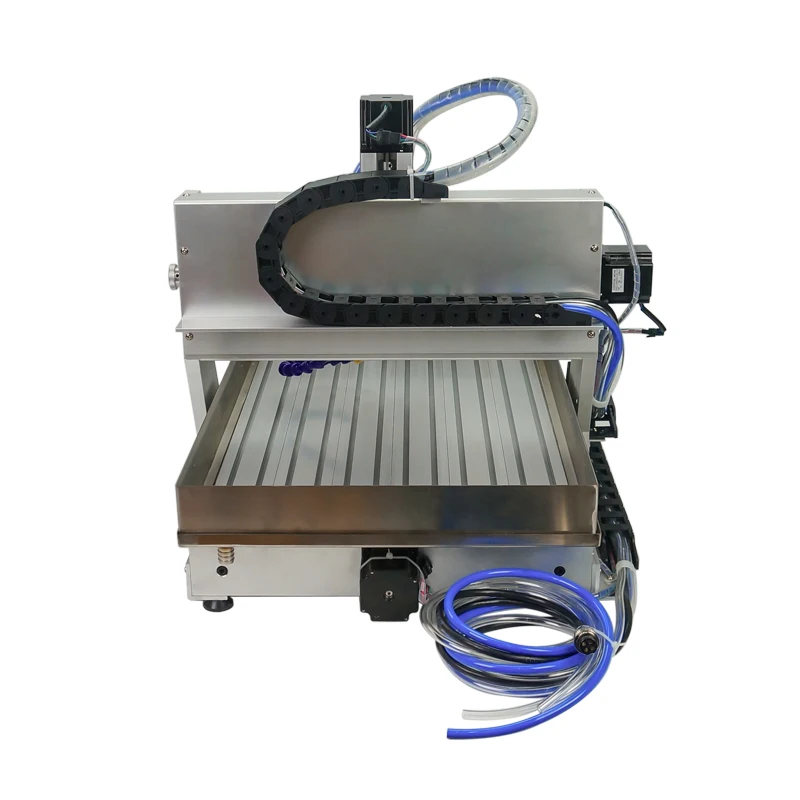

Mini CNC Router 3040Z 1.5kw with water tank Engraving Milling Machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL

3040Z with water tank

Attribute

3axis-LPT

3axis-USB

4axis-LPT

4axis-USB

Axis

3axis

3axis

4axis

4axis

Interface

LPT port

USB port

LPT port

USB port

Limit switch

Yes

yes

Yes

Yes

Tool auto-checking

Yes

yes

Yes

Yes

Spindle Motor:

1.5KW

1.5KW

1.5KW

1.5KW

Type of screw

Ball screw

Ball screw

Ball screw

Ball screw

Weigh

50

50

57

57

Machine Dimensions:

600X510X480mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

400X300mm

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤100mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

Spindle motor:

1.5KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8"(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

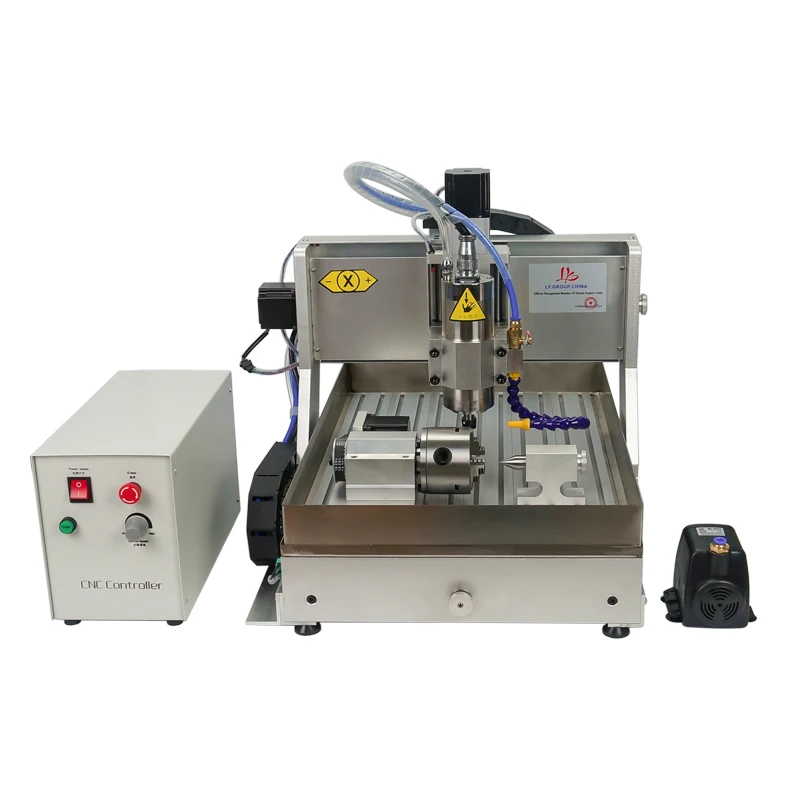

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °

Water tank is the requisite for engraving jade and metal on engraver;

The tank is made of 304 stainless steel, stable and beautiful;

Features:

a. The water tank has integrated low frame which can be removed

b. The size and weight of the tank are as follows. The hole is mainly applicable to the LY brand engraving machine,if you want to use other brands of engraving machines, you need to deal with it yourself;

c. The machine with installation of water tank , before shipment, has done a good deal of water leak-proof treatment. If you just buy a water tank, you need install it yourself and do the water leak-proof treatment;

Technical Parameters

name

water tank

Attribute

For 3020

For 3040

For 6040

For 6090

Size

430*300mm

535*400mm

735*520mm

1134*700mm

Weigh

2.5

3.5

4.3

8.6
