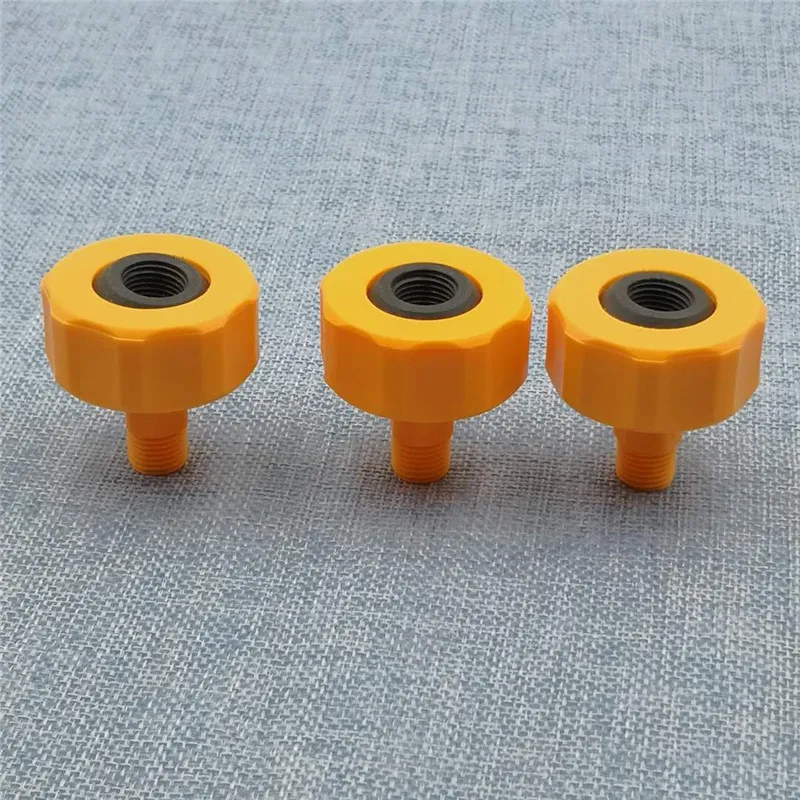

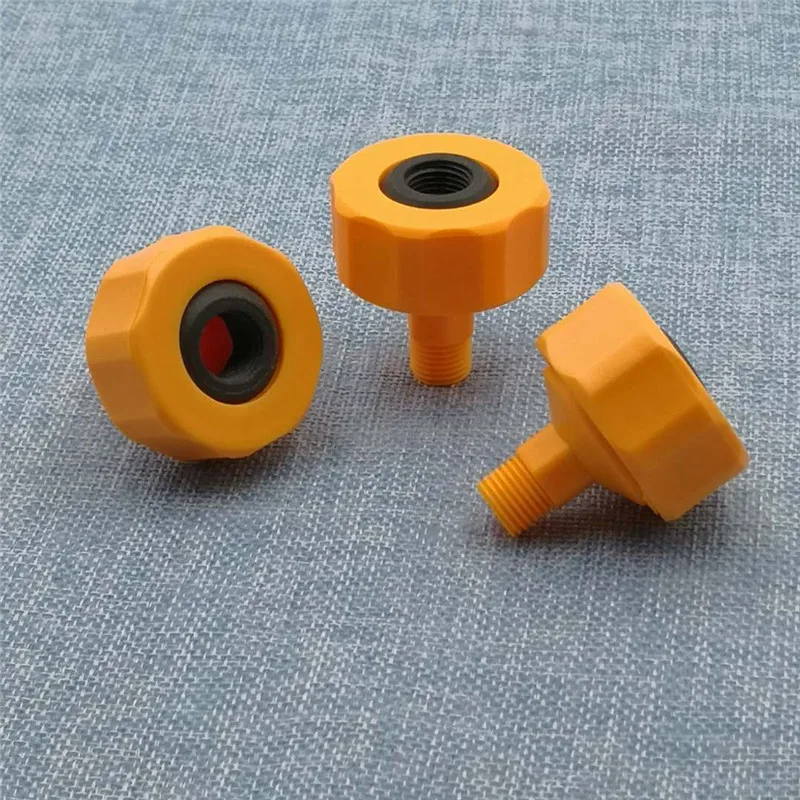

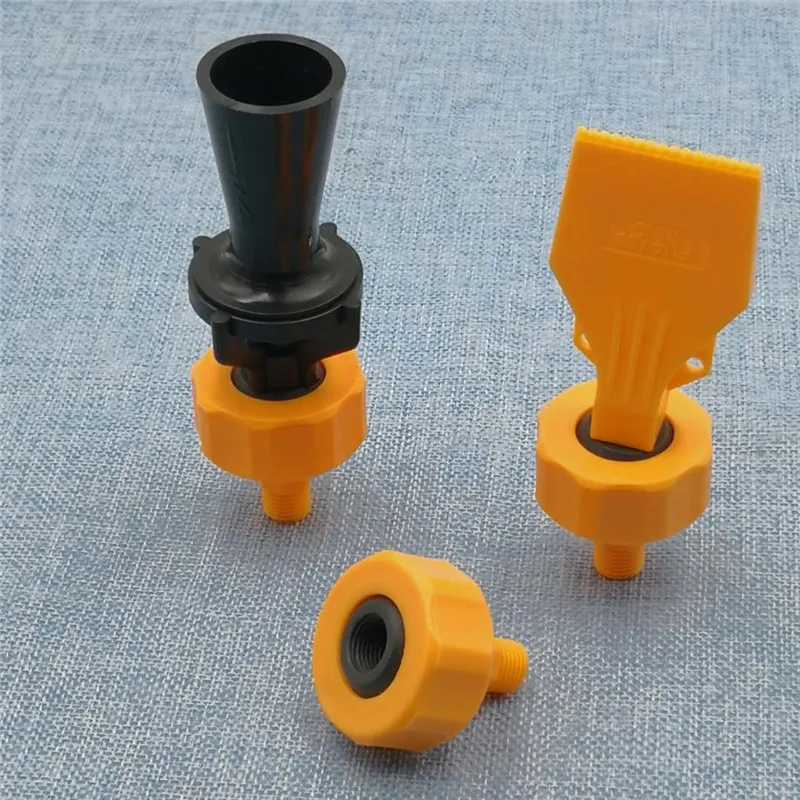

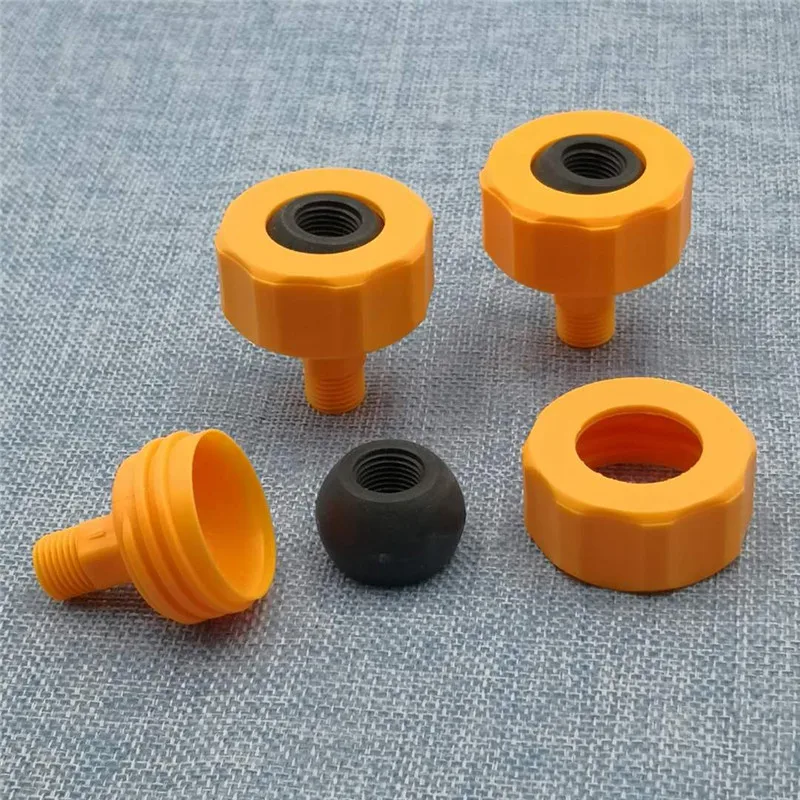

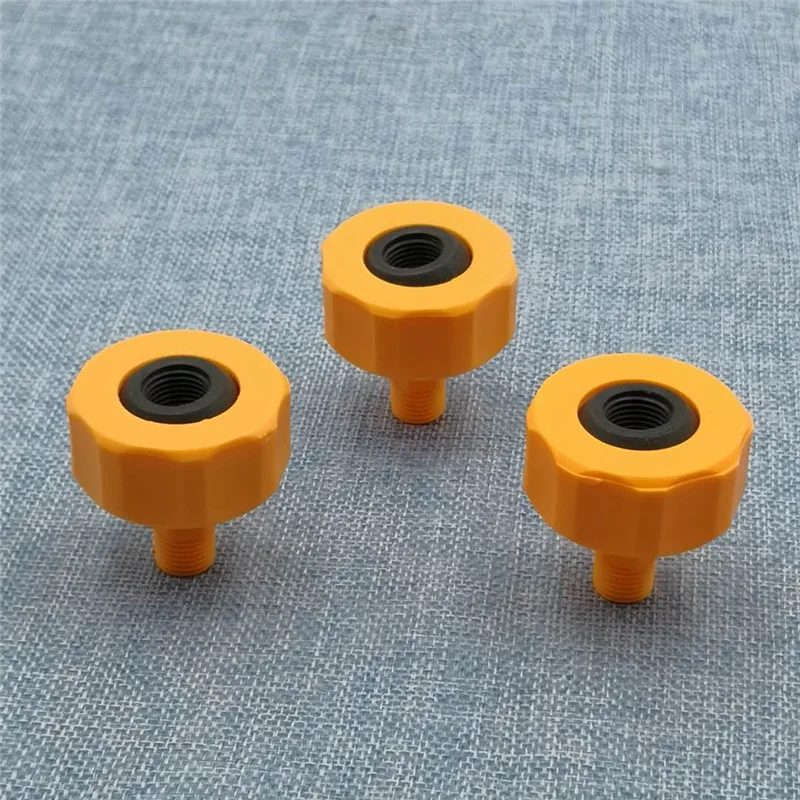

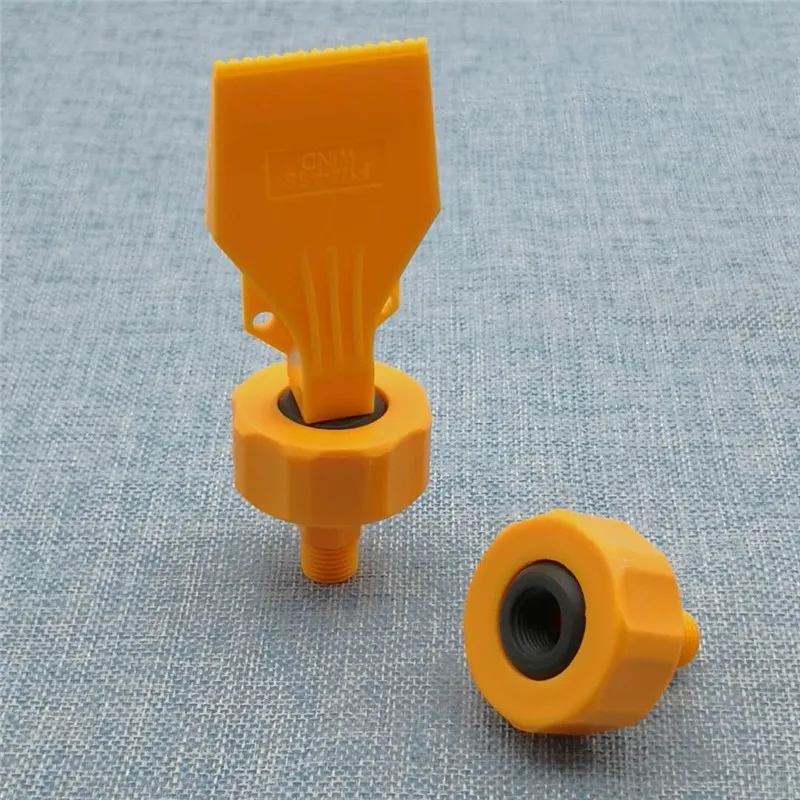

                                            Swivel ball joint nozzle

Design feature:

Adjustable ball fittings provide adjustable positioning of spray nozzles for more exact control of spray direction. They permit accurate pipe alignment and convenient nozzle positioning without disturbing pipe connections. They feature large internal passages to minimize clogging and smooth finished sealing surfaces to assure leak-proof connections.

Adjustanle ball fitting features a lock ring that holds the nozzle in position when jarred or subjected to vibration. The fitting has a relatively small diameter for applications requiring a compact size. Its maximum pressure rating is 300 psi (21bar). Nozzle removal for cleaning and readjustment is quick and simple.

Feature:

1.Can be quickly and accurately adjust the injection direction;and you can installed it without any other

tools,just by hands;
2.Resistance to chemical corrosion and wear,very suit for phosphoric acid,acid,solvents and other caustic

washing;
3.The spraying parttern diversification;
4.Humaized design.

Application:

1.Plating pretreatment cleaning;

2.Painting and coating before chemical treatment;
3.Spray coating before electrophoresis processing;
4.Steel plate pretreatment spraying;
5.Cleaning vegetables and fruits;
6.Degreasing and phosphating in surface treatment;
7.Other chemical treatment and low pressure applications.
