16MP 1080P HDMI Microscope USB digital Camera 7X-45X Simul-focal Trinocular Zoom Stereo Head WF10X 20mm Eyepiece Lens | Инструменты

    7X-45X zoom magnification power with crisp sharp images Super widefield high-eyepoint optics widefield of view 4" (200mm) working distance Sturdy all-metal pillar stand Powerful 56-LED ring light with dimmer This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries. Key Feature:   An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light 7x-45x super wide zoom magnification power Bright cool light 56-LED illumination system High resolution with great flatness and contrast, giving sharp and clear images Binocular head with 45 degree inclined 360 degree swiveling eye tubes Sharp stereo erect images with a wide field of view Crystal clear original true color microscope images Dual eye tubes with adjustable diopters Large working distance Sturdy all-metal table stand Accurate alignment reduces eye strain for longer periods of viewing Full optical glass elements Precise ground glass lenses Full metal chrome-plated mechanical components Adjustable interpupillary distance Rubber eye-guards included   Specification:   Head: 360 degree rotatable 45 degree inclined binocular Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM Objective Zoom Range: 0.67X-4.5X, using the Barlow lenses Working Distance: 4" (100mm) Diopter Adjustment: +/- 5dp Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm) Round Plate: 3-3/4" (95mm) in diameter Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm) Illumination: 56-LED Ring Light Power Input: 110-240V, 50-60HZ, Automatic Switching Accessories: Paired eye-caps Weight: 5.5kg



Specification

Model

H9-2

Series

HDMI lndustrial Camera

Sensor size

1/2.3"

Effective pixel

16million pixels

Resolution

1920*1080@30FPS

Output

USB2.0、HDMI、TF card,

infrared remote control

Pixel size

1.43*1.43μm

Power

DC-12V/1A

Features

Basic Function

Brightness, white balance, date adjustment

Image adjustment

Exposure

Camera function

Digital zoom

Storage

Instant photo, video, picture preview

Reticle

Four sets of reticle, can define the color,

line, displacement, and hidden

Crosshair

Can adjust color, line size, hide or display

  1. HDMI connection monitor or USB connection to the computer,
plug in 12V power supply
2. Tap the switch key (wait for a few seconds for the first time),
when the LED light changes from red to blue, the camera is running.
Waiting for the display to show
3. Tap the main menu button to bring up the main menu
4. Tap the camera button to store the picture in the TF card.
5. Tap the record button to jump to the recording function,
then press the enter button to start recording,
tap the record button again to store the preview for the picture.
6. Rotate the shuttle counterclockwise to enlarge the image in the screen
7. Rotate the shuttle clockwise to reduce the image in the picture.
8. Press and hold the key to turn off the camera.   56 LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination
56Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

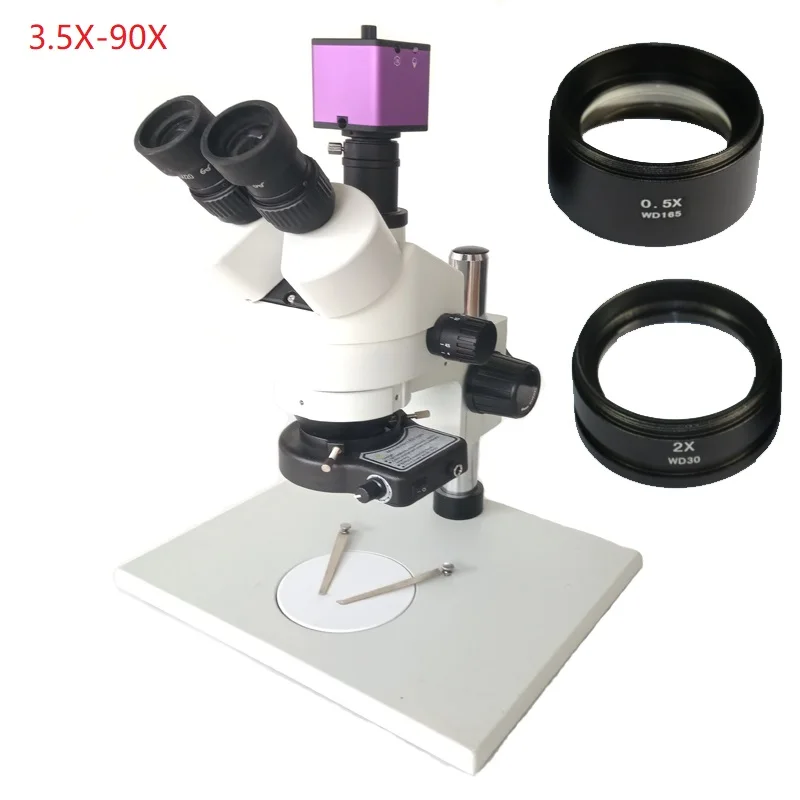

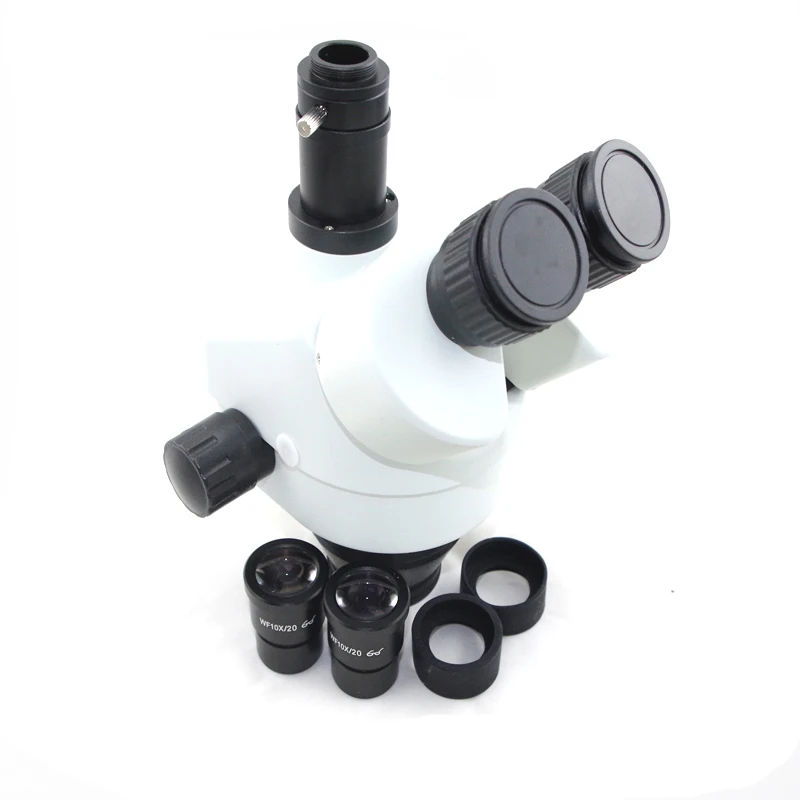

  Package incluede:   1 x Tinocular Stereo Zoom Head 1 x Pair of Super Widefield 10X Eyepieces 1 x Power Supper for Camera (5V) 1 x Pillar Table Stand 1 x Focusing Rack 1 x C-mount Adapter 1 x Pair of Eye-Guards 1 x Pair of Clips 1 x Dust Cover  1 x 2.0X Objective lens 1 x 0.5X Objective lens 1 x 16MP HDMI USB TF microscope camera







Specification

Model

H9-2

Series

HDMI lndustrial Camera

Sensor size

1/2.3"

Effective pixel

16million pixels

Resolution

1920*1080@30FPS

Output

USB2.0、HDMI、TF card,

infrared remote control

Pixel size

1.43*1.43μm

Power

DC-12V/1A

Features

Basic Function

Brightness, white balance, date adjustment

Image adjustment

Exposure

Camera function

Digital zoom

Storage

Instant photo, video, picture preview

Reticle

Four sets of reticle, can define the color,

line, displacement, and hidden

Crosshair

Can adjust color, line size, hide or display
