This product uses special compression modulation technology, on the front end (transmitter) let 2-channel CVI/AHD/TVI hd camera to compressed, then made into digital signal in coaxial cable transmission. The back-end (receiver) through modulation, reductive into 2-channel hd signals for hd DVR (CVI/TVI/AHD) or matrix use after decompression. This series of products can be in adaptive adjust transmission distance within 0-400 m.

It supports 2 channel video signals in one coaxial cable by way of Frequency Division Multiplexing, with all data transmission real-time and all images high-definition and non-delay. It is suitable for improvement of

old projects and building under new projects.

Key features:

1. it’s designed according to projects with minimum installation volume requirement.

2. 2-CH video in one coaxial cable transmission.

3. FDM technology is easy for multi-channel signals transmission only in one coaxial cable without any delay and interference.

4. Perfect support coaxial video line, 75-3, 75-5, RG59 wire, etc.

AHD (made by XM): perfect quality effect, support 720p, 960p, 1080p

CVI (made by DAHUA): perfect quality effect, support 720p, 960p, 1080p

TVI (made by Hikvision):support 720p, 960p, 1080p, 3mp

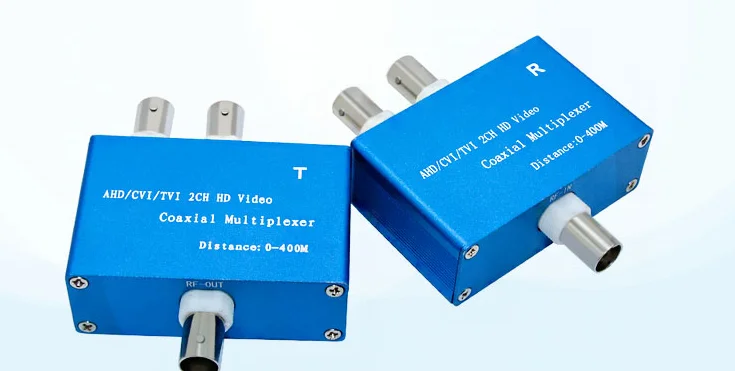

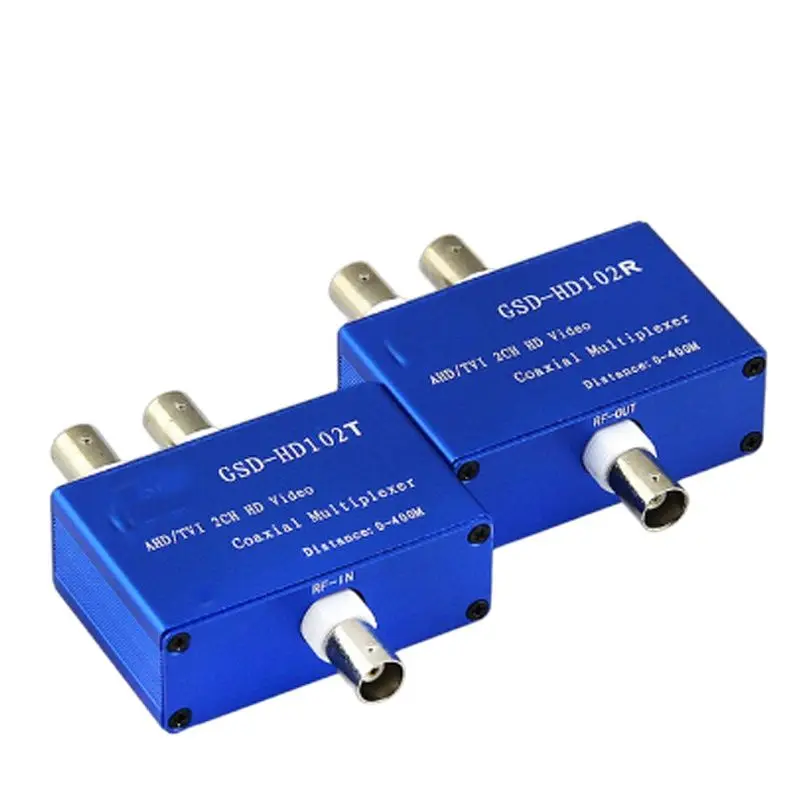

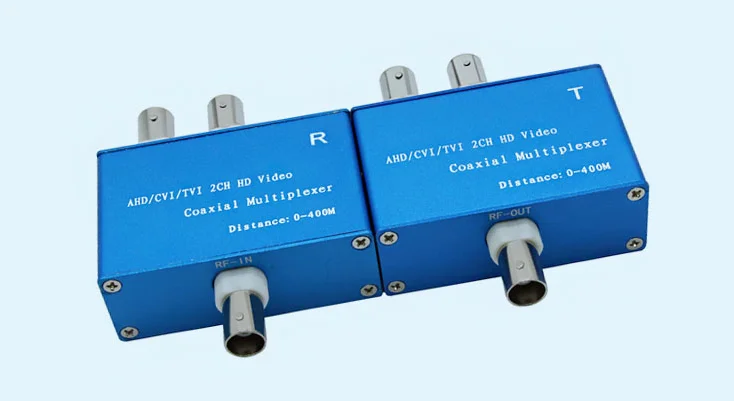

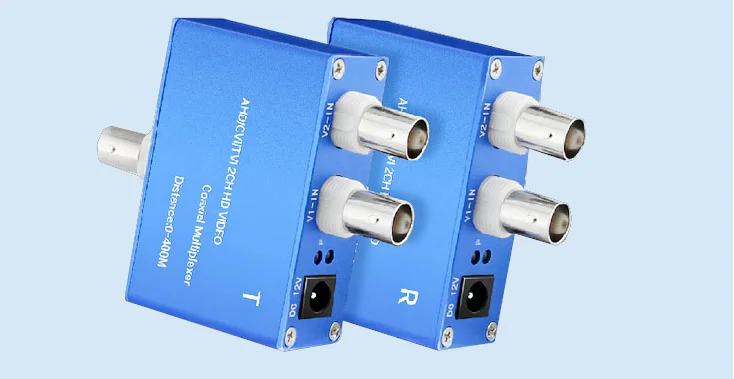

One pair of video multiplexer

Notice :
No power Adapter included , the factory reserve the right to update the parameters without prior notice. thanks.
