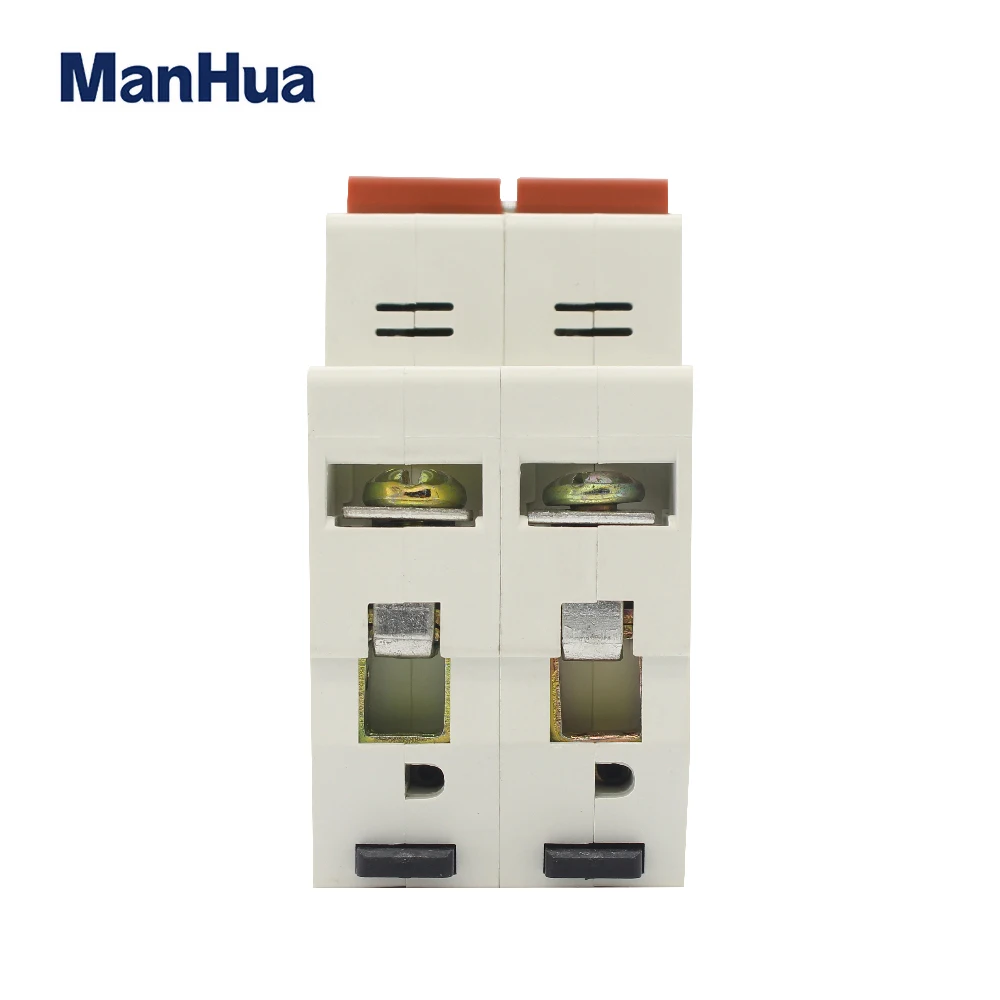

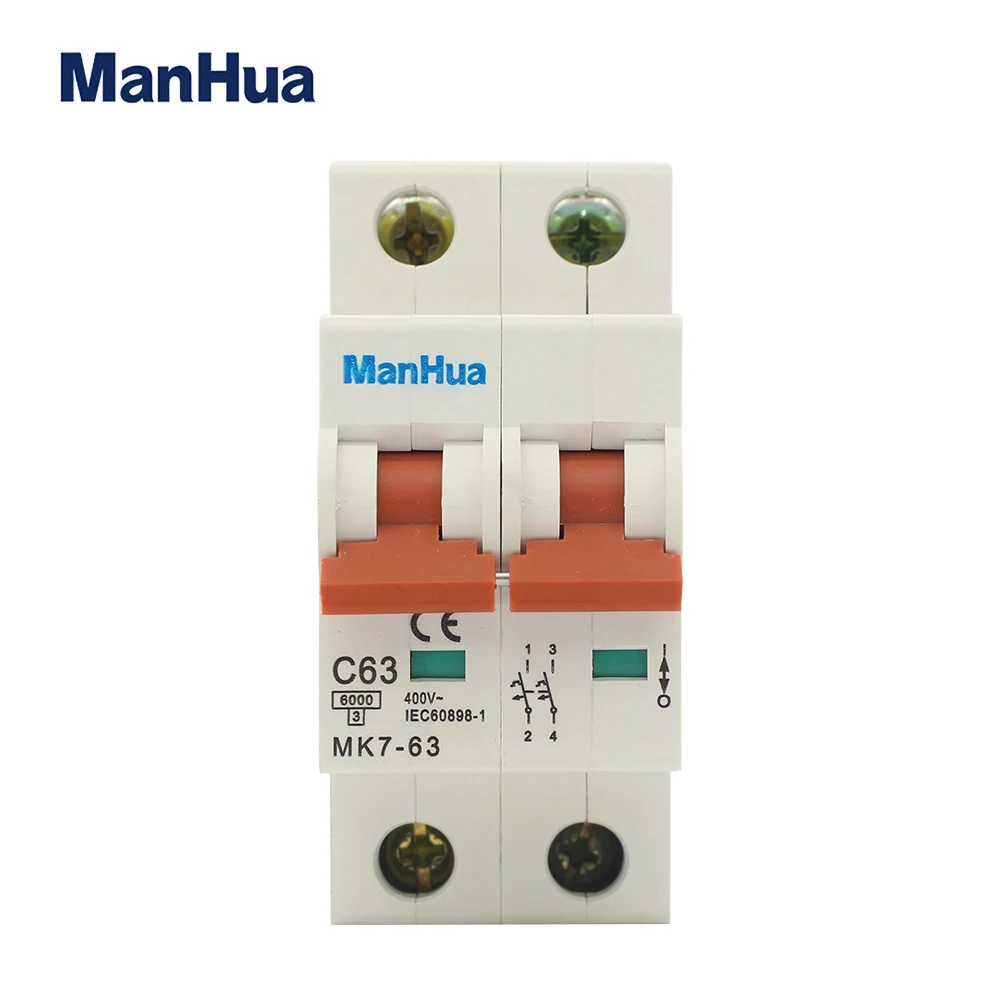

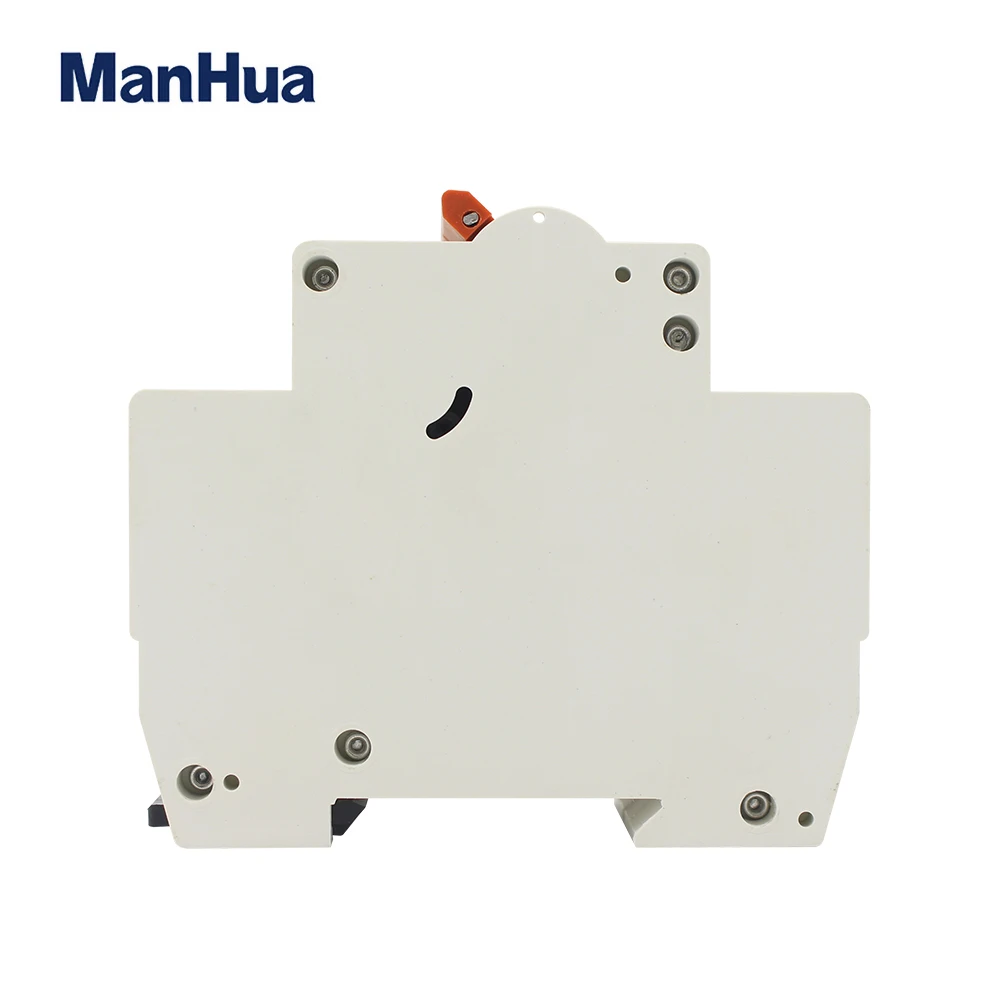

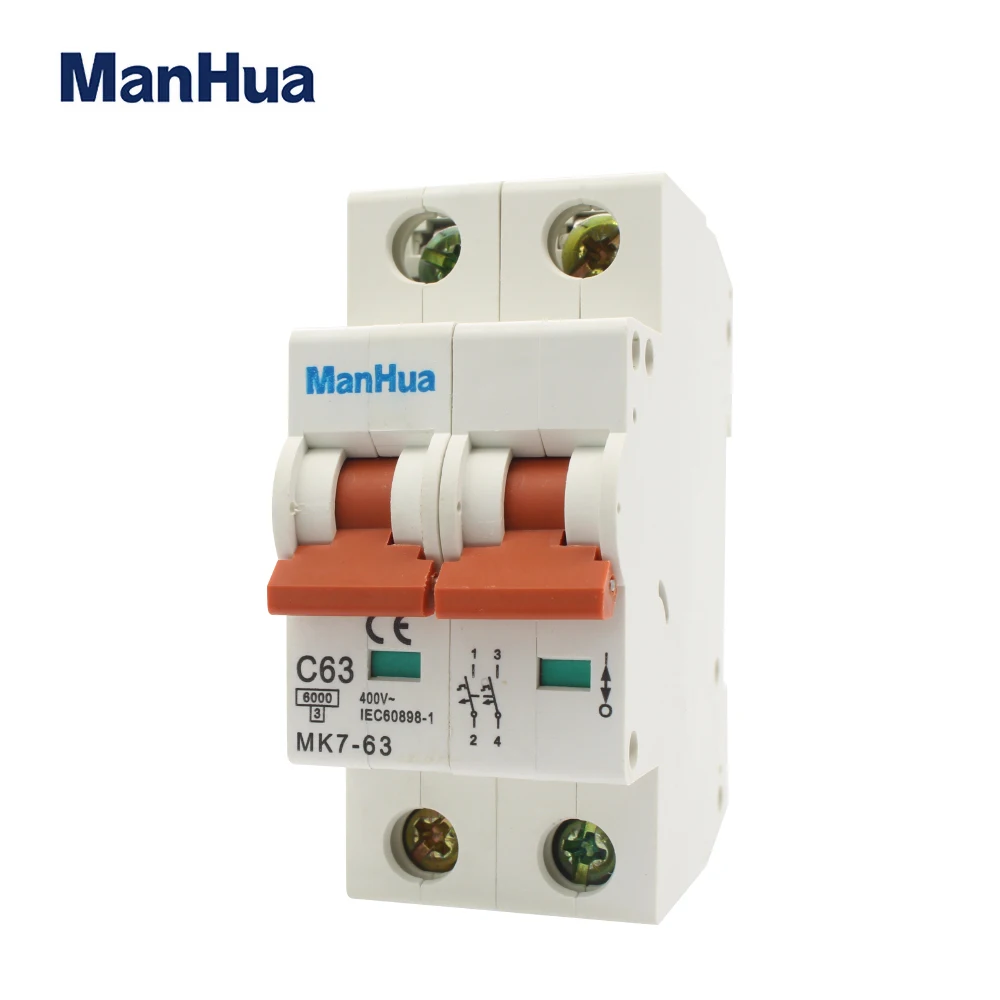

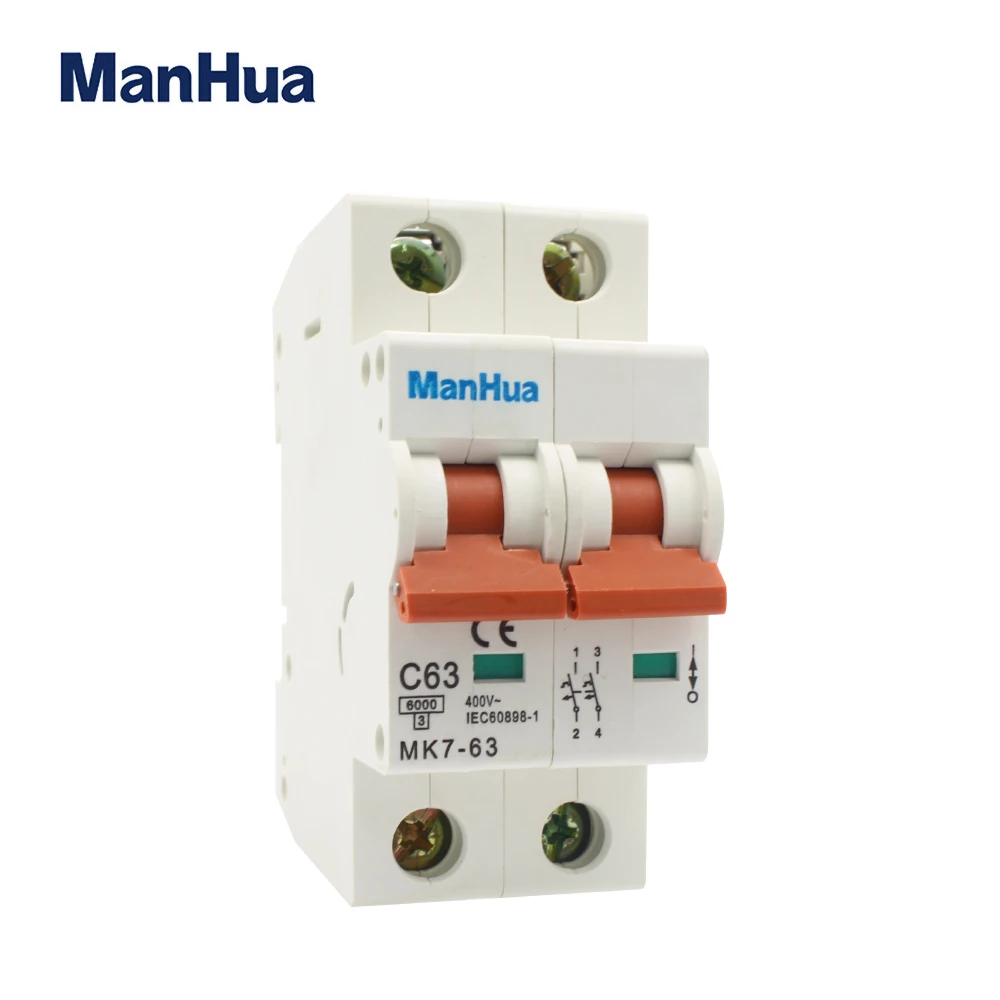

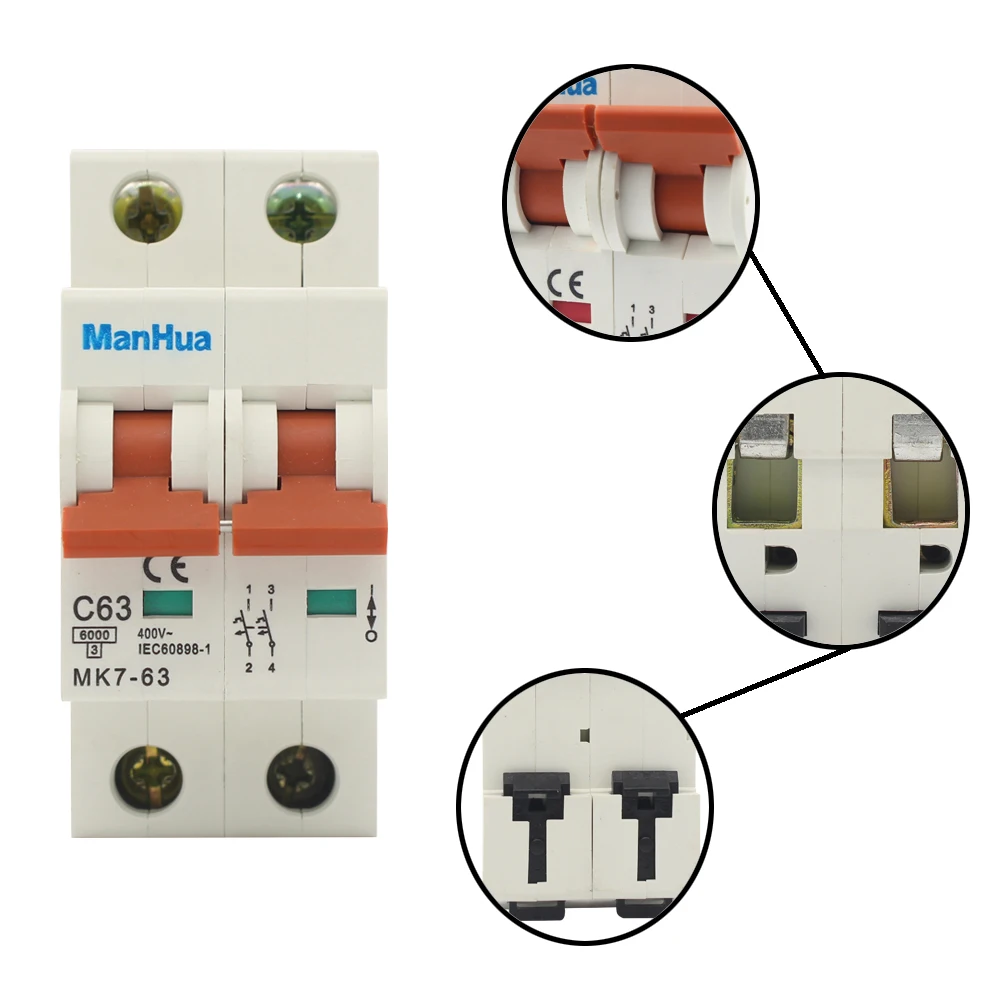

Manhua MCB MK7-63 C63 2P 63A 400VAC breaking capacity Overload Protection Short circuit protection Miniature Circuit Breaker

Description:

MK7-63 Miniature Circuit Breaker or called MCB is mainly used in the AC 50 / 60Hz, rated operating voltage of 400V and below, rated current of 63A circuit, the circuit breaker is mainly used in electrical wiring of modern buildings and overload, short circuit protection of equipment, also applies to infrequent operation and isolation of the line. Structural features of MK7-63 MCB is composed of the plastic casing, operating mechanism, contact arc system, trip mechanism and other components. The casing uses a special plastic with high flame retardant and high strength, it has high impact resistance and light-weight. The parts of the operating mechanism of MK7 Circuit Breaker are made of high-strength plastic, which ensures the sensitivity and reliability while obtaining the lowest moment of inertia so that the time from the short circuit fault to the trip mechanism operation is short. The tripping mechanism is composed of a bimetal over-load reverse-time trip mechanism and a short-circuit instantaneous electromagnetic mechanism. Contact arc system uses a special guide arc angle and aisle off room, and has significant current limiting characteristics.

Technical Data:

Type

MK7-63

Number of poles

2P

Rated current In

63A

Rated voltage Ue

400VAC

Operational voltage

Min.24VAC Max.250/440VAC

Rated frequency

50/60Hz

Rated insulation voltage

500VAC

Rated impulse withstand voltage

6000V

Standard

IEC60898-1

Thermal operating limit(In)

1.13-1.45

Rated switching capacity Icn

6kA

Degree of protection

IP40(top),IP20(terminal),with connected conductors

Electrical life(0-C)

8000

Mechanical life(0-C)

20000

Max fuse

100gL(>10kA)

Mounting position

any

Terminal could use for bus bar connection thickness

0.8-2mm

Wiring

1-25mm²

Terminal tightening torque(N.m）

2.5-3

The relative humidity is Max 95% when ambient temperature

55℃

Storage temperature

-40℃~+85℃

Altitude Max.

2000m

Functions:

1.Overload protection measured temperature

2.Short circuit protection

3.Isolation

4.Controlling

5.Used in residential building.non-residential building,energy,industry and infrastructure.

Dimension:
