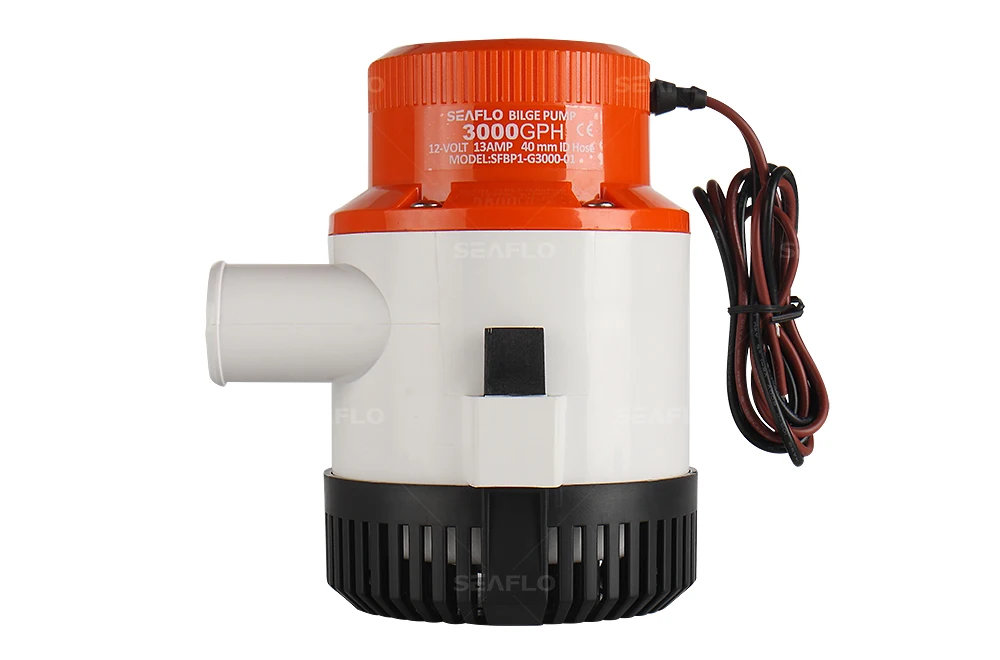

Marine Boat Yacht RV Caravan 01 Series 3000GPH Seaflo 12V 24V Bilge Pump

SEAFLO non-automatic bilge pumps offer water evacuation activated by a panel or float switch. Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you’ll have no problem changing to us from them.

The listing price does not include any duties/taxes/custom fees/etc that will be due when the product arrives at destination countries/regions.

Please choose the right pump model based on below description and information.

MORE FEATURES

- 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
- Traditional operation by switch or float switch
- Entirely submersible

- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model

Flow Rate

Voltage

Max Draw

Fuse Amps

Head

Wire Lead

Outlet Dia

N.W. / G.W.

SFBP1-G3000-01

3000 GPH

12 V

14.0 A

20.0 A

26' (8m)

3' (1m)

1-1/2"

2.10/2.37 kg

SFBP2-G3000-01

3000 GPH

24 V

7.0 A

12.0 A

26' (8m)

3' (1m)

1-1/2"

2.10/2.37 kg

PERFORMANCE

Voltage(V)

Current(A)

Flow

Head(M)

GPH

LPH

12

10

2580

9765

0

12

10.2

2420

9160

0.5

12

10.5

2350

8895

1

12

10.7

2120

8024

1.5

12

11

2070

7835

2

12

11.2

1780

6737

2.5

12

11.5

1630

6170

3

Key

Description

Quantity

1

Tapping Screw

6

2

Wire Buckle

1

3

Pump Cover

1

4

Motor

1

5

Seal 1

1

Key

Description

Quantity

6

Motor Cover

1

7

Seal 2

1

8

Impeller

1

9

Pump Housing

1

10

Strainer

1

·
